| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

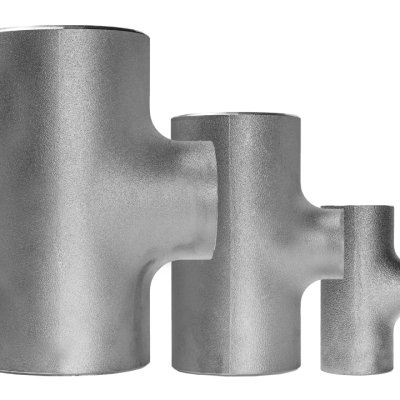

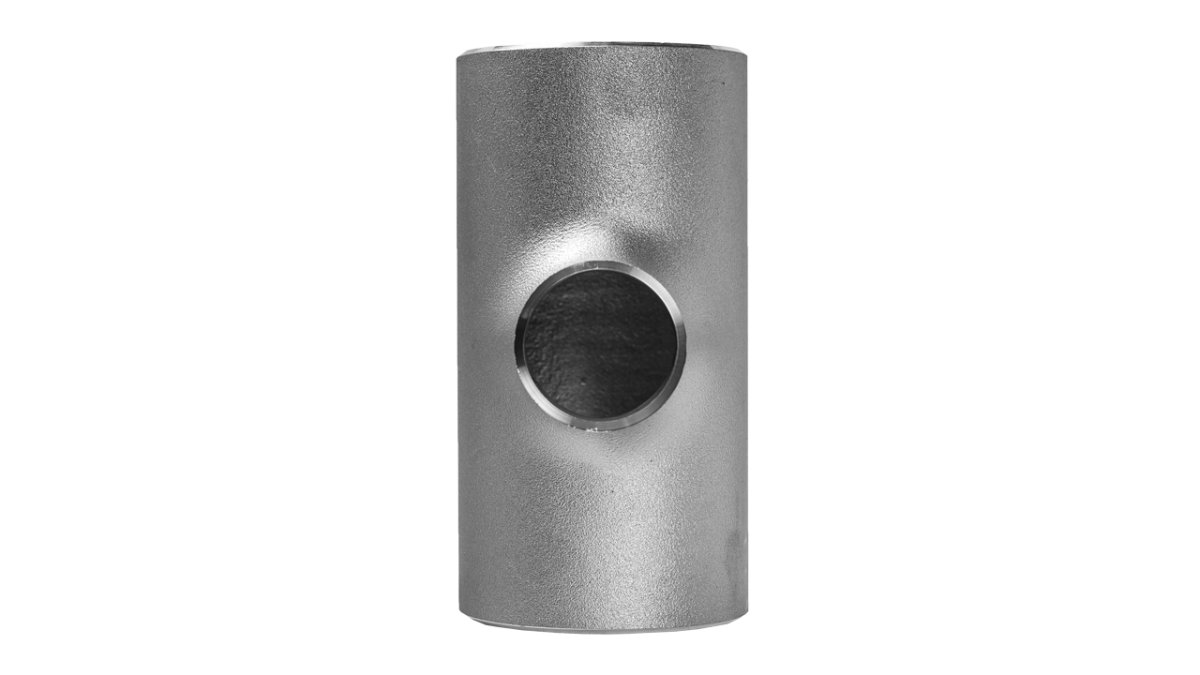

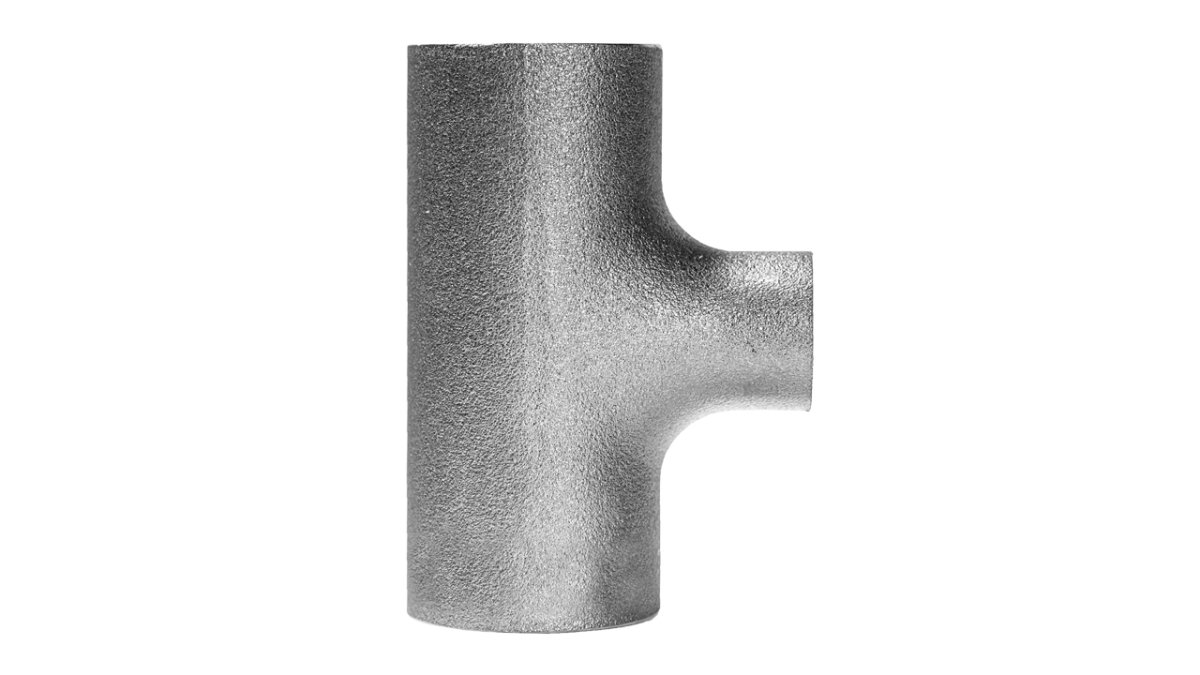

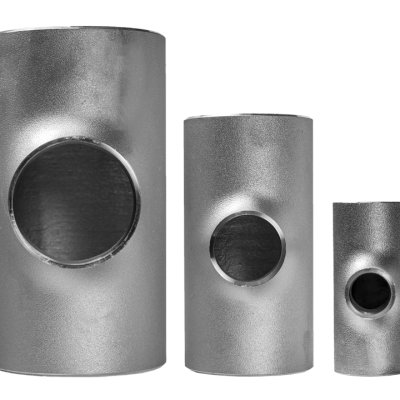

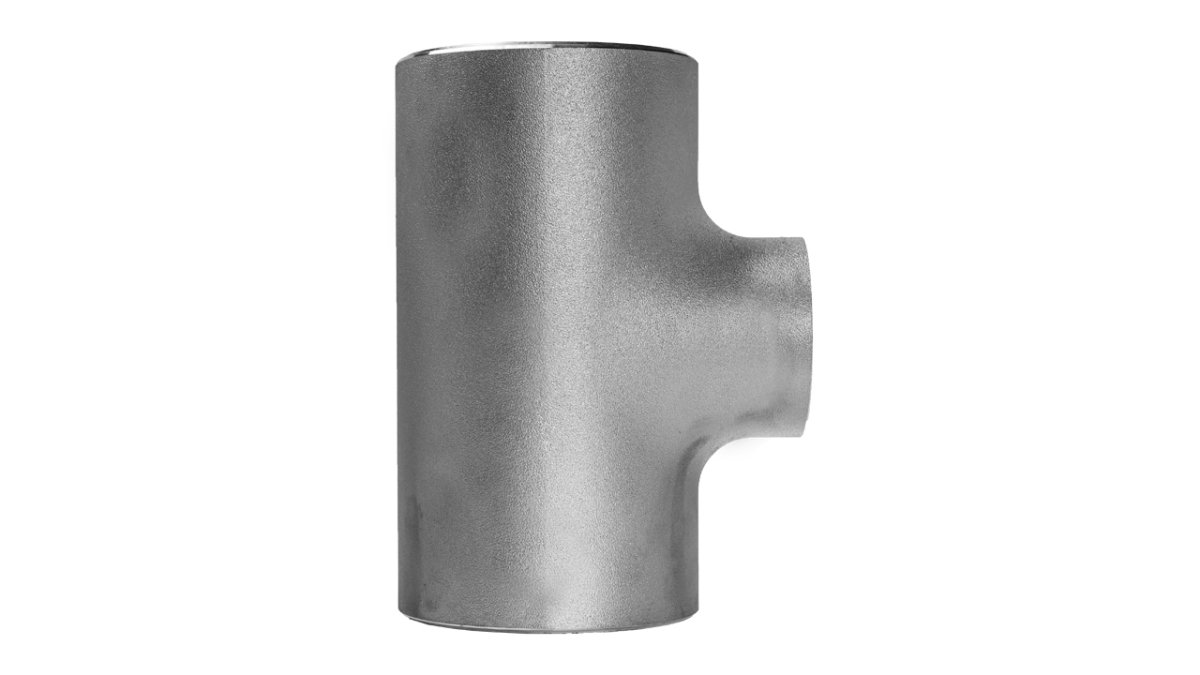

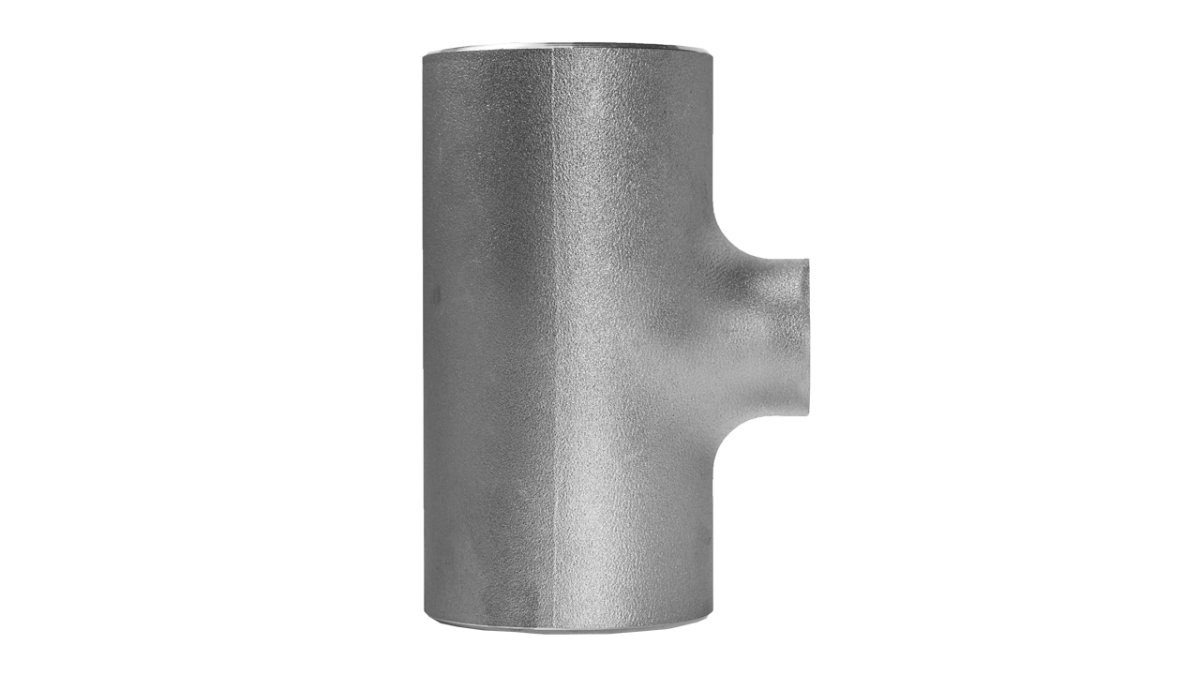

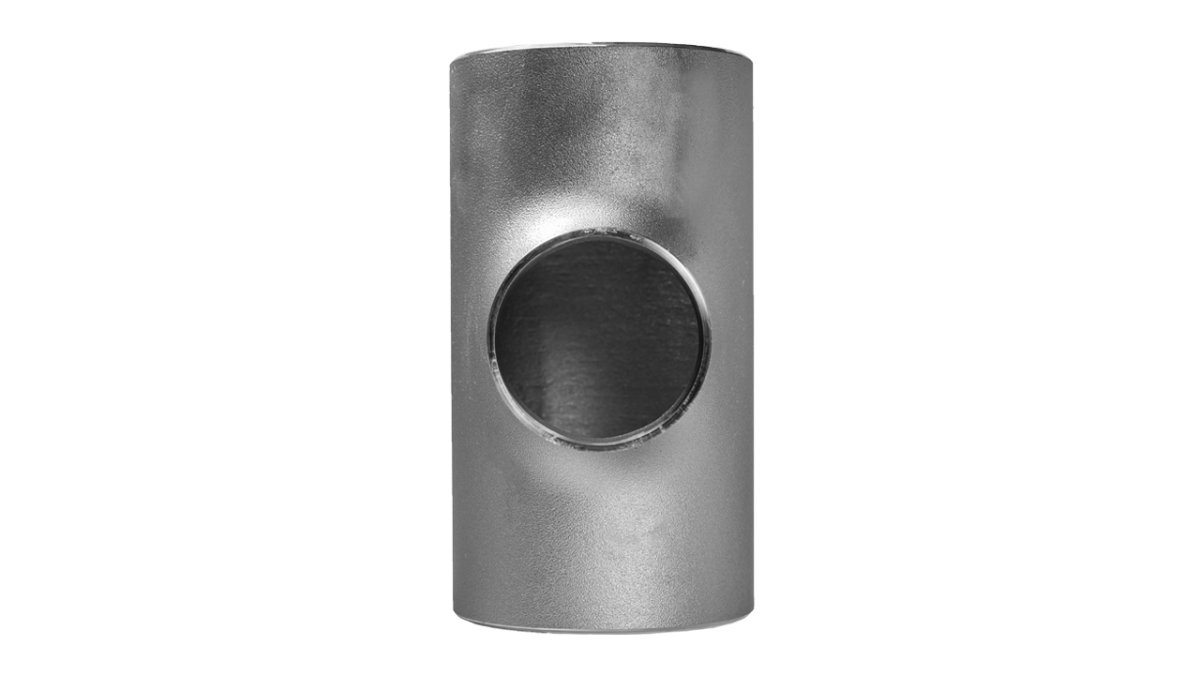

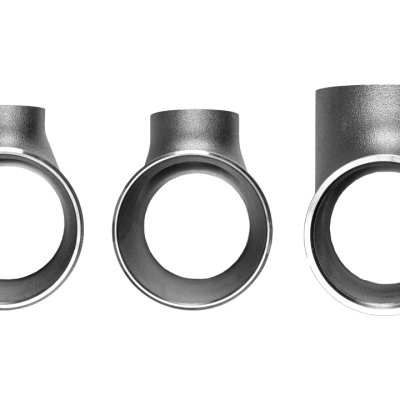

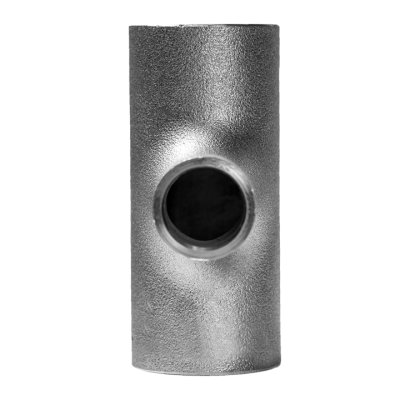

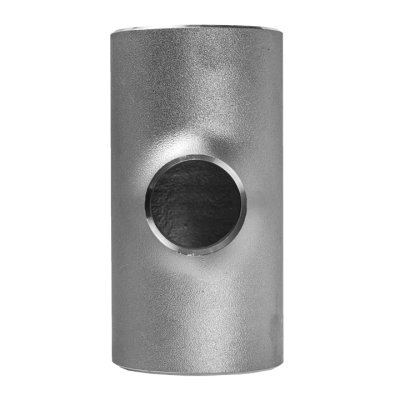

| Verloop T-stuk |
|
26.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

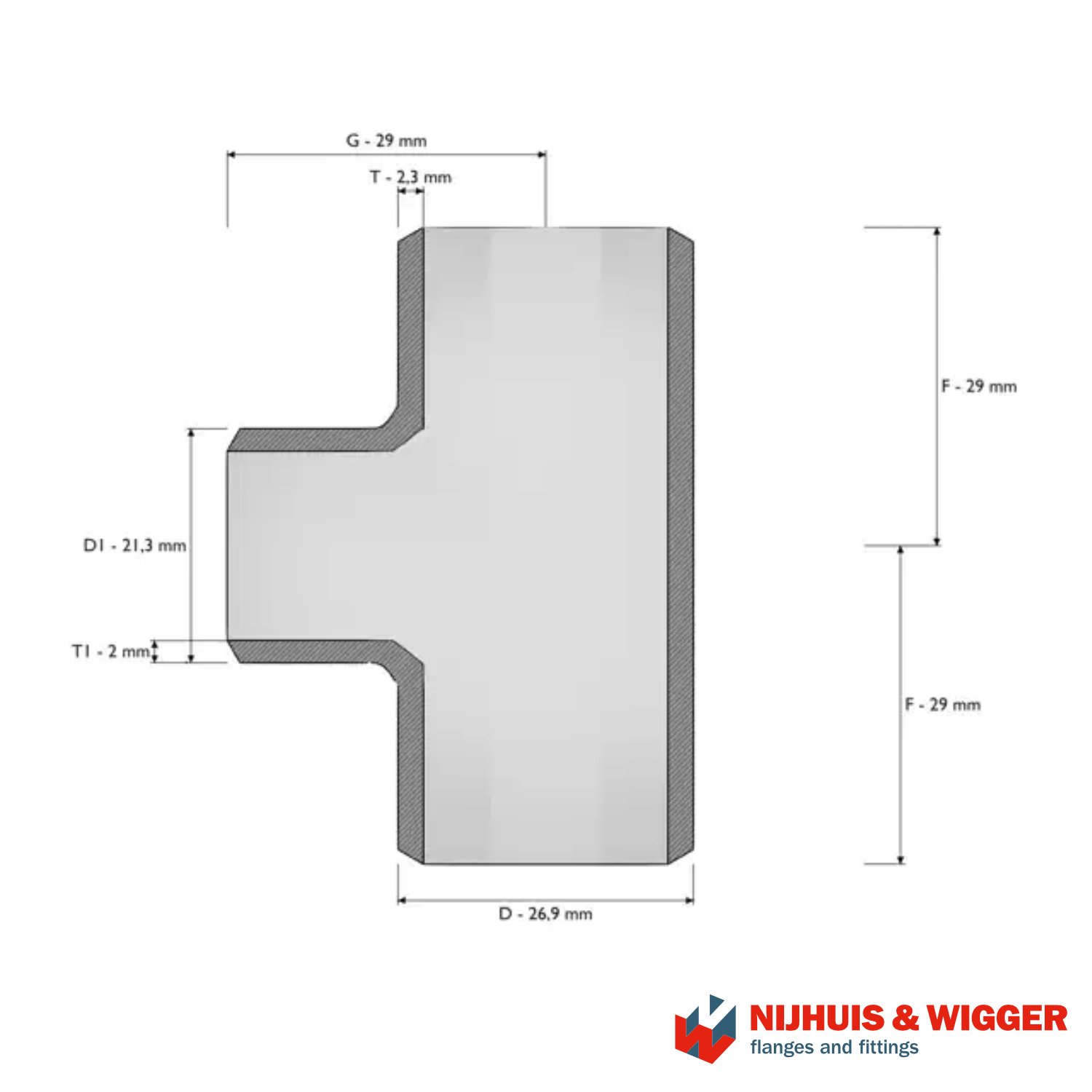

Buitendiameter 2 (D1)
|
21.3
|
|
Buitendiameter 1 (D)
|
26.9
|
|
Wanddikte (T1)
|
2.0
|
|
Wanddikte (T)
|
2.3
|
|
Lengte T-stuk (F)
|
29
|
|
Hoogte T-stuk (G)
|
29
|
- weight 0.14
|

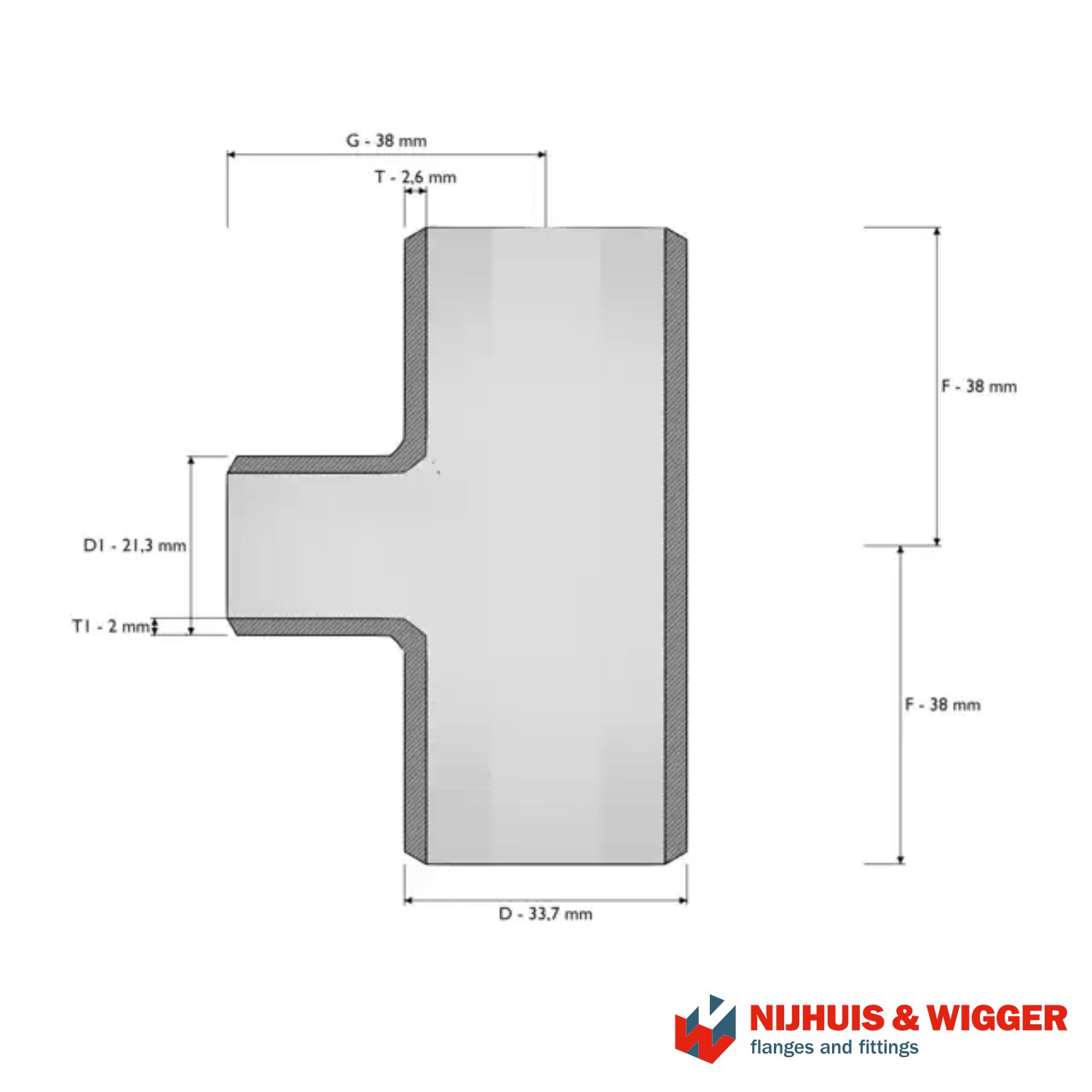

| Verloop T-stuk |
|
33.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
21.3
|
|
Buitendiameter 1 (D)
|
33.7
|
|
Wanddikte (T1)
|
2.0
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
38
|
|
Hoogte T-stuk (G)
|
38
|
- weight 0.24
|
| Verloop T-stuk |
|
33.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
26.9
|
|
Buitendiameter 1 (D)
|
33.7
|
|
Wanddikte (T1)
|
2.3
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
38
|
|
Hoogte T-stuk (G)
|
38
|
- weight 0.25
|
| Verloop T-stuk |
|
42.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
21.3
|
|
Buitendiameter 1 (D)
|
42.4
|
|
Wanddikte (T1)
|
2.0
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
48
|
|
Hoogte T-stuk (G)
|
48
|
- weight 0.35
|

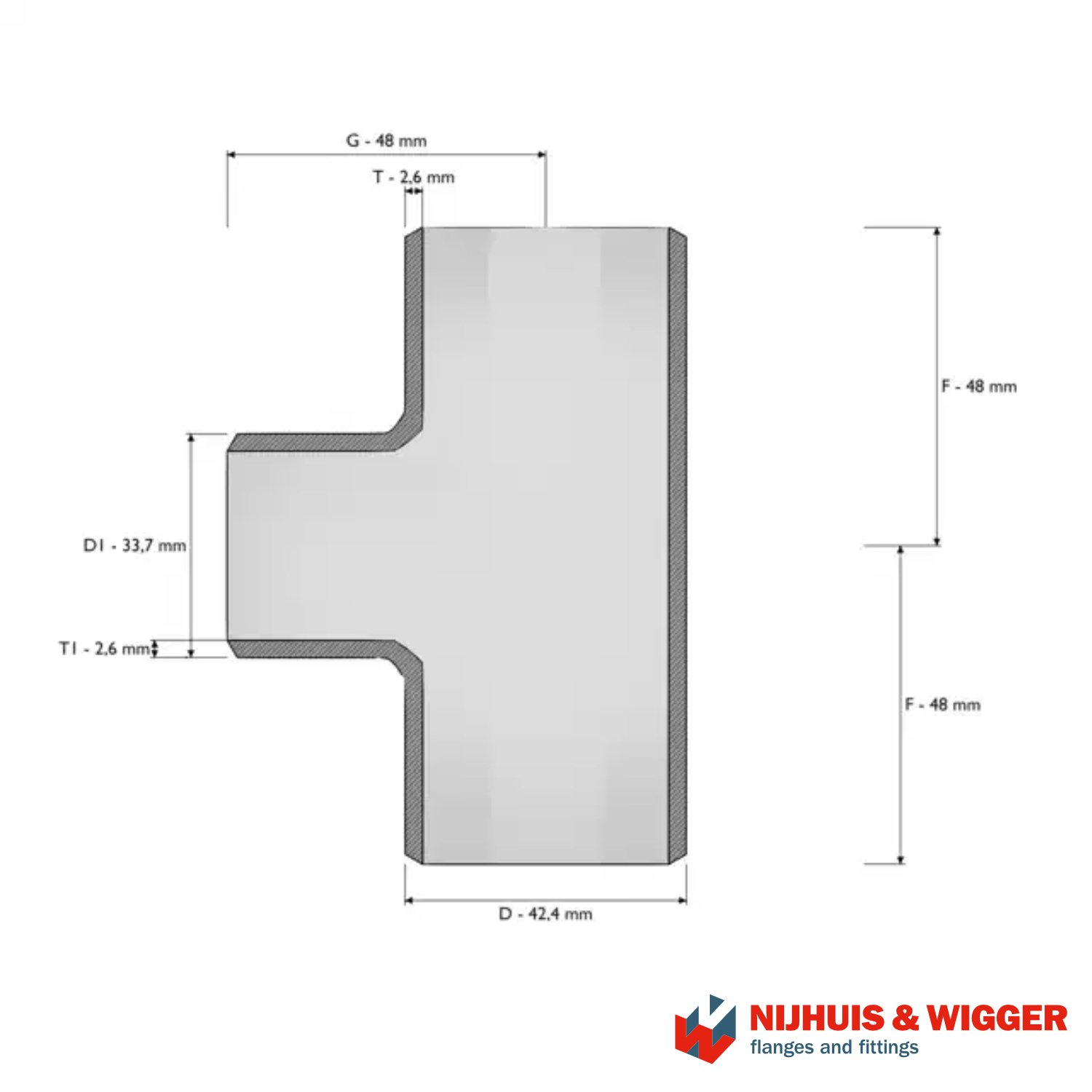

| Verloop T-stuk |
|
42.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
26.9
|
|
Buitendiameter 1 (D)
|
42.4
|
|
Wanddikte (T1)
|
2.3
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
48
|
|
Hoogte T-stuk (G)
|
48
|
- weight 0.37
|
| Verloop T-stuk |
|
42.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
33.7
|
|
Buitendiameter 1 (D)
|
42.4
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
48
|
|
Hoogte T-stuk (G)
|
48
|
- weight 0.4
|

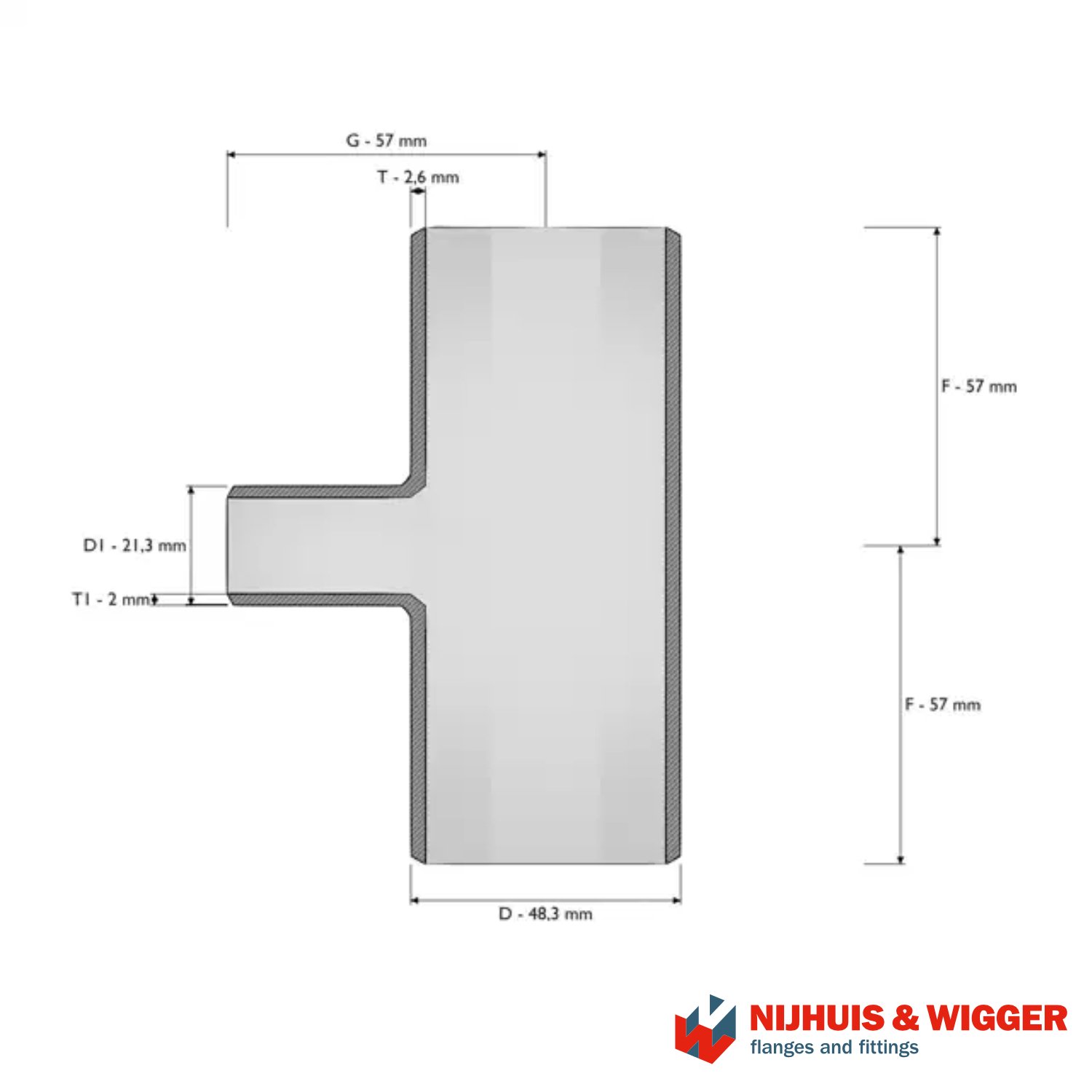

| Verloop T-stuk |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
21.3
|
|
Buitendiameter 1 (D)
|
48.3
|
|
Wanddikte (T1)
|
2.0
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
57
|
|
Hoogte T-stuk (G)
|
57
|
- weight 0.47
|
| Verloop T-stuk |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
26.9
|
|
Buitendiameter 1 (D)
|
48.3
|
|
Wanddikte (T1)
|
2.3
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
57
|
|
Hoogte T-stuk (G)
|
57
|
- weight 0.51
|

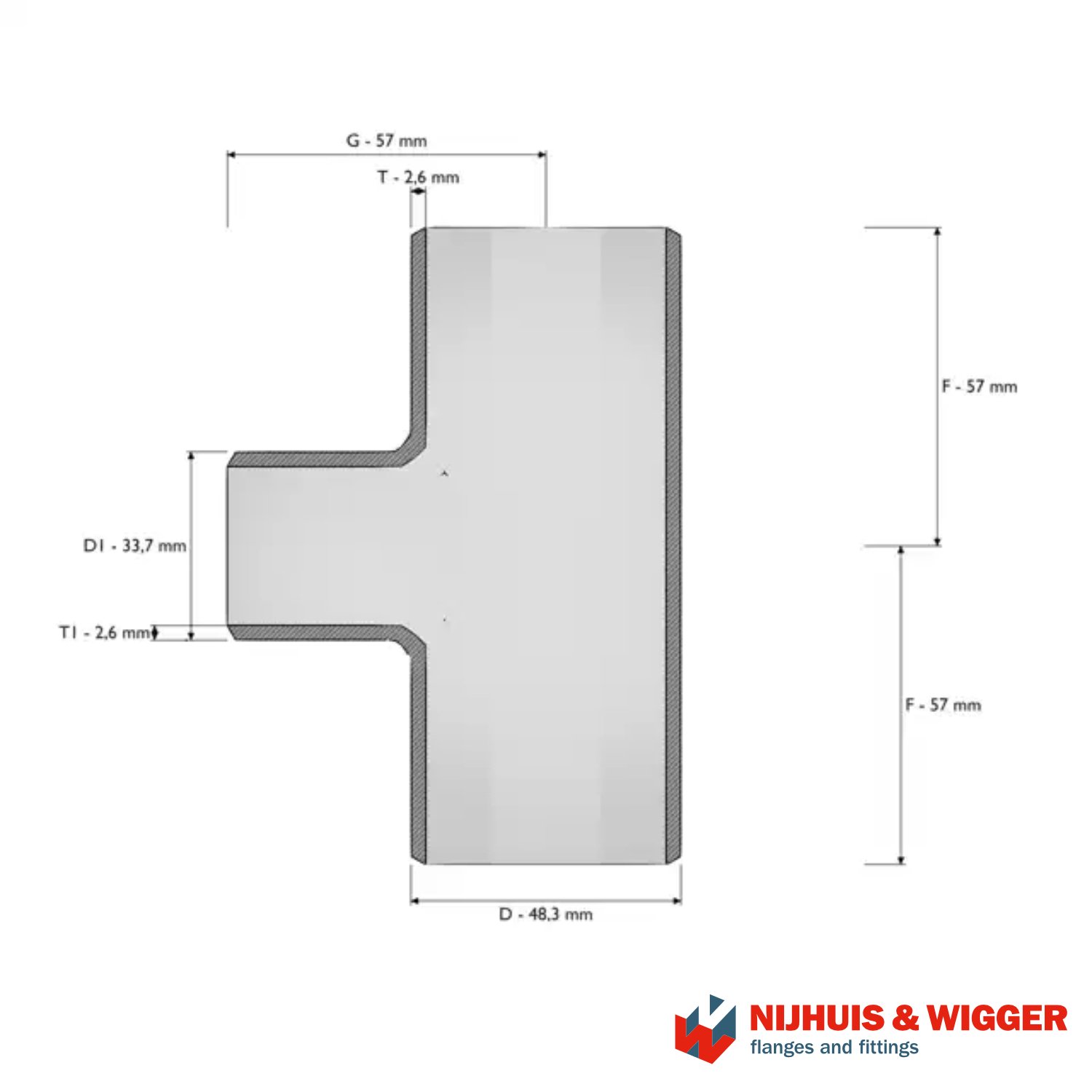

| Verloop T-stuk |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
33.7
|
|
Buitendiameter 1 (D)
|
48.3
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
57
|
|
Hoogte T-stuk (G)
|
57
|
- weight 0.55
|

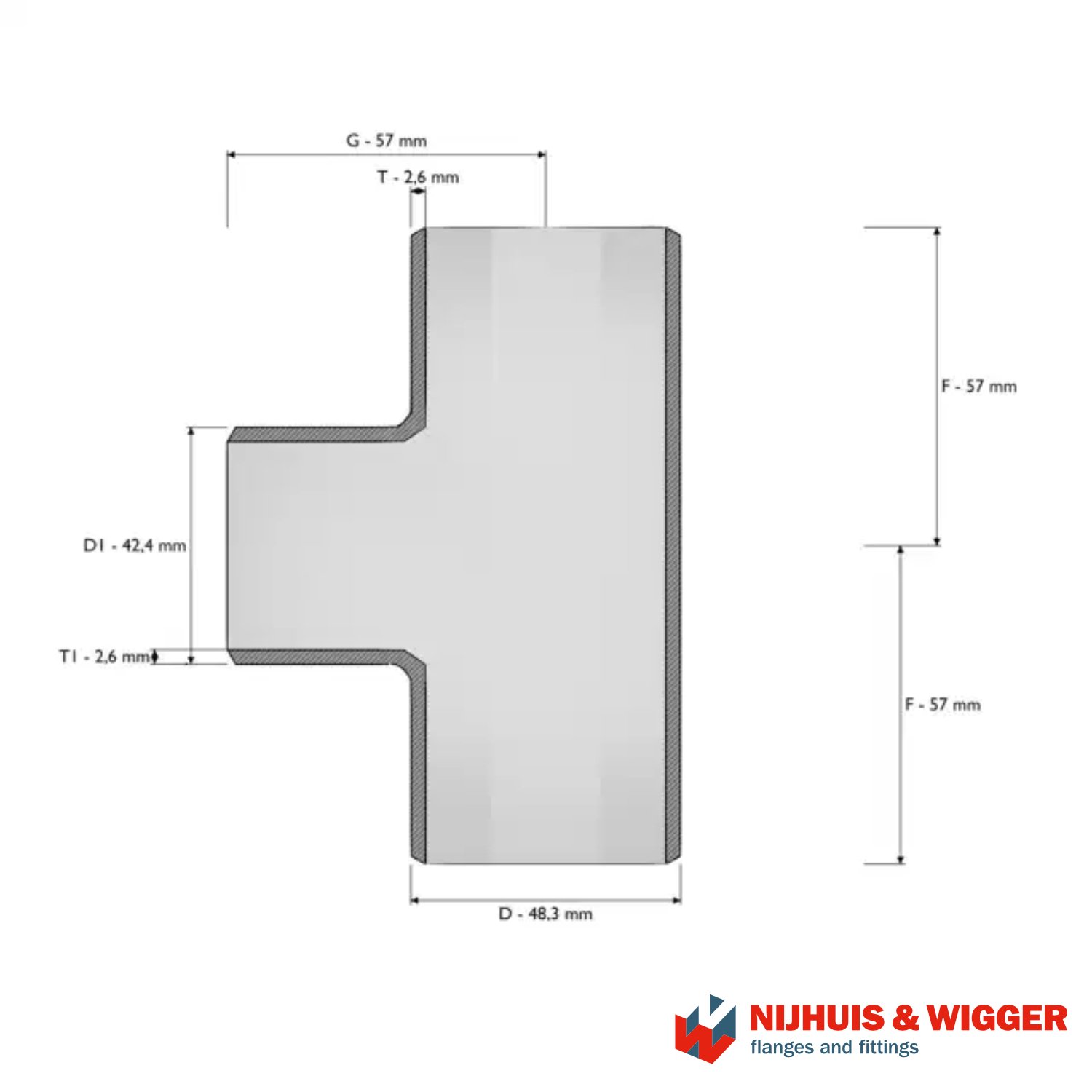

| Verloop T-stuk |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
42.4
|
|
Buitendiameter 1 (D)
|
48.3
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.6
|
|
Lengte T-stuk (F)
|
57
|
|
Hoogte T-stuk (G)
|
57
|
- weight 0.58
|
| Verloop T-stuk |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

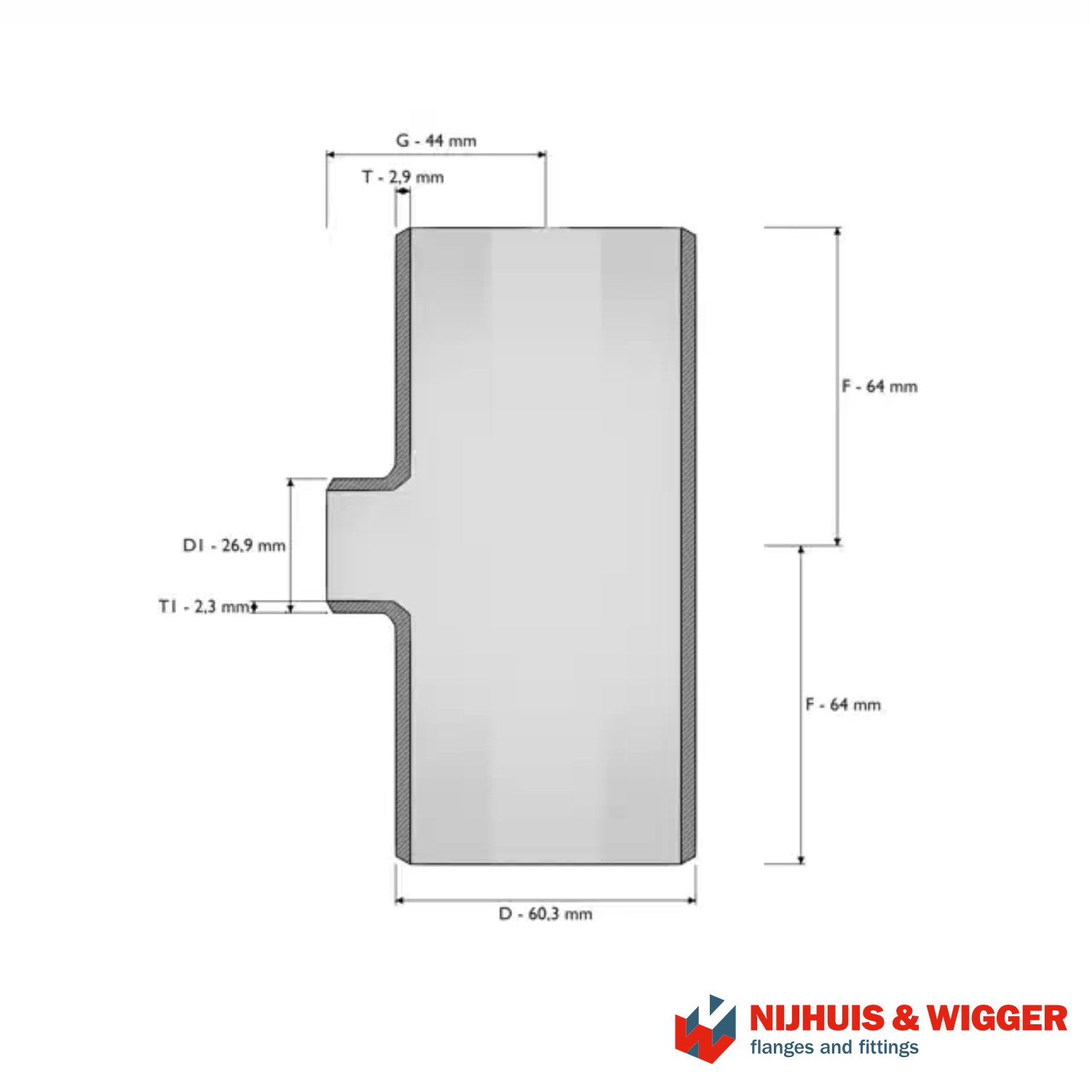

Buitendiameter 2 (D1)
|
26.9
|
|
Buitendiameter 1 (D)
|
60.3
|
|
Wanddikte (T1)
|
2.3
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
64
|
|
Hoogte T-stuk (G)
|
64
|
- weight 0.68
|
| Verloop T-stuk |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
33.7
|
|
Buitendiameter 1 (D)
|
60.3
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
64
|
|
Hoogte T-stuk (G)
|
64
|
- weight 0.73
|

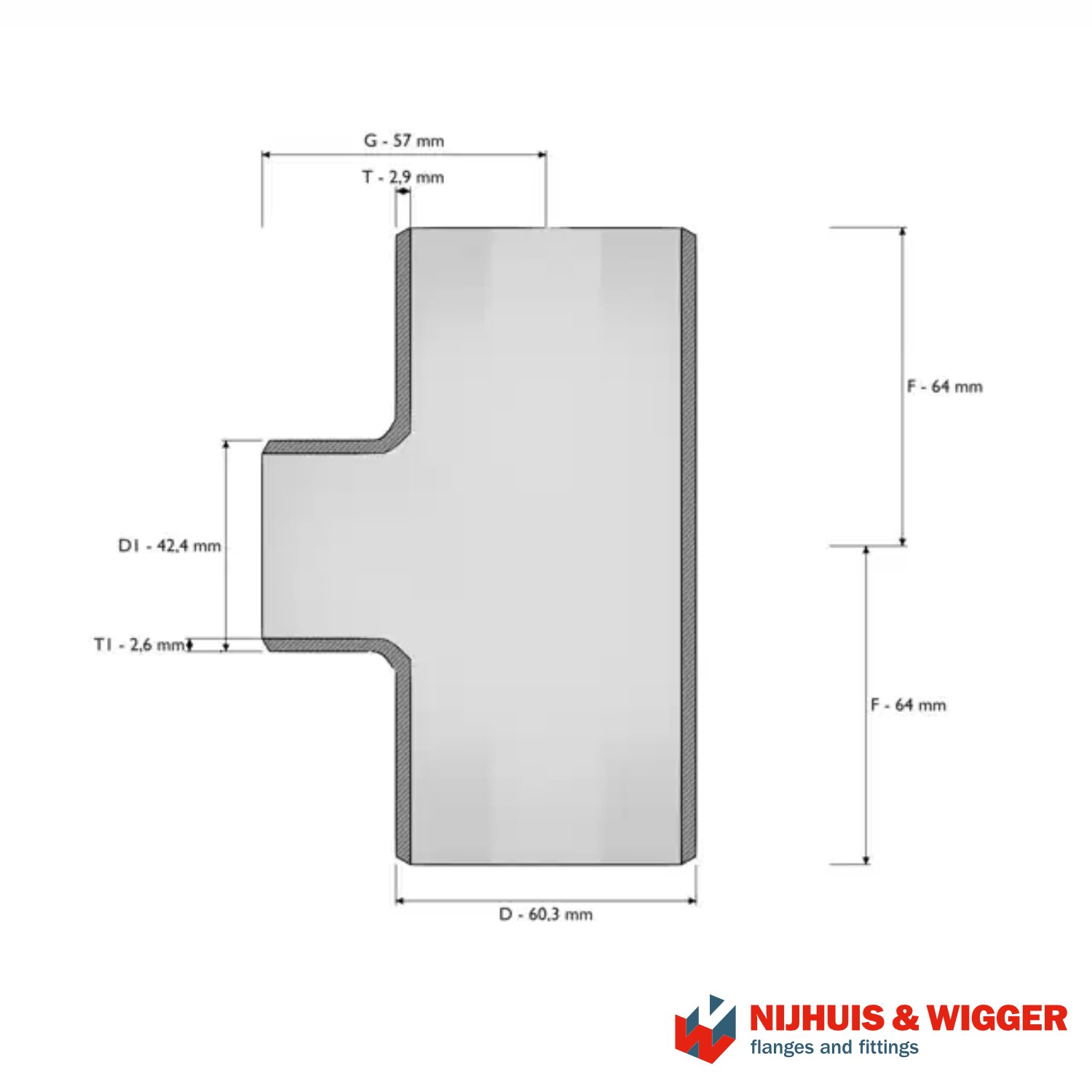

| Verloop T-stuk |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
42.4
|
|
Buitendiameter 1 (D)
|
60.3
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
64
|
|
Hoogte T-stuk (G)
|
64
|
- weight 0.78
|

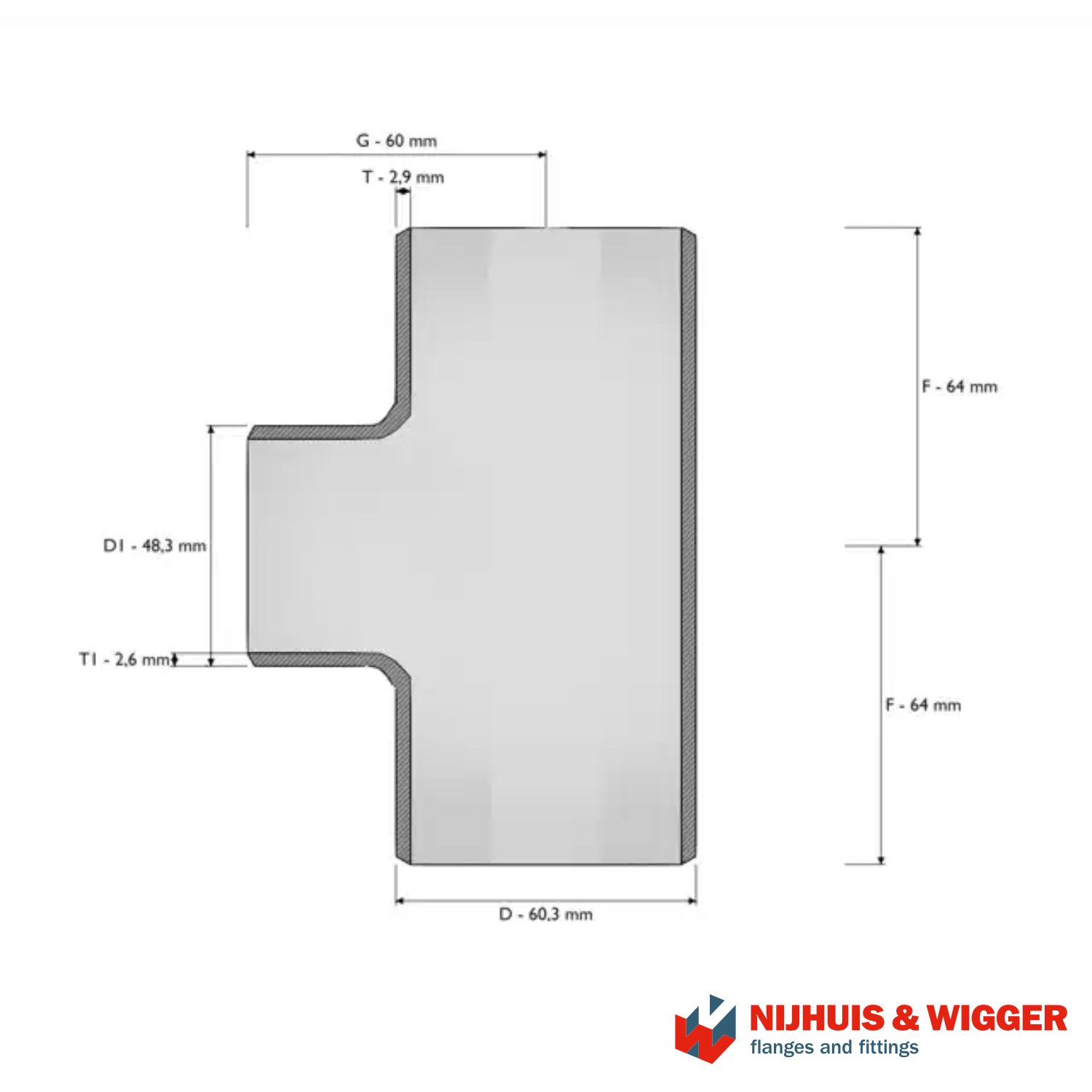

| Verloop T-stuk |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
48.3
|
|
Buitendiameter 1 (D)
|
60.3
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
64
|
|
Hoogte T-stuk (G)
|
64
|
- weight 0.82
|
| Verloop T-stuk |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
33.7
|
|
Buitendiameter 1 (D)
|
76.1
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
76
|
|
Hoogte T-stuk (G)
|
76
|
- weight 1.15
|
| Verloop T-stuk |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
42.4
|
|
Buitendiameter 1 (D)
|
76.1
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
76
|
|
Hoogte T-stuk (G)
|
76
|
- weight 1.21
|
| Verloop T-stuk |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
48.3
|
|
Buitendiameter 1 (D)
|
76.1
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
76
|
|
Hoogte T-stuk (G)
|
76
|
- weight 1.25
|
| Verloop T-stuk |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
60.3
|
|
Buitendiameter 1 (D)
|
76.1
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
2.9
|
|
Lengte T-stuk (F)
|
76
|
|
Hoogte T-stuk (G)
|
76
|
- weight 1.34
|
| Verloop T-stuk |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
42.4
|
|
Buitendiameter 1 (D)
|
88.9
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
3.2
|
|
Lengte T-stuk (F)
|
86
|
|
Hoogte T-stuk (G)
|
86
|
- weight 1.74
|
| Verloop T-stuk |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
48.3
|
|
Buitendiameter 1 (D)
|
88.9
|
|
Wanddikte (T1)
|
2.6
|
|
Wanddikte (T)
|
3.2
|
|
Lengte T-stuk (F)
|
86
|
|
Hoogte T-stuk (G)
|
86
|
- weight 1.79
|
| Verloop T-stuk |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
60.3
|
|
Buitendiameter 1 (D)
|
88.9
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
3.2
|
|
Lengte T-stuk (F)
|
86
|
|
Hoogte T-stuk (G)
|
86
|
- weight 1.91
|

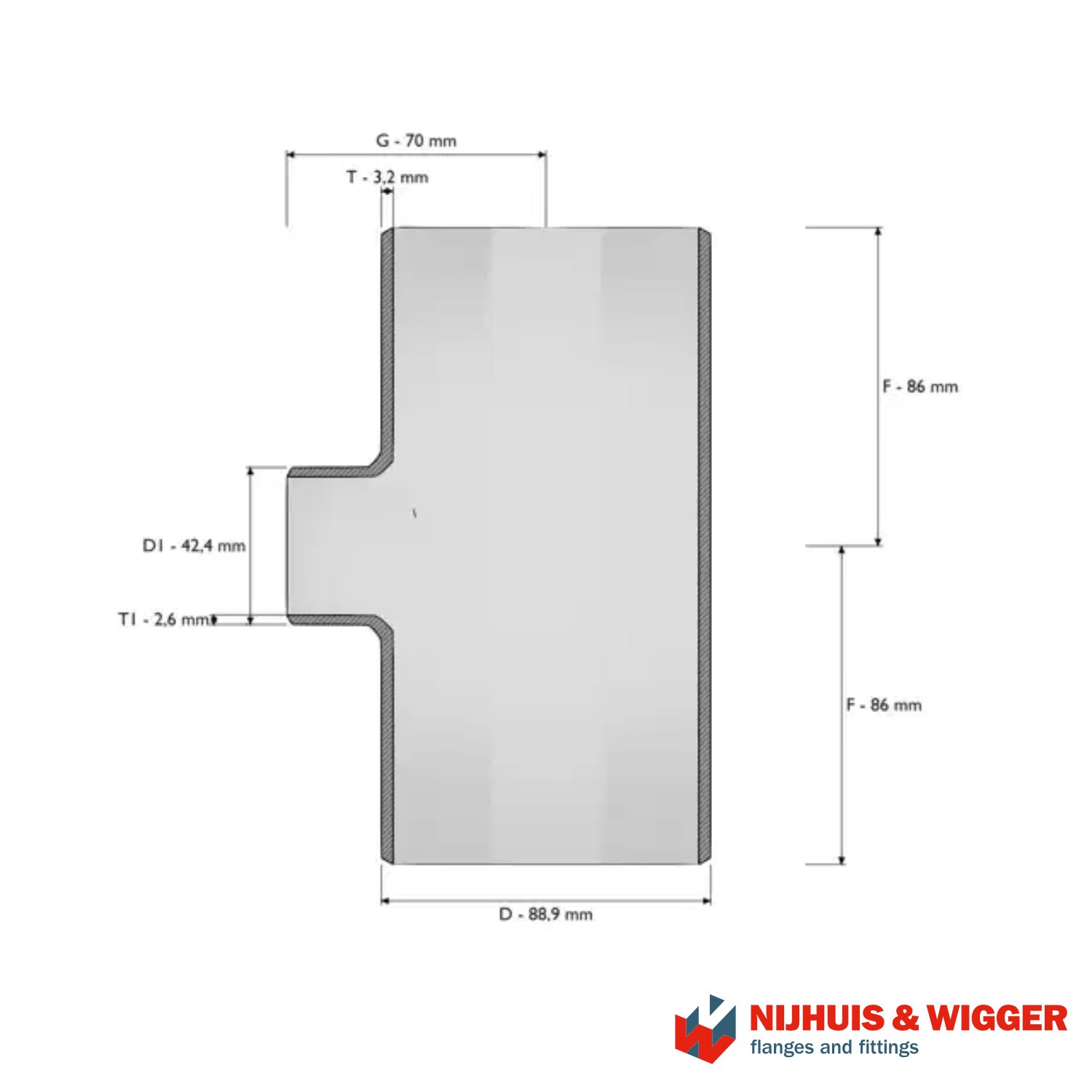

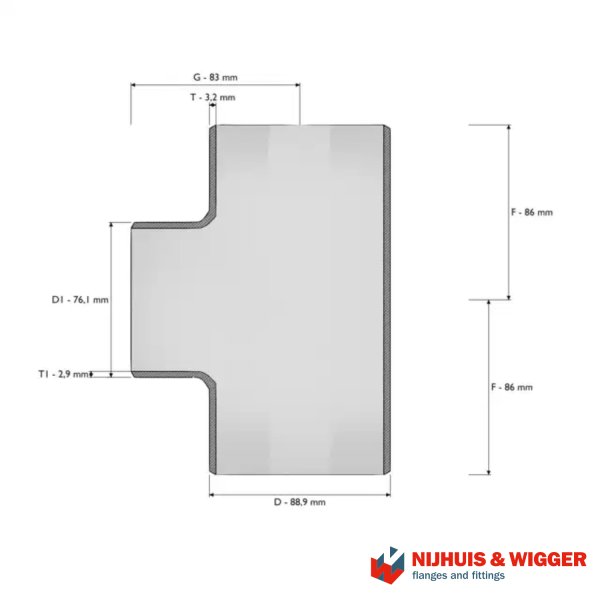

| Verloop T-stuk |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

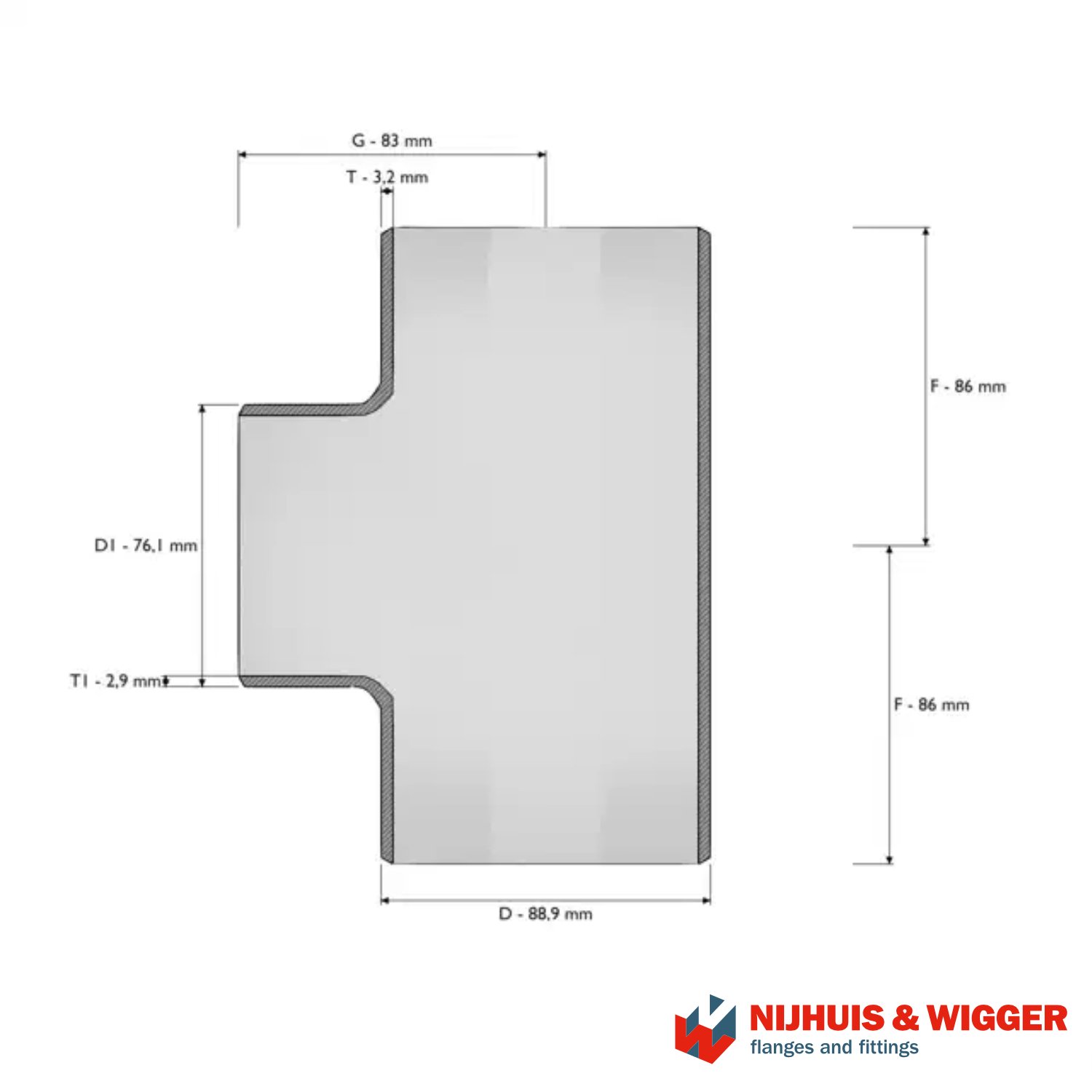

Buitendiameter 2 (D1)
|
76.1
|
|
Buitendiameter 1 (D)
|
88.9
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
3.2
|
|
Lengte T-stuk (F)
|
86
|
|
Hoogte T-stuk (G)
|
86
|
- weight 2.08
|
| Verloop T-stuk |
|
114.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

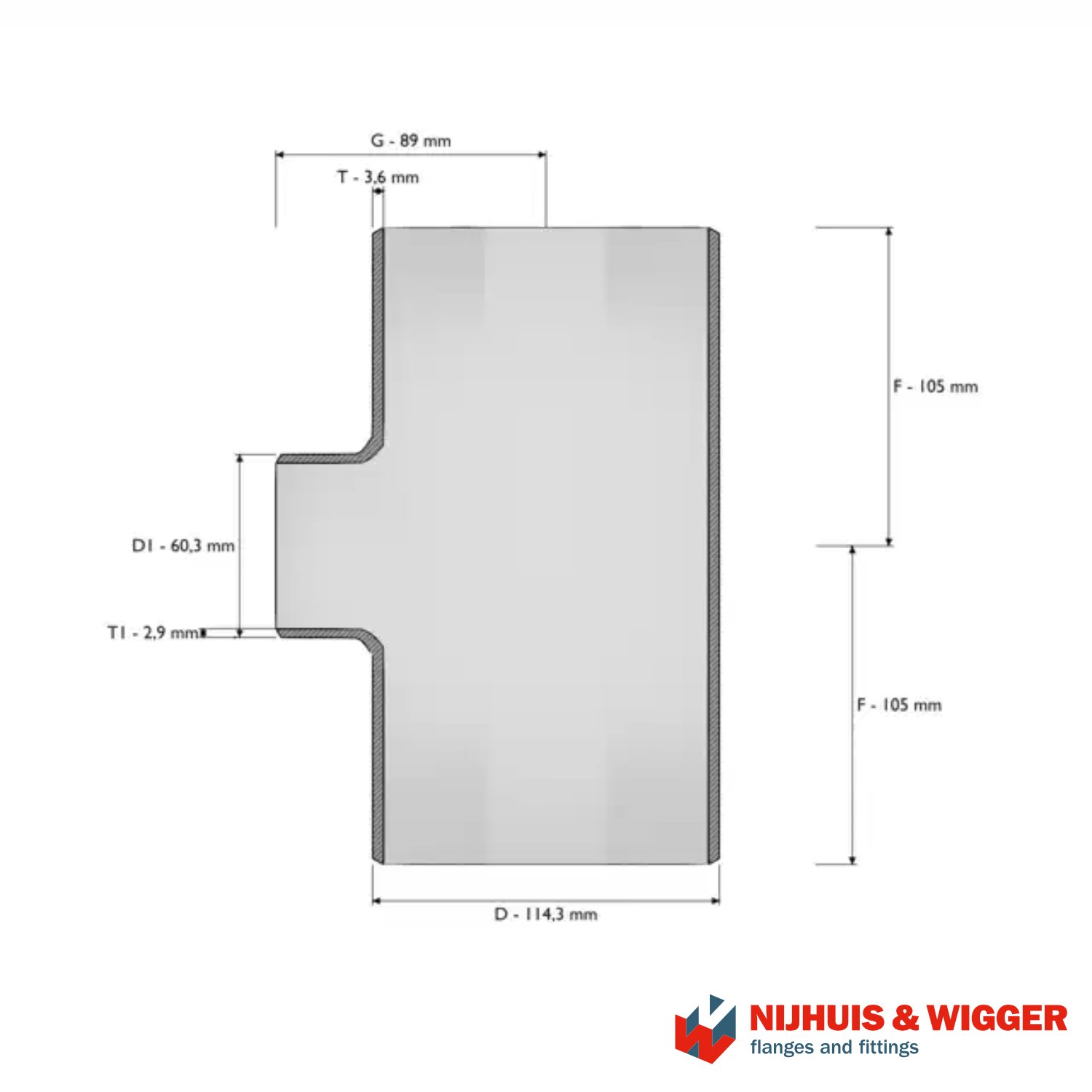

Buitendiameter 2 (D1)
|
60.3
|
|
Buitendiameter 1 (D)
|
114.3
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
3.6
|
|
Lengte T-stuk (F)
|
105
|
|
Hoogte T-stuk (G)
|
105
|
- weight 3.1
|
| Verloop T-stuk |
|
114.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

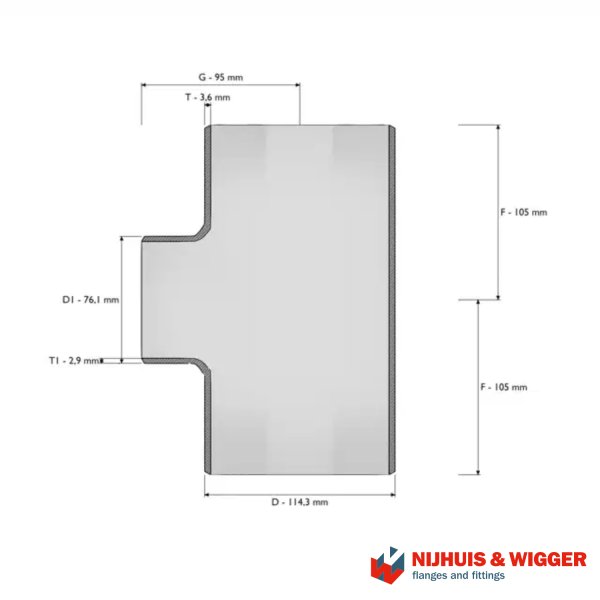

Buitendiameter 2 (D1)
|
76.1
|
|
Buitendiameter 1 (D)
|
114.3
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
3.6
|
|
Lengte T-stuk (F)
|
105
|
|
Hoogte T-stuk (G)
|
105
|
- weight 3.32
|

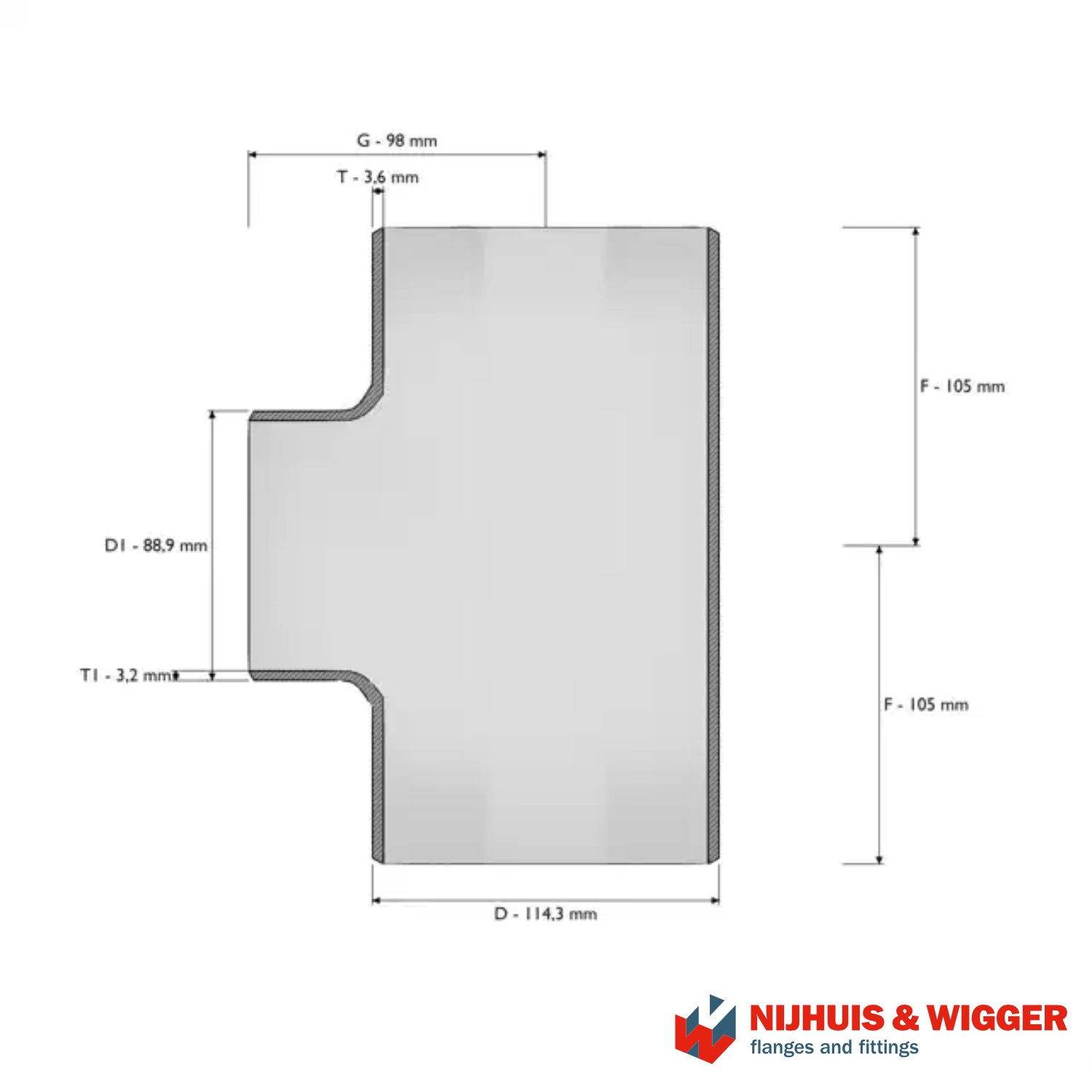

| Verloop T-stuk |
|
114.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
88.9
|
|
Buitendiameter 1 (D)
|
114.3
|
|
Wanddikte (T1)
|
3.2
|
|
Wanddikte (T)
|
3.6
|
|
Lengte T-stuk (F)
|
105
|
|
Hoogte T-stuk (G)
|
105
|
- weight 3.52
|
| Verloop T-stuk |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
60.3
|
|
Buitendiameter 1 (D)
|
139.7
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
4.0
|
|
Lengte T-stuk (F)
|
124
|
|
Hoogte T-stuk (G)
|
124
|
- weight 4.55
|

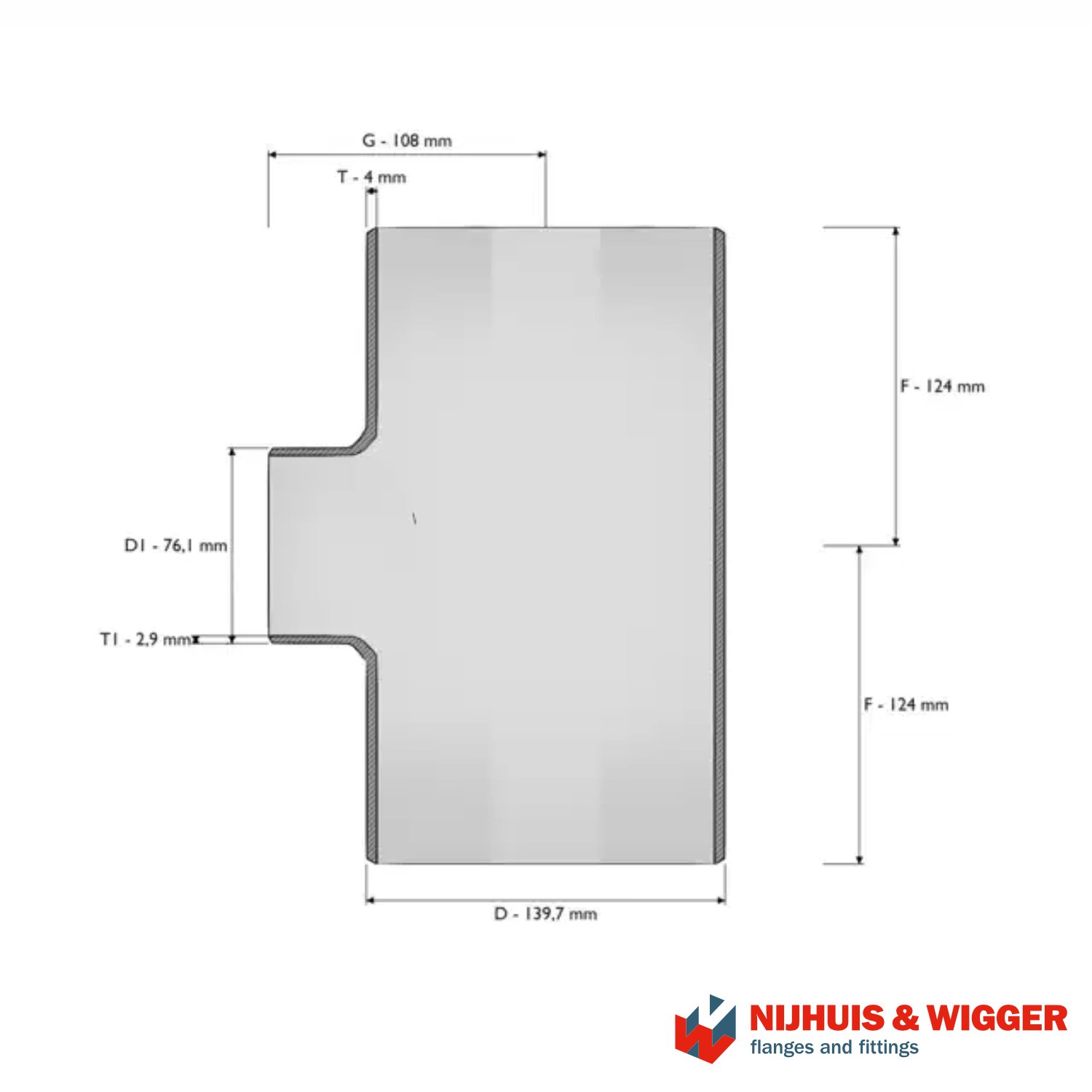

| Verloop T-stuk |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
76.1
|
|
Buitendiameter 1 (D)
|
139.7
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
4.0
|
|
Lengte T-stuk (F)
|
124
|
|
Hoogte T-stuk (G)
|
124
|
- weight 4.8
|
| Verloop T-stuk |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
88.9
|
|
Buitendiameter 1 (D)
|
139.7
|
|
Wanddikte (T1)
|
3.2
|
|
Wanddikte (T)
|
4.0
|
|
Lengte T-stuk (F)
|
124
|
|
Hoogte T-stuk (G)
|
124
|
- weight 5.1
|
| Verloop T-stuk |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
114.3
|
|
Buitendiameter 1 (D)
|
139.7
|
|
Wanddikte (T1)
|
3.6
|
|
Wanddikte (T)
|
4.0
|
|
Lengte T-stuk (F)
|
124
|
|
Hoogte T-stuk (G)
|
124
|
- weight 5.6
|
| Verloop T-stuk |
|

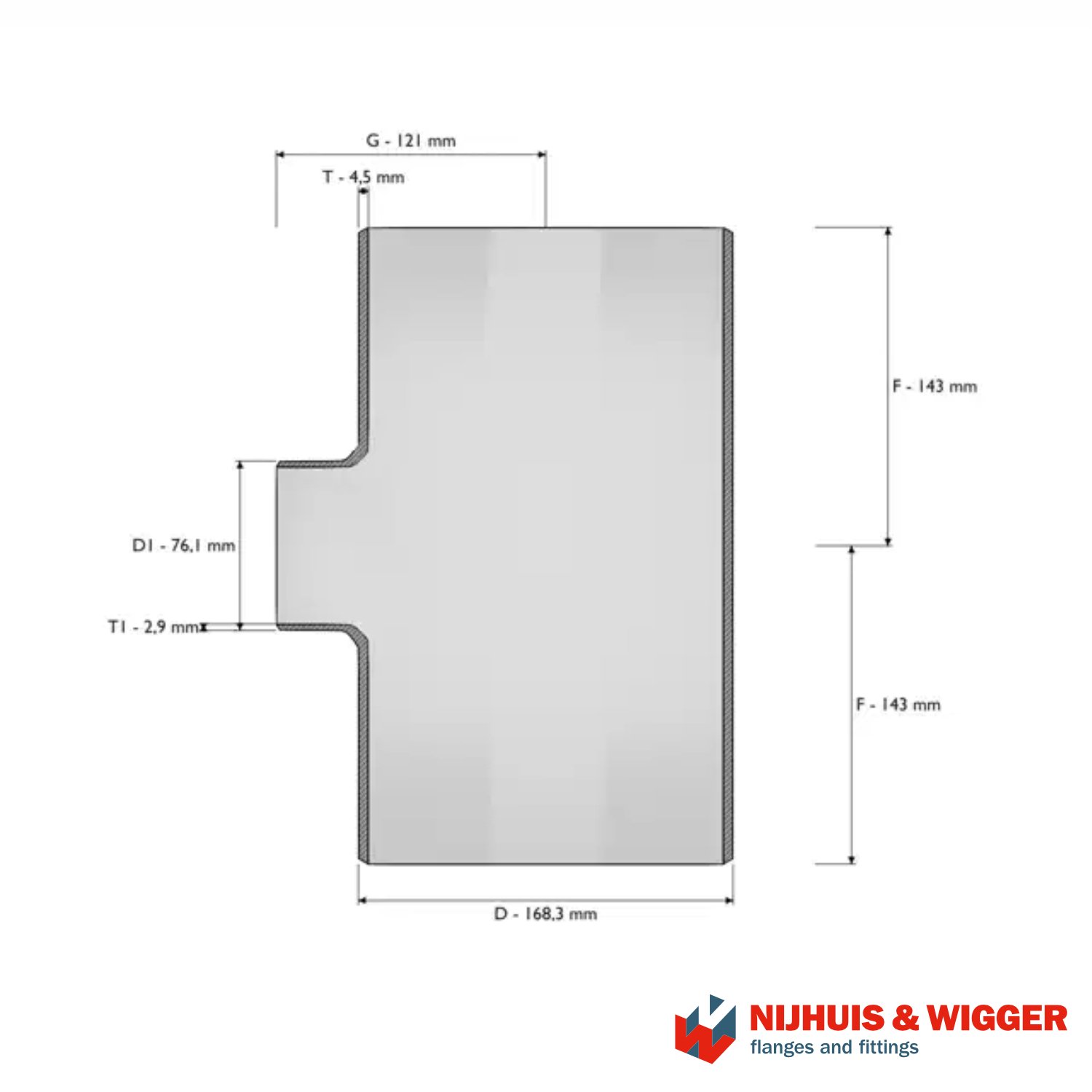

168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
76.1
|
|
Buitendiameter 1 (D)
|
168.3
|
|
Wanddikte (T1)
|
2.9
|
|
Wanddikte (T)
|
4.5
|
|
Lengte T-stuk (F)
|
143
|
|
Hoogte T-stuk (G)
|
143
|
- weight 7.1
|
| Verloop T-stuk |
|

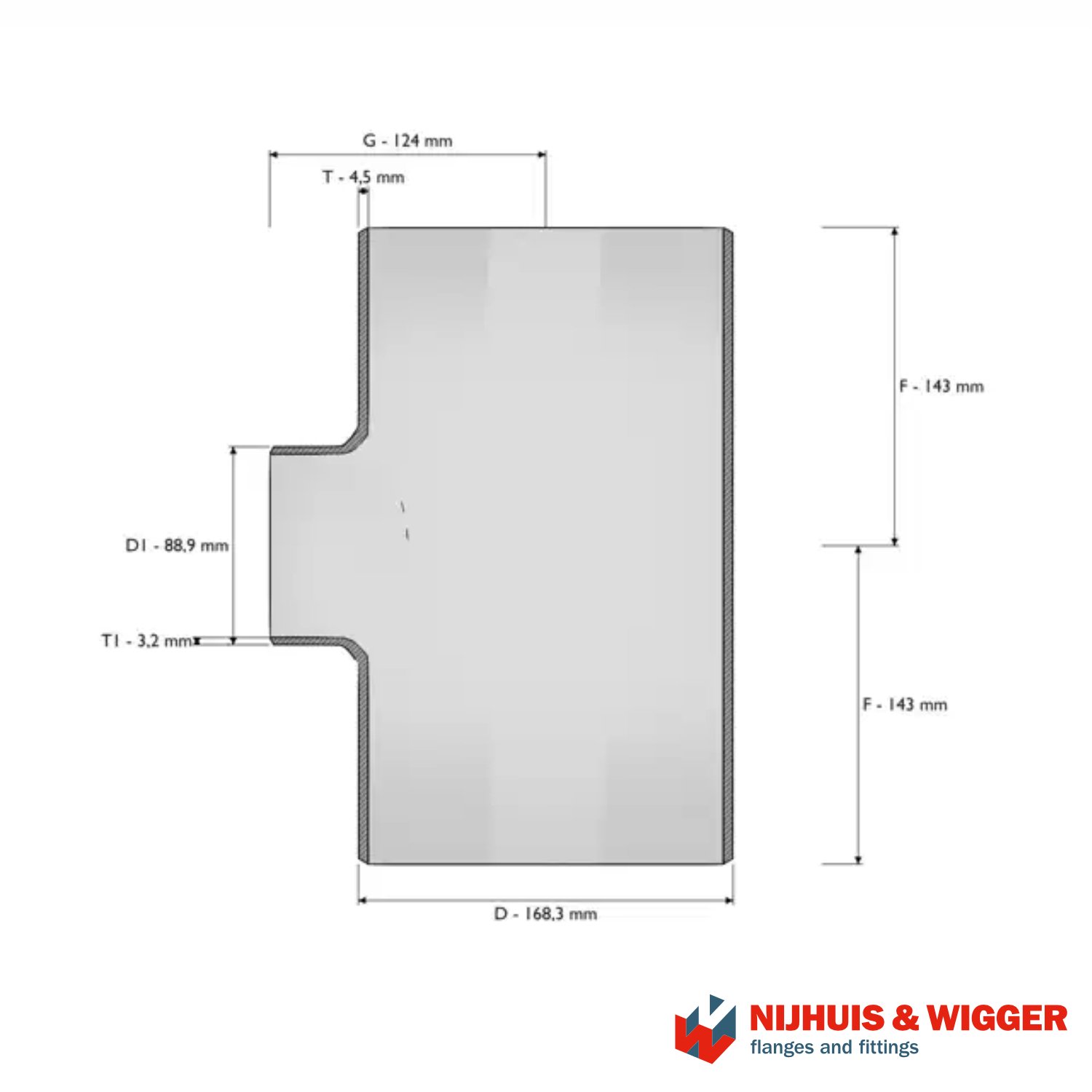

168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
88.9
|
|
Buitendiameter 1 (D)
|
168.3
|
|
Wanddikte (T1)
|
3.2
|
|
Wanddikte (T)
|
4.5
|
|
Lengte T-stuk (F)
|
143
|
|
Hoogte T-stuk (G)
|
143
|
- weight 7.6
|
| Verloop T-stuk |
|
168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
114.3
|
|
Buitendiameter 1 (D)
|
168.3
|
|
Wanddikte (T1)
|
3.6
|
|
Wanddikte (T)
|
4.5
|
|
Lengte T-stuk (F)
|
143
|
|
Hoogte T-stuk (G)
|
143
|
- weight 8.3
|
| Verloop T-stuk |
|
168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
139.7
|
|
Buitendiameter 1 (D)
|
168.3
|
|
Wanddikte (T1)
|
4.0
|
|
Wanddikte (T)
|
4.5
|
|
Lengte T-stuk (F)
|
143
|
|
Hoogte T-stuk (G)
|
143
|
- weight 9.1
|
| Verloop T-stuk |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
88.9
|
|
Buitendiameter 1 (D)
|
219.1
|
|
Wanddikte (T1)
|
3.2
|
|
Wanddikte (T)
|
5.9
|
|
Lengte T-stuk (F)
|
178
|
|
Hoogte T-stuk (G)
|
178
|
- weight 13.9
|
| Verloop T-stuk |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
114.3
|
|
Buitendiameter 1 (D)
|
219.1
|
|
Wanddikte (T1)
|
3.6
|
|
Wanddikte (T)
|
5.9
|
|
Lengte T-stuk (F)
|
178
|
|
Hoogte T-stuk (G)
|
178
|
- weight 14.8
|
| Verloop T-stuk |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
139.7
|
|
Buitendiameter 1 (D)
|
219.1
|
|
Wanddikte (T1)
|
4.0
|
|
Wanddikte (T)
|
5.9
|
|
Lengte T-stuk (F)
|
178
|
|
Hoogte T-stuk (G)
|
178
|
- weight 15.9
|
| Verloop T-stuk |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
168.3
|
|
Buitendiameter 1 (D)
|
219.1
|
|
Wanddikte (T1)
|
4.5
|
|
Wanddikte (T)
|
5.9
|
|
Lengte T-stuk (F)
|
178
|
|
Hoogte T-stuk (G)
|
178
|
- weight 17.5
|
| Verloop T-stuk |
|
273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
114.3
|
|
Buitendiameter 1 (D)
|
273.0
|
|
Wanddikte (T1)
|
3.6
|
|
Wanddikte (T)
|
6.3
|
|
Lengte T-stuk (F)
|
216
|
|
Hoogte T-stuk (G)
|
216
|
- weight 21.4
|
| Verloop T-stuk |
|

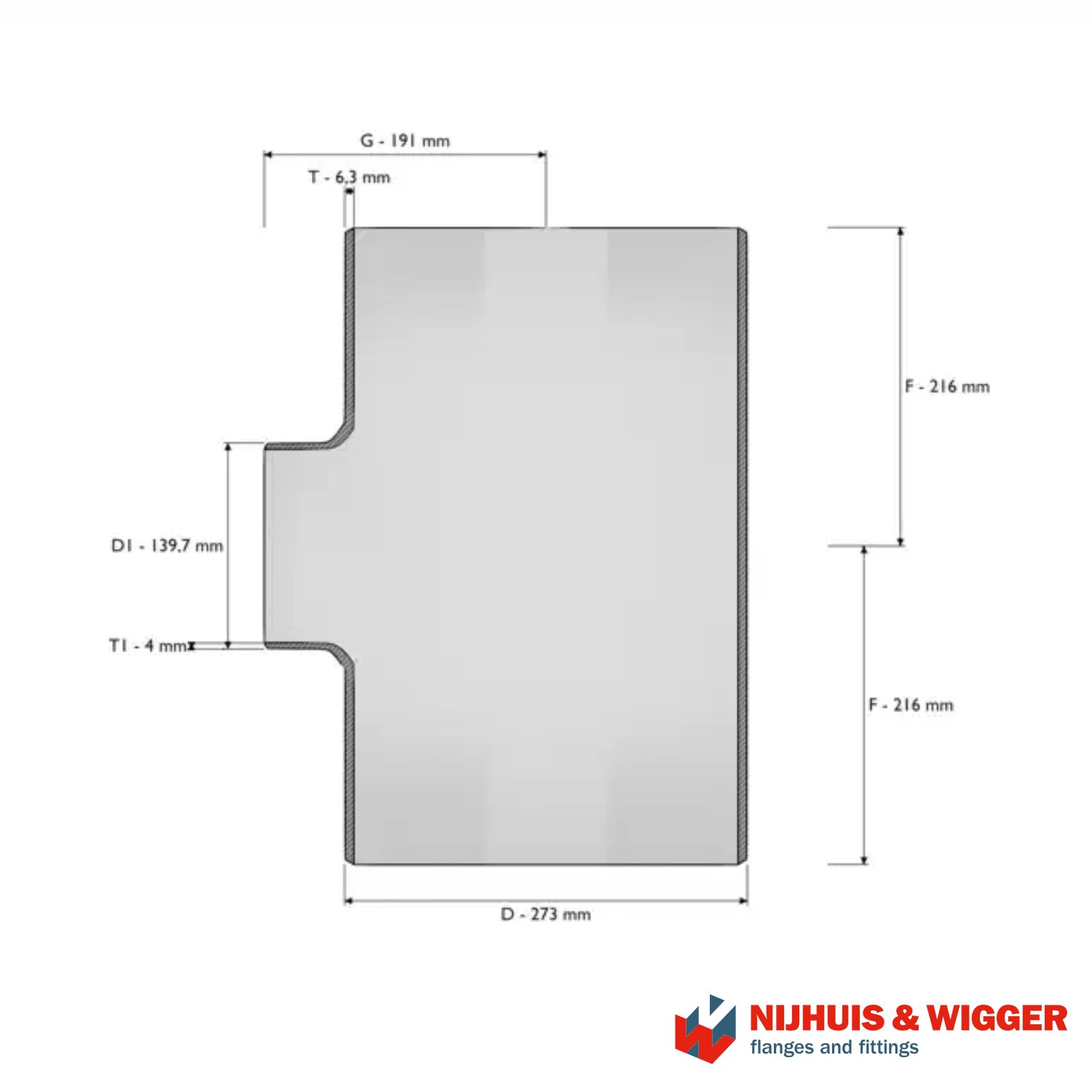

273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
139.7
|
|
Buitendiameter 1 (D)
|
273.0
|
|
Wanddikte (T1)
|
4.0
|
|
Wanddikte (T)
|
6.3
|
|
Lengte T-stuk (F)
|
216
|
|
Hoogte T-stuk (G)
|
216
|
- weight 22.8
|
| Verloop T-stuk |
|
273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
168.3
|
|
Buitendiameter 1 (D)
|
273.0
|
|
Wanddikte (T1)
|
4.5
|
|
Wanddikte (T)
|
6.3
|
|
Lengte T-stuk (F)
|
216
|
|
Hoogte T-stuk (G)
|
216
|
- weight 24.5
|
| Verloop T-stuk |
|

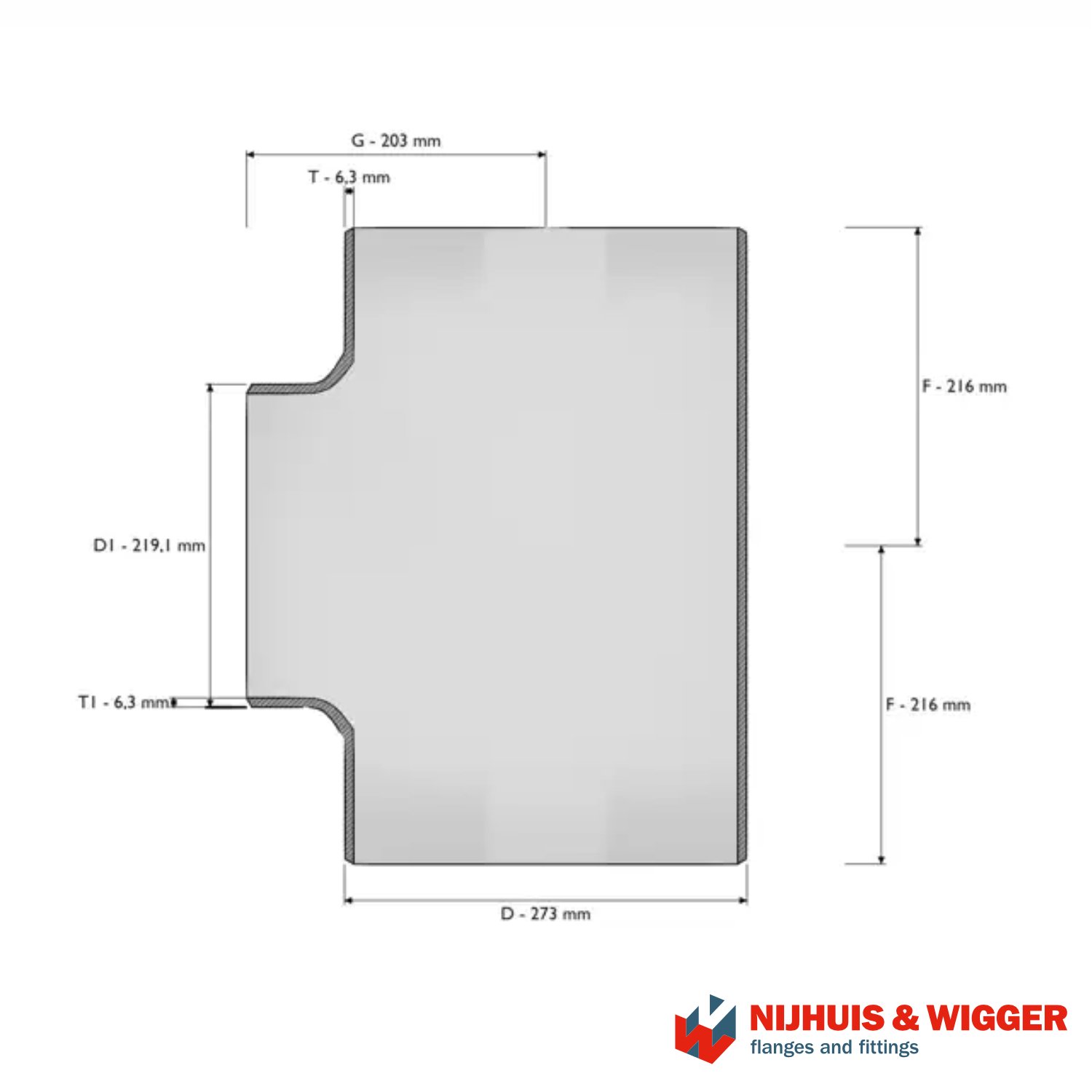

273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
219.1
|
|
Buitendiameter 1 (D)
|
273.0
|
|
Wanddikte (T1)
|
5.9
|
|
Wanddikte (T)
|
6.3
|
|
Lengte T-stuk (F)
|
216
|
|
Hoogte T-stuk (G)
|
216
|
- weight 28.2
|
| Verloop T-stuk |
|

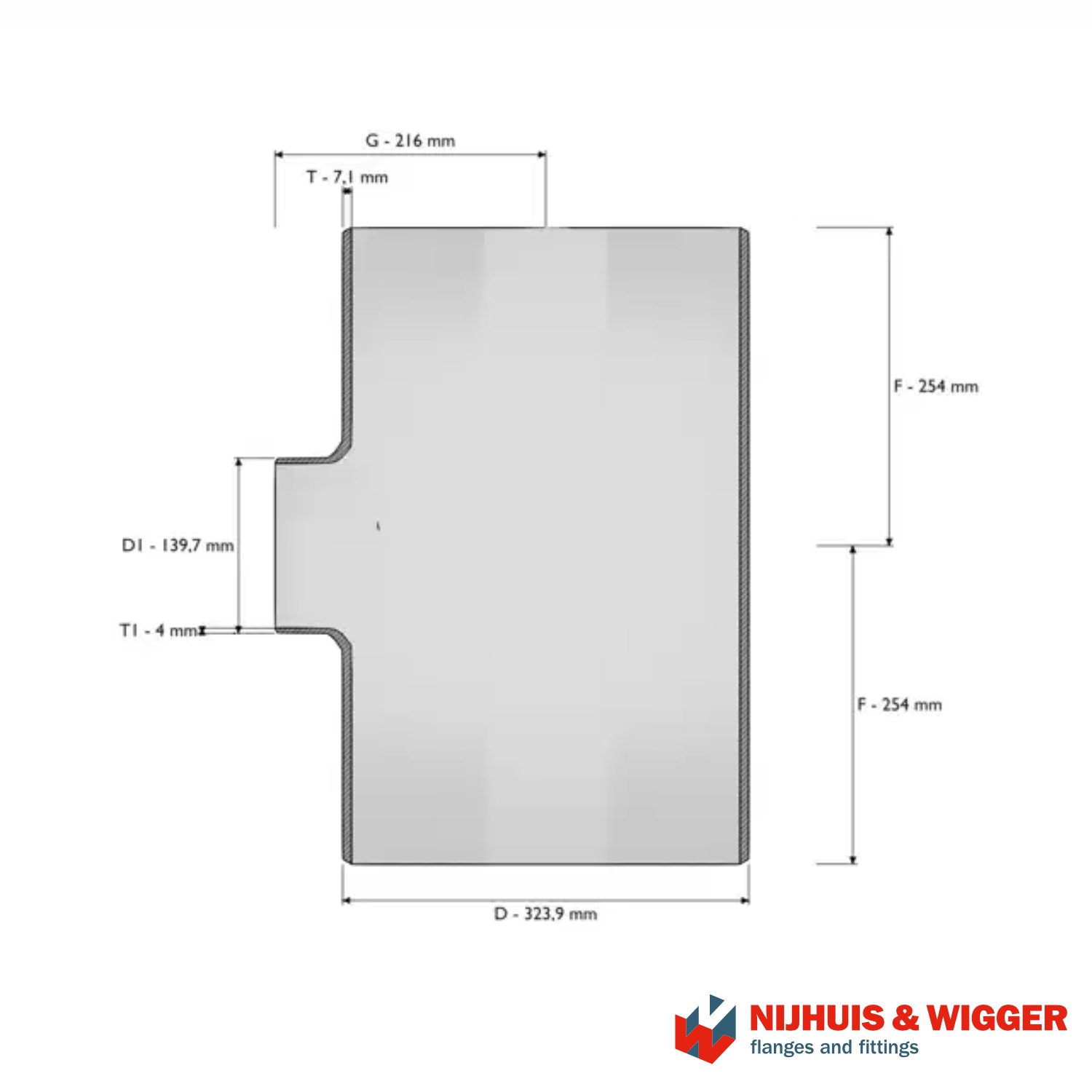

323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
139.7
|
|
Buitendiameter 1 (D)
|
323.9
|
|
Wanddikte (T1)
|
4.0
|
|
Wanddikte (T)
|
7.1
|
|
Lengte T-stuk (F)
|
254
|
|
Hoogte T-stuk (G)
|
254
|
- weight 34.6
|
| Verloop T-stuk |
|
323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
168.3
|
|
Buitendiameter 1 (D)
|
323.9
|
|
Wanddikte (T1)
|
4.5
|
|
Wanddikte (T)
|
7.1
|
|
Lengte T-stuk (F)
|
254
|
|
Hoogte T-stuk (G)
|
254
|
- weight 36.1
|
| Verloop T-stuk |
|
323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
219.1
|
|
Buitendiameter 1 (D)
|
323.9
|
|
Wanddikte (T1)
|
5.9
|
|
Wanddikte (T)
|
7.1
|
|
Lengte T-stuk (F)
|
254
|
|
Hoogte T-stuk (G)
|
254
|
- weight 38.5
|
| Verloop T-stuk |
|

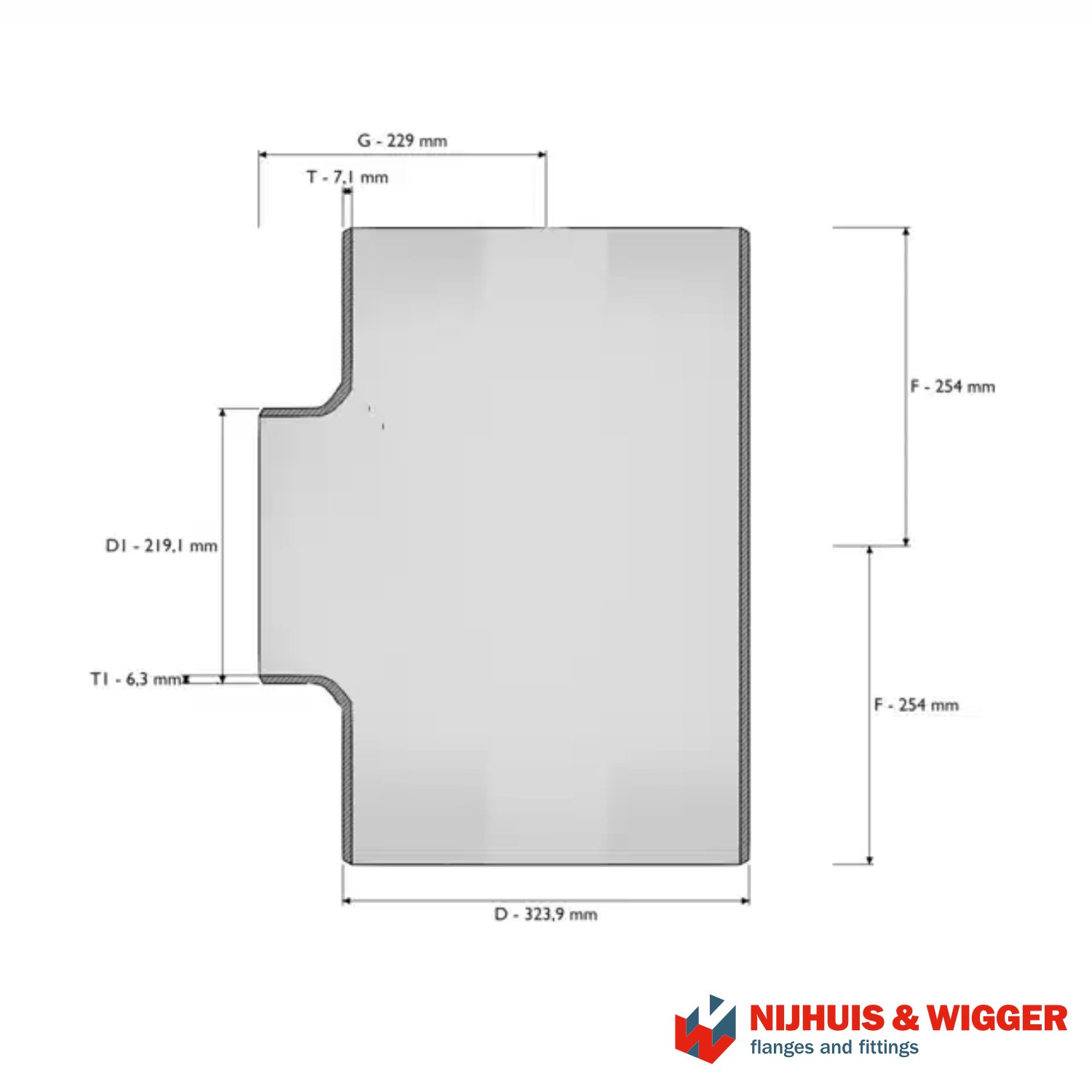

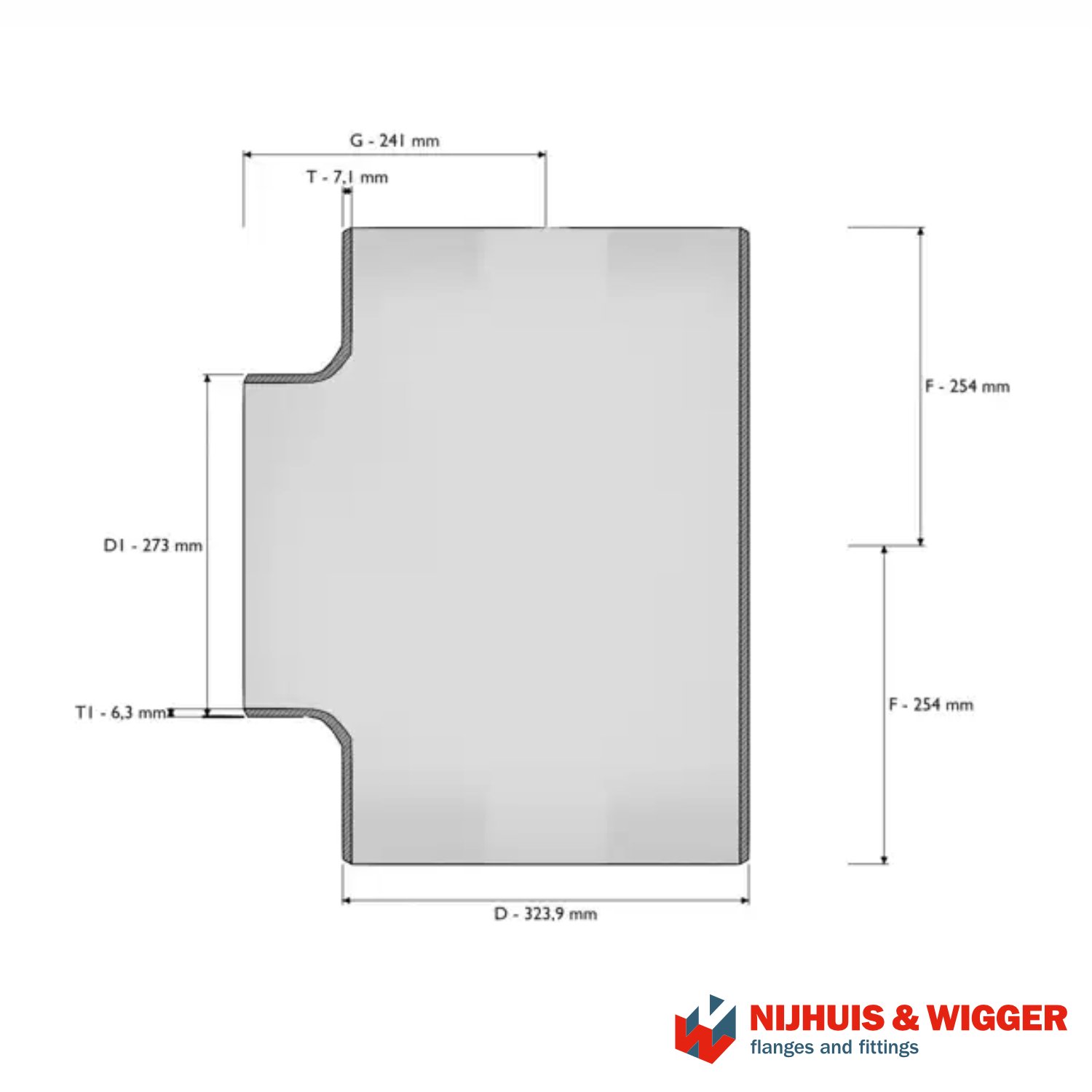

323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter 2 (D1)
|
273.0
|
|
Buitendiameter 1 (D)
|
323.9
|
|
Wanddikte (T1)
|
6.3
|
|
Wanddikte (T)
|
7.1
|
|
Lengte T-stuk (F)
|
254
|
|
Hoogte T-stuk (G)
|
254
|
- weight 43.1
|
Engels
