Concentrisch Lasverloop | Staal & RVS | EN 10253

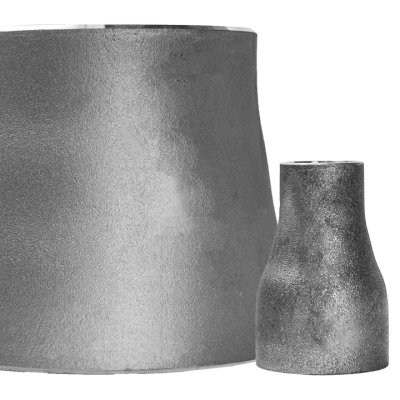

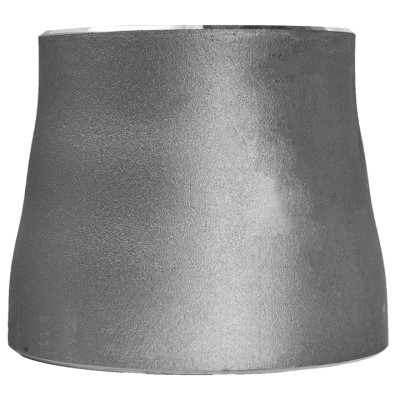

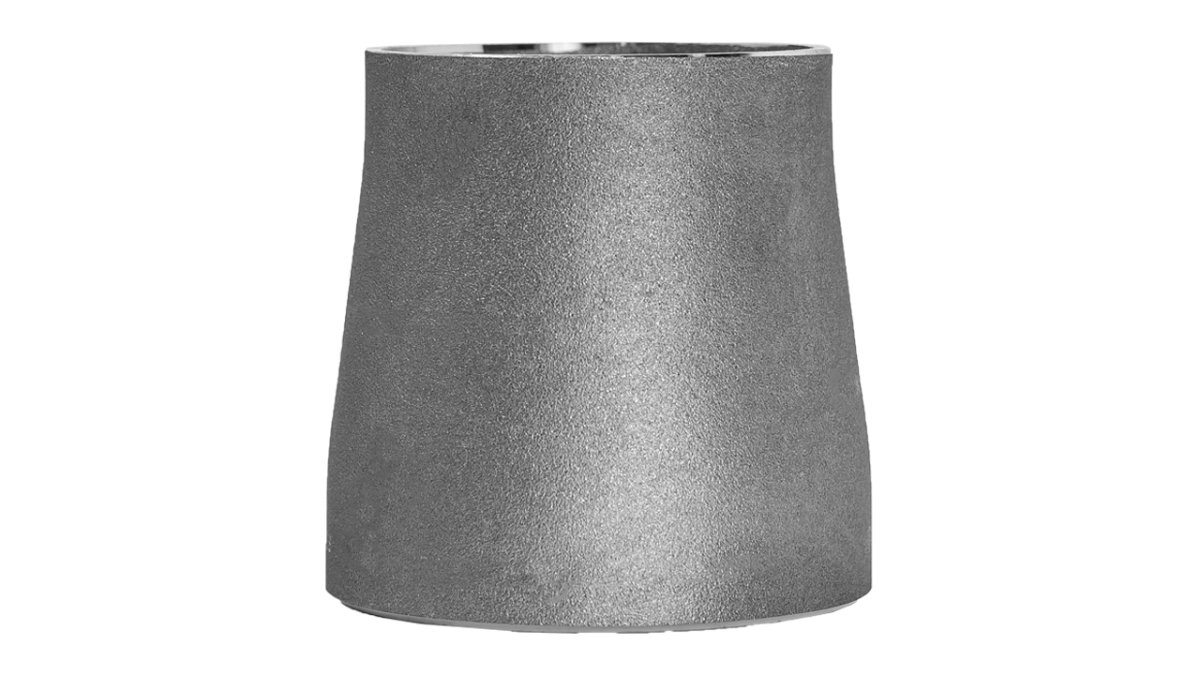

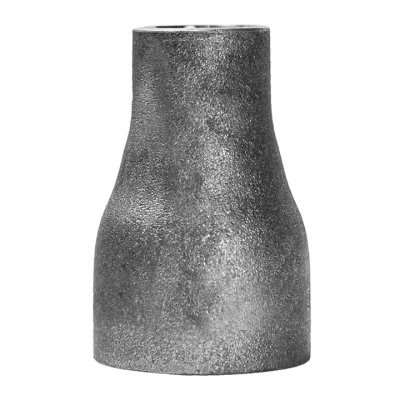

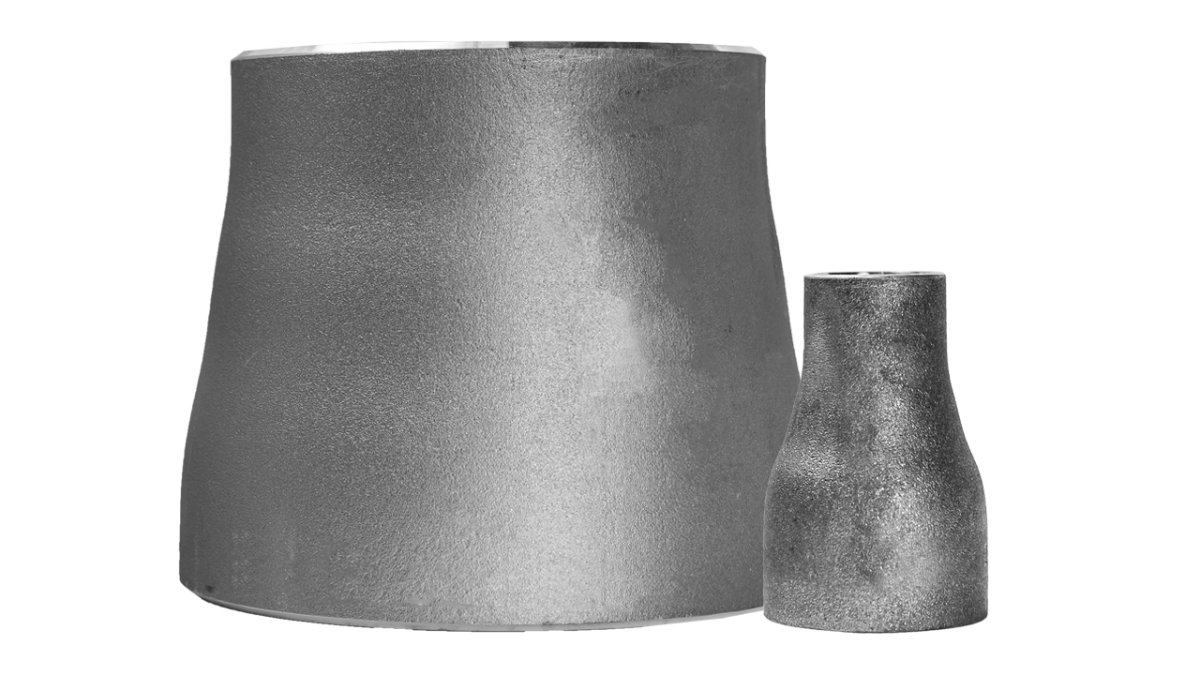

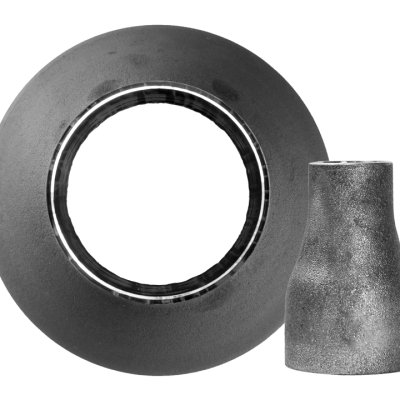

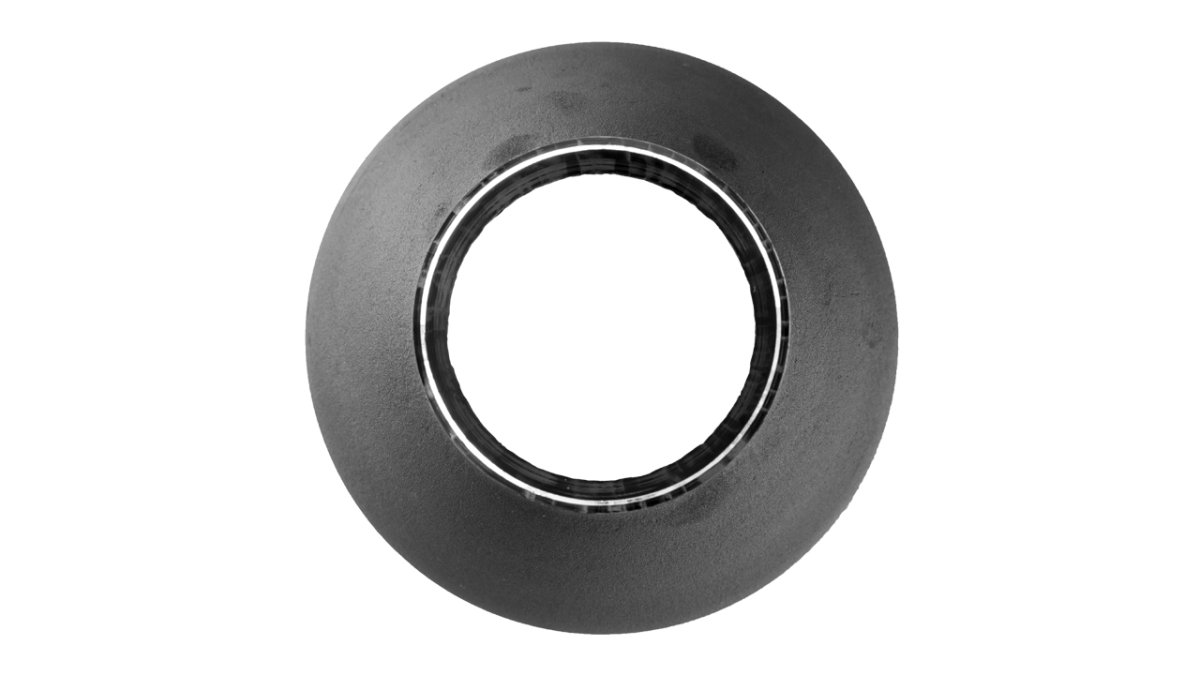

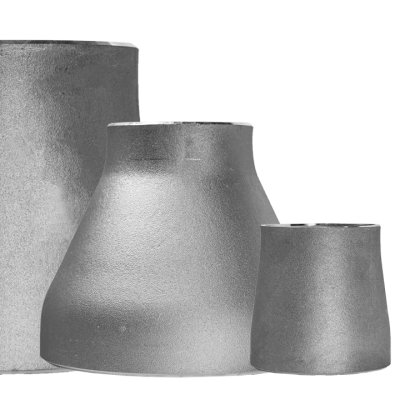

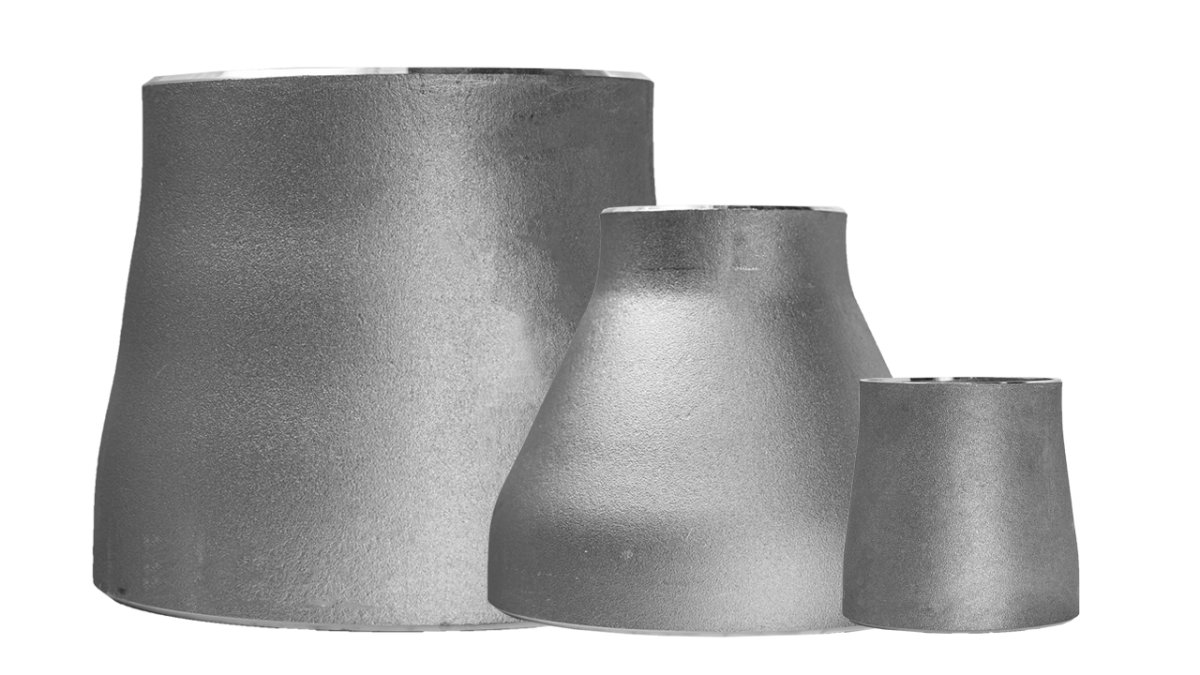

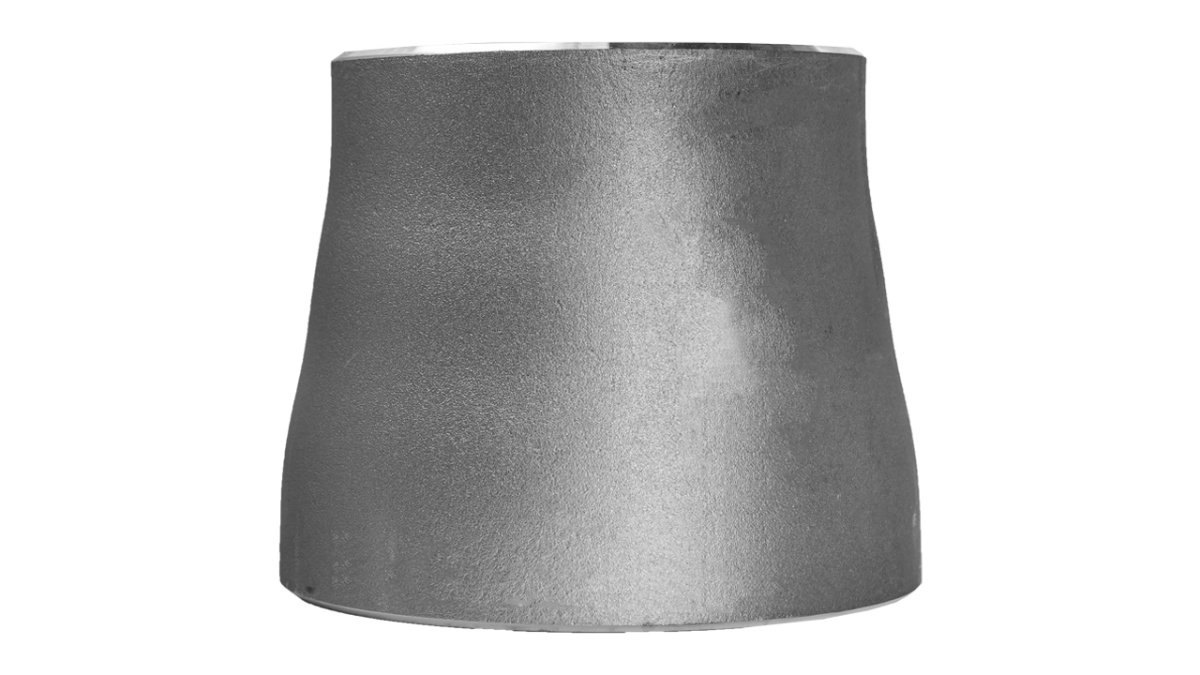

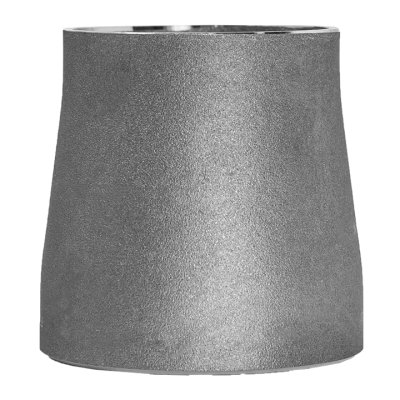

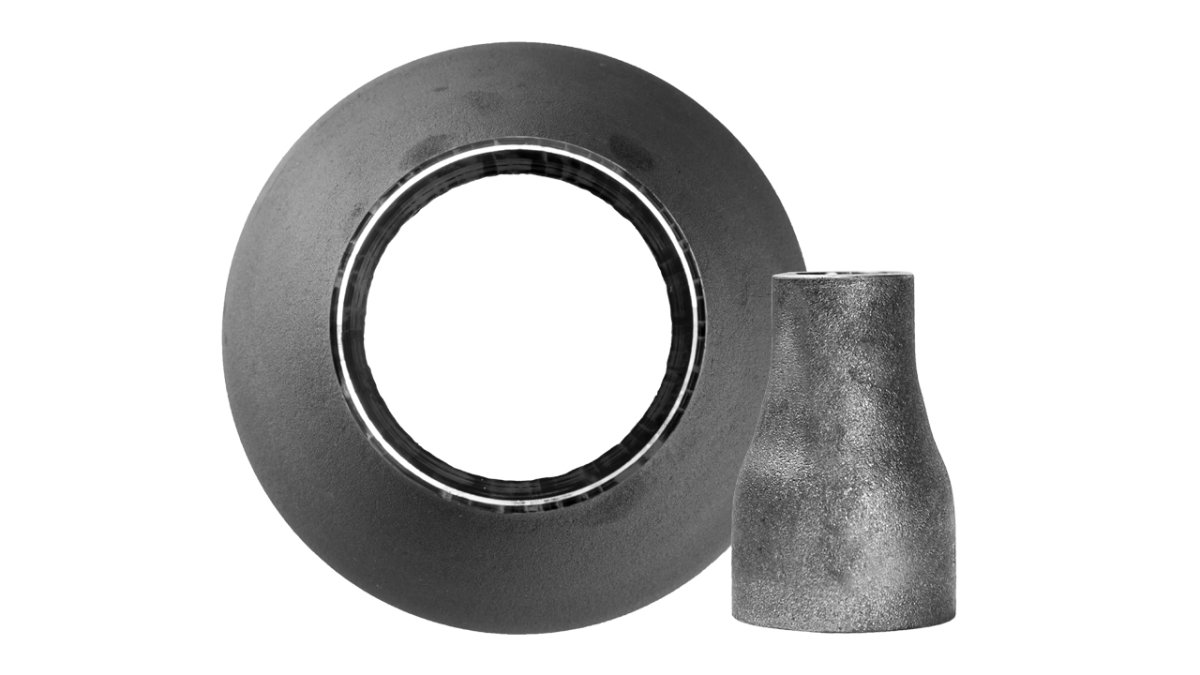

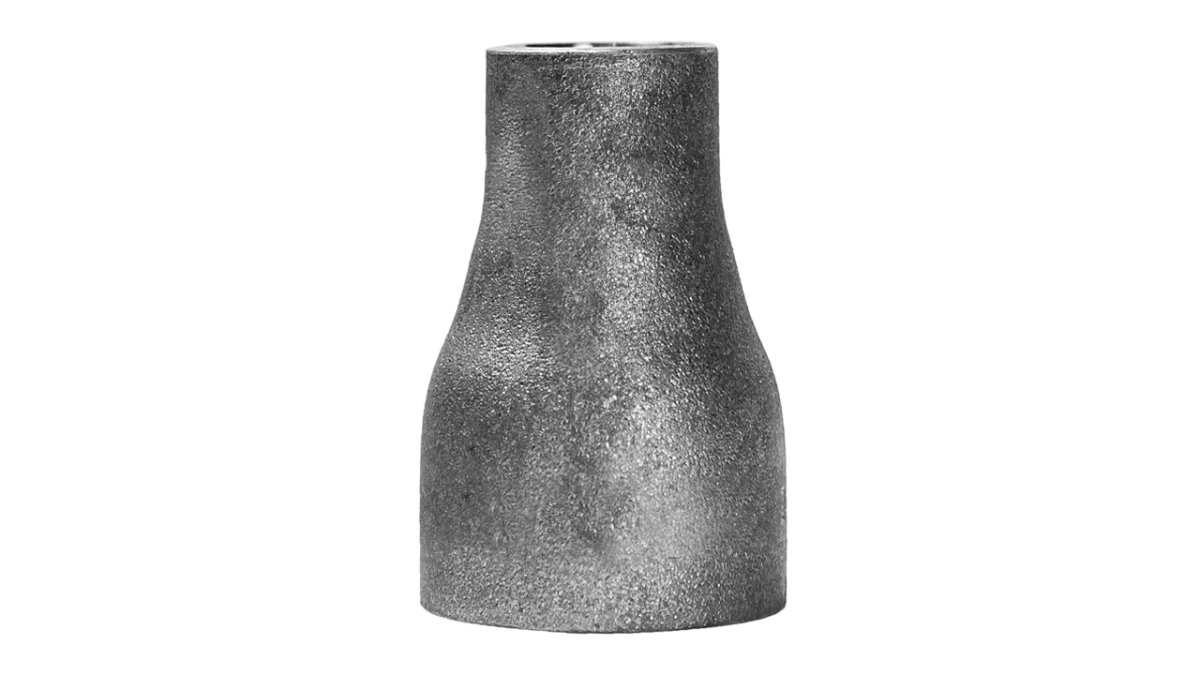

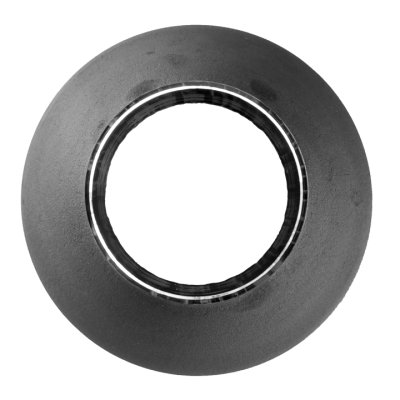

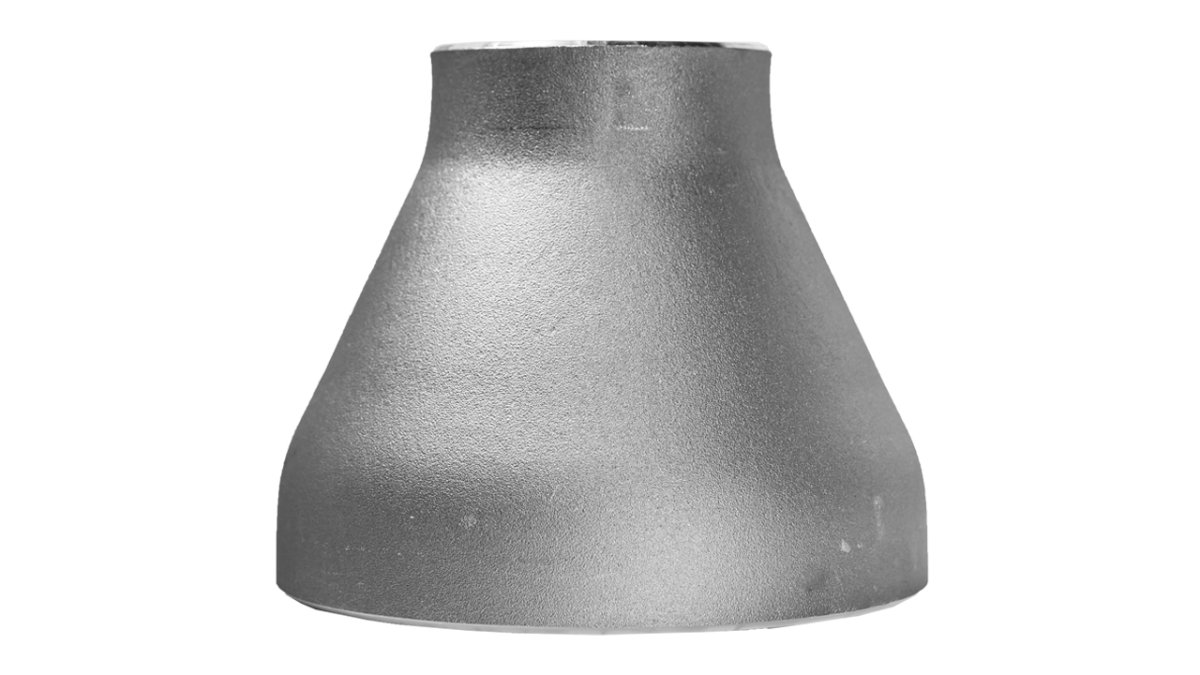

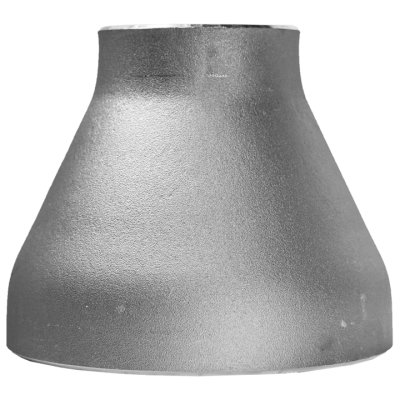

Naadloze concentrische lasverlopen volgens EN10253 (DIN 2616) worden vaak verwerkt in installaties, pijpleidingsystemen, appendages of in de apparatenbouw. Nijhuis & Wigger kan voor elke kwaliteit, buisafmeting en wanddikte passende concentrische lasverlopen leveren.

  • Verkrijgbaar volgens DIN 2616-2 / EN 10253-B
  • Verschillende wanddiktes verkrijgbaar volgens EN10253 of specificatie
  • Afmeting tot DN 500
  • Voorraaditem (zie voorraadprogramma in downloads)
Categorie: . Tags: Fittingen, EN10253, concentrisch, lasverloop, naadloos, Staal, norm,.
Offerte aanvragen
Product delen:
product name DN Size Norm Type Nominal pressure Material name

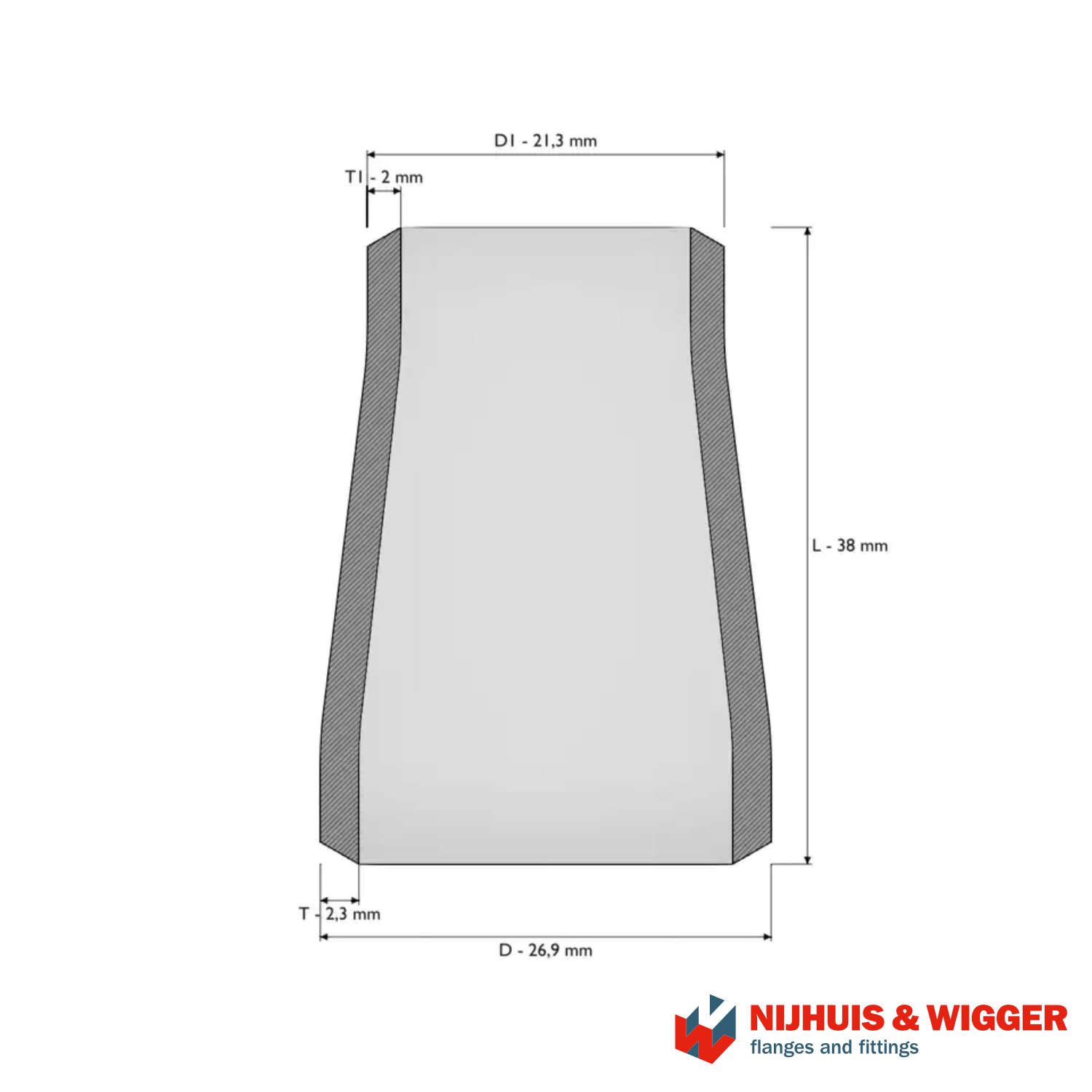

Concentrisch lasverloop 26.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    21.3



    Outside Diameter 1 (D)

    26.9

    Thickness (T1)

    2.0



    Thickness (T)

    2.3

    Length Reducer (L)

    38


  • weight 0.05

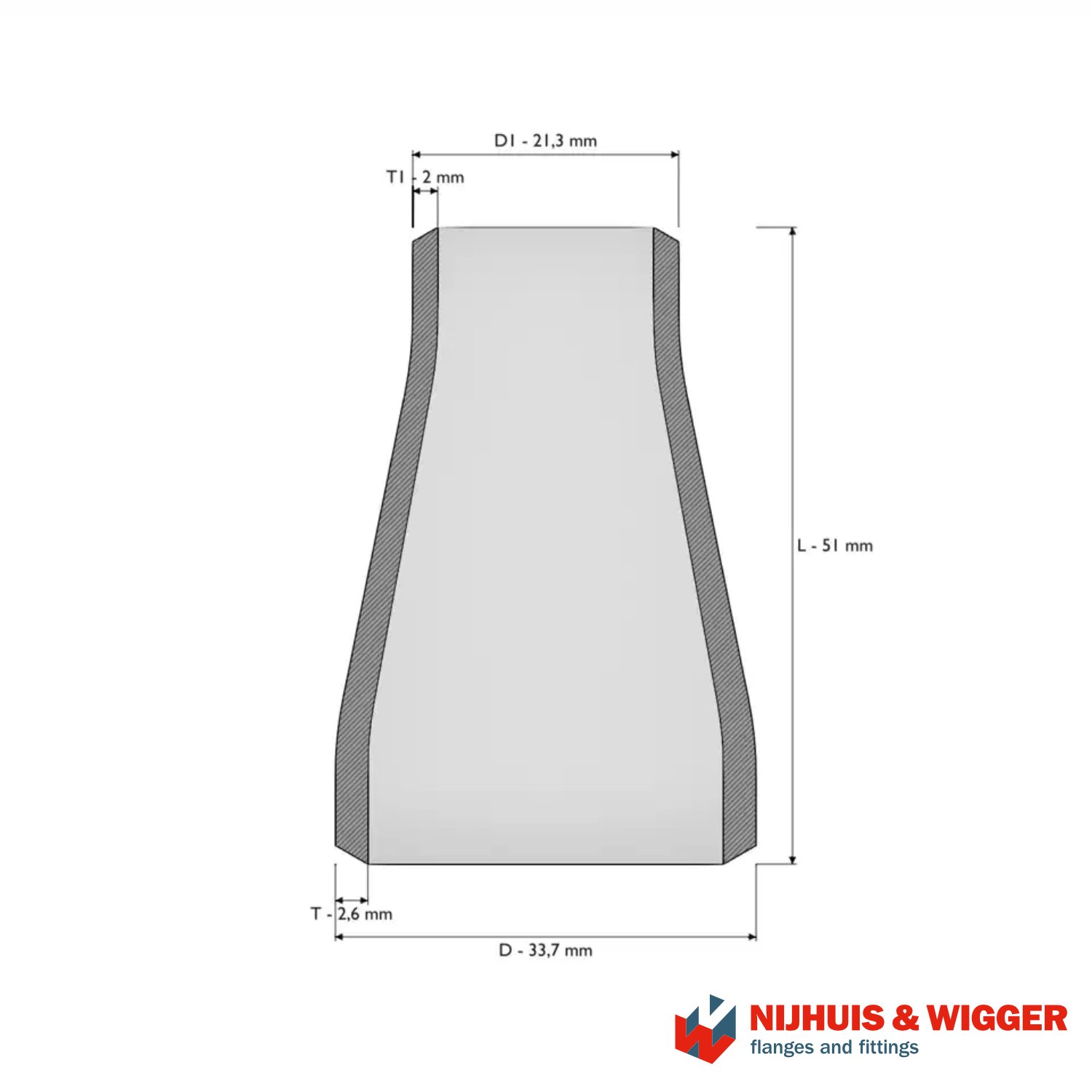

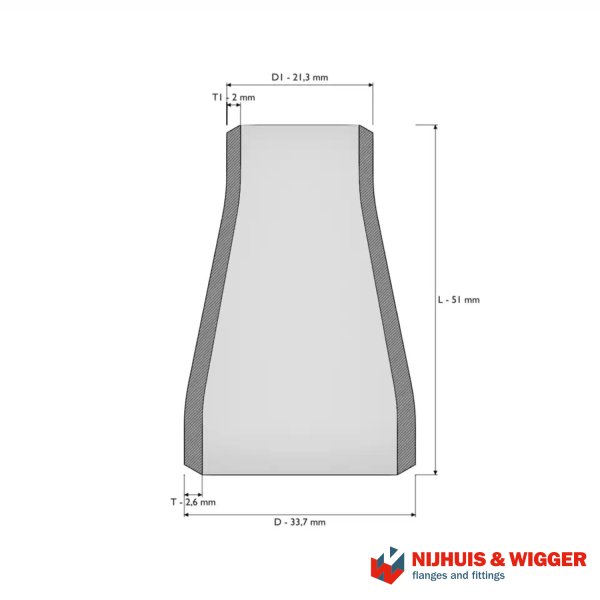

Concentrisch lasverloop 33.7 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    21.3



    Outside Diameter 1 (D)

    33.7

    Thickness (T1)

    2.0



    Thickness (T)

    2.6

    Length Reducer (L)

    50





  • weight 0.07

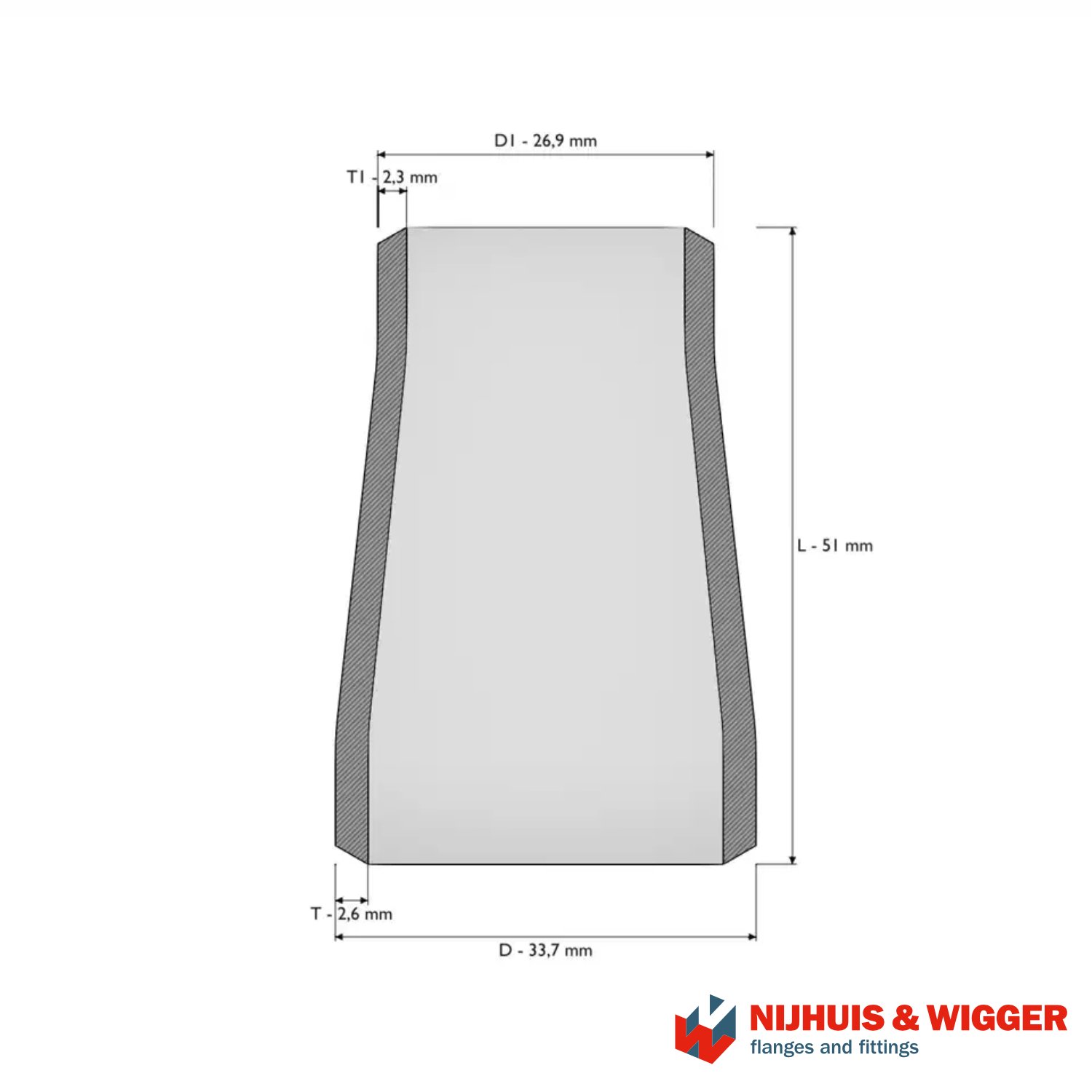

Concentrisch lasverloop 33.7 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    26.9



    Outside Diameter 1 (D)

    33.7

    Thickness (T1)

    2.3



    Thickness (T)

    2.6

    Length Reducer (L)

    50


  • weight 0.08
Concentrisch lasverloop 42.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    21.3



    Outside Diameter 1 (D)

    42.4

    Thickness (T1)

    2.0



    Thickness (T)

    2.6

    Length Reducer (L)

    50





  • weight 0.09

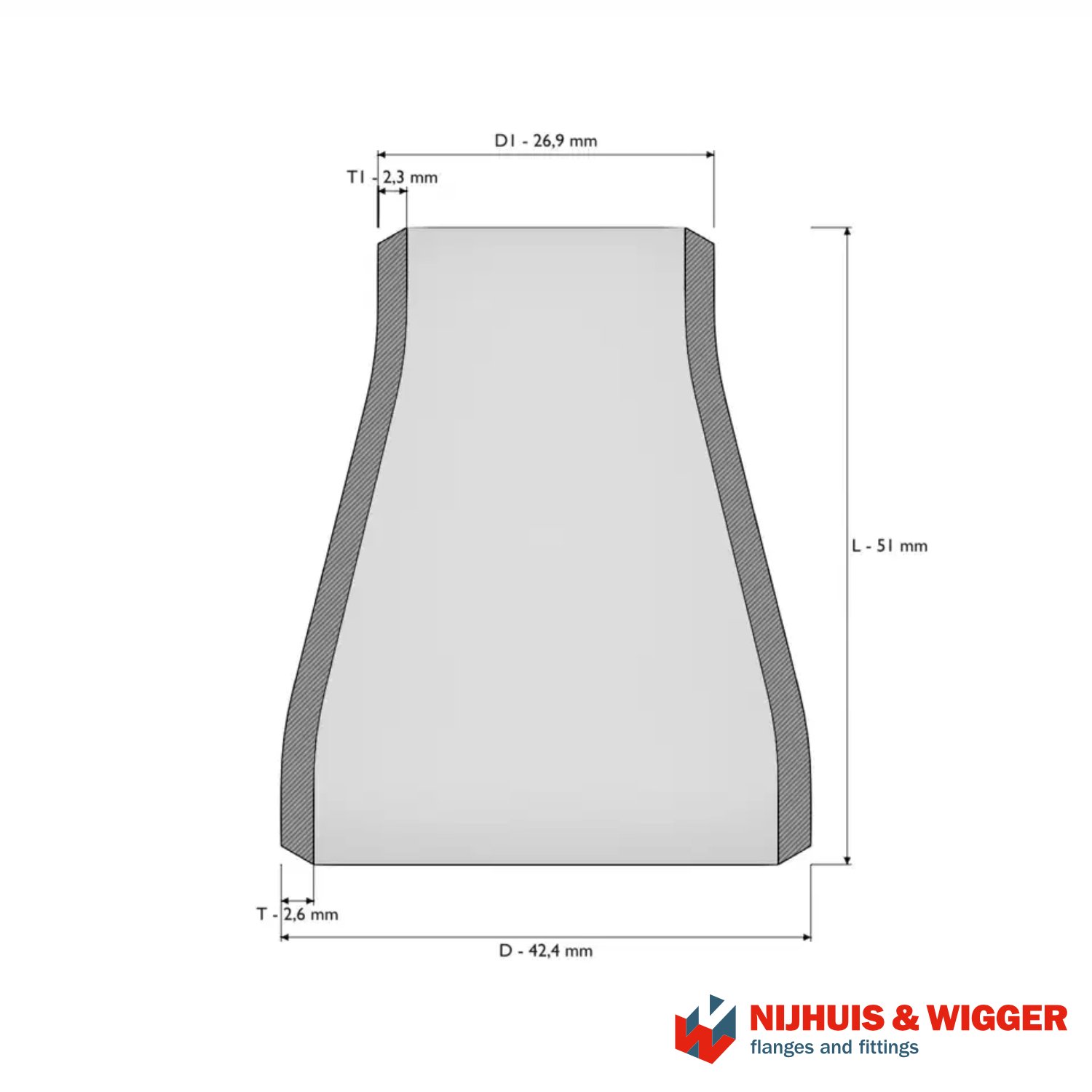

Concentrisch lasverloop 42.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    26.9



    Outside Diameter 1 (D)

    42.4

    Thickness (T1)

    2.3



    Thickness (T)

    2.6

    Length Reducer (L)

    50


  • weight 0.10

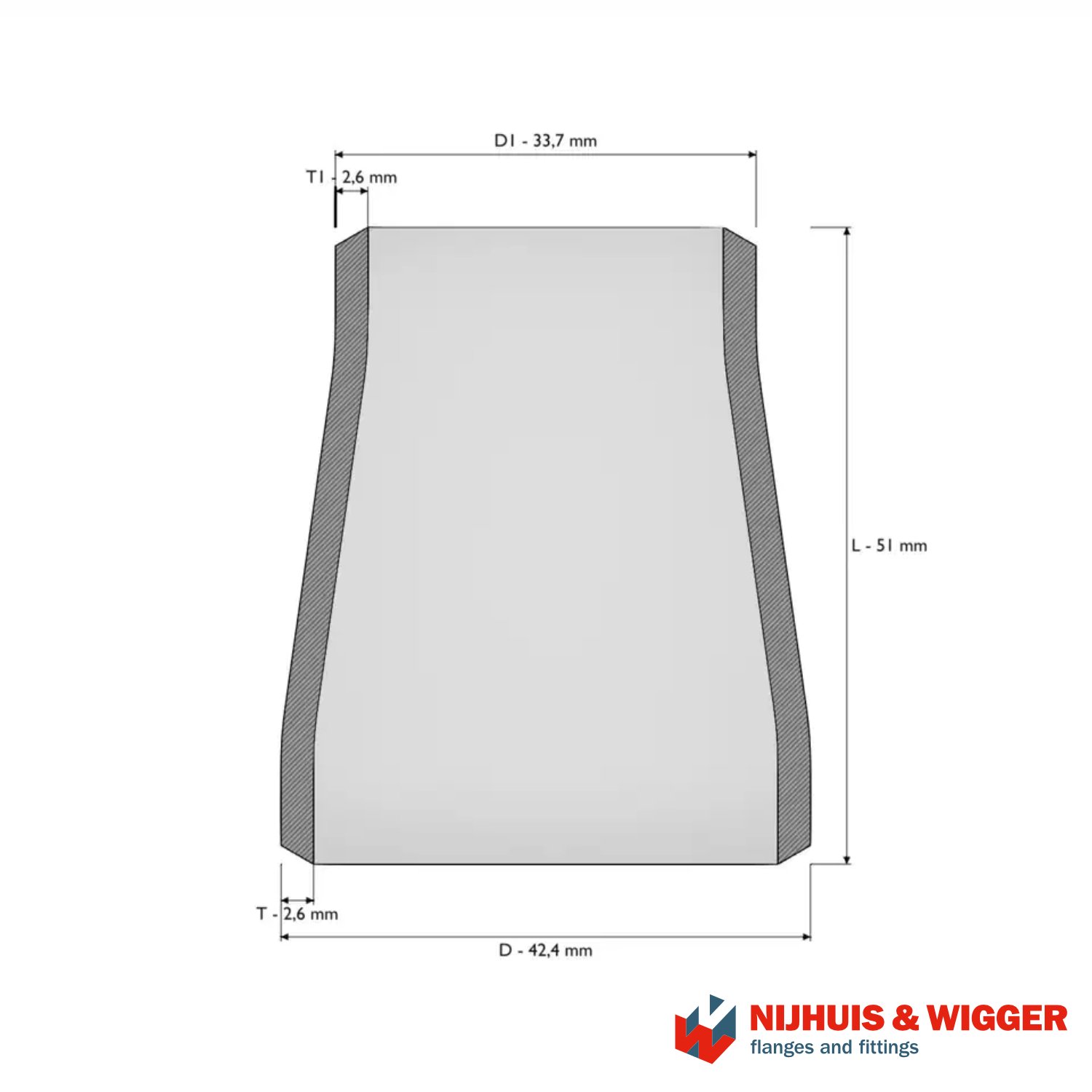

Concentrisch lasverloop 42.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    33.7



    Outside Diameter 1 (D)

    42.4

    Thickness (T1)

    2.6



    Thickness (T)

    2.6

    Length Reducer (L)

    50





  • weight 0.12
Concentrisch lasverloop 48.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    21.3



    Outside Diameter 1 (D)

    48.3

    Thickness (T1)

    2.0



    Thickness (T)

    2.6

    Length Reducer (L)

    64


  • weight 0.13
Concentrisch lasverloop 48.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    26.9



    Outside Diameter 1 (D)

    48.3

    Thickness (T1)

    2.3



    Thickness (T)

    2.6

    Length Reducer (L)

    64





  • weight 0.15

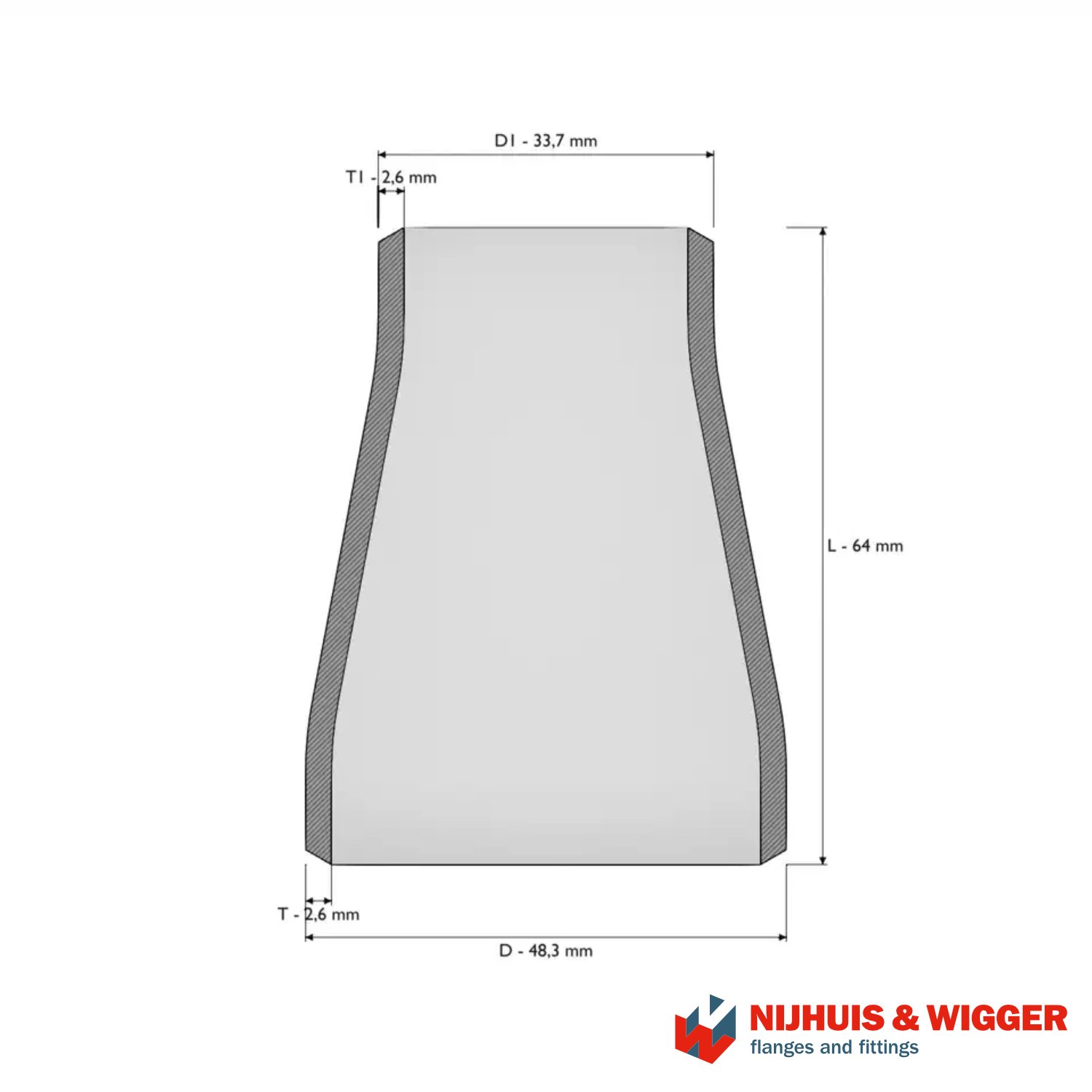

Concentrisch lasverloop 48.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    33.7



    Outside Diameter 1 (D)

    48.3

    Thickness (T1)

    2.6



    Thickness (T)

    2.6

    Length Reducer (L)

    64


  • weight 0.17

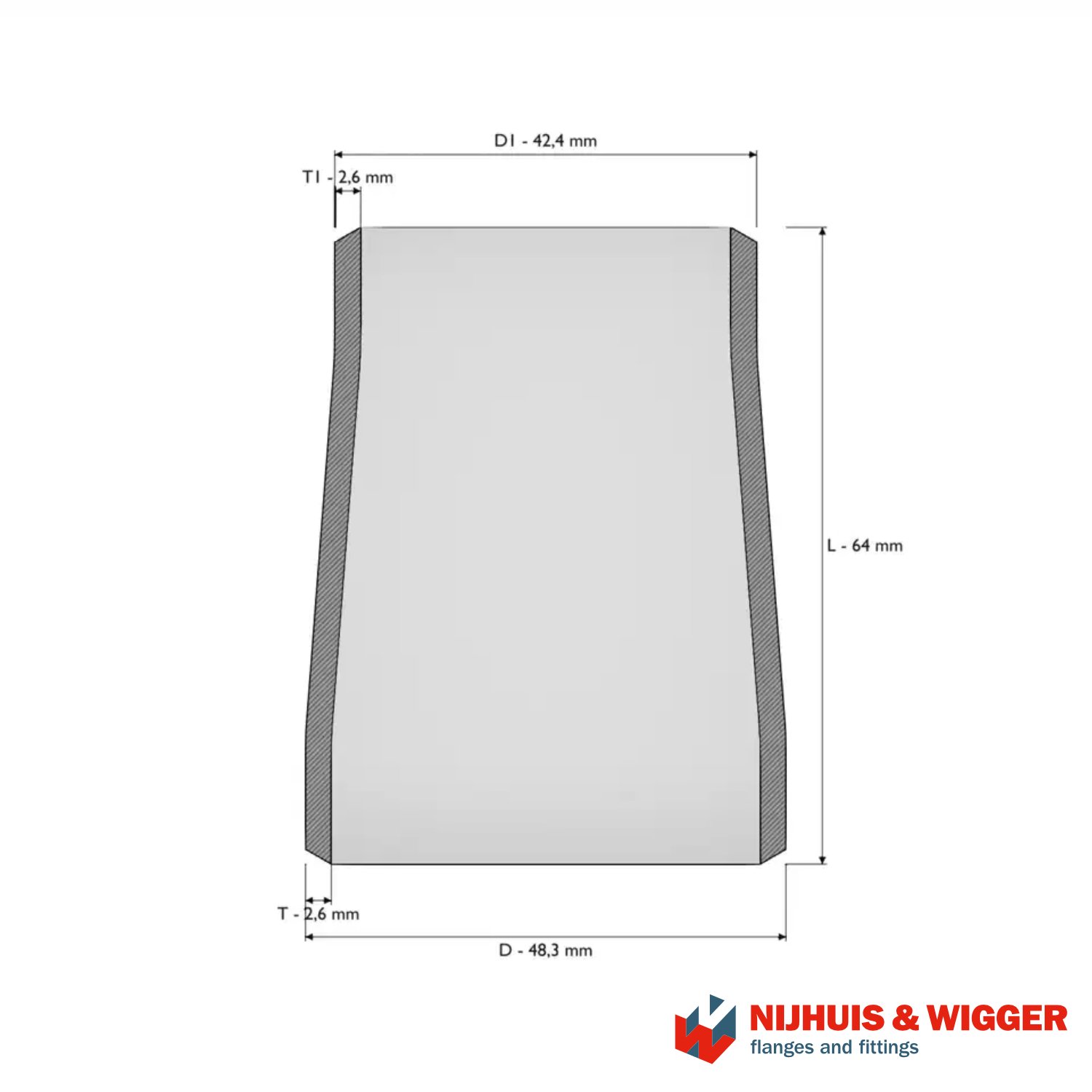

Concentrisch lasverloop 48.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    42.4



    Outside Diameter 1 (D)

    48.3

    Thickness (T1)

    2.6



    Thickness (T)

    2.6

    Length Reducer (L)

    64





  • weight 0.19
Concentrisch lasverloop 60.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    26.9



    Outside Diameter 1 (D)

    60.3

    Thickness (T1)

    2.3



    Thickness (T)

    2.9

    Length Reducer (L)

    76


  • weight 0.21

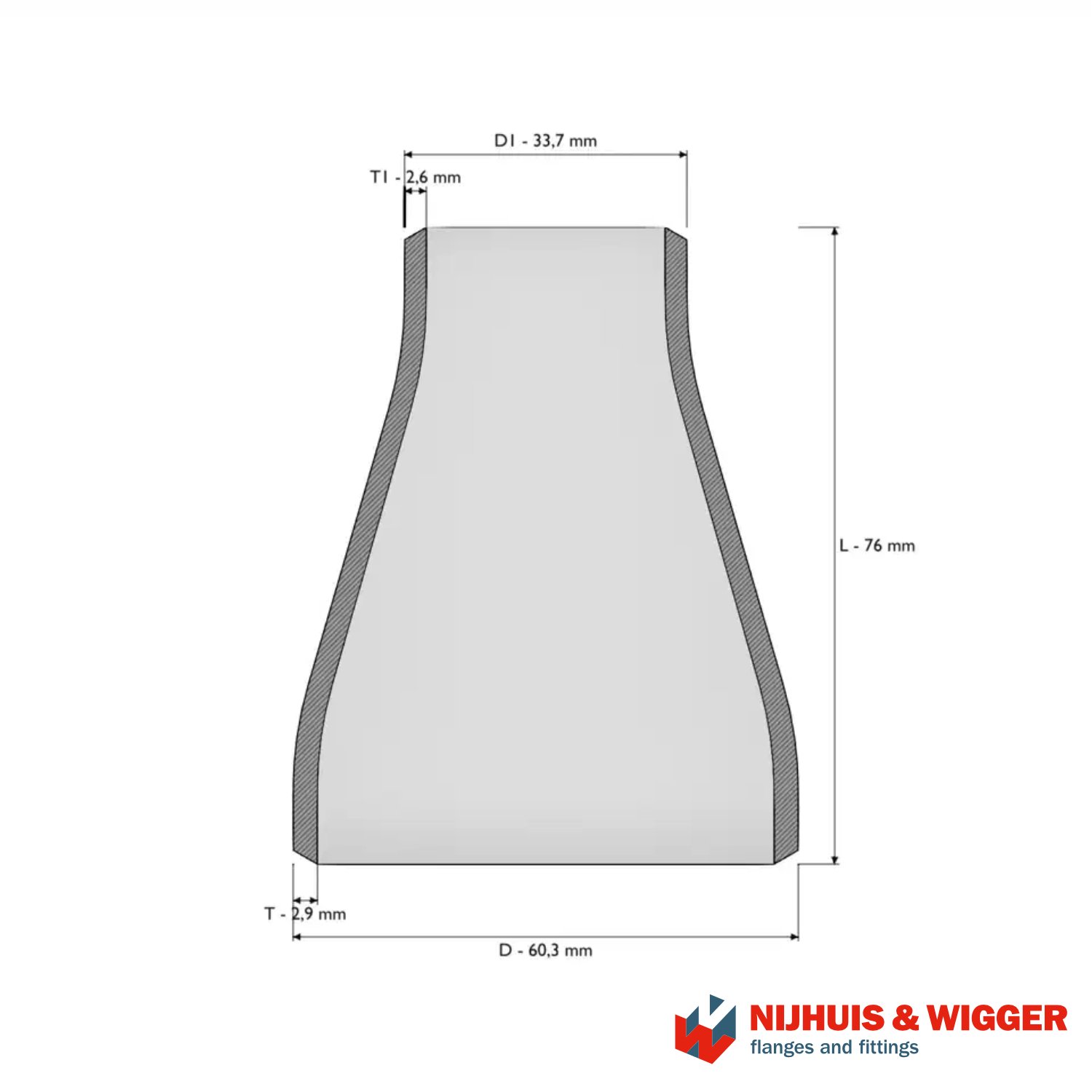

Concentrisch lasverloop 60.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    33.7



    Outside Diameter 1 (D)

    60.3

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    76





  • weight 0.24

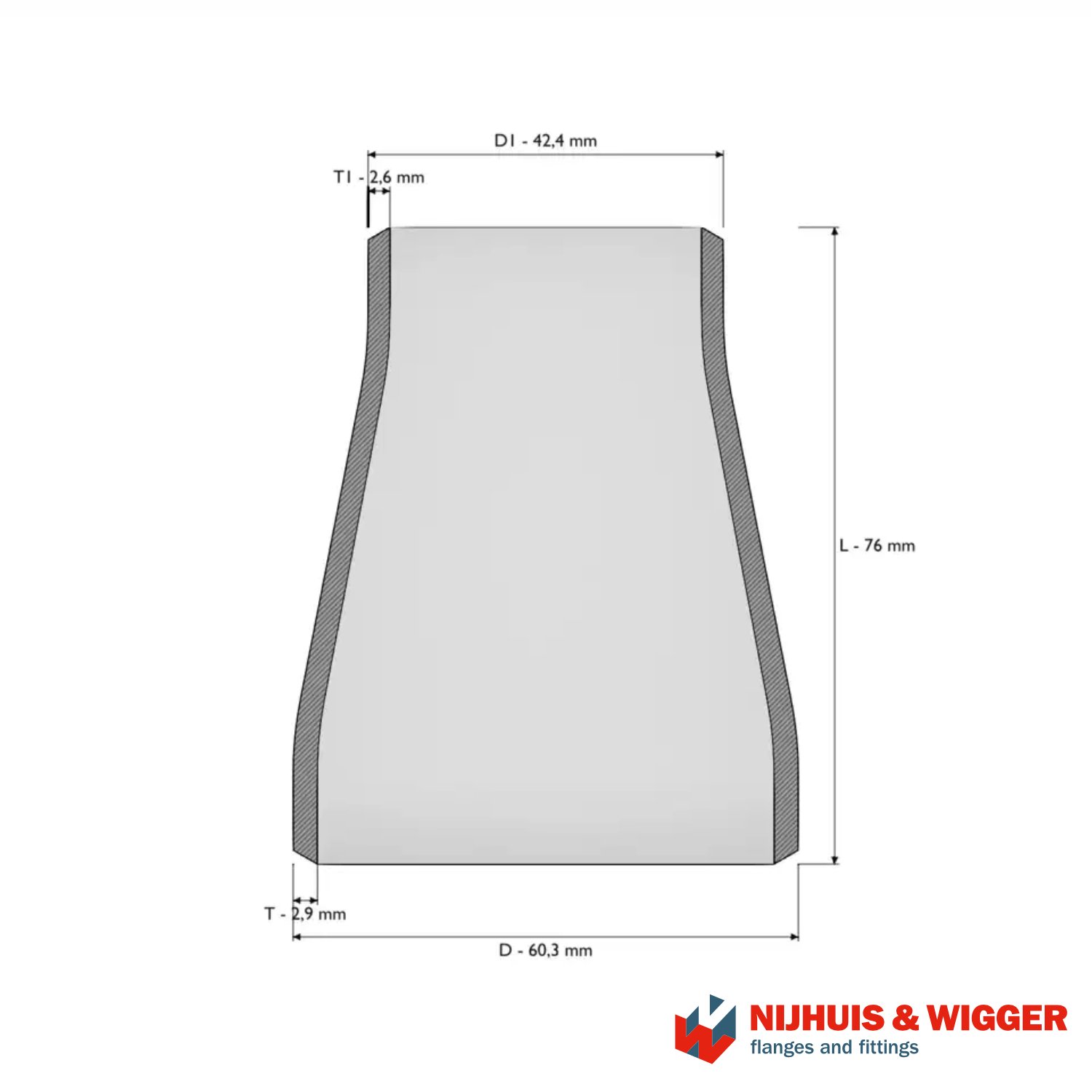

Concentrisch lasverloop 60.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    42.4



    Outside Diameter 1 (D)

    60.3

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    76


  • weight 0.26

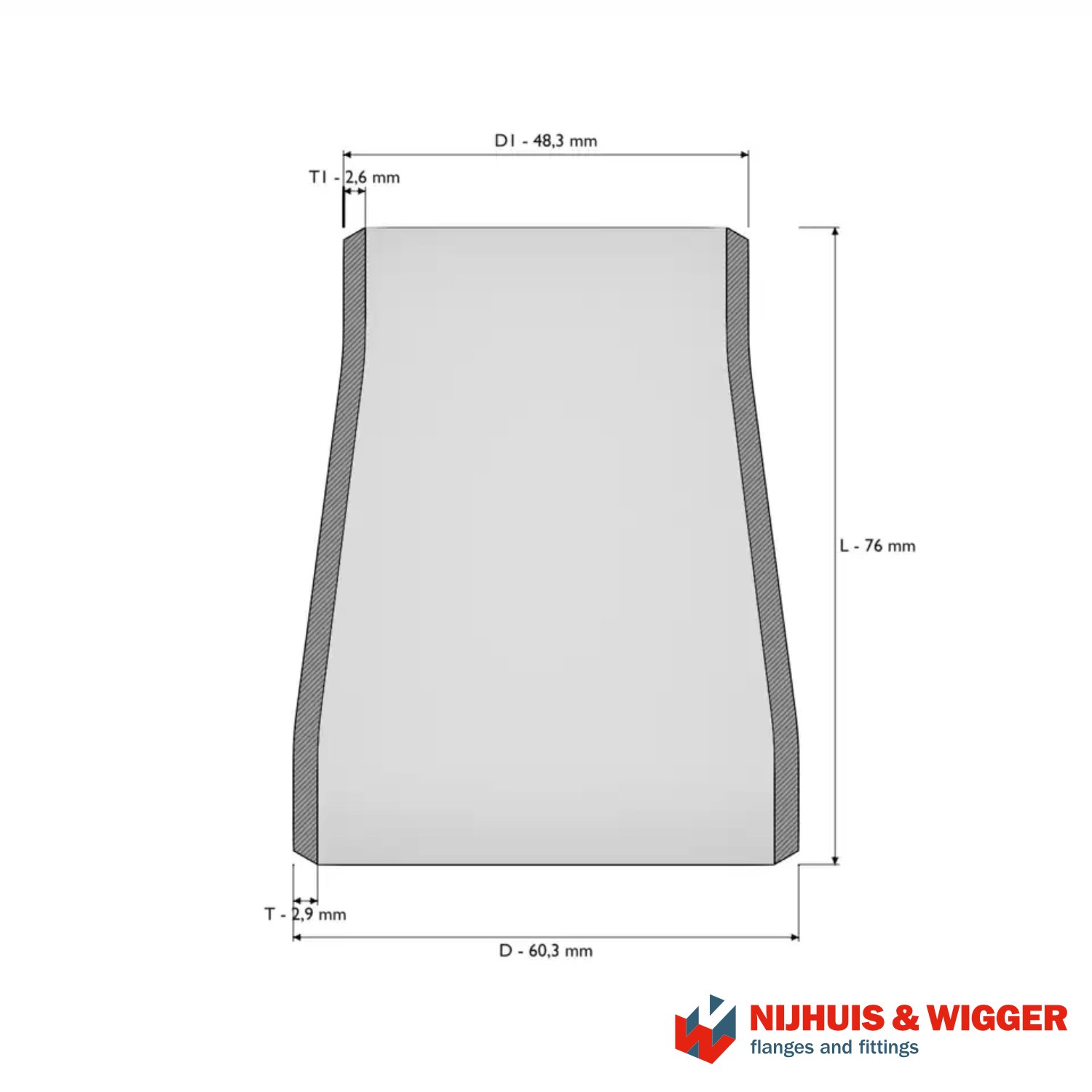

Concentrisch lasverloop 60.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    48.3



    Outside Diameter 1 (D)

    60.3

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    76





  • weight 0.28
Concentrisch lasverloop 76.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    33.7



    Outside Diameter 1 (D)

    76.1

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    90


  • weight 0.34

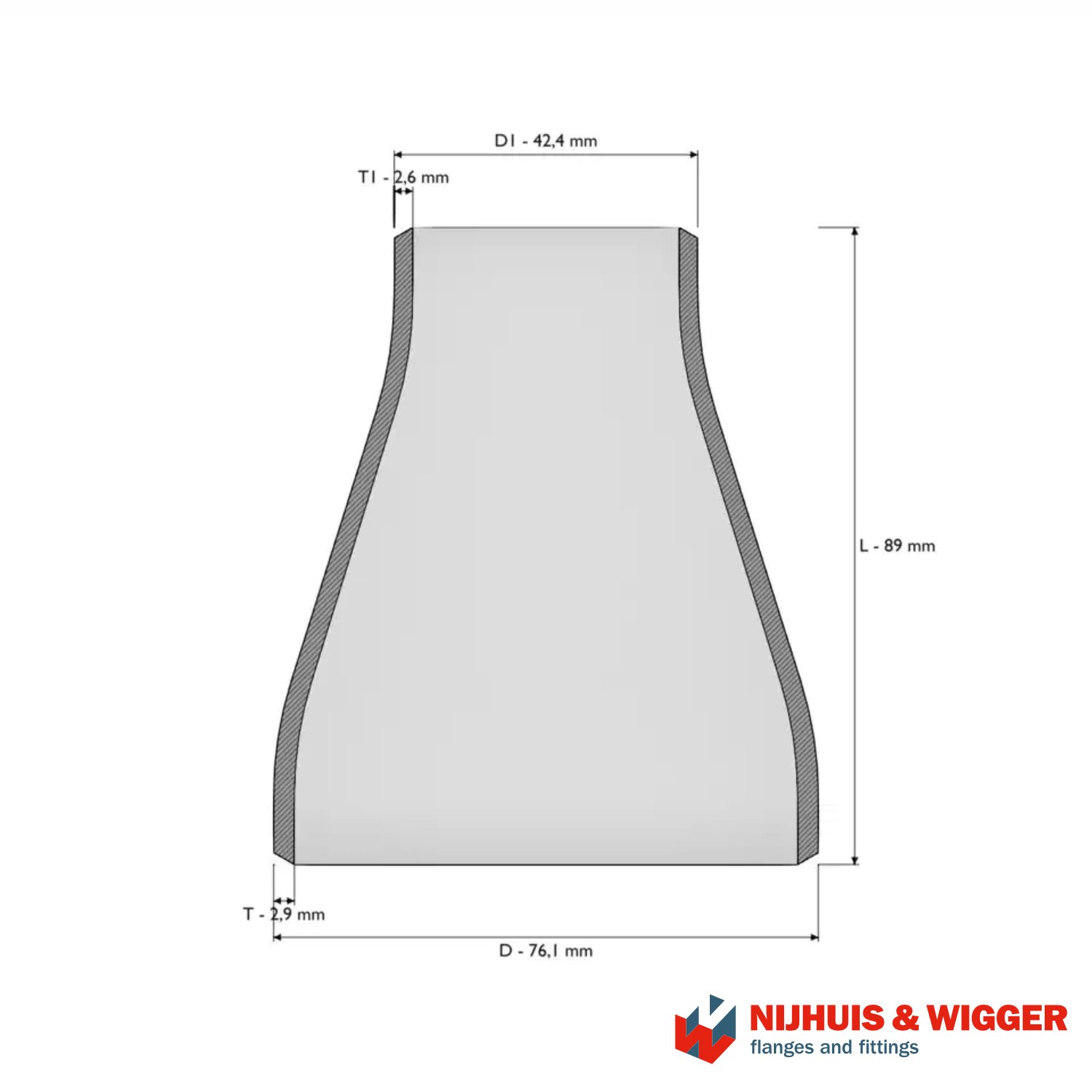

Concentrisch lasverloop 76.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    42.4



    Outside Diameter 1 (D)

    76.1

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    90





  • weight 0.36

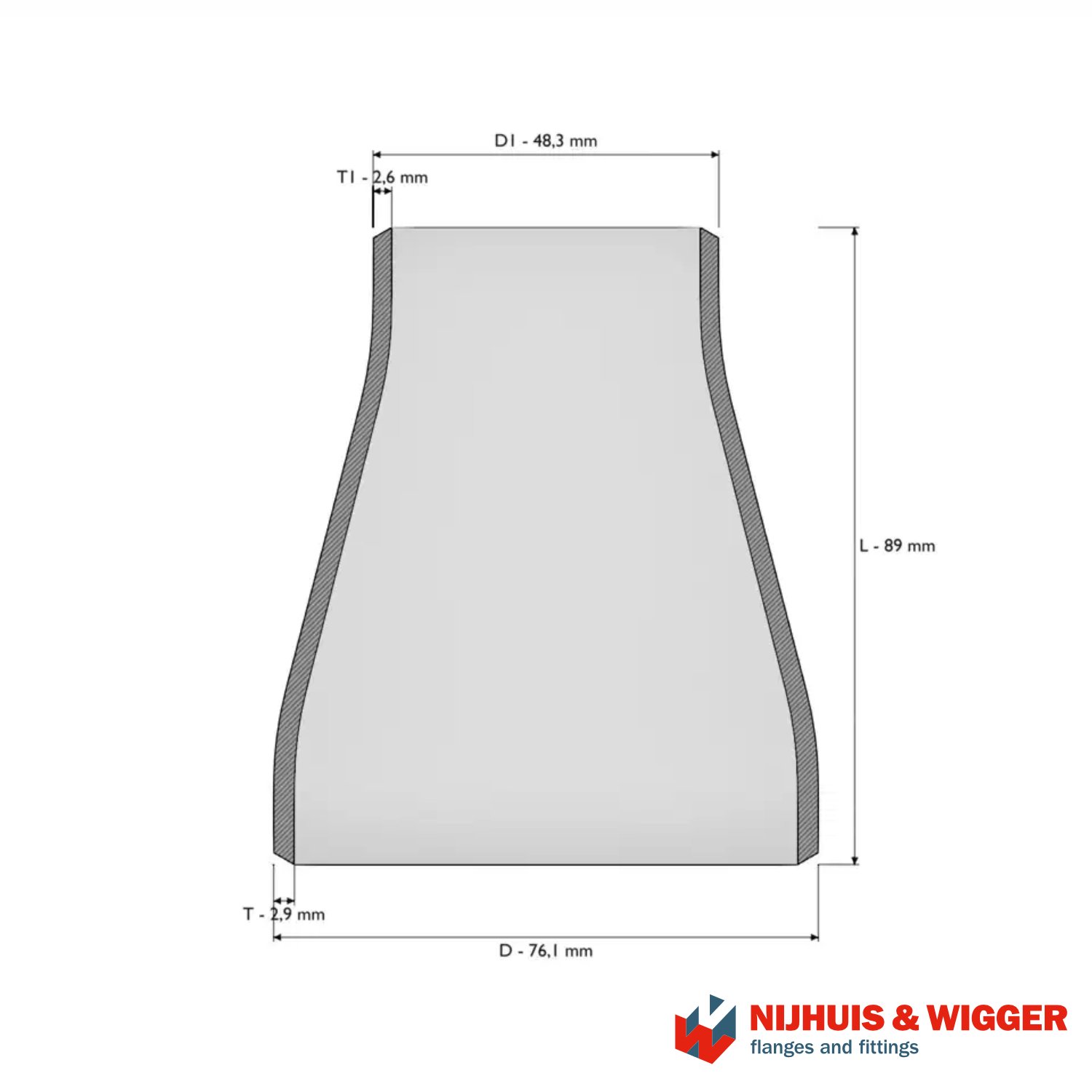

Concentrisch lasverloop 76.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    48.3



    Outside Diameter 1 (D)

    76.1

    Thickness (T1)

    2.6



    Thickness (T)

    2.9

    Length Reducer (L)

    90


  • weight 0.38

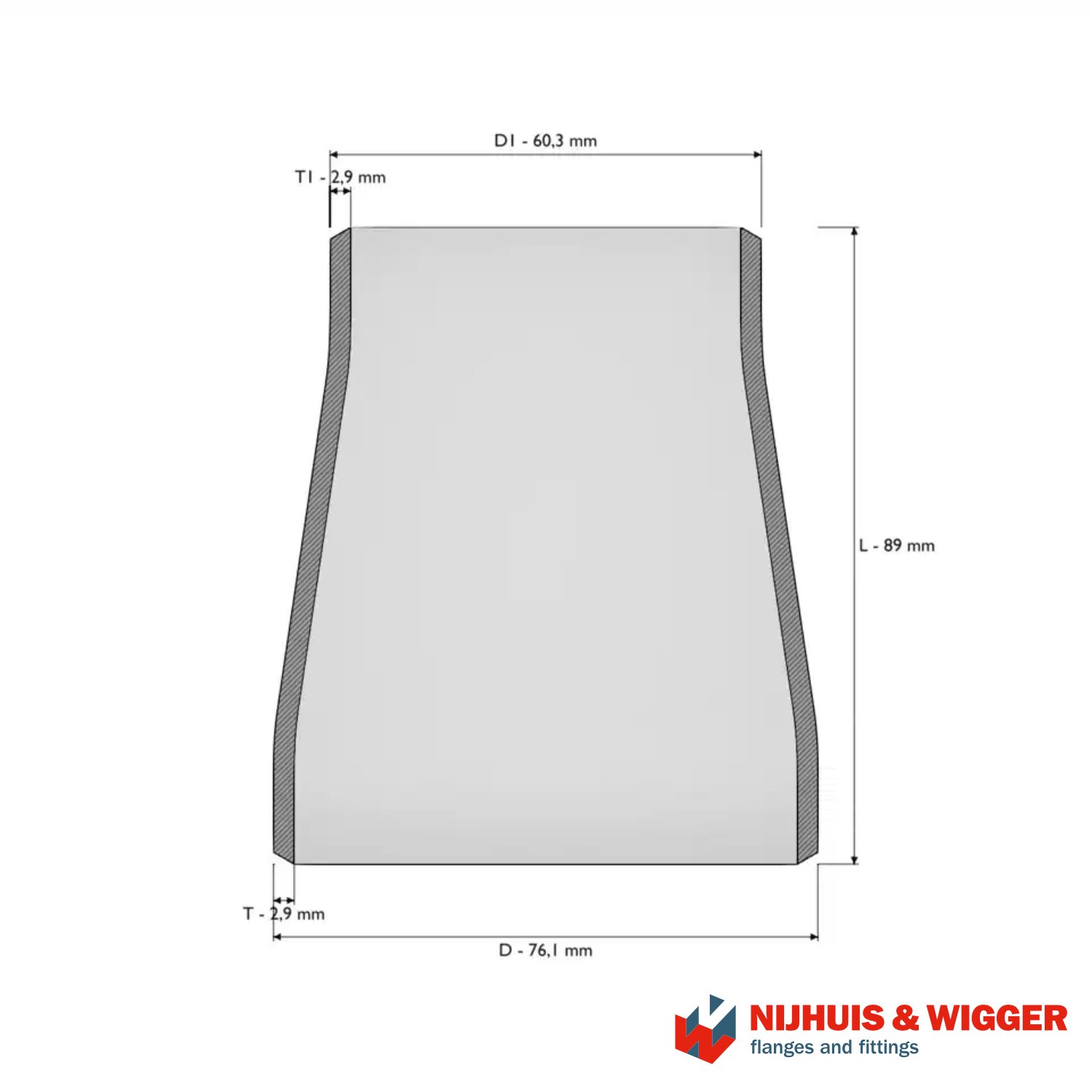

Concentrisch lasverloop 76.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    60.3



    Outside Diameter 1 (D)

    76.1

    Thickness (T1)

    2.9



    Thickness (T)

    2.9

    Length Reducer (L)

    90





  • weight 0.44
Concentrisch lasverloop 88.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    42.4



    Outside Diameter 1 (D)

    88.9

    Thickness (T1)

    2.6



    Thickness (T)

    3.2

    Length Reducer (L)

    90


  • weight 0.42

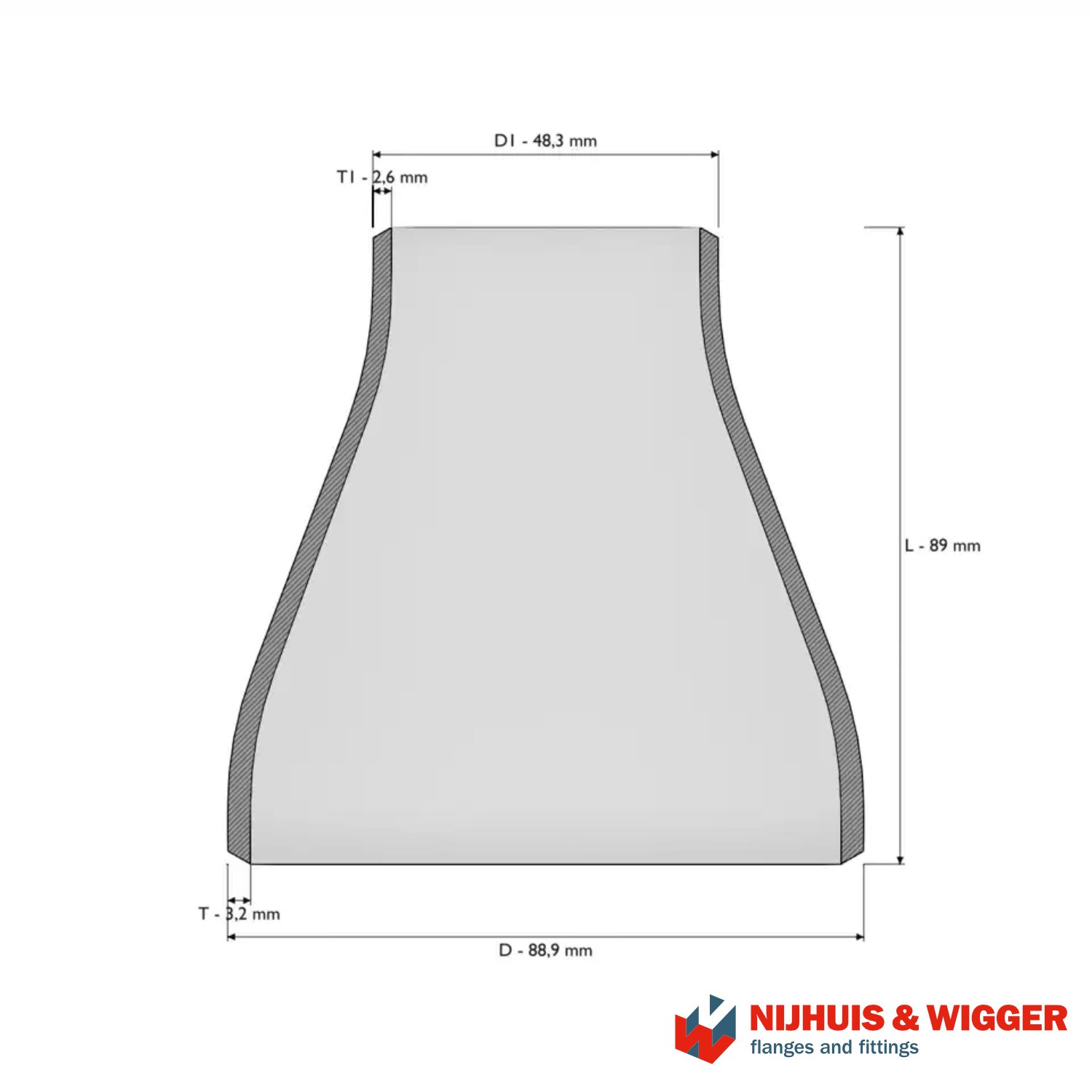

Concentrisch lasverloop 88.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    48.3



    Outside Diameter 1 (D)

    88.9

    Thickness (T1)

    2.6



    Thickness (T)

    3.2

    Length Reducer (L)

    90





  • weight 0.44

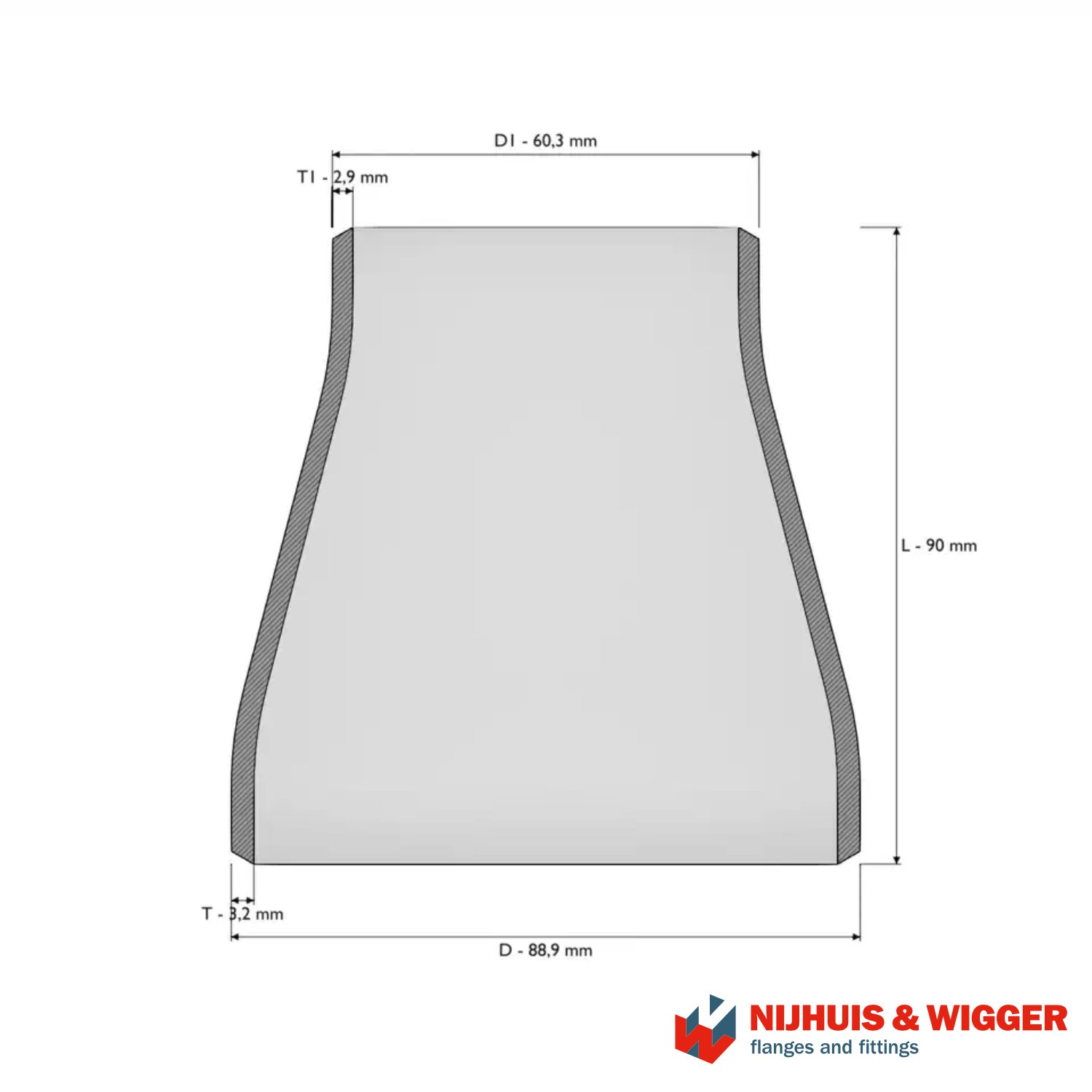

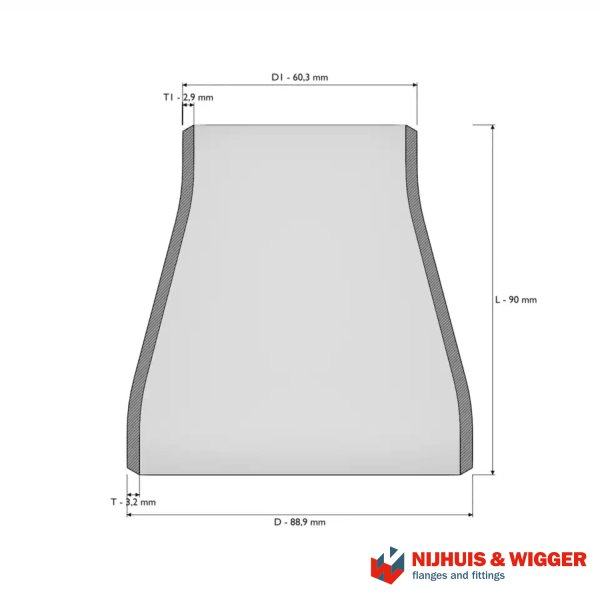

Concentrisch lasverloop 88.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    60.3



    Outside Diameter 1 (D)

    88.9

    Thickness (T1)

    2.9



    Thickness (T)

    3.2

    Length Reducer (L)

    90


  • weight 0.51

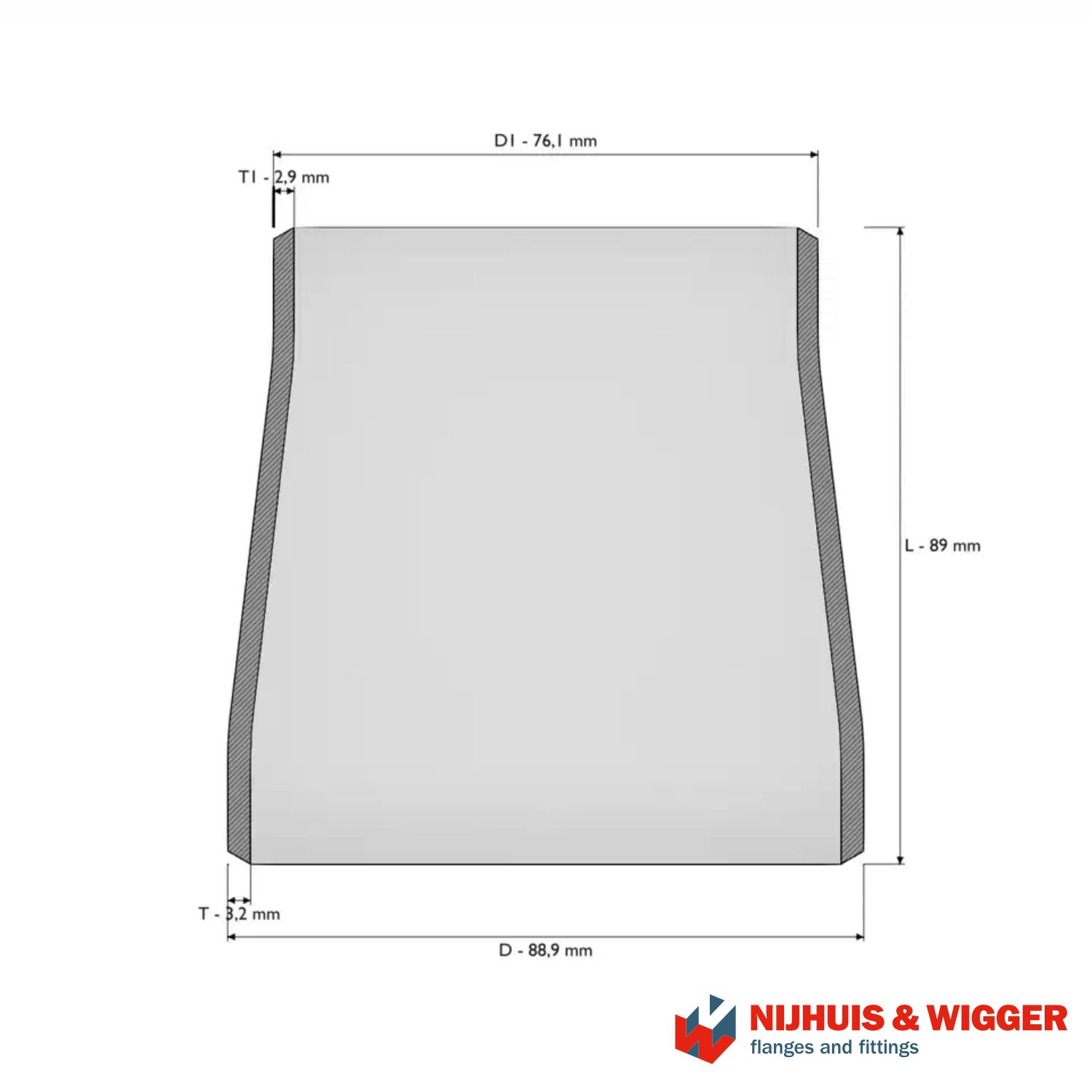

Concentrisch lasverloop 88.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    76.1



    Outside Diameter 1 (D)

    88.9

    Thickness (T1)

    2.9



    Thickness (T)

    3.2

    Length Reducer (L)

    90





  • weight 0.56
Concentrisch lasverloop 114.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    60.3



    Outside Diameter 1 (D)

    114.3

    Thickness (T1)

    2.9



    Thickness (T)

    3.6

    Length Reducer (L)

    100





  • weight 0.70

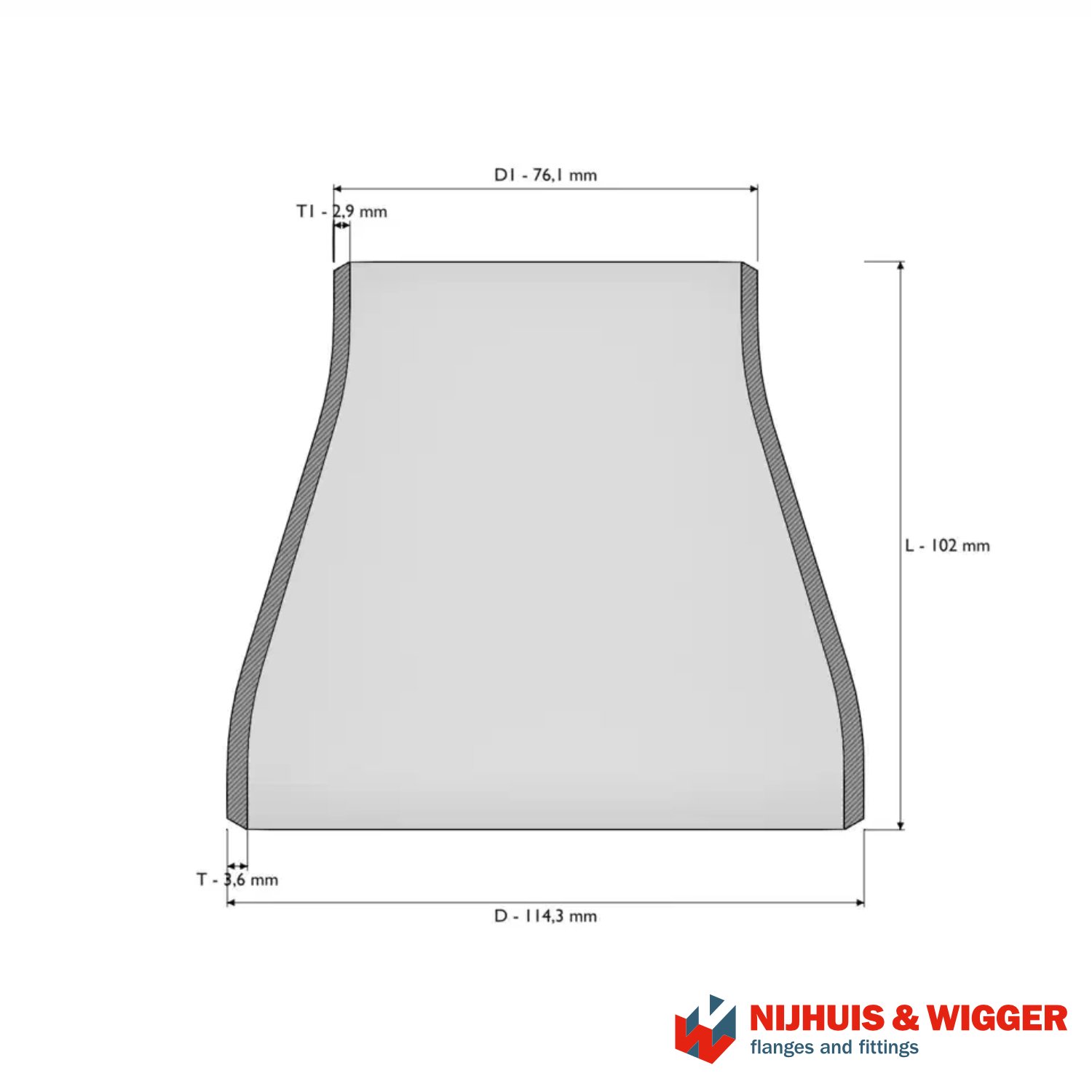

Concentrisch lasverloop 114.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    76.1



    Outside Diameter 1 (D)

    114.3

    Thickness (T1)

    2.9



    Thickness (T)

    3.6

    Length Reducer (L)

    100


  • weight 0.76

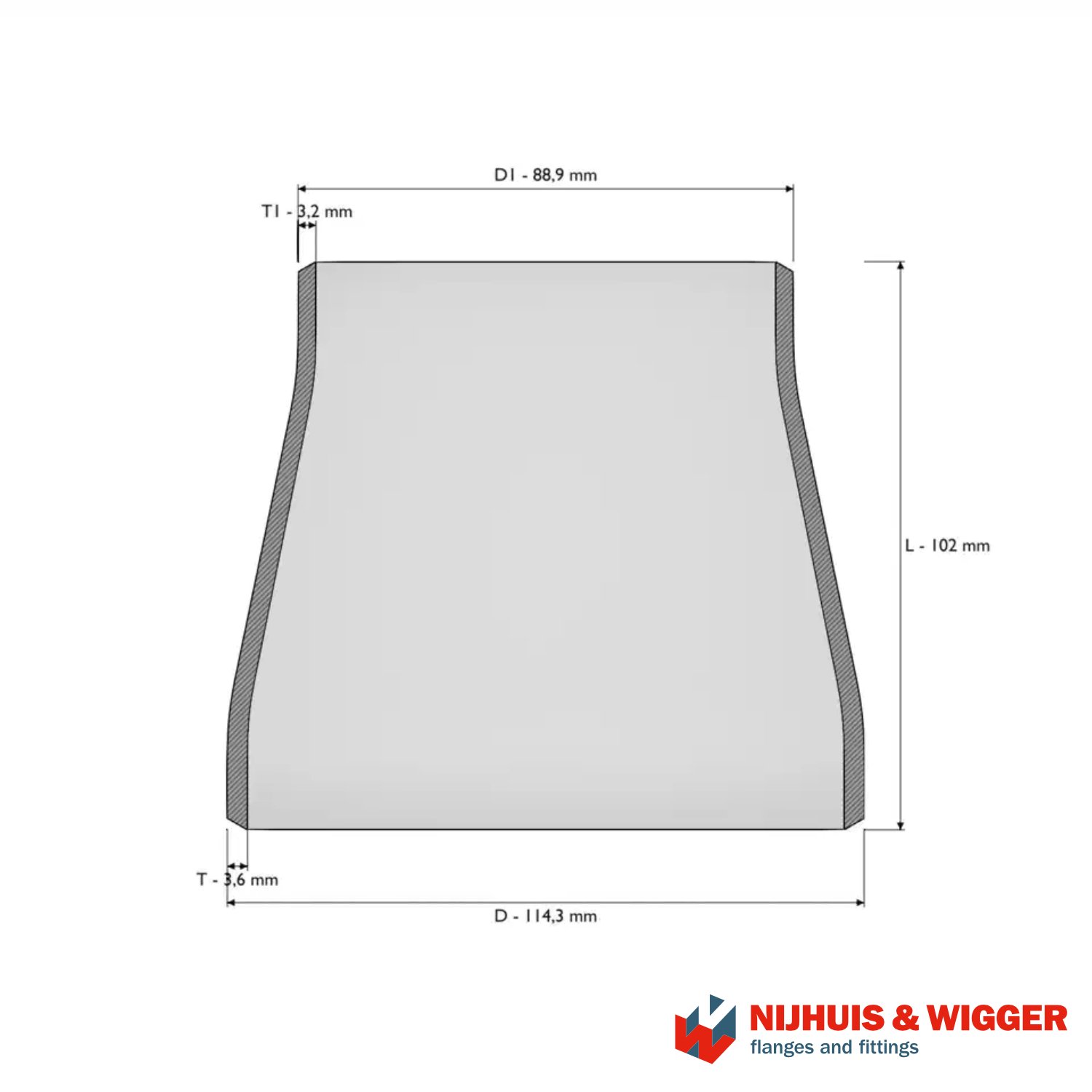

Concentrisch lasverloop 114.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    88.9



    Outside Diameter 1 (D)

    114.3

    Thickness (T1)

    3.2



    Thickness (T)

    3.6

    Length Reducer (L)

    100





  • weight 0.85
Concentrisch lasverloop 139.7 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    76.1



    Outside Diameter 1 (D)

    139.7

    Thickness (T1)

    2.9



    Thickness (T)

    4.0

    Length Reducer (L)

    127


  • weight 1.17

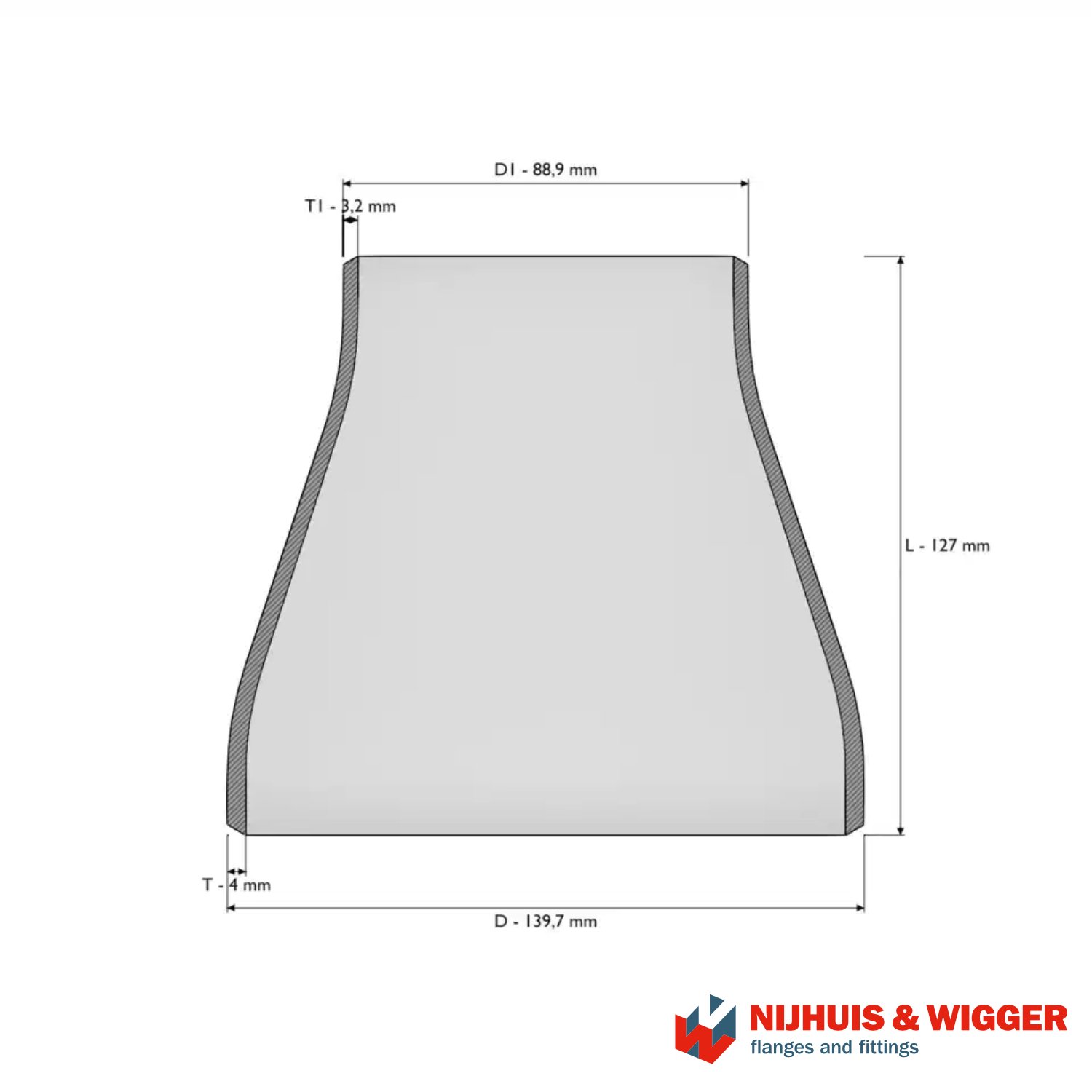

Concentrisch lasverloop 139.7 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    88.9



    Outside Diameter 1 (D)

    139.7

    Thickness (T1)

    3.2



    Thickness (T)

    4.0

    Length Reducer (L)

    127





  • weight 1.29

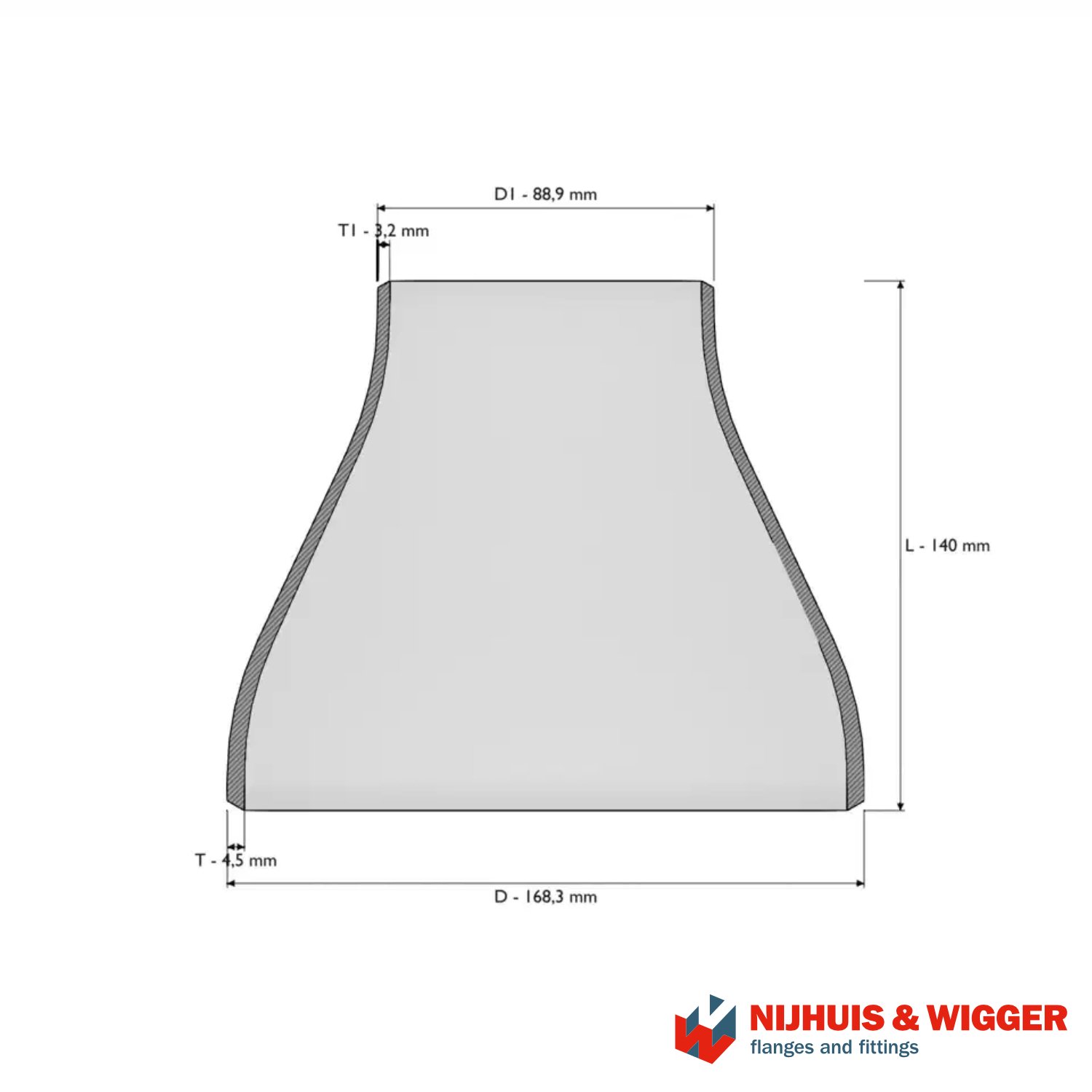

Concentrisch lasverloop 168.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    88.9



    Outside Diameter 1 (D)

    168.3

    Thickness (T1)

    3.2



    Thickness (T)

    4.5

    Length Reducer (L)

    140


  • weight 1.71

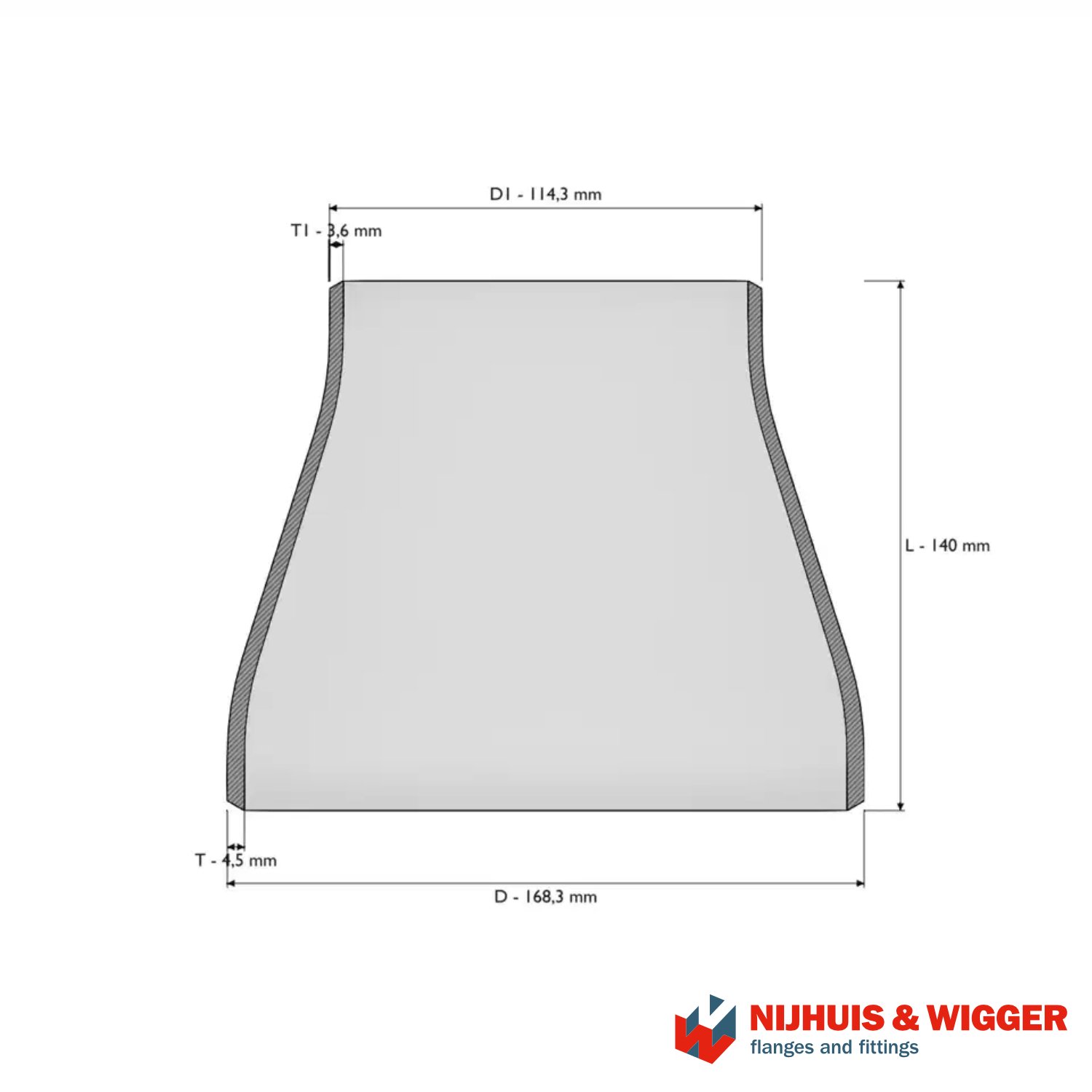

Concentrisch lasverloop 168.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    114.3



    Outside Diameter 1 (D)

    168.3

    Thickness (T1)

    3.6



    Thickness (T)

    4.5

    Length Reducer (L)

    140





  • weight 1.98

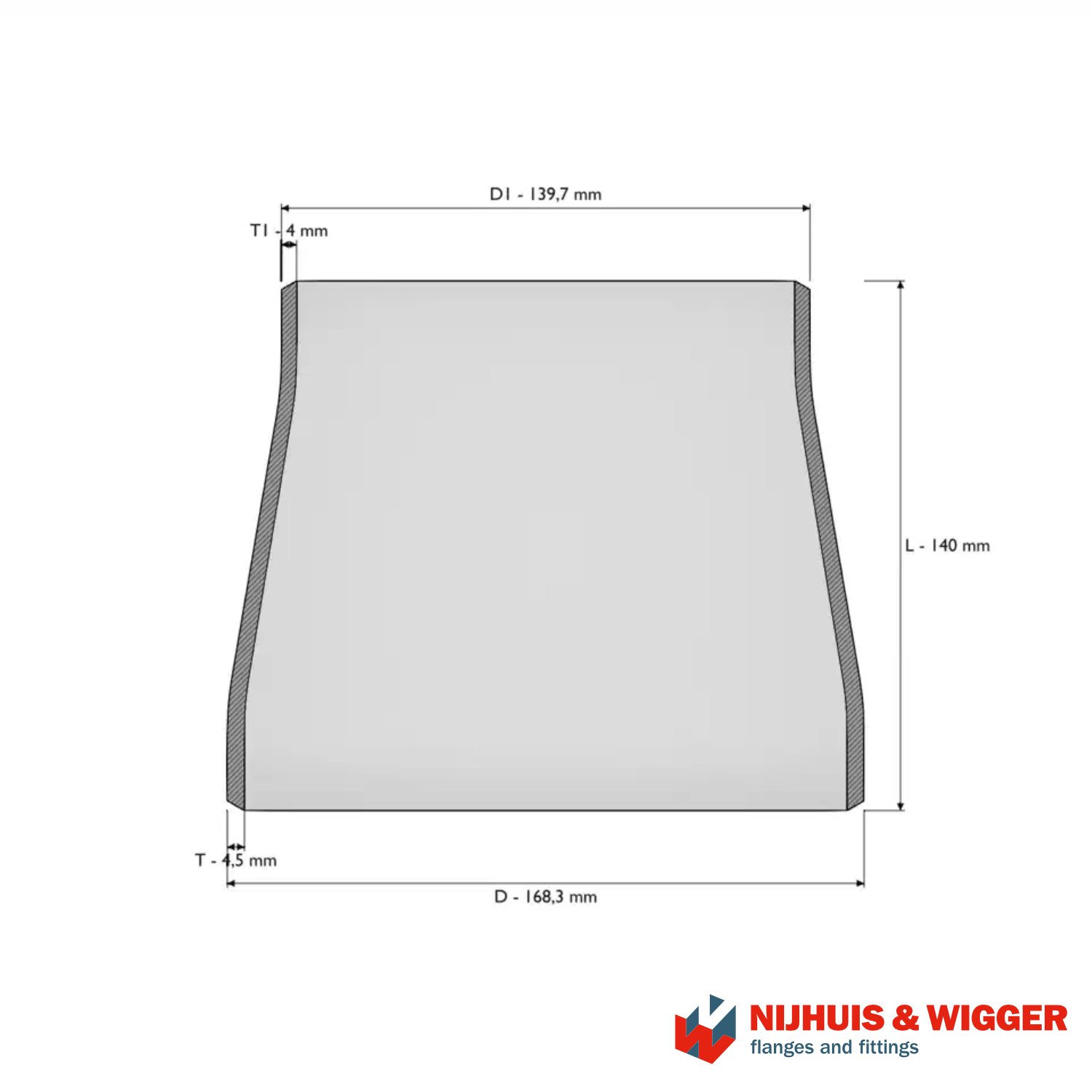

Concentrisch lasverloop 168.3 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    139.7



    Outside Diameter 1 (D)

    168.3

    Thickness (T1)

    4.0



    Thickness (T)

    4.5

    Length Reducer (L)

    140


  • weight 2.26

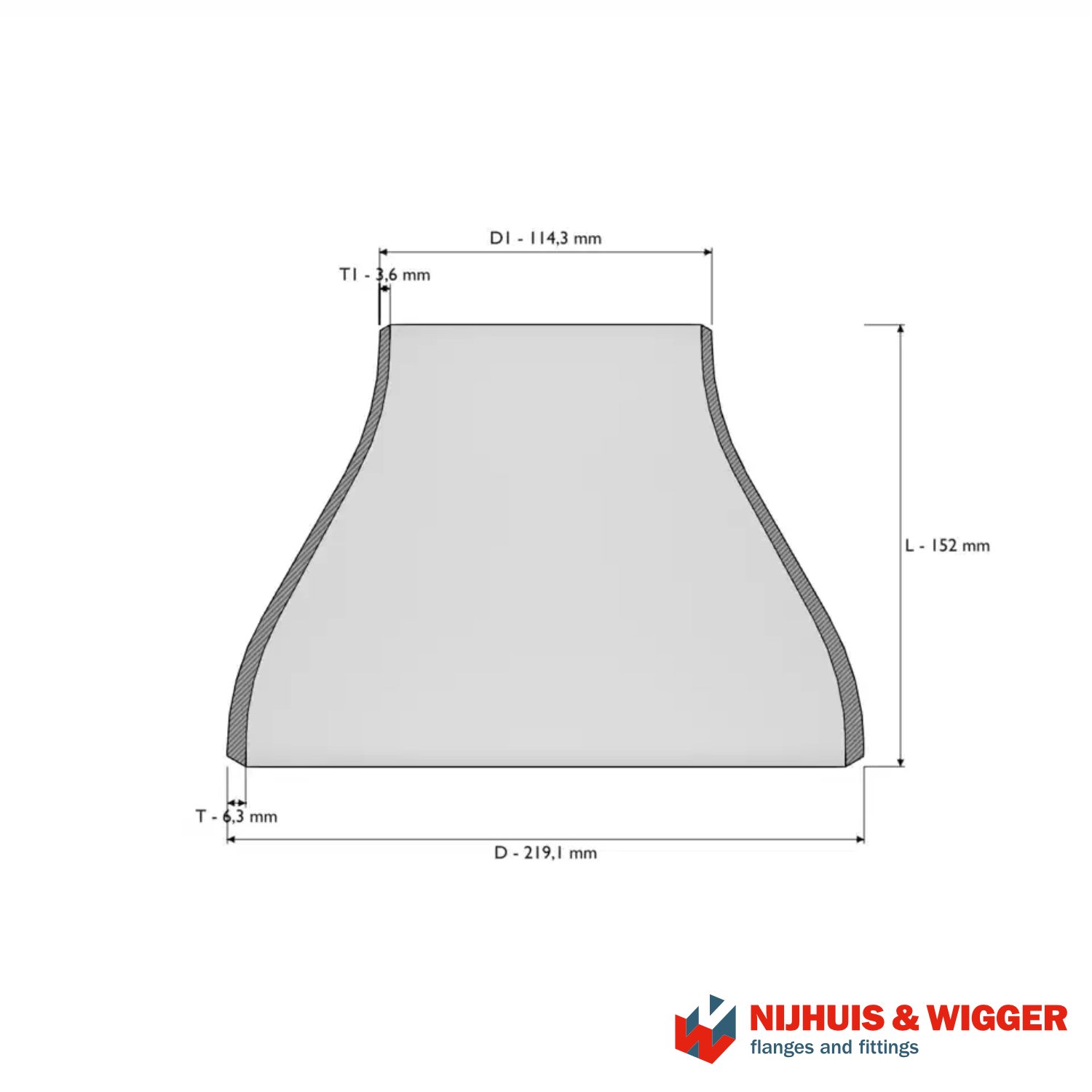

Concentrisch lasverloop 219.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    114.3



    Outside Diameter 1 (D)

    219.1

    Thickness (T1)

    3.6



    Thickness (T)

    5.9

    Length Reducer (L)

    152





  • weight 2.97

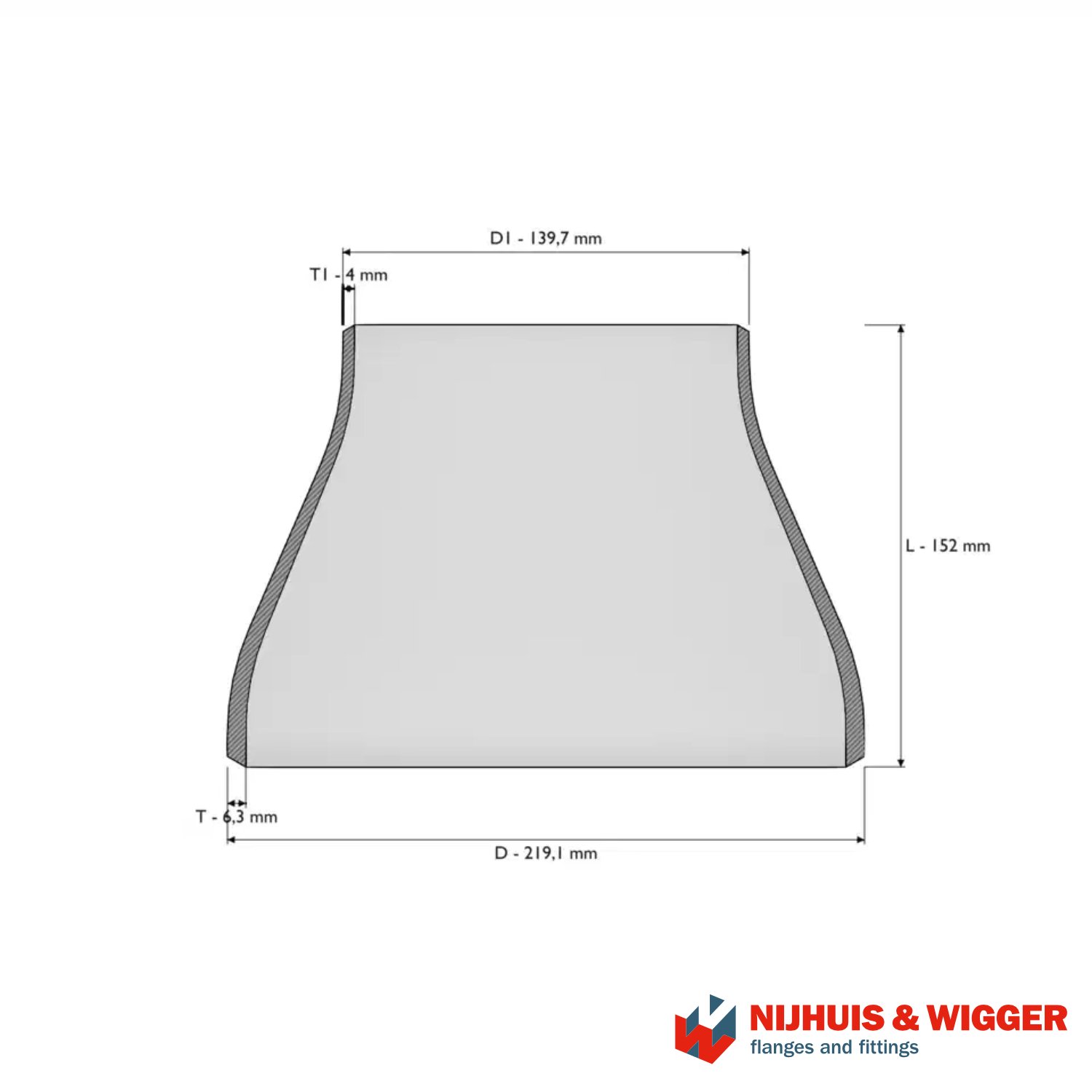

Concentrisch lasverloop 219.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    139.7



    Outside Diameter 1 (D)

    219.1

    Thickness (T1)

    4.0



    Thickness (T)

    5.9

    Length Reducer (L)

    152


  • weight 3.33

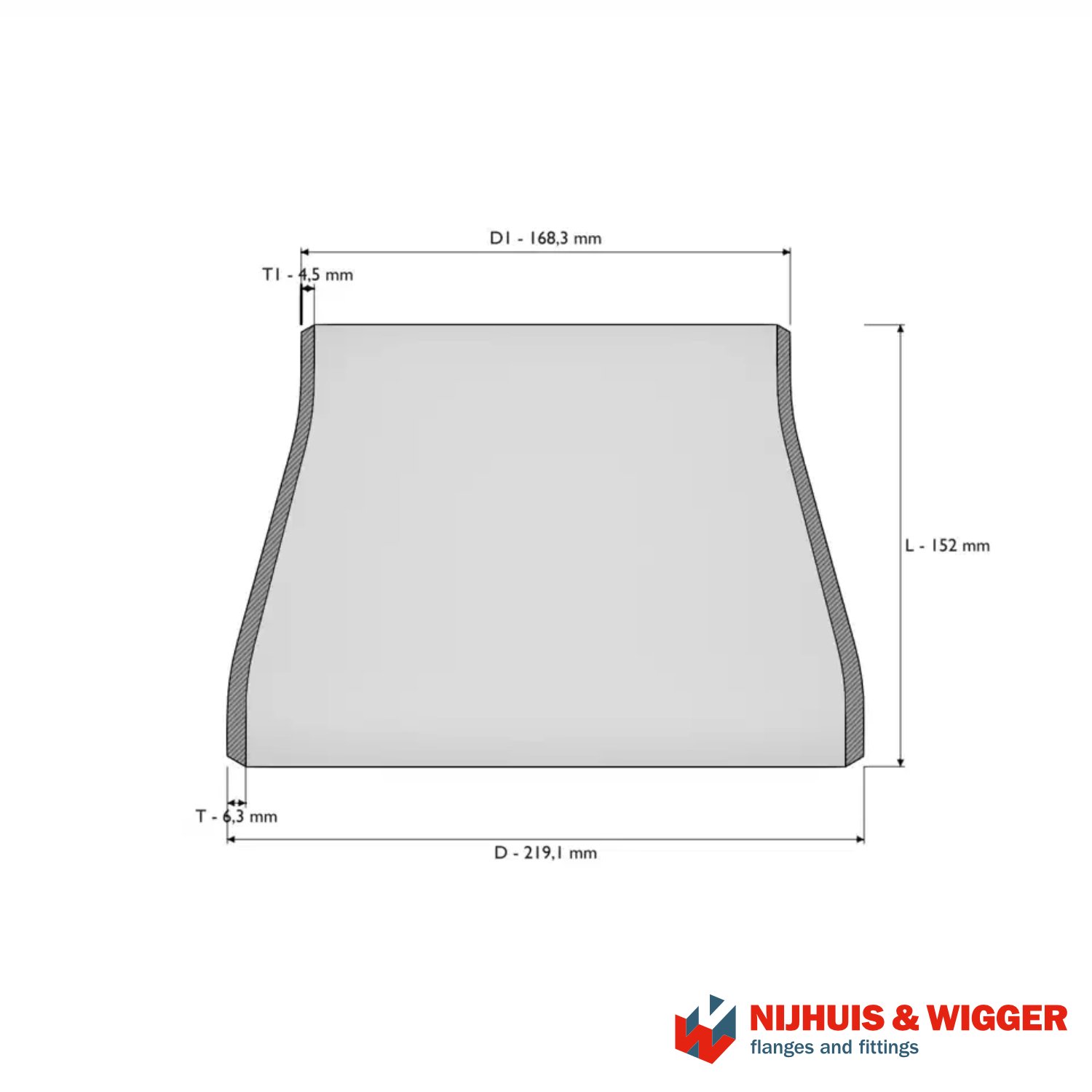

Concentrisch lasverloop 219.1 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    168.3



    Outside Diameter 1 (D)

    219.1

    Thickness (T1)

    4.5



    Thickness (T)

    5.9

    Length Reducer (L)

    152





  • weight 3.78
Concentrisch lasverloop 273 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    139.7



    Outside Diameter 1 (D)

    273.0

    Thickness (T1)

    4.0



    Thickness (T)

    6.3

    Length Reducer (L)

    178


  • weight 4.66

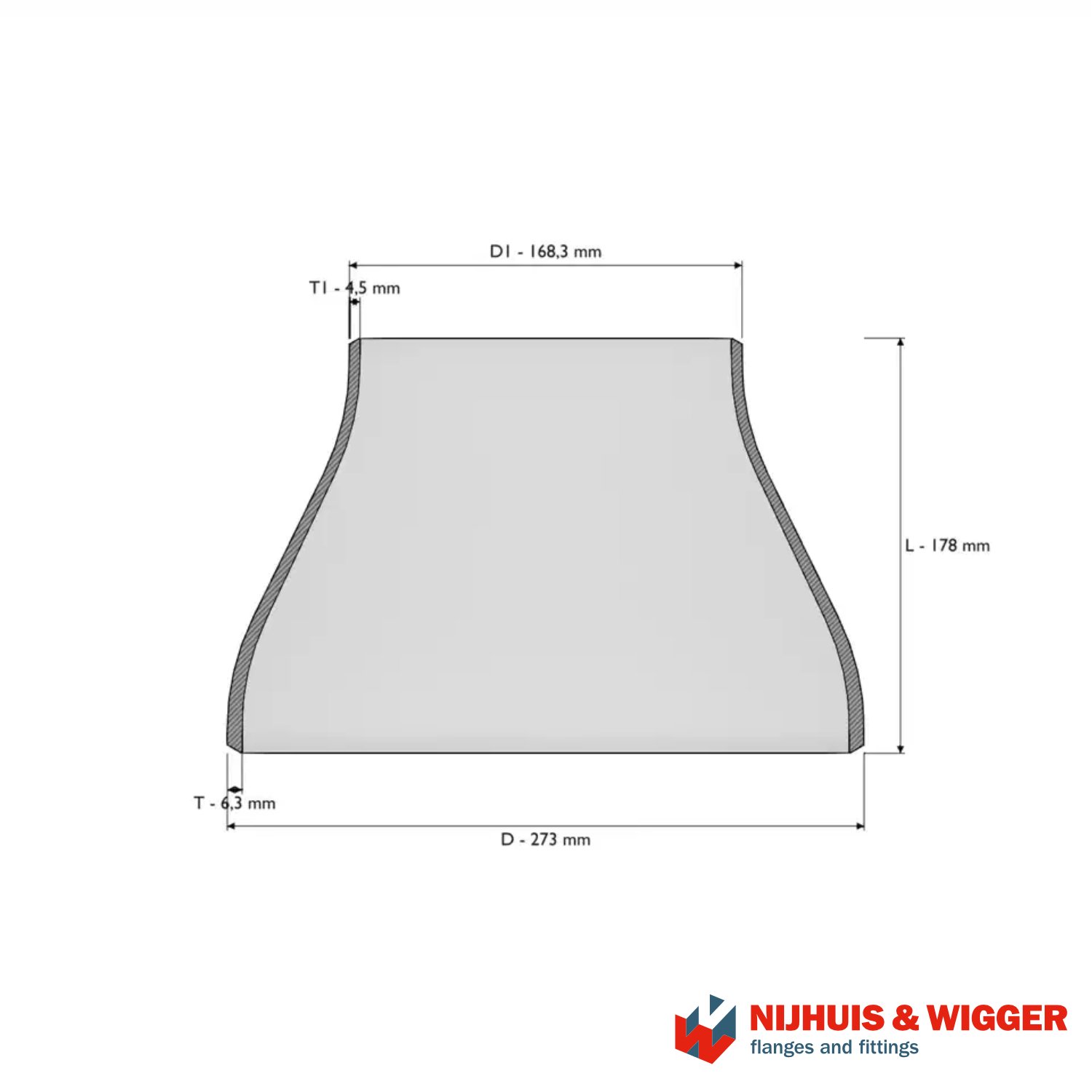

Concentrisch lasverloop 273 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    168.3



    Outside Diameter 1 (D)

    273.0

    Thickness (T1)

    4.5



    Thickness (T)

    6.3

    Length Reducer (L)

    178





  • weight 5.23
Concentrisch lasverloop 273 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    219.1



    Outside Diameter 1 (D)

    273.0

    Thickness (T1)

    5.9



    Thickness (T)

    6.3

    Length Reducer (L)

    178


  • weight 6.59

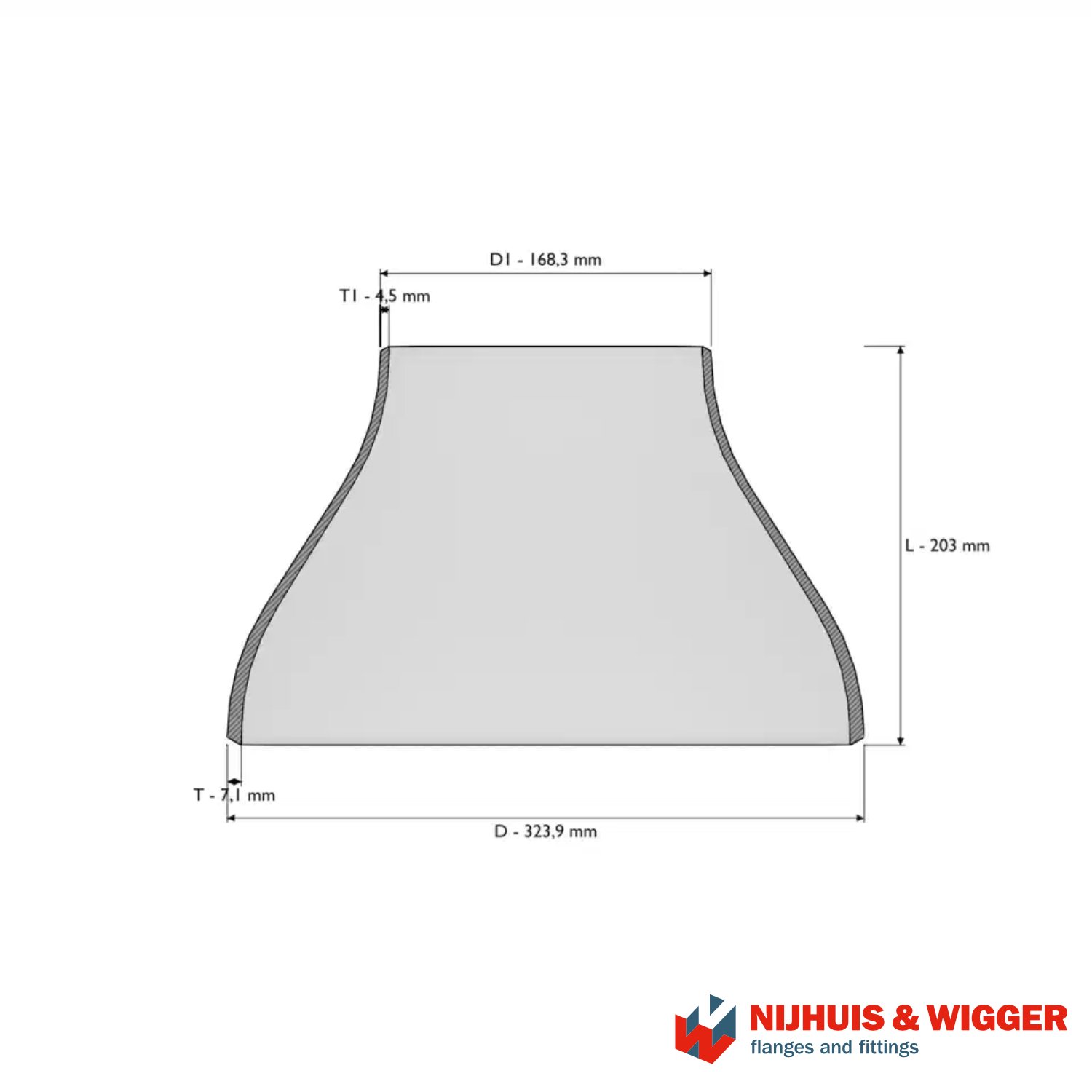

Concentrisch lasverloop 323.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    168.3



    Outside Diameter 1 (D)

    323.9

    Thickness (T1)

    4.5



    Thickness (T)

    7.1

    Length Reducer (L)

    203





  • weight 7.15
Concentrisch lasverloop 323.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    219.1



    Outside Diameter 1 (D)

    323.9

    Thickness (T1)

    5.9



    Thickness (T)

    7.1

    Length Reducer (L)

    203


  • weight 8.83

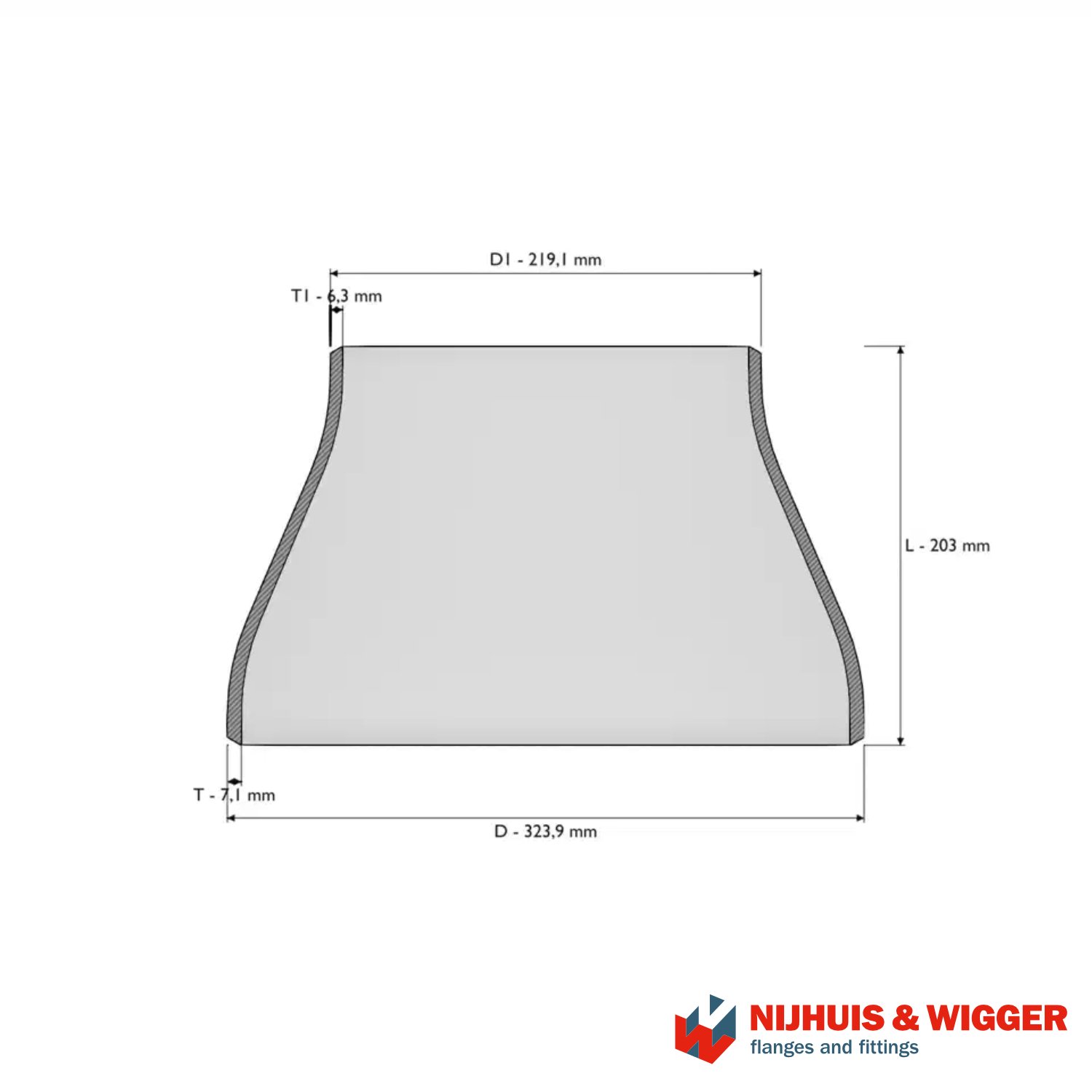

Concentrisch lasverloop 323.9 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    273.0



    Outside Diameter 1 (D)

    323.9

    Thickness (T1)

    6.3



    Thickness (T)

    7.1

    Length Reducer (L)

    203





  • weight 10.01

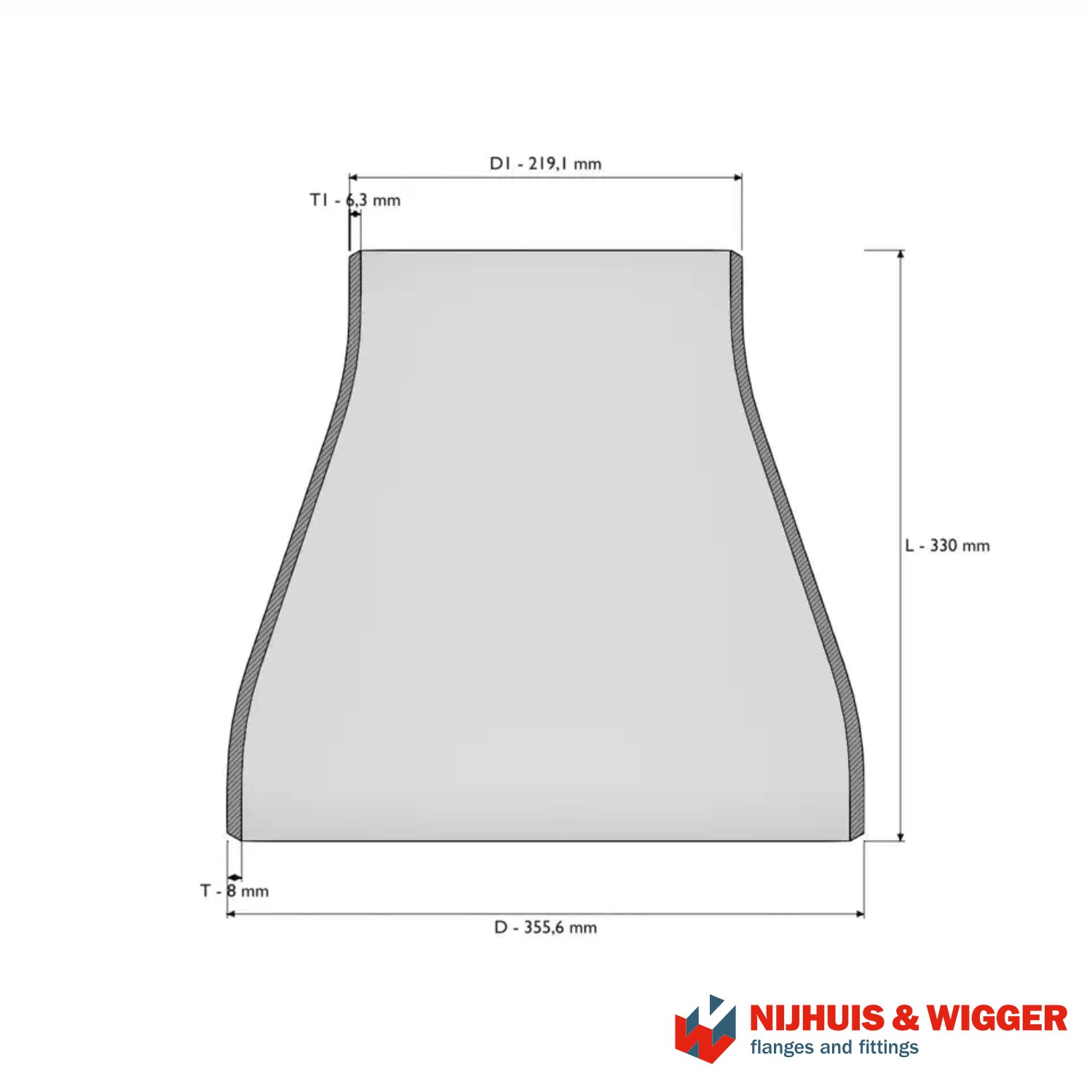

Concentrisch lasverloop 355.6 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    219.1



    Outside Diameter 1 (D)

    355.6

    Thickness (T1)

    5.9



    Thickness (T)

    8.0

    Length Reducer (L)

    330


  • weight 16.25

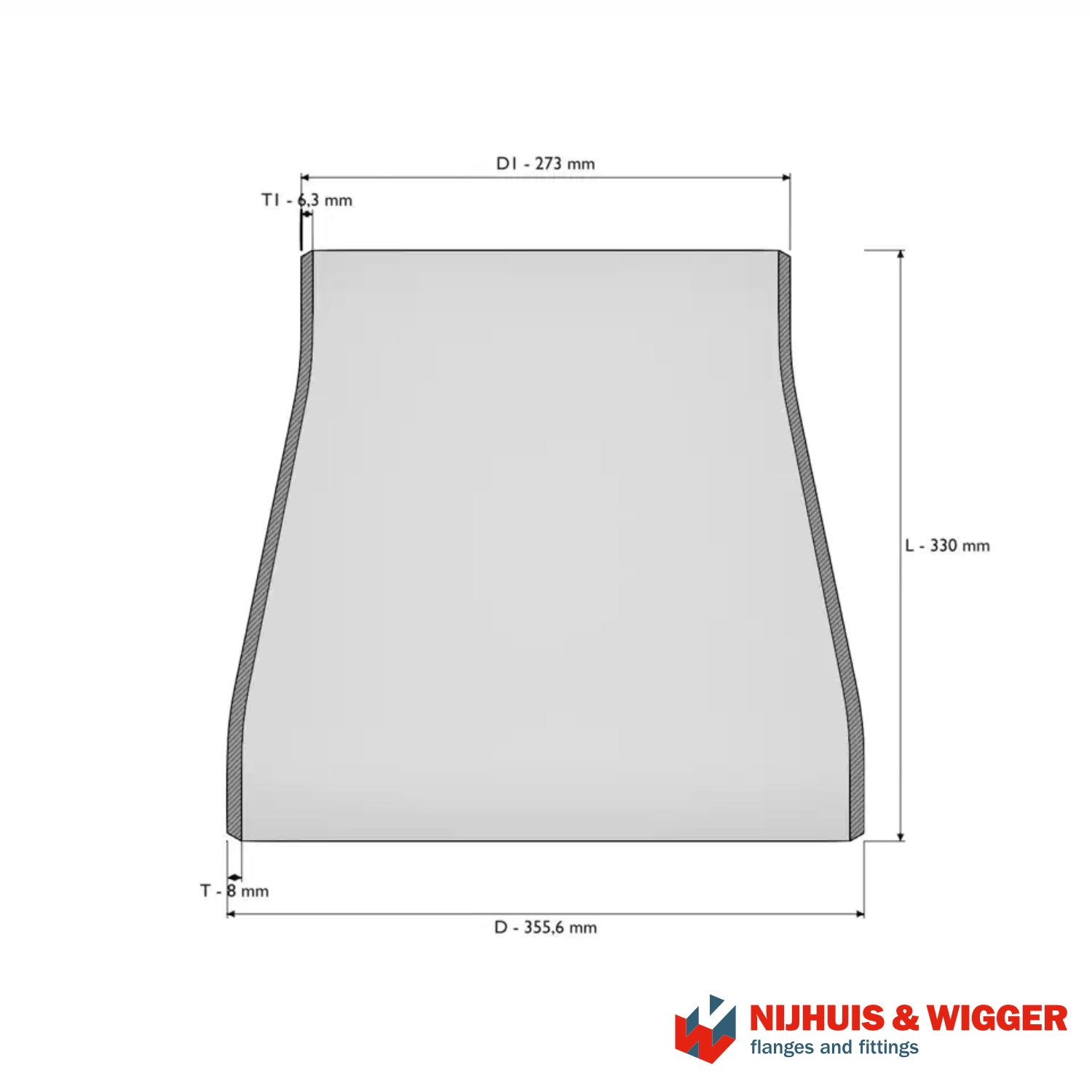

Concentrisch lasverloop 355.6 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    273.0



    Outside Diameter 1 (D)

    355.6

    Thickness (T1)

    6.3



    Thickness (T)

    8.0

    Length Reducer (L)

    330





  • weight 18.29

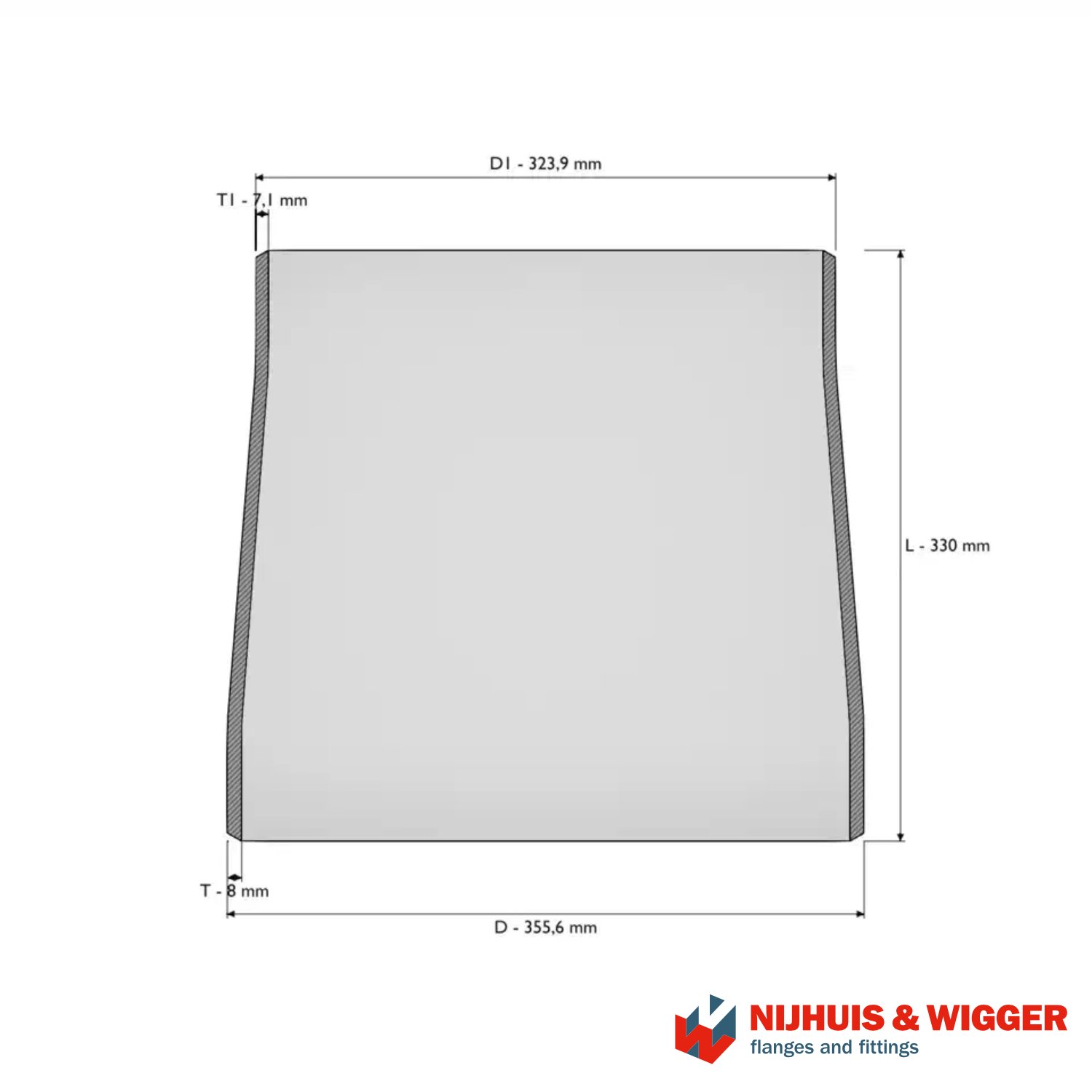

Concentrisch lasverloop 355.6 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    323.9



    Outside Diameter 1 (D)

    355.6

    Thickness (T1)

    7.1



    Thickness (T)

    8.0

    Length Reducer (L)

    330


  • weight 20.88

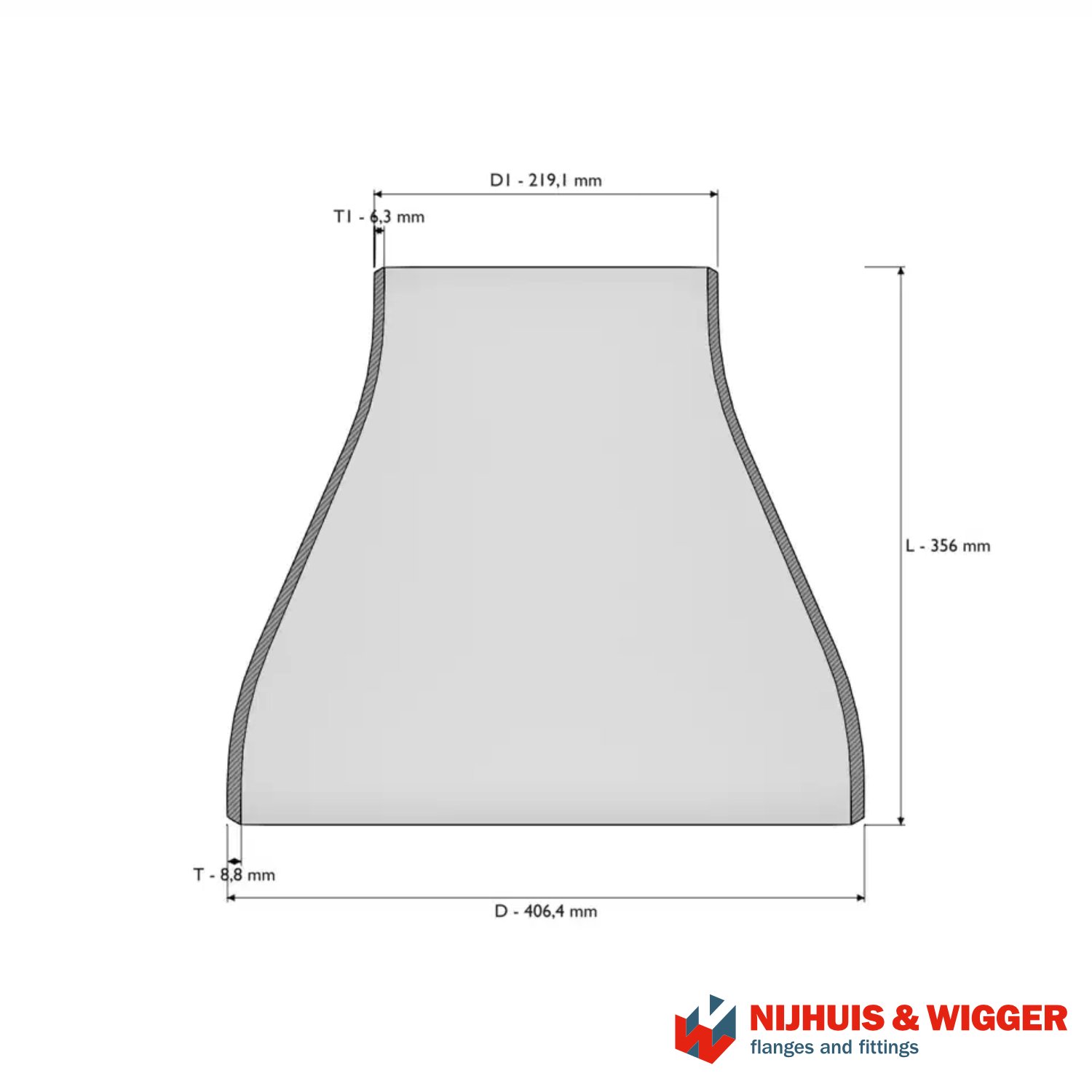

Concentrisch lasverloop 406.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    219.1



    Outside Diameter 1 (D)

    406.4

    Thickness (T1)

    5.9



    Thickness (T)

    8.8

    Length Reducer (L)

    356





  • weight 20.18

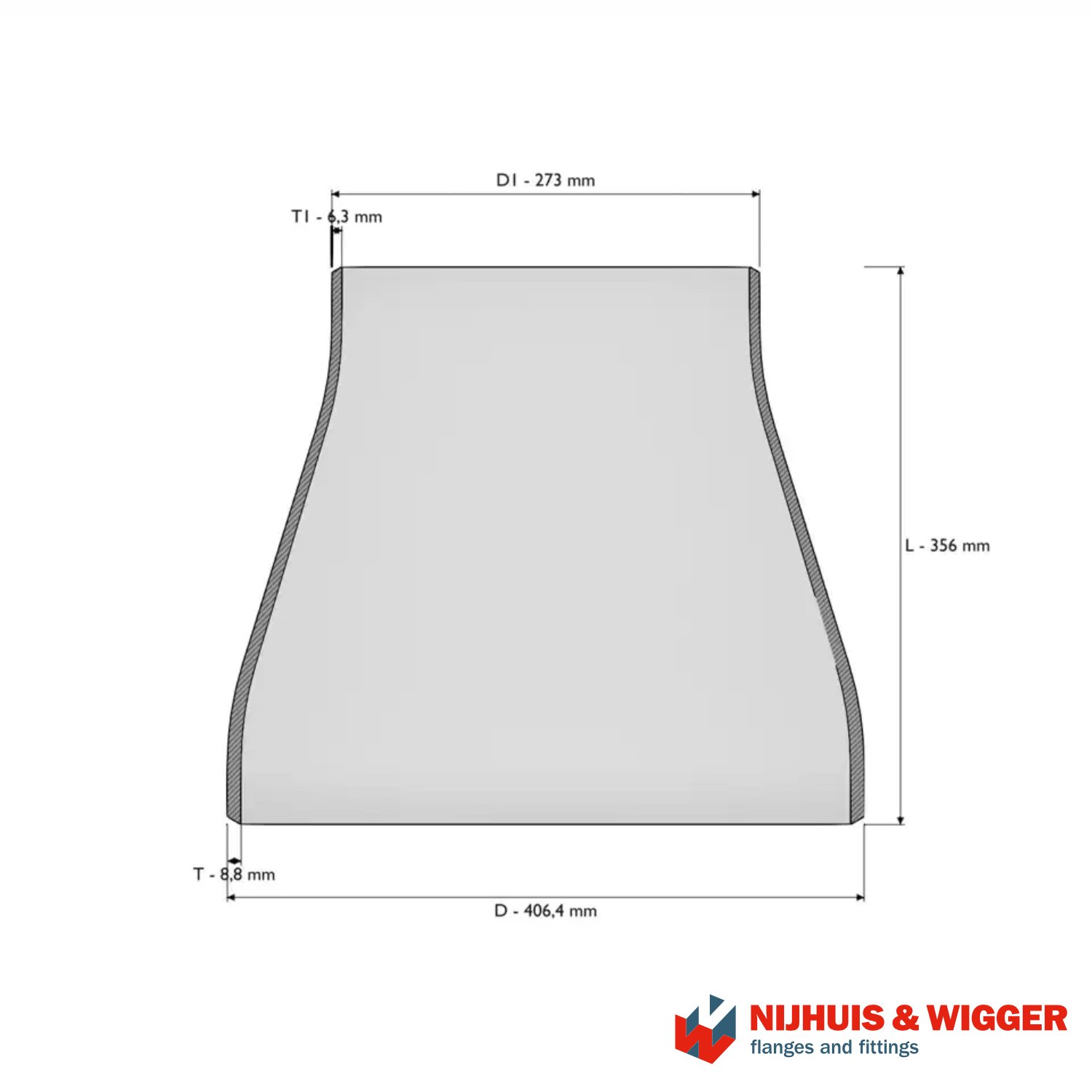

Concentrisch lasverloop 406.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    273.0



    Outside Diameter 1 (D)

    406.4

    Thickness (T1)

    6.3



    Thickness (T)

    8.8

    Length Reducer (L)

    356


  • weight 22.52

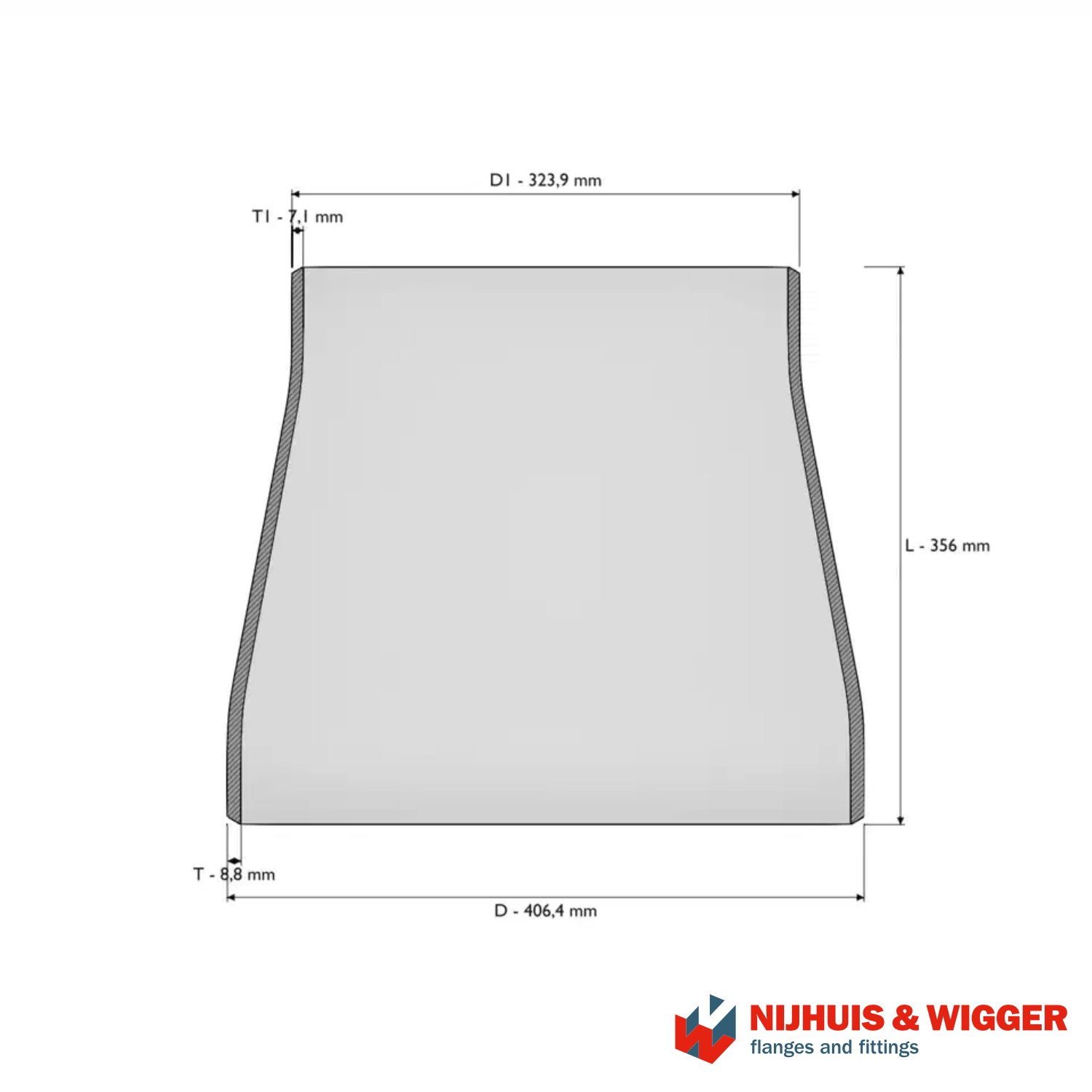

Concentrisch lasverloop 406.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    323.9



    Outside Diameter 1 (D)

    406.4

    Thickness (T1)

    7.1



    Thickness (T)

    8.8

    Length Reducer (L)

    356





  • weight 25.49

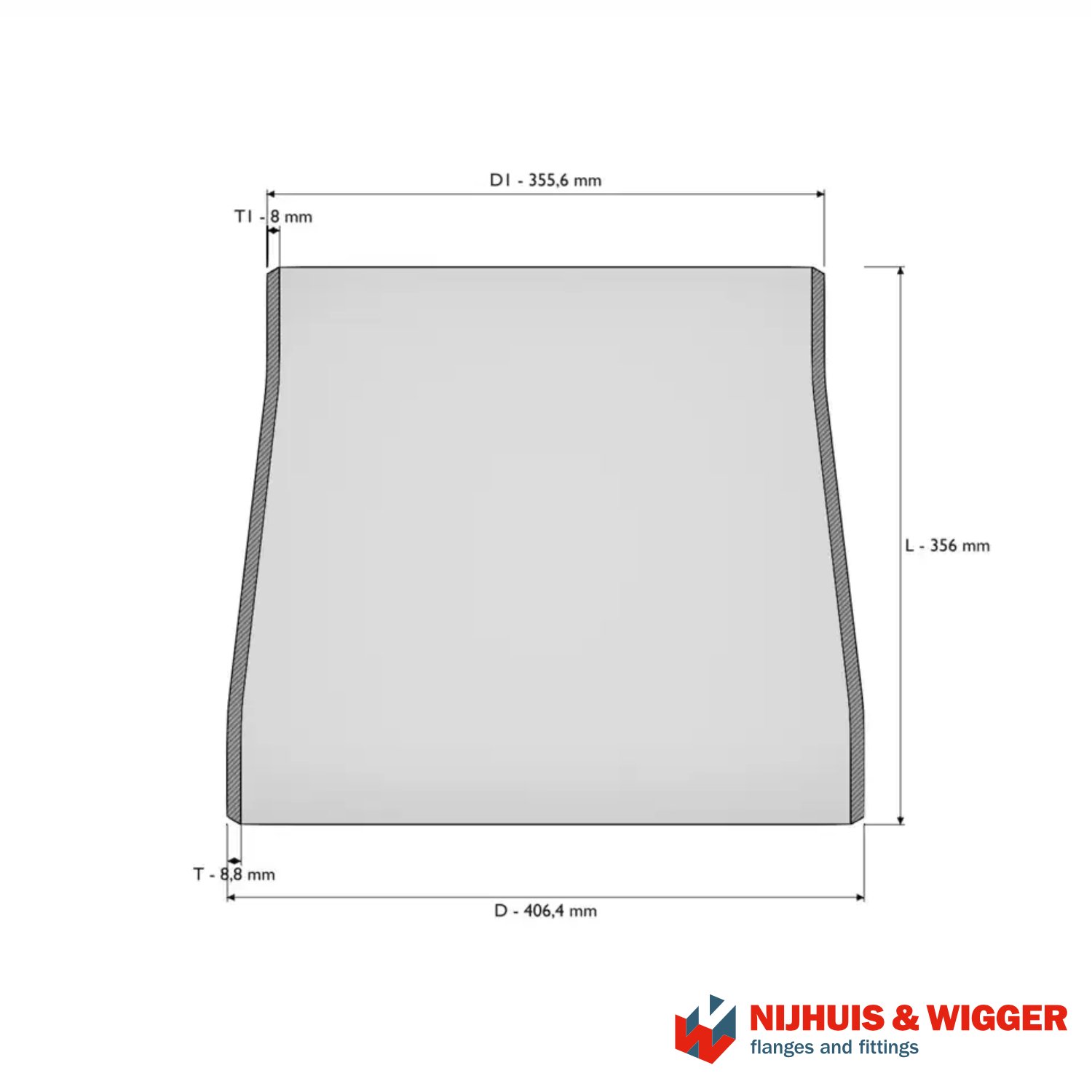

Concentrisch lasverloop 406.4 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    355.6



    Outside Diameter 1 (D)

    406.4

    Thickness (T1)

    8.0



    Thickness (T)

    8.8

    Length Reducer (L)

    356


  • weight 28.10
Concentrisch lasverloop 457.2 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    323.9



    Outside Diameter 1 (D)

    457.2

    Thickness (T1)

    7.1



    Thickness (T)

    10.0

    Length Reducer (L)

    381





  • weight 31.38

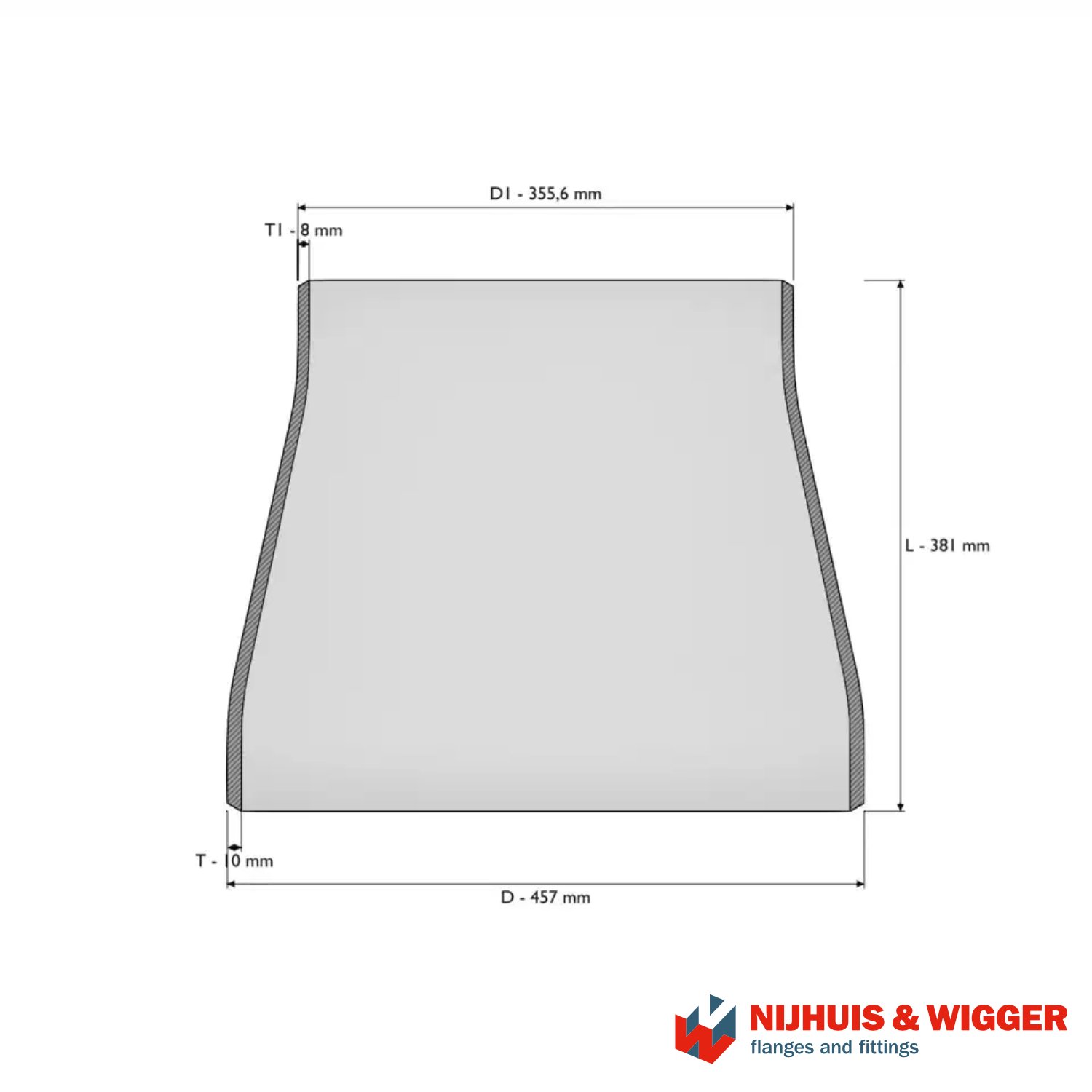

Concentrisch lasverloop 457.2 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    355.6



    Outside Diameter 1 (D)

    457.2

    Thickness (T1)

    8.0



    Thickness (T)

    10.0

    Length Reducer (L)

    381


  • weight 34.37

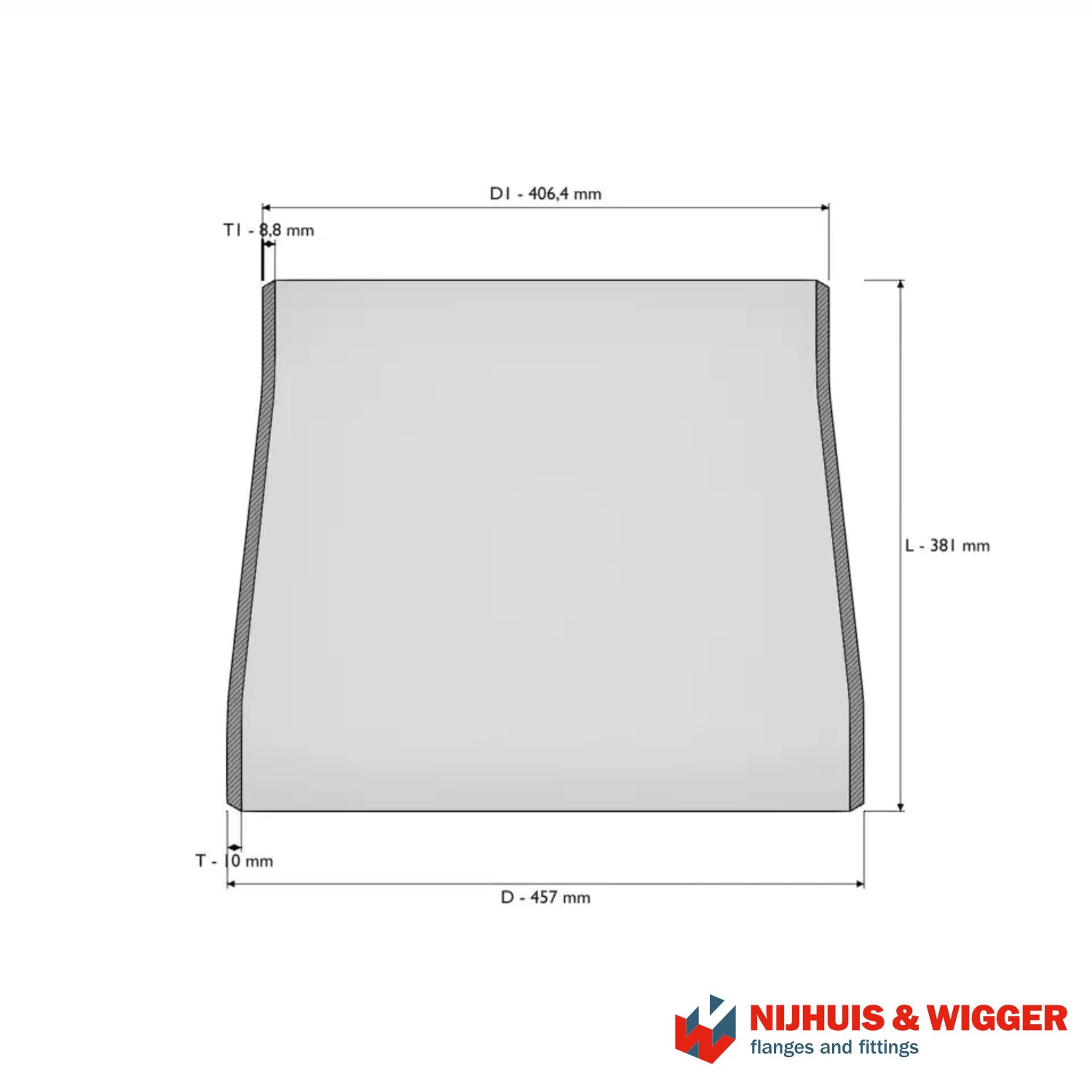

Concentrisch lasverloop 457.2 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    406.4



    Outside Diameter 1 (D)

    457.2

    Thickness (T1)

    8.8



    Thickness (T)

    10.0

    Length Reducer (L)

    381





  • weight 38.14

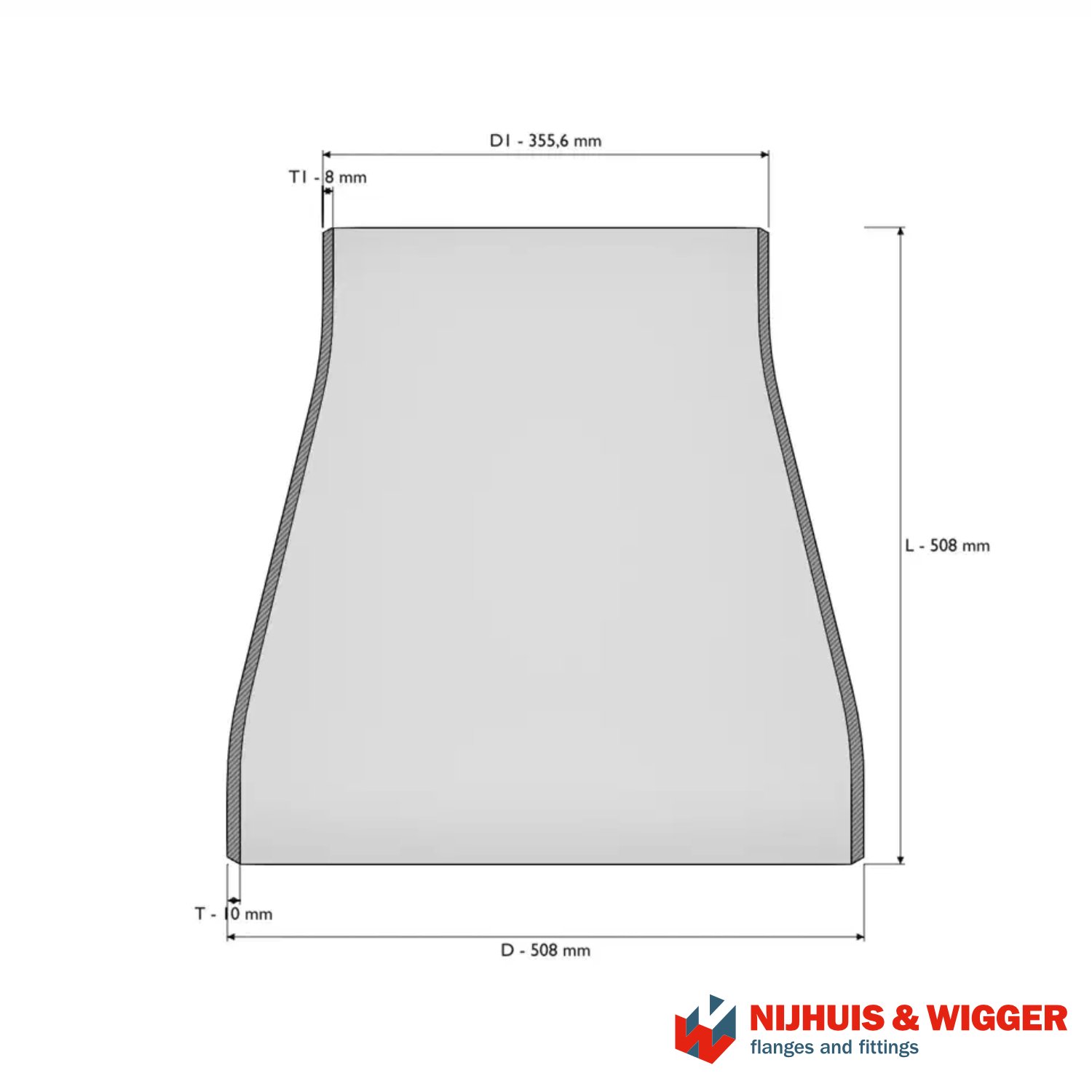

Concentrisch lasverloop 508 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    355.6



    Outside Diameter 1 (D)

    508.0

    Thickness (T1)

    8.0



    Thickness (T)

    11.0

    Length Reducer (L)

    508


  • weight 51.39

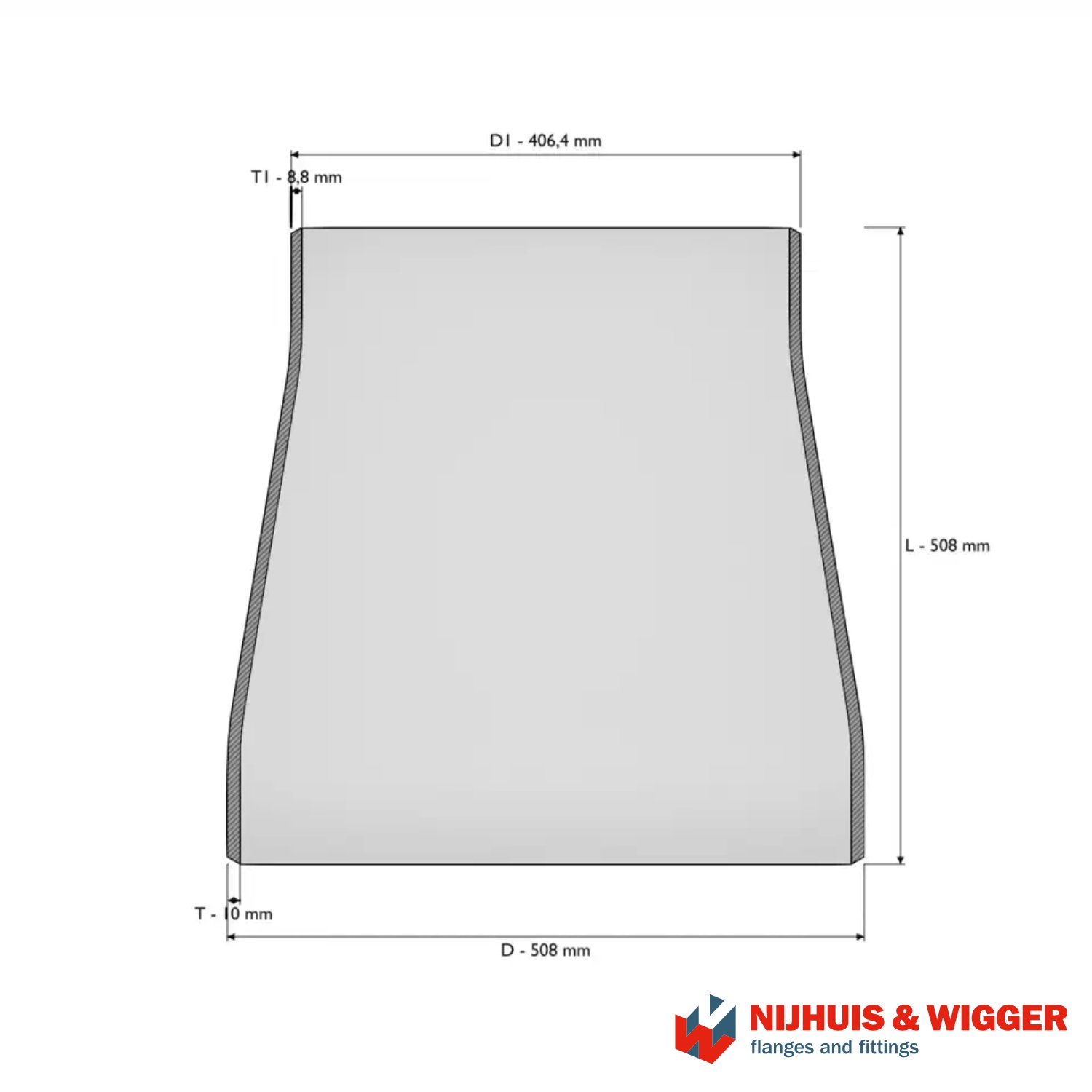

Concentrisch lasverloop 508 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    406.4



    Outside Diameter 1 (D)

    508.0

    Thickness (T1)

    8.8



    Thickness (T)

    11.0

    Length Reducer (L)

    508





  • weight 56.71

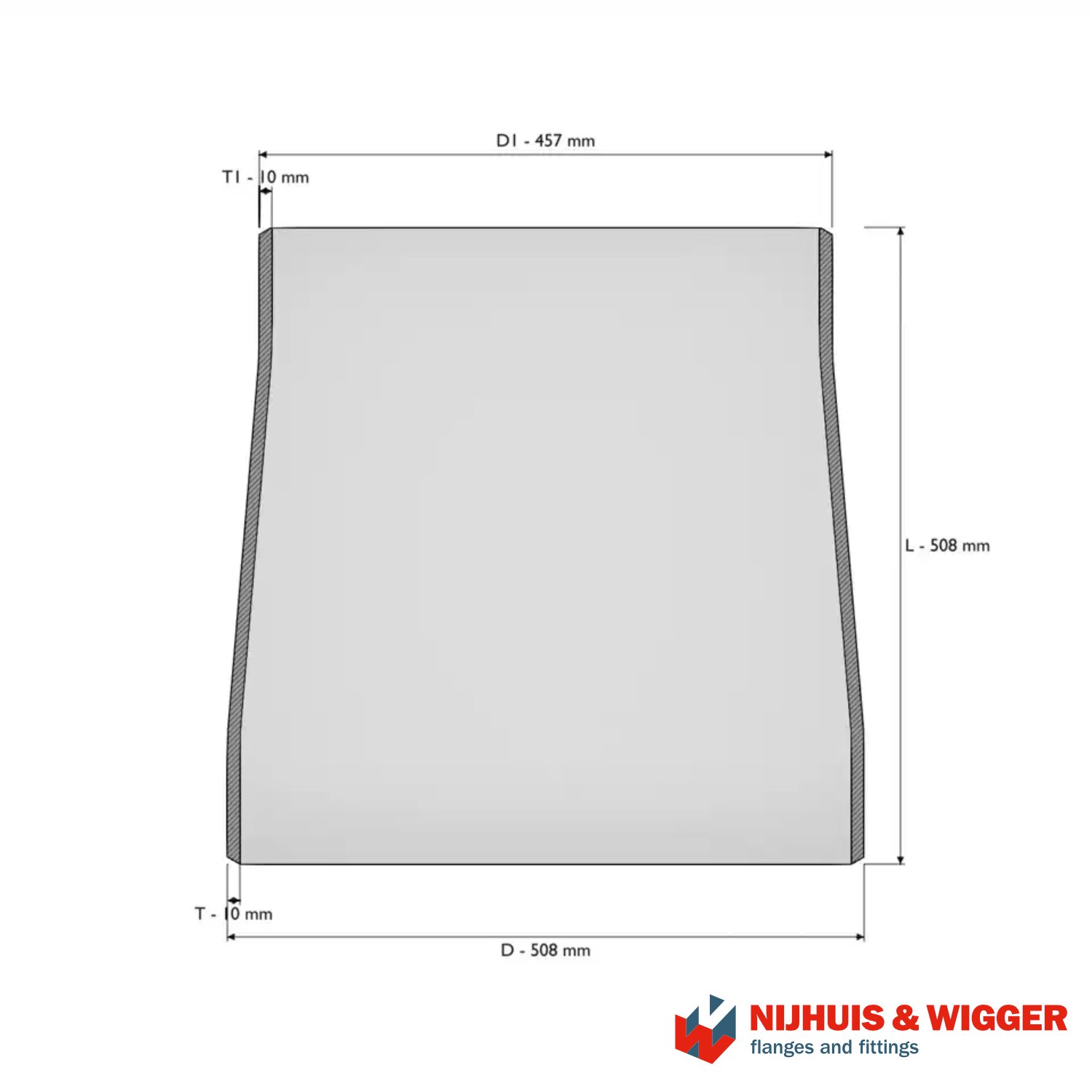

Concentrisch lasverloop 508 EN10253-2 T:B P235GH TC1
  • dimensions

    Outside Diameter 2 (D1)

    457.2



    Outside Diameter 1 (D)

    508.0

    Thickness (T1)

    10.0



    Thickness (T)

    11.0

    Length Reducer (L)

    508


  • weight 63.48

 Wij leveren Concentrische lasverlopen in de volgende materiaalsoorten:

EN norm
 EN10253-2 (koolstofstaal)
P265GH
P235GH TC1
P235GH TC2
16Mo3
13CrMo4-5
P355N/NL1
P355NH

EN10253-4 (Roestvaststaal)
1.4301 / 1.4306+7 / 1.4541
1.1104 / 1.4404 / 1.4571
1.4462 (Duplex) / 1.4501 (Superduplex)

Concentrische lasverlopen worden volgens de norm EN10253 onderverdeeld in:

DIN norm EN norm Type
2616-2 EN 10253 B

Klik op één van de onderstaande PDF logo's om de download te starten.

download

Voorraadprogramma
download

Leverprogramma

Meer fittingen volgens EN10253

afbeelding Excentrisch Lasverloop | Staal & RVS | EN 10253

Excentrisch Lasverloop | Staal & RVS | EN 10253 Naadloze Excentrische Lasverlopen volgens EN 10253 – Direct uit voorraad

afbeelding T-stuk | Staal & RVS | EN 10253

T-stuk | Staal & RVS | EN 10253 Naadloze T-stukken volgens EN 10253 – Direct uit voorraad

afbeelding Verloop T-stuk | Staal & RVS | EN 10253

Verloop T-stuk | Staal & RVS | EN 10253 Naadloze Verloop T-stukken volgens EN 10253 – Direct uit voorraad

afbeelding Lasbodem | Staal & RVS | EN 10253

Lasbodem | Staal & RVS | EN 10253 Naadloze Lasbodems volgens EN 10253 – Direct uit voorraad

afbeelding Klopperbodem | Staal & RVS | DIN 28011

Klopperbodem | Staal & RVS | DIN 28011 Naadloze Klopperbodems volgens DIN 28011 – Direct uit voorraad

Bijpassende flenzen nodig?

Wij hebben een uitgebreide voorraad flenzen voor uiteenlopende toepassingen en passend bij concentrische lasverlopen.

Ga naar flenzen
