| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

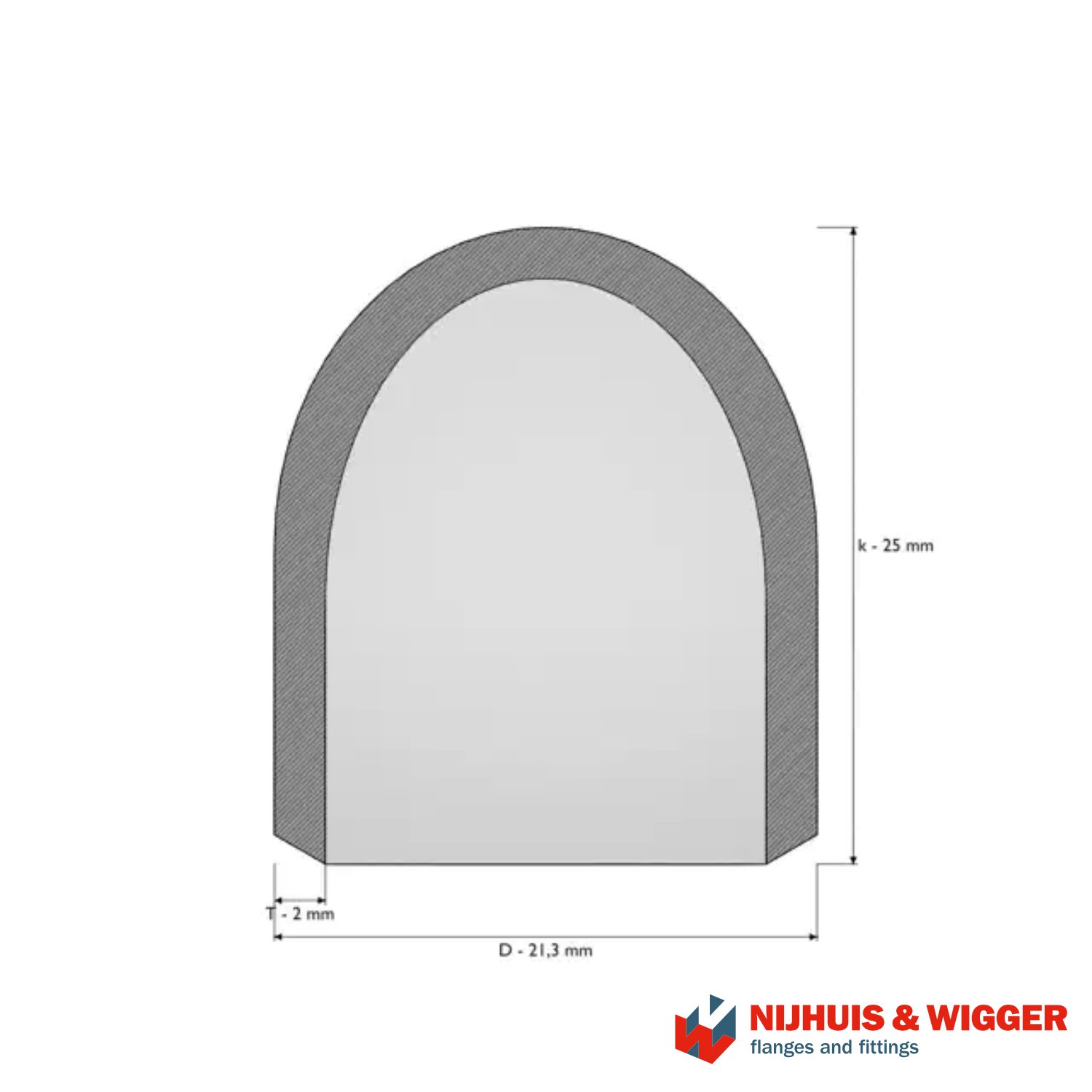

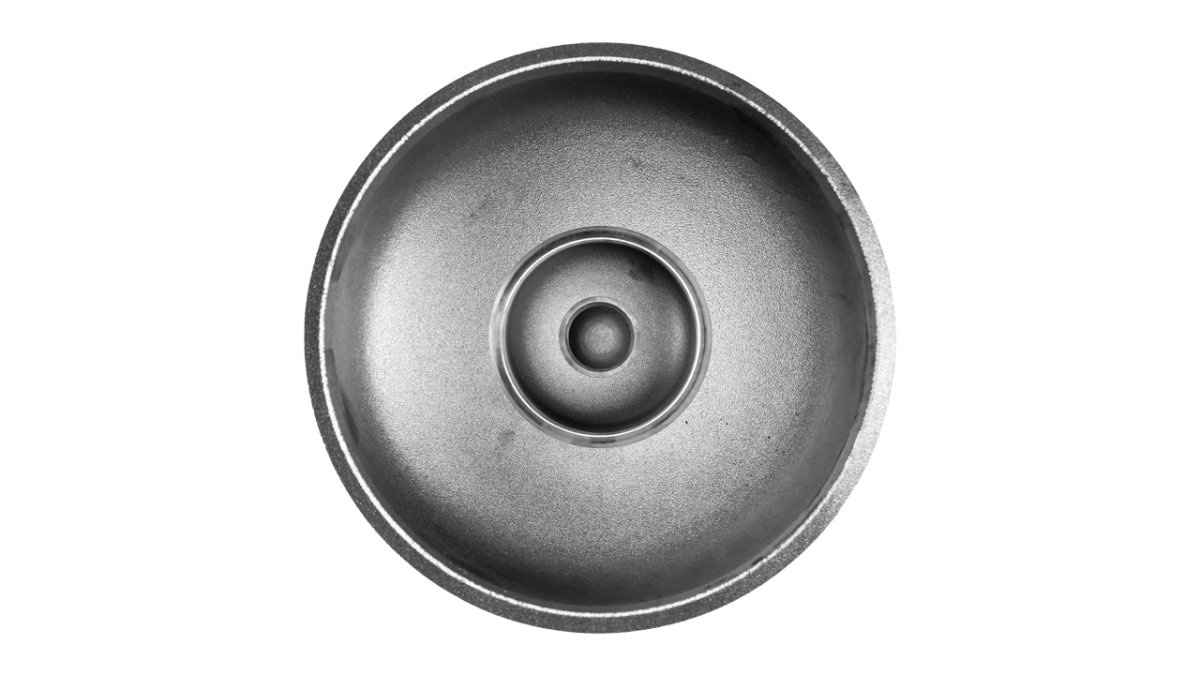

| Lasbodem |
|
21.3 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
21.3
|
|
Wanddikte (T)
|
2.0
|
|
Hoogte lasbodem (E)
|
25
|
|
|
|
- weight 0.04
|

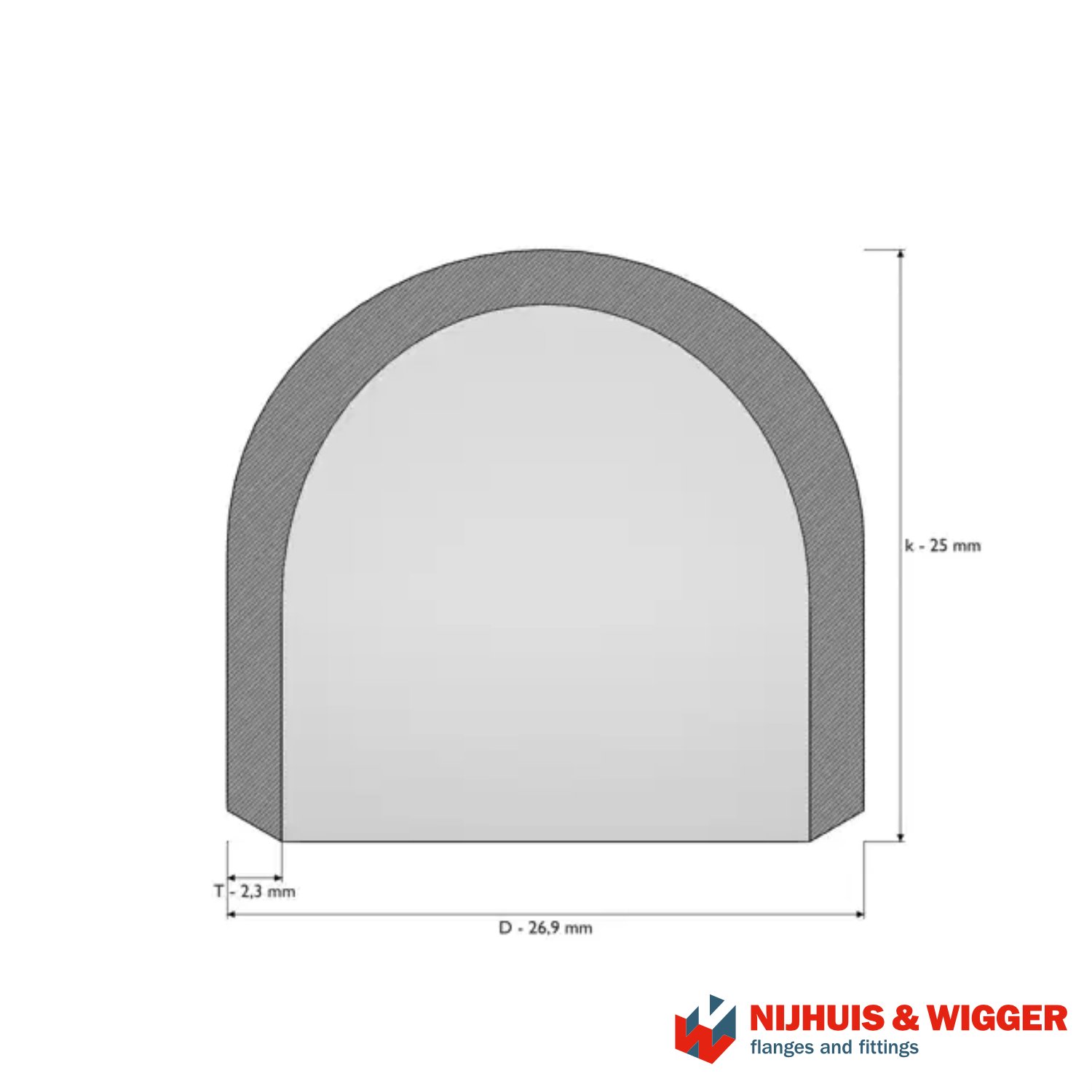

| Lasbodem |
|
26.9 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
26.9
|
|
Wanddikte (T)
|
2.3
|
|
Hoogte lasbodem (E)
|
25
|
|
|
|
- weight 0.05
|

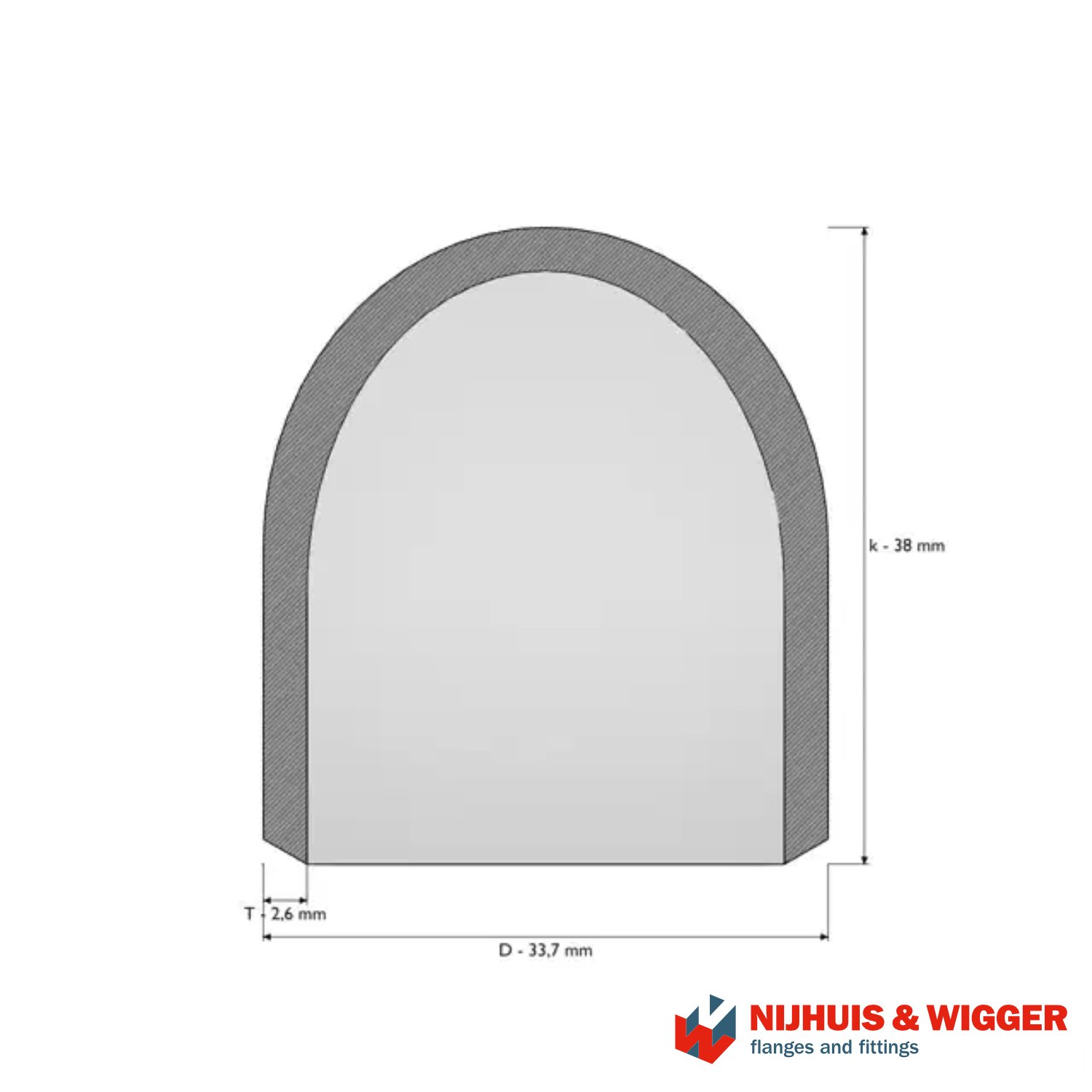

| Lasbodem |
|
33.7 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
33.7
|
|
Wanddikte (T)
|
2.6
|
|
Hoogte lasbodem (E)
|
38
|
|
|
|
- weight 0.11
|

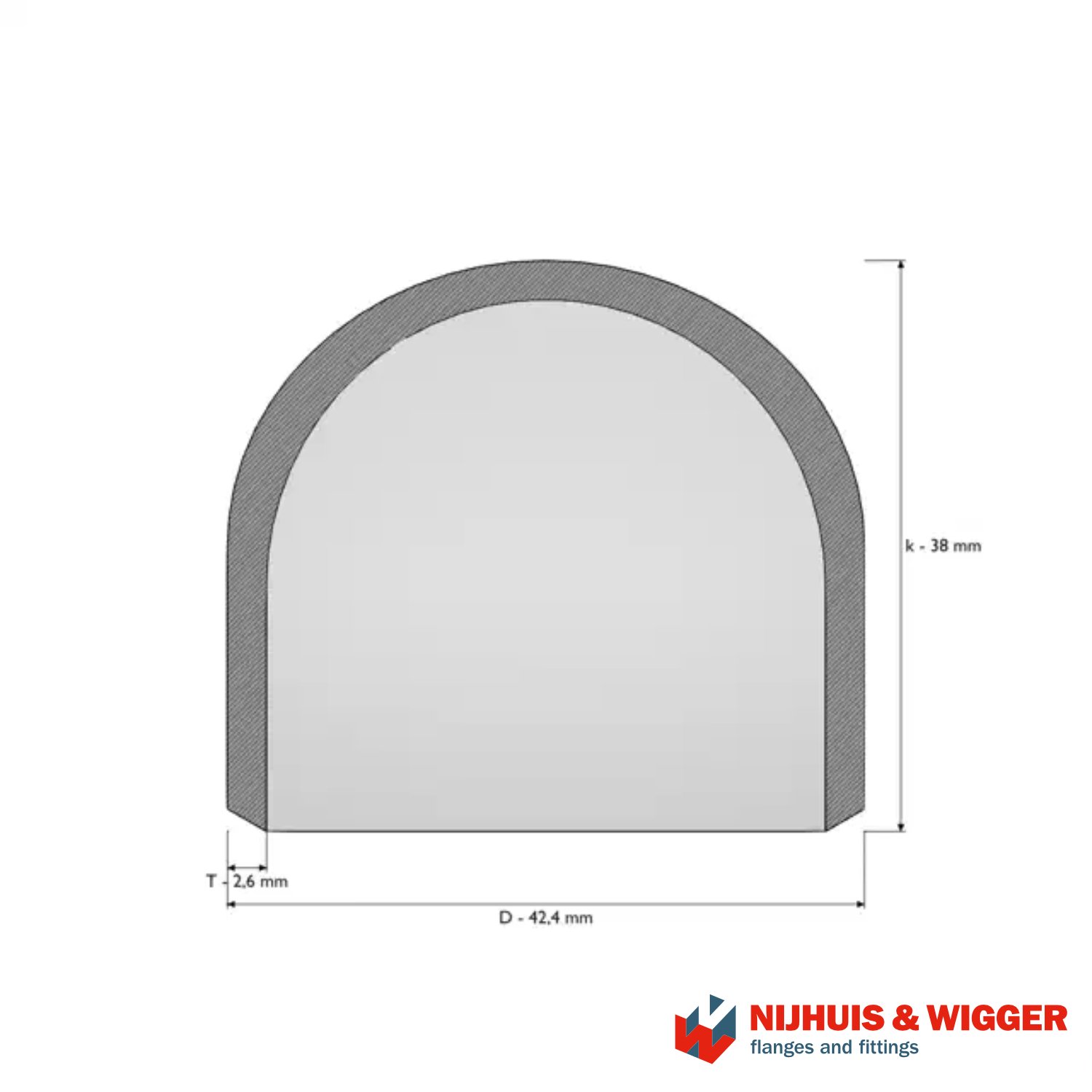

| Lasbodem |
|
42.4 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
42.4
|
|
Wanddikte (T)
|
2.6
|
|
Hoogte lasbodem (E)
|
38
|
|
|
|
- weight 0.15
|

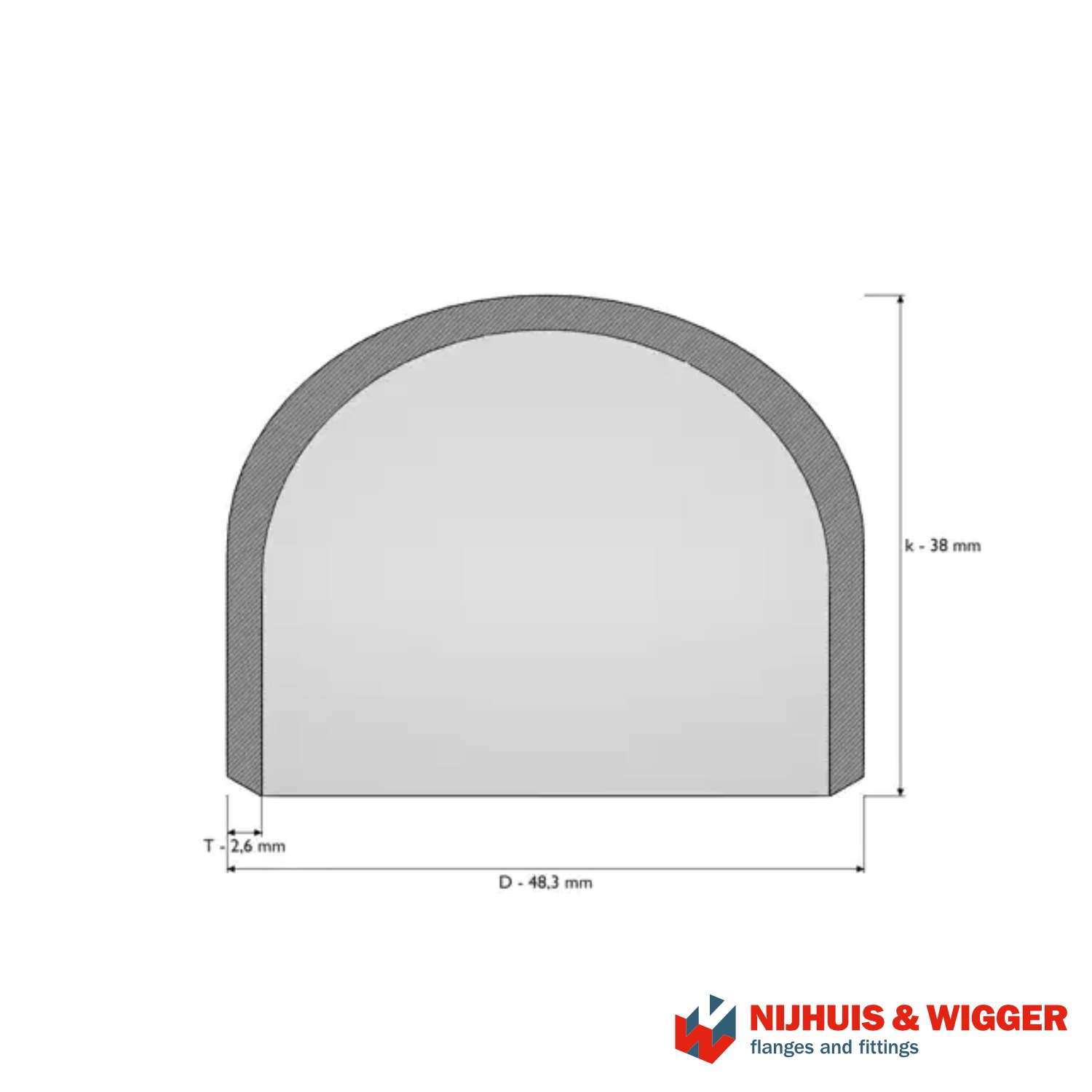

| Lasbodem |
|
48.3 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|

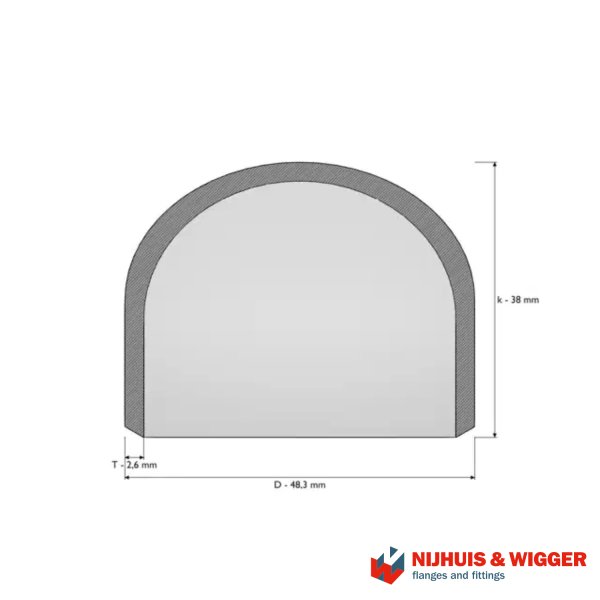

Buitendiameter (D)
|
48.3
|
|
Wanddikte (T)
|
2.6
|
|
Hoogte lasbodem (E)
|
38
|
|
|
|
- weight 0.18
|

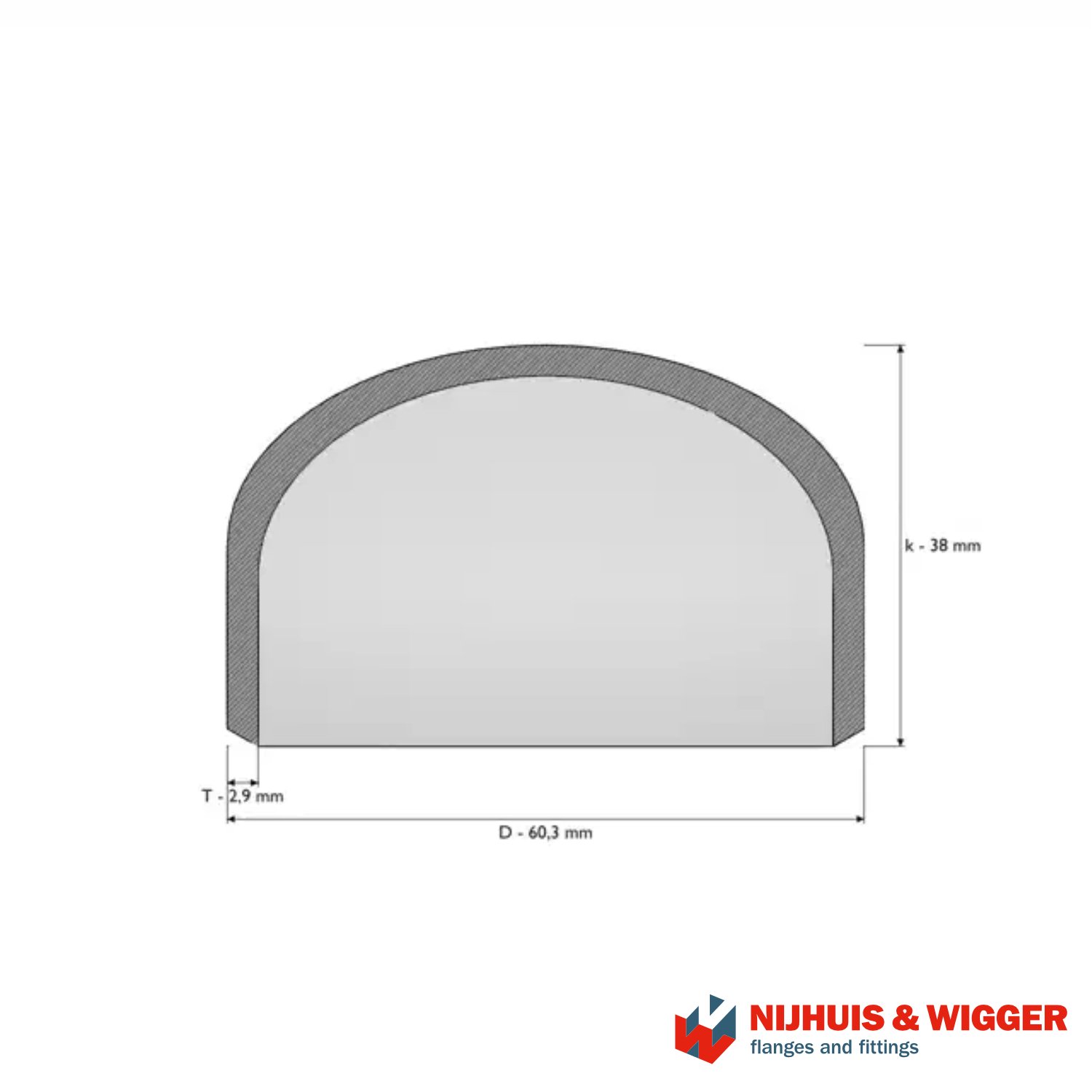

| Lasbodem |
|
60.3 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
60.3
|
|
Wanddikte (T)
|
2.9
|
|
Hoogte lasbodem (E)
|
38
|
|
|
|
- weight 0.27
|

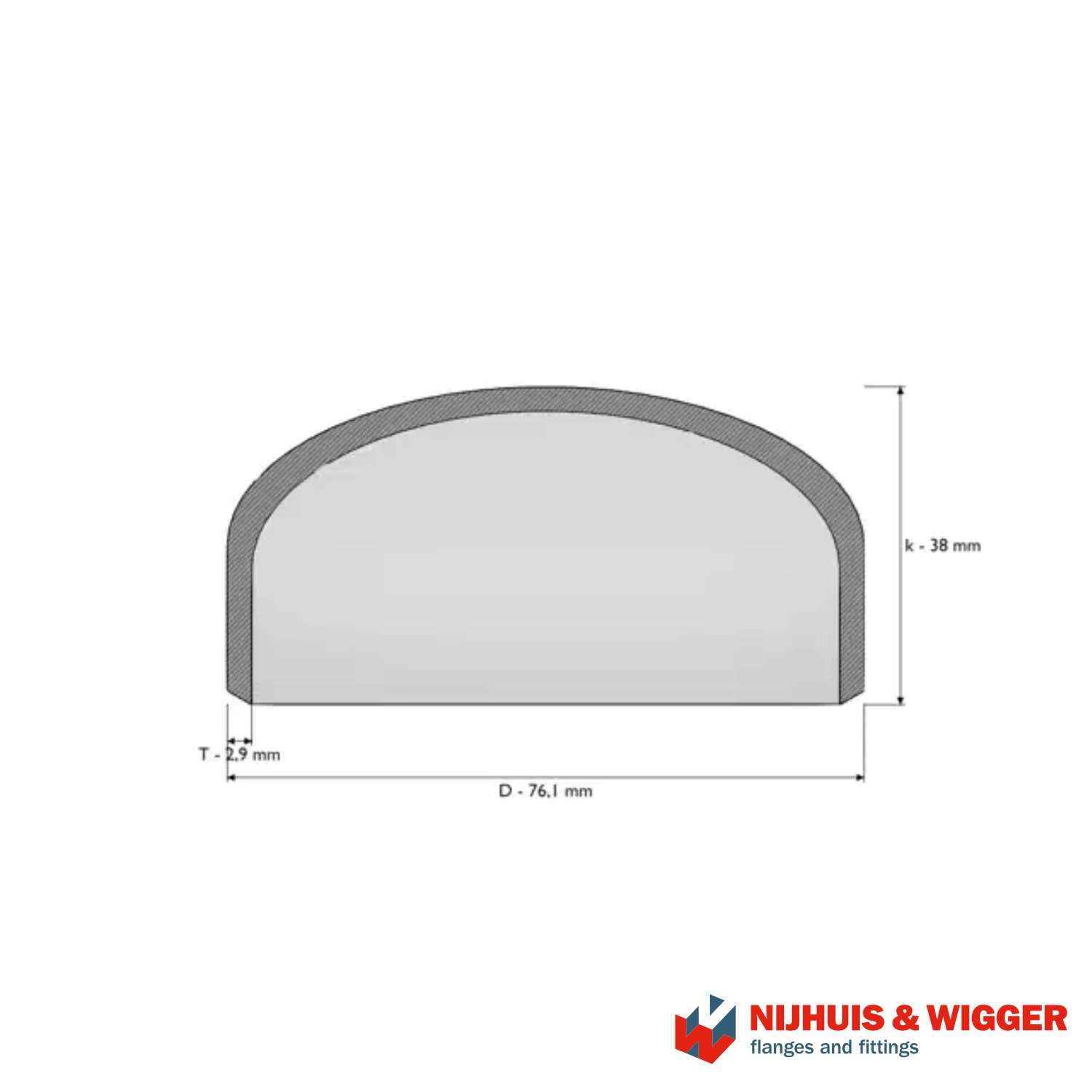

| Lasbodem |
|
76.1 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
76.1
|
|
Wanddikte (T)
|
2.9
|
|
Hoogte lasbodem (E)
|
38
|
|
|
|
- weight 0.39
|

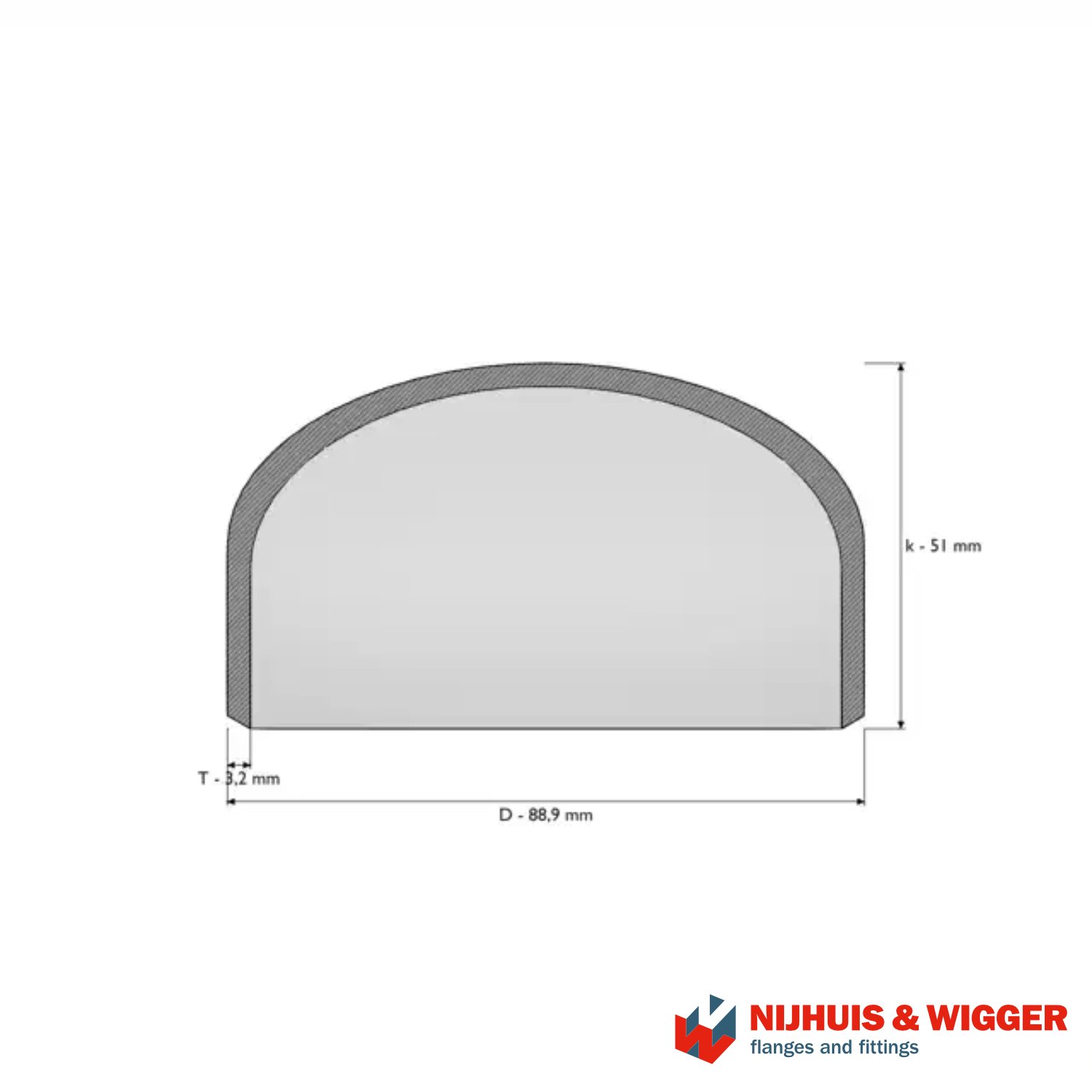

| Lasbodem |
|
88.9 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
88.9
|
|
Wanddikte (T)
|
3.2
|
|
Hoogte lasbodem (E)
|
51
|
|
|
|
- weight 0.64
|
| Lasbodem |
|
114.3 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
114.3
|
|
Wanddikte (T)
|
3.6
|
|
Hoogte lasbodem (E)
|
64
|
|
|
|
- weight 1.14
|
| Lasbodem |
|
139.7 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
139.7
|
|
Wanddikte (T)
|
4.0
|
|
Hoogte lasbodem (E)
|
89
|
|
|
|
- weight 1.95
|

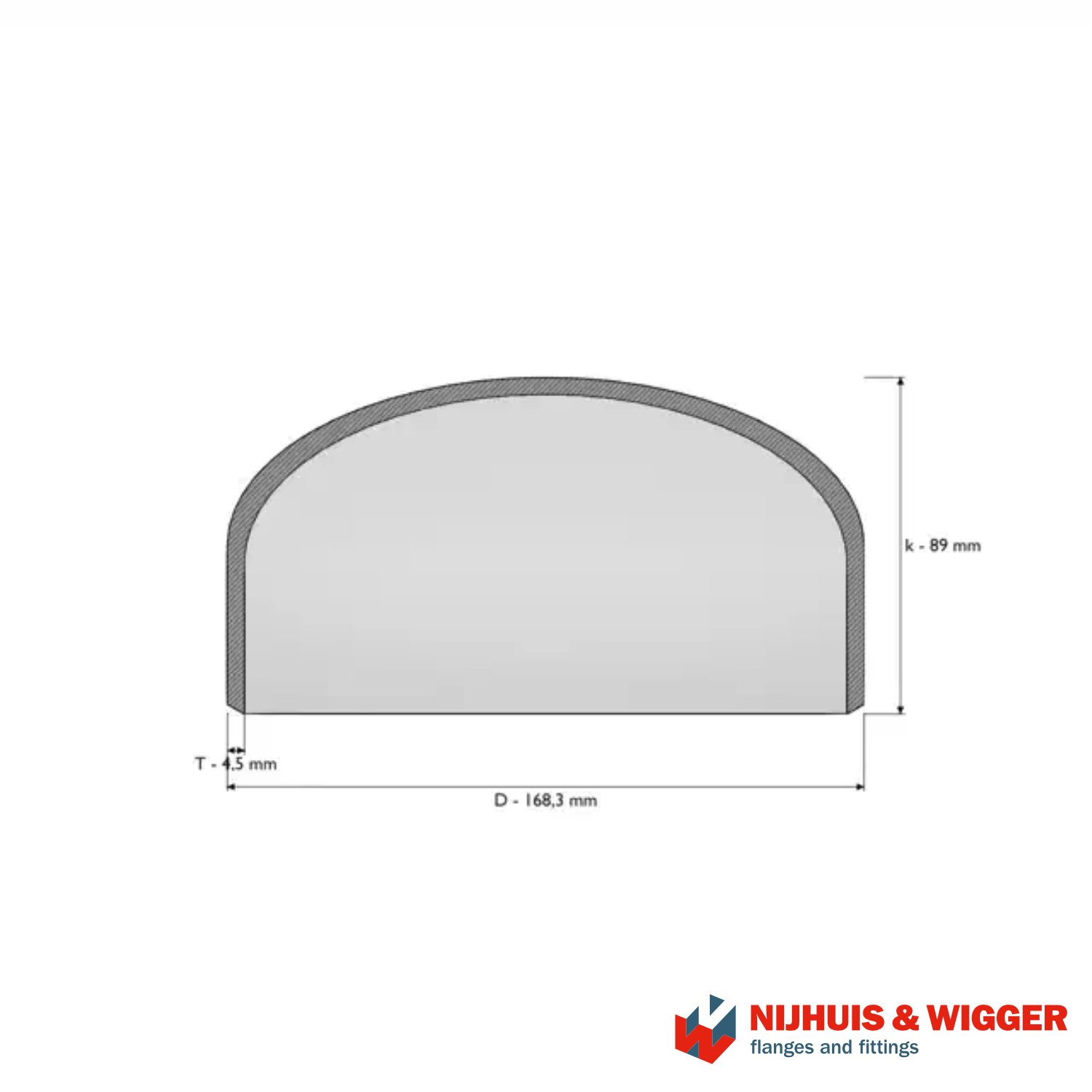

| Lasbodem |
|
168.3 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
168.3
|
|
Wanddikte (T)
|
4.5
|
|
Hoogte lasbodem (E)
|
89
|
|
|
|
- weight 2.86
|

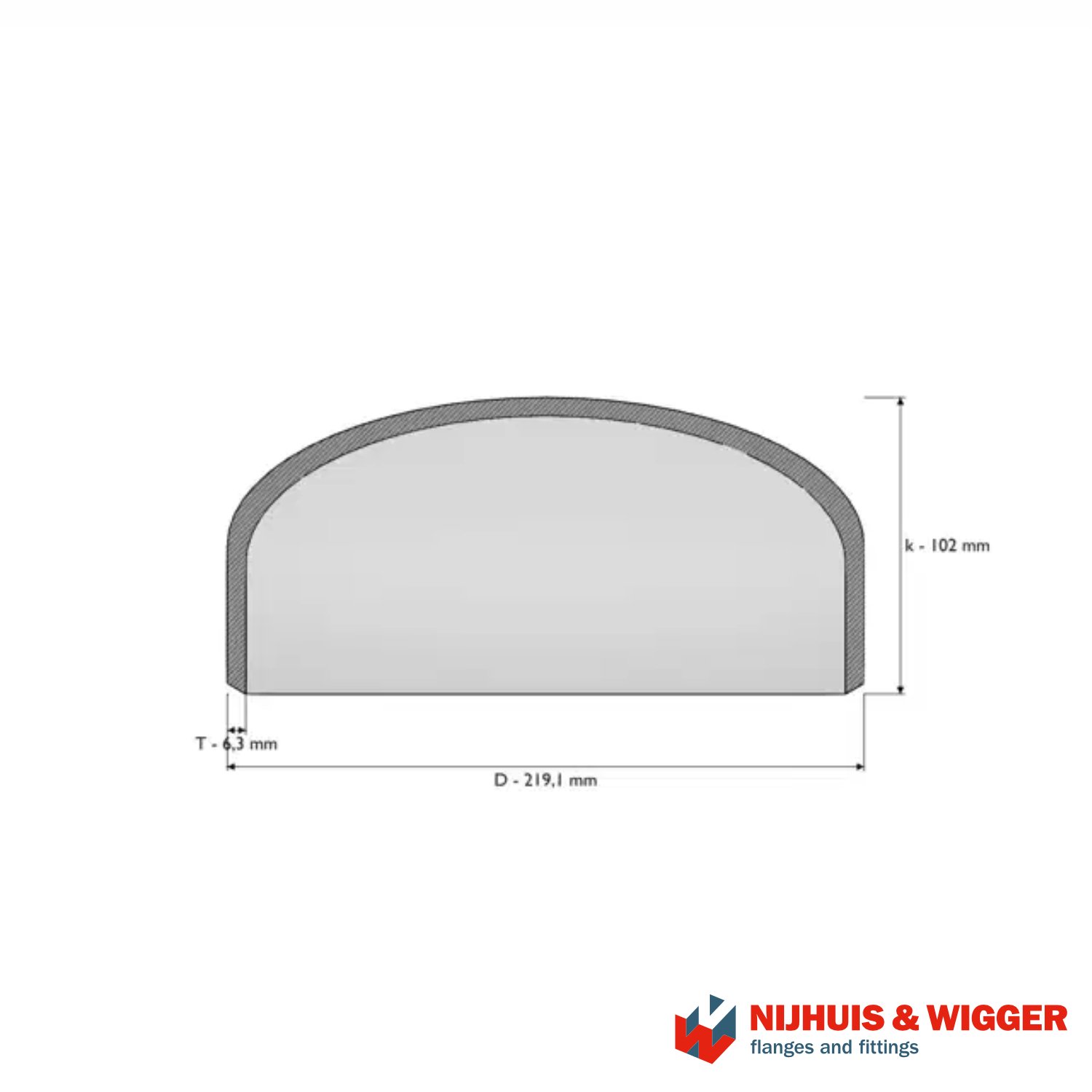

| Lasbodem |
|
219.1 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
219.1
|
|
Wanddikte (T)
|
5.9
|
|
Hoogte lasbodem (E)
|
102
|
|
|
|
- weight 5.75
|

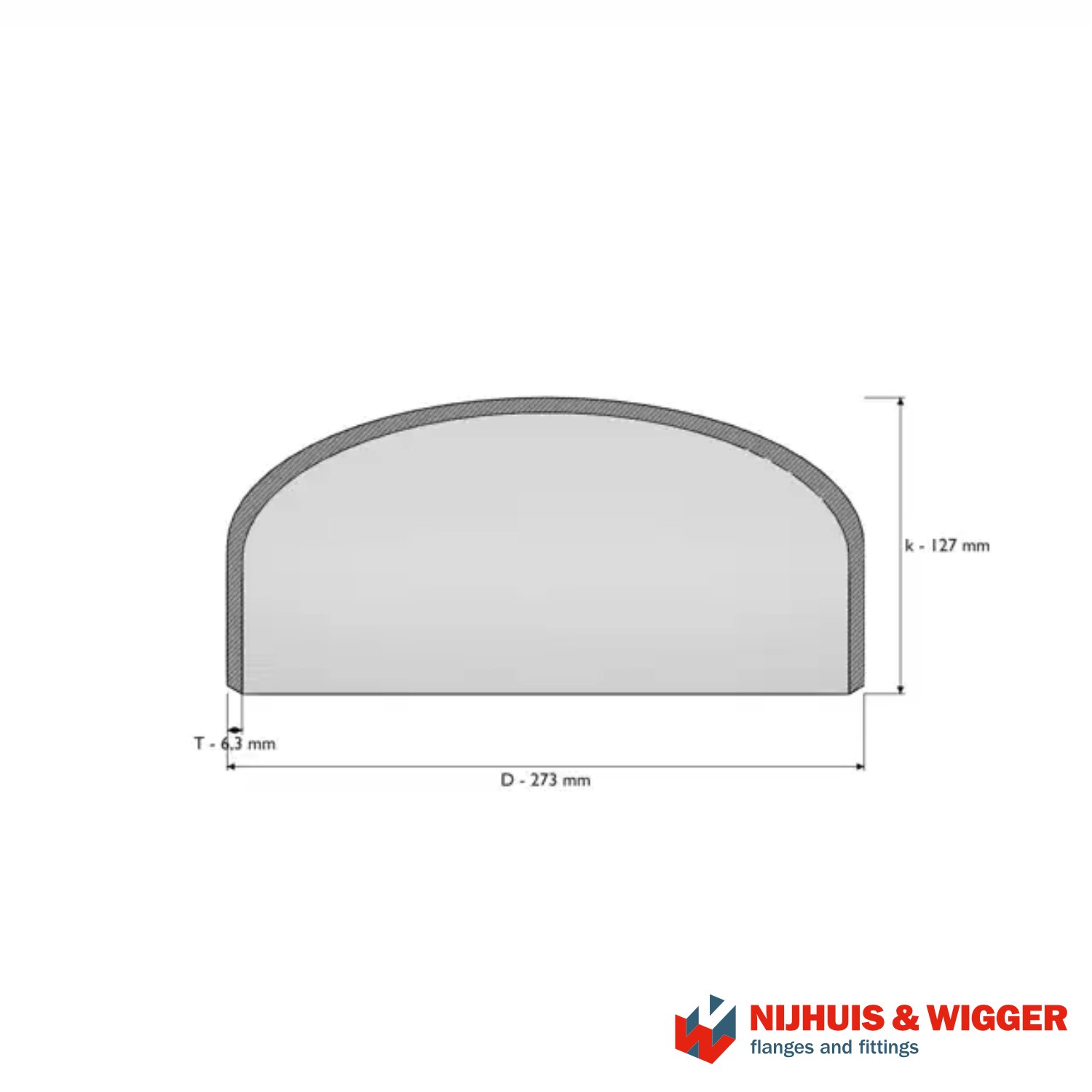

| Lasbodem |
|
273 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
273.0
|
|
Wanddikte (T)
|
6.3
|
|
Hoogte lasbodem (E)
|
127
|
|
|
|
- weight 9.45
|
| Lasbodem |
|
323.9 |
EN10253-2 |
T:A, T:B |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A, T:B
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Buitendiameter (D)
|
323.9
|
|
Wanddikte (T)
|
7.1
|
|
Hoogte lasbodem (E)
|
127
|
|
|
|
- weight 14.1
|
