| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Vlakke Lasflens |
65 |
76.1 |
EN 1092-1 |
T:01 |
PN25-40 |
P250GH |
- DN 65
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
185
|
|
Pijpafmeting flens (d1)
|
76.1
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
145
|
|
Binnendiameter (B1)
|
77.5
|
|
Boutgatdiameter (L)
|
18
|
|
Dikte 1 (C1)
|
22
|
|
|
- weight 3.48
|
| Vlakke Lasflens |
80 |
88.9 |
EN 1092-1 |
T:01 |
PN25-40 |
P250GH |
- DN 80
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
200
|
|
Pijpafmeting flens (d1)
|
88.9
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
160
|
|
Binnendiameter (B1)
|
90.5
|
|
Boutgatdiameter (L)
|
18
|
|
Dikte 1 (C1)
|
24
|
|
|
- weight 4.32
|
| Vlakke Lasflens |
100 |
114.3 |
EN 1092-1 |
T:01 |
PN25-40 |
P250GH |
- DN 100
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
235
|
|
Pijpafmeting flens (d1)
|
114.3
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
190
|
|
Binnendiameter (B1)
|
116
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
26
|
|
|
|
|
|
|
|
- weight 6.07
|
| Vlakke Lasflens |
125 |
139.7 |
EN 1092-1 |
T:01 |
PN25-40 |
P250GH |

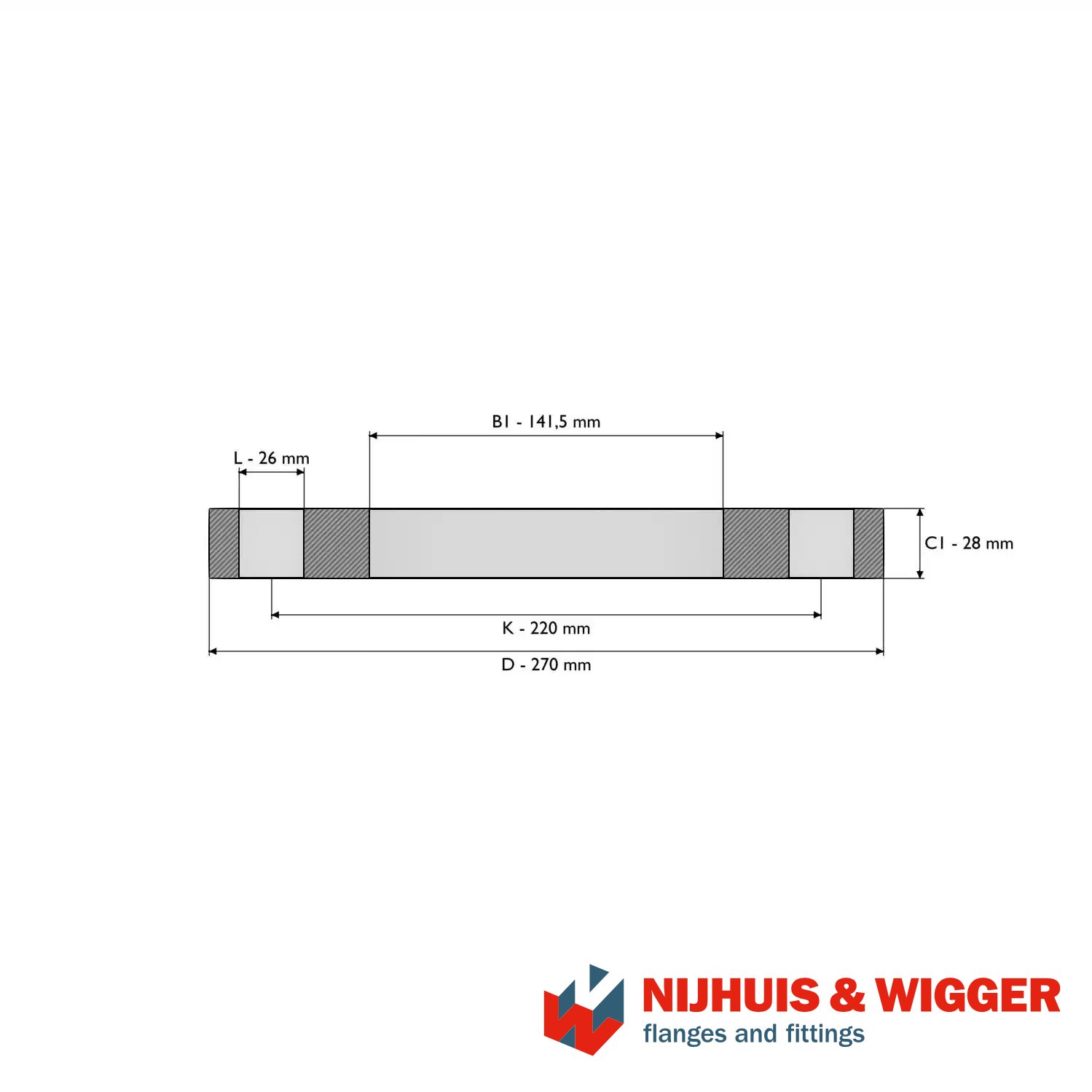

- DN 125
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
270
|
|
Pijpafmeting flens (d1)
|
139.7
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
220
|
|
Binnendiameter (B1)
|
141.5
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
28
|
|
|
- weight 8.19
|
| Vlakke Lasflens |
150 |
168.3 |
EN 1092-1 |
T:01 |
PN25-40 |
P250GH |

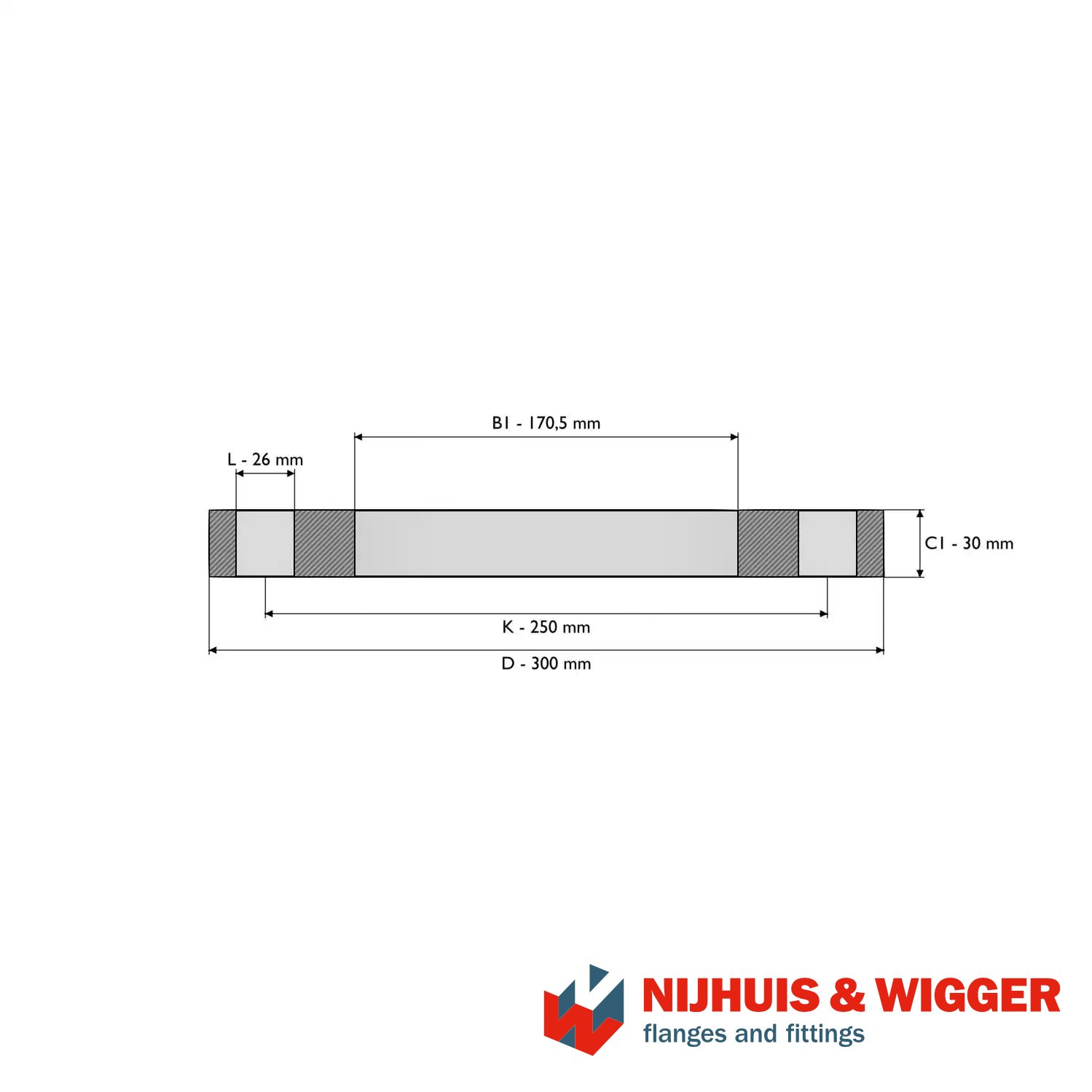

- DN 150
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
300
|
|
Pijpafmeting flens (d1)
|
168.3
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
250
|
|
Binnendiameter (B1)
|
170.5
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
30
|
|
|
- weight 10.3
|
