| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

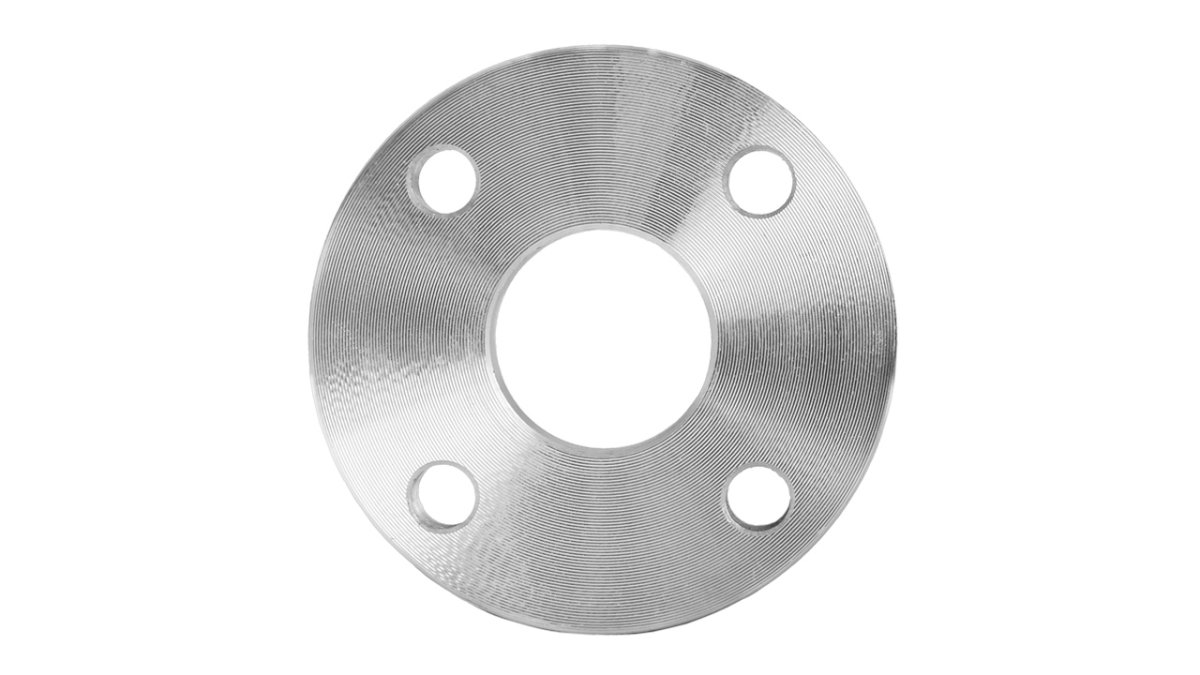

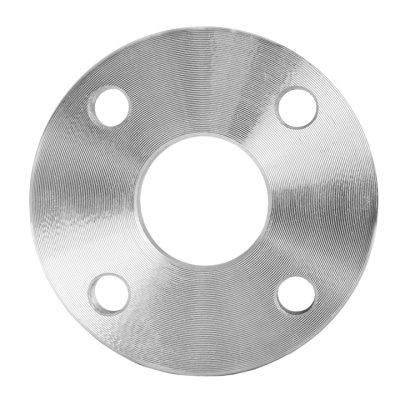

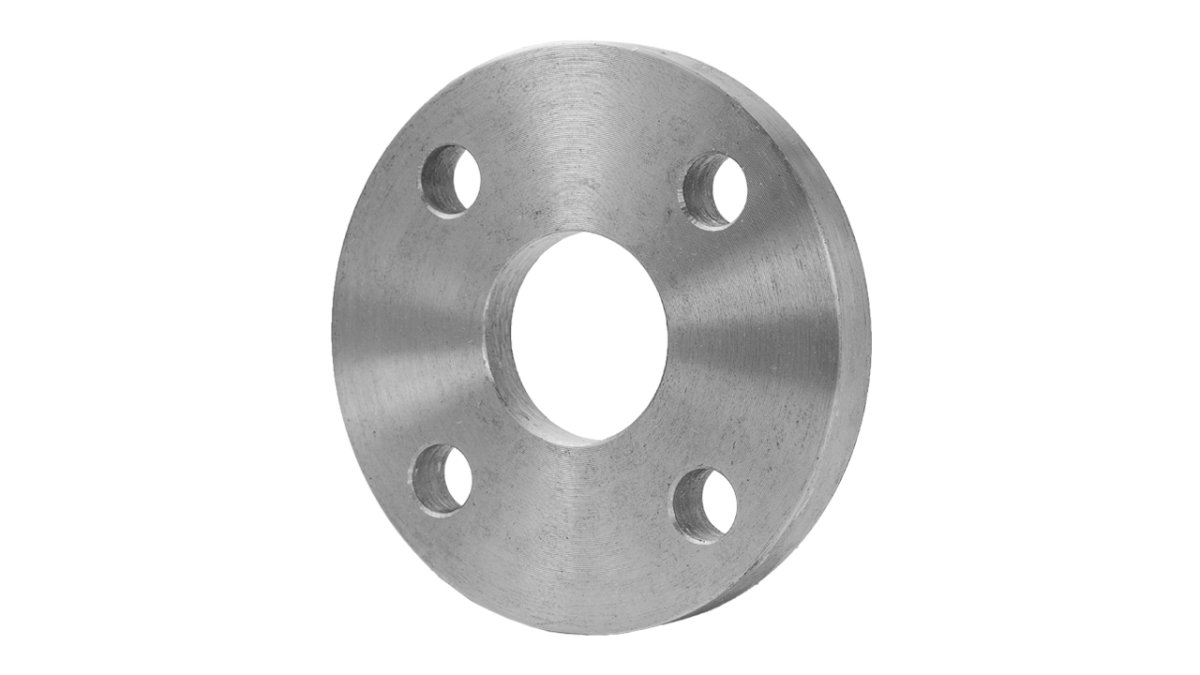

| Vlakke Lasflens |
200 |
219.1 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |

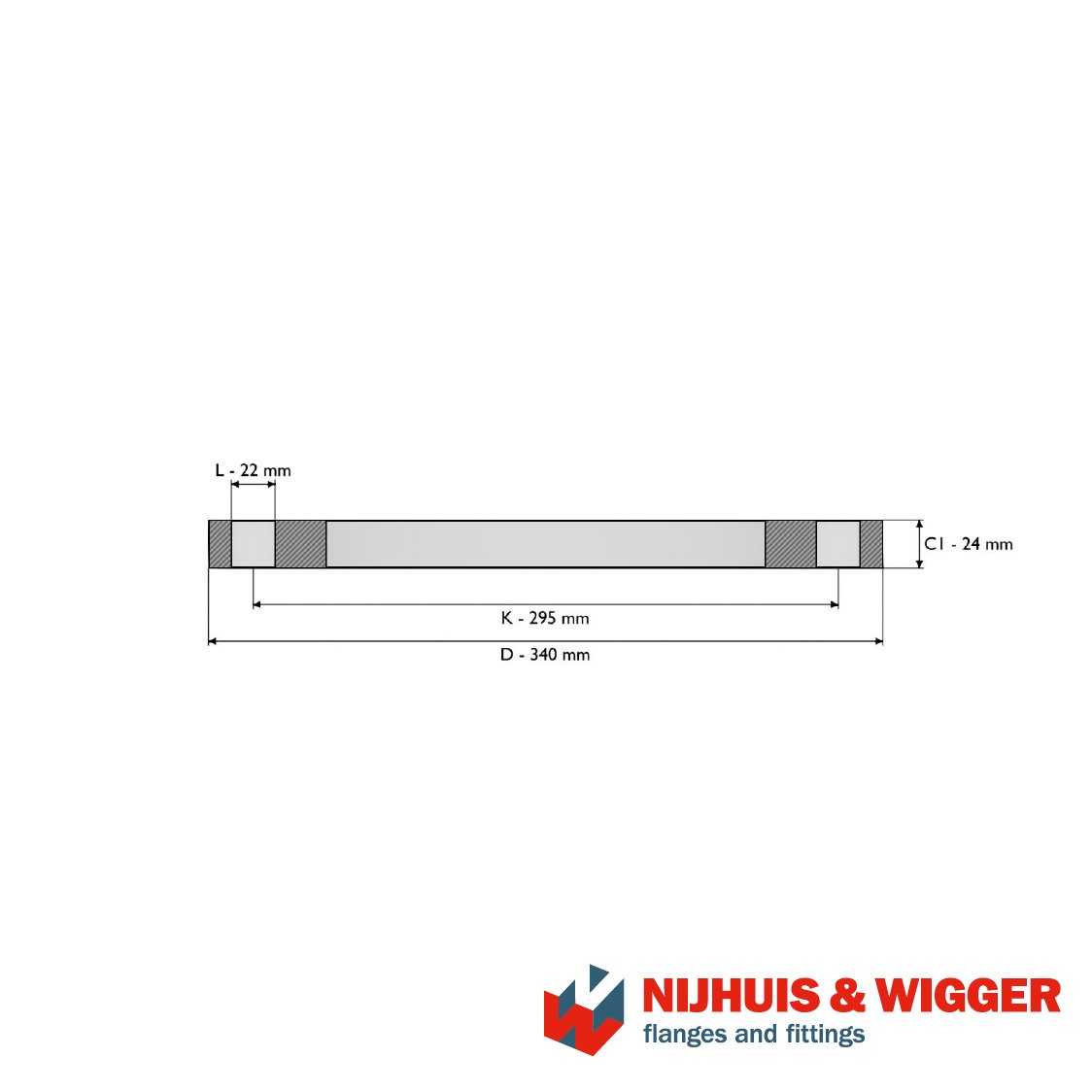

- DN 200
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Pijpafmeting flens (d1)
|
219.1
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
295
|
|
Binnendiameter (B1)
|
221.5
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
102
|
|
|
- weight 9.27
|
| Vlakke Lasflens |
250 |
273 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 250
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
395
|
|
Pijpafmeting flens (d1)
|
273
|
|
Aantal boutgaten (n)
|
12
|
|
Boutcirkeldiameter (K)
|
350
|
|
Binnendiameter (B1)
|
276.5
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
24
|
|
|
- weight 11.8
|
| Vlakke Lasflens |
300 |
323.9 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 300
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
445
|
|
Pijpafmeting flens (d1)
|
323.9
|
|
Aantal boutgaten (n)
|
12
|
|
Boutcirkeldiameter (K)
|
400
|
|
Binnendiameter (B1)
|
327.5
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
26
|
|
|
- weight 13.6
|
| Vlakke Lasflens |
350 |
355.6 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 350
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
505
|
|
Pijpafmeting flens (d1)
|
355.6
|
|
Aantal boutgaten (n)
|
16
|
|
Boutcirkeldiameter (K)
|
460
|
|
Binnendiameter (B1)
|
359.5
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
30
|
|
|
- weight 21.8
|
| Vlakke Lasflens |
400 |
406.4 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
565
|
|
Pijpafmeting flens (d1)
|
406.4
|
|
Aantal boutgaten (n)
|
16
|
|
Boutcirkeldiameter (K)
|
515
|
|
Binnendiameter (B1)
|
411
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
32
|
|
|
- weight 27.5
|
| Vlakke Lasflens |
450 |
457 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 450
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
565
|
|
Pijpafmeting flens (d1)
|
406.4
|
|
Aantal boutgaten (n)
|
16
|
|
Boutcirkeldiameter (K)
|
515
|
|
Binnendiameter (B1)
|
411
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
32
|
|
|
- weight 33.6
|
| Vlakke Lasflens |
500 |
508 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |

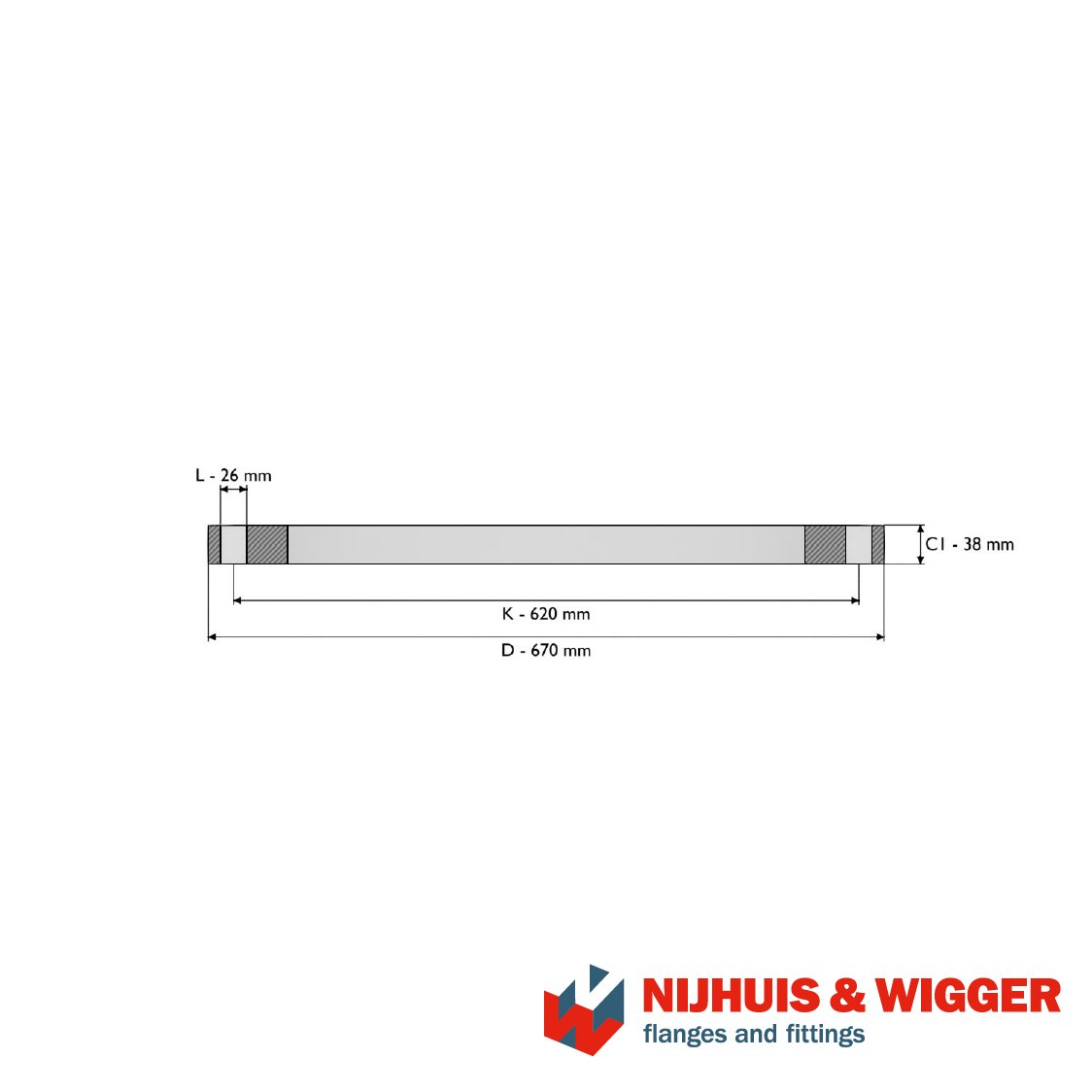

- DN 500
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
670
|
|
Pijpafmeting flens (d1)
|
508
|
|
Aantal boutgaten (n)
|
20
|
|
Boutcirkeldiameter (K)
|
620
|
|
Binnendiameter (B1)
|
513.5
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
38
|
|
|
- weight 40.2
|
| Vlakke Lasflens |
600 |
610 |
EN 1092-1 |
T:01 |
PN10 |
P250GH |
- DN 600
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
780
|
|
Pijpafmeting flens (d1)
|
610
|
|
Aantal boutgaten (n)
|
20
|
|
Boutcirkeldiameter (K)
|
725
|
|
Binnendiameter (B1)
|
616.5
|
|
Boutgatdiameter (L)
|
30
|
|
Dikte 1 (C1)
|
42
|
|
|
- weight 54.5
|
