| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Vlakke Lasflens |
10 |
17.2 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |

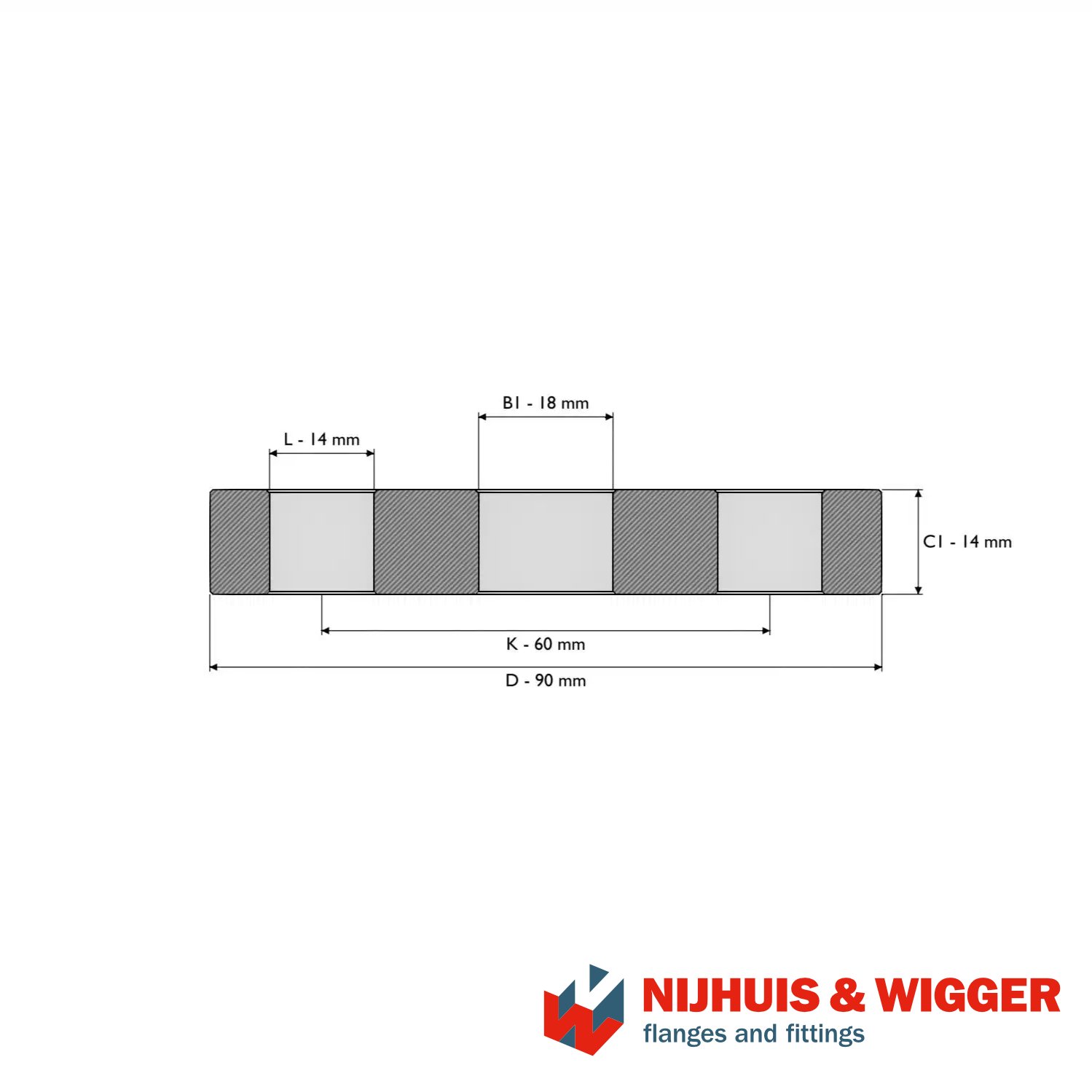

- DN 10
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
90
|
|
Pijpafmeting flens (d1)
|
17.2
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
60
|
|
Binnendiameter (B1)
|
18
|
|
Boutgatdiameter (L)
|
14
|
|
Dikte 1 (C1)
|
14
|
|
|
- weight 0.604
|
| Vlakke Lasflens |
15 |
21.3 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |

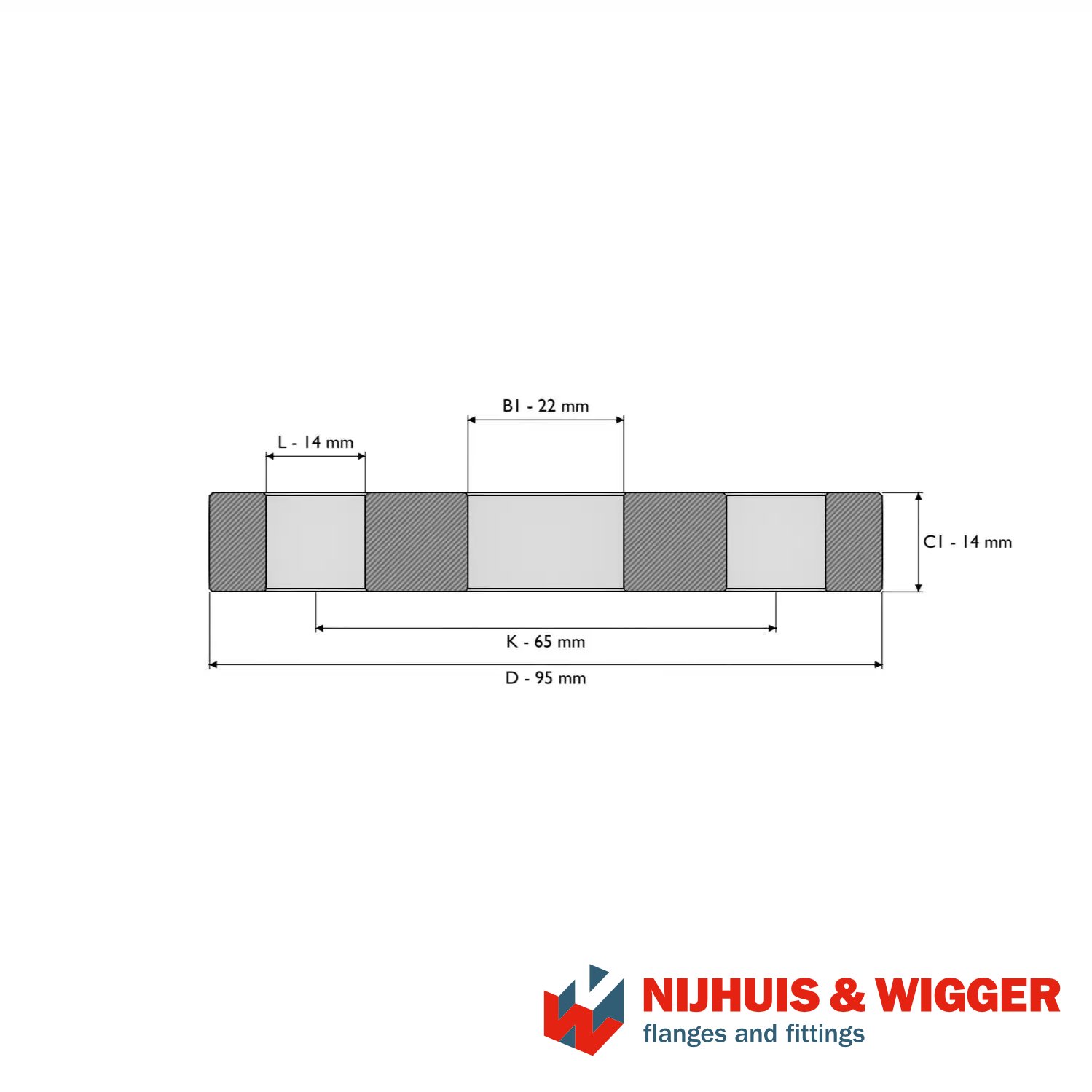

- DN 15
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
95
|
|
Pijpafmeting flens (d1)
|
21.3
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
65
|
|
Binnendiameter (B1)
|
22
|
|
Boutgatdiameter (L)
|
14
|
|
Dikte 1 (C1)
|
14
|
|
|
- weight 0.67
|
| Vlakke Lasflens |
20 |
26.9 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |
- DN 20
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
105
|
|
Pijpafmeting flens (d1)
|
26.9
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
75
|
|
Binnendiameter (B1)
|
27.5
|
|
Boutgatdiameter (L)
|
14
|
|
Dikte 1 (C1)
|
16
|
|
|
- weight 0.936
|
| Vlakke Lasflens |
25 |
33.7 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |
- DN 25
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
115
|
|
Pijpafmeting flens (d1)
|
33.7
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
85
|
|
Binnendiameter (B1)
|
34.5
|
|
Boutgatdiameter (L)
|
14
|
|
Dikte 1 (C1)
|
16
|
|
|
- weight 1.11
|
| Vlakke Lasflens |
32 |
42.4 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |
- DN 32
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
140
|
|
Pijpafmeting flens (d1)
|
42.4
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
100
|
|
Binnendiameter (B1)
|
43.5
|
|
Boutgatdiameter (L)
|
18
|
|
Dikte 1 (C1)
|
18
|
|
|
- weight 1.82
|
| Vlakke Lasflens |
40 |
48.3 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |

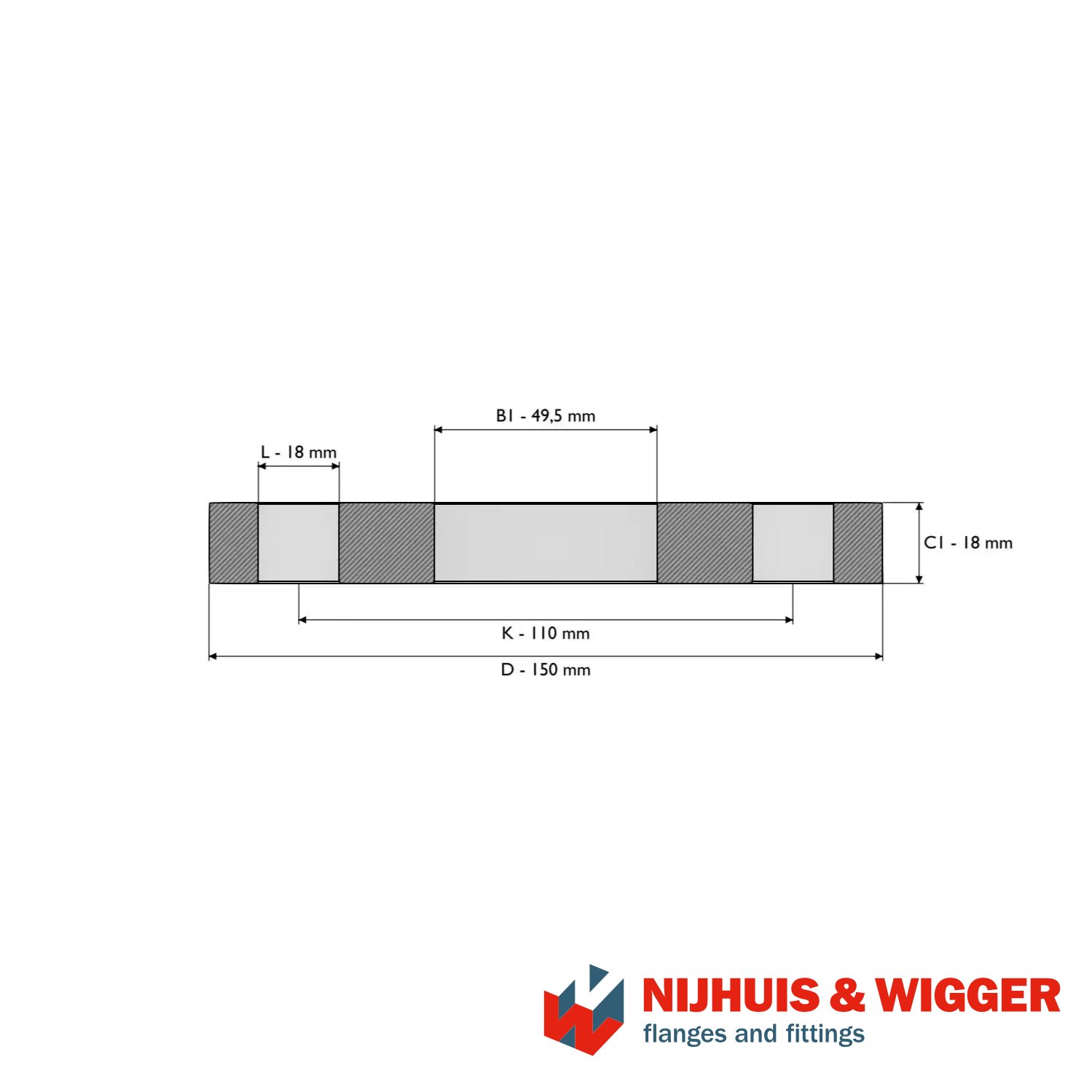

- DN 40
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
150
|
|
Pijpafmeting flens (d1)
|
48.3
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
110
|
|
Binnendiameter (B1)
|
49.5
|
|
Boutgatdiameter (L)
|
18
|
|
Dikte 1 (C1)
|
18
|
|
|
- weight 2.08
|
| Vlakke Lasflens |
50 |
60.3 |
EN 1092-1 |
T:01 |
PN10-40 |
P250GH |
- DN 50
- Norm EN 1092-1
- Type T:01
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
165
|
|
Pijpafmeting flens (d1)
|
60.3
|
|
Aantal boutgaten (n)
|
4
|
|
Boutcirkeldiameter (K)
|
125
|
|
Binnendiameter (B1)
|
61.5
|
|
Boutgatdiameter (L)
|
18
|
|
Dikte 1 (C1)
|
20
|
|
|
- weight 2.73
|
