| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Overschuifflens |
200 |
219.1 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |

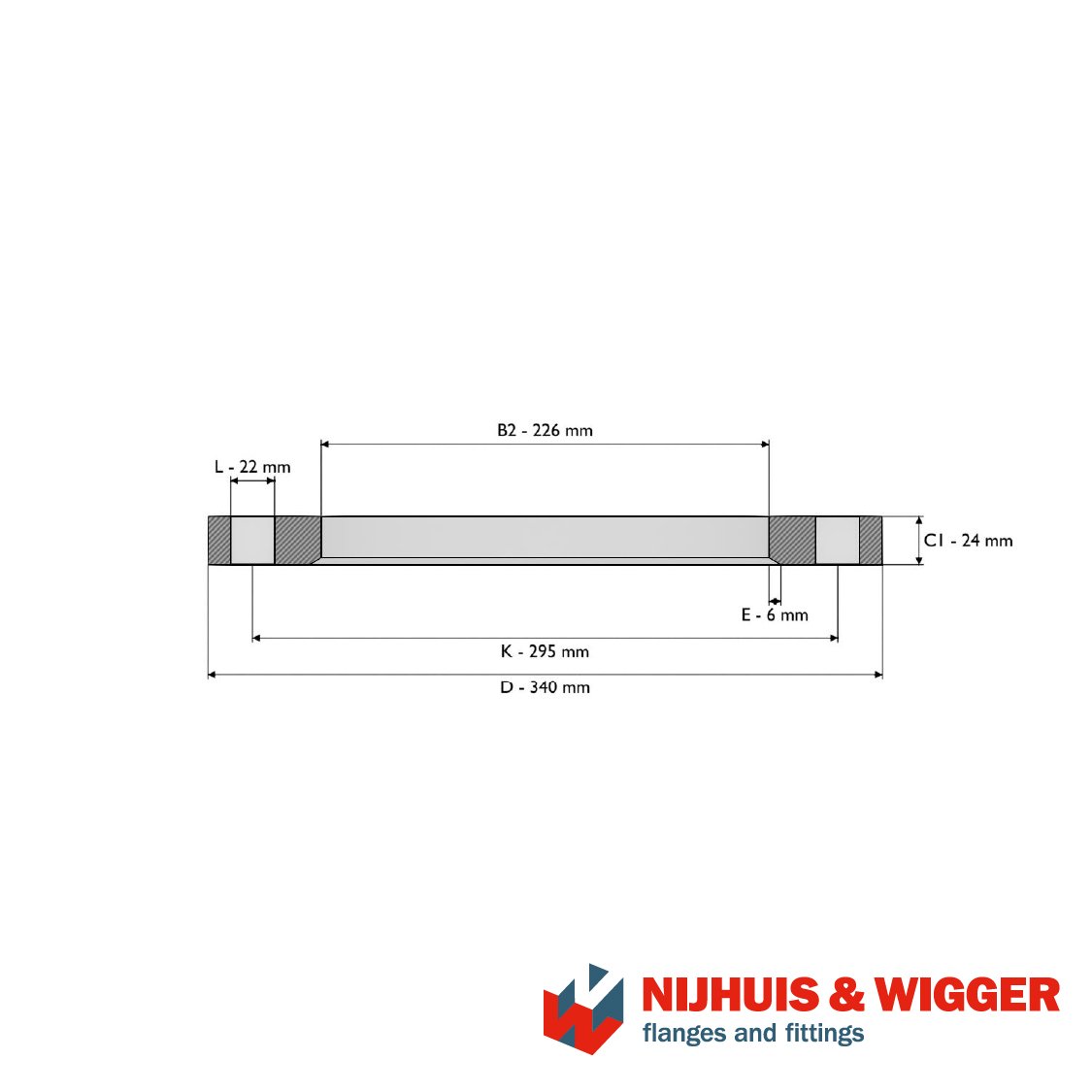

- DN 200
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Pijpafmeting flens (d1)
|
219.1
|
|
Aantal boutgaten (n)
|
8
|
|
Boutcirkeldiameter (K)
|
295
|
|
Binnendiameter (B2)
|
226
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
24
|
|
Schuinkant (E)
|
6
|
- weight 8.87
|
| Overschuifflens |
250 |
273 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |
- DN 250
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
395
|
|
Pijpafmeting flens (d1)
|
273
|
|
Aantal boutgaten (n)
|
12
|
|
Boutcirkeldiameter (K)
|
350
|
|
Binnendiameter (B2)
|
281
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
26
|
|
Schuinkant (E)
|
8
|
- weight 11.2
|
| Overschuifflens |
300 |
323.9 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |

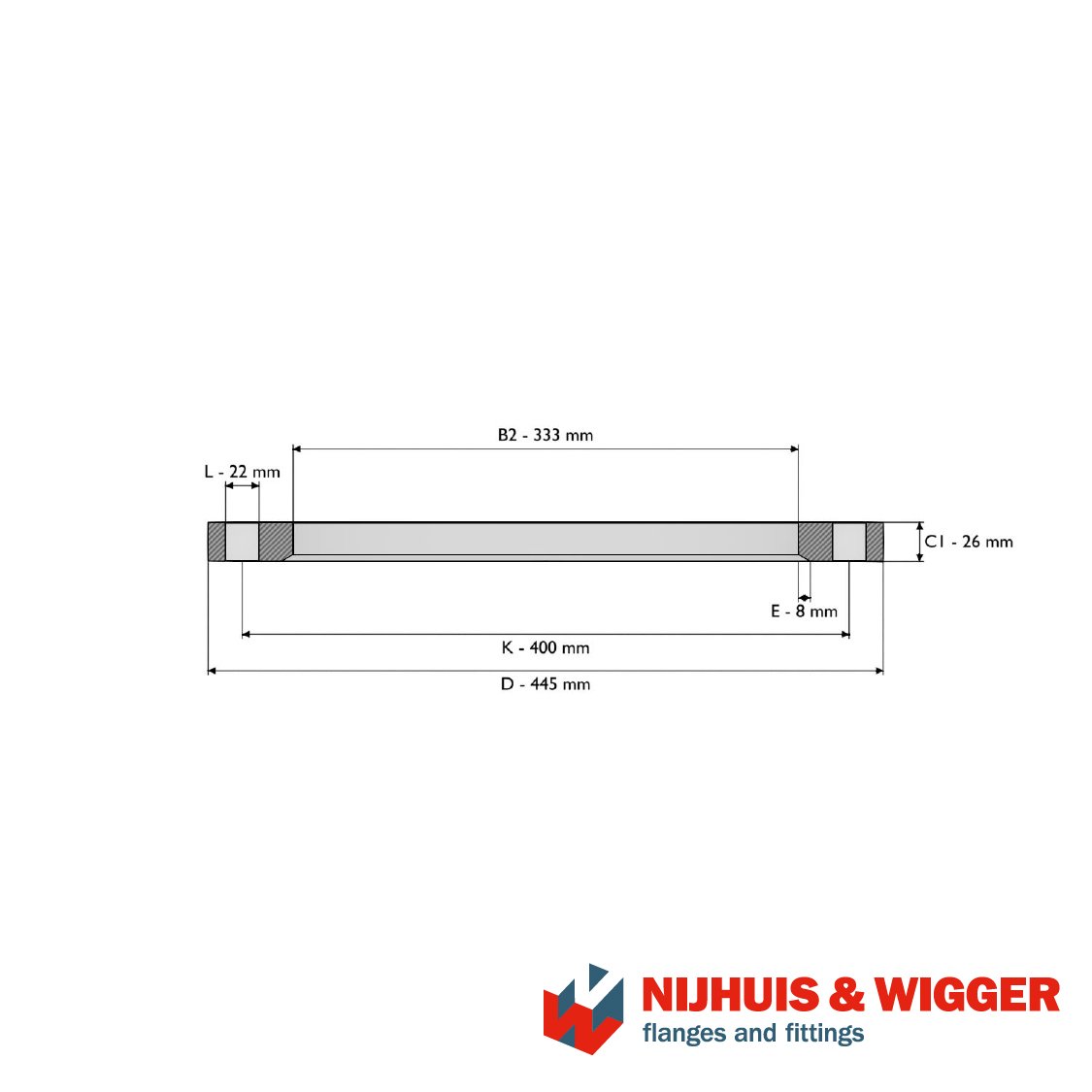

- DN 300
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
445
|
|
Pijpafmeting flens (d1)
|
323.9
|
|
Aantal boutgaten (n)
|
12
|
|
Boutcirkeldiameter (K)
|
400
|
|
Binnendiameter (B2)
|
333
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
26
|
|
Schuinkant (E)
|
8
|
- weight 12.8
|
| Overschuifflens |
350 |
355.6 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |
- DN 350
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
505
|
|
Pijpafmeting flens (d1)
|
355.6
|
|
Aantal boutgaten (n)
|
16
|
|
Boutcirkeldiameter (K)
|
460
|
|
Binnendiameter (B2)
|
365
|
|
Boutgatdiameter (L)
|
22
|
|
Dikte 1 (C1)
|
30
|
|
Schuinkant (E)
|
8
|
- weight 20.9
|
| Overschuifflens |
400 |
406.4 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
565
|
|
Pijpafmeting flens (d1)
|
406.4
|
|
Aantal boutgaten (n)
|
16
|
|
Boutcirkeldiameter (K)
|
515
|
|
Binnendiameter (B2)
|
416
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
32
|
|
Schuinkant (E)
|
8
|
- weight 26.4
|
| Overschuifflens |
450 |
457 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |

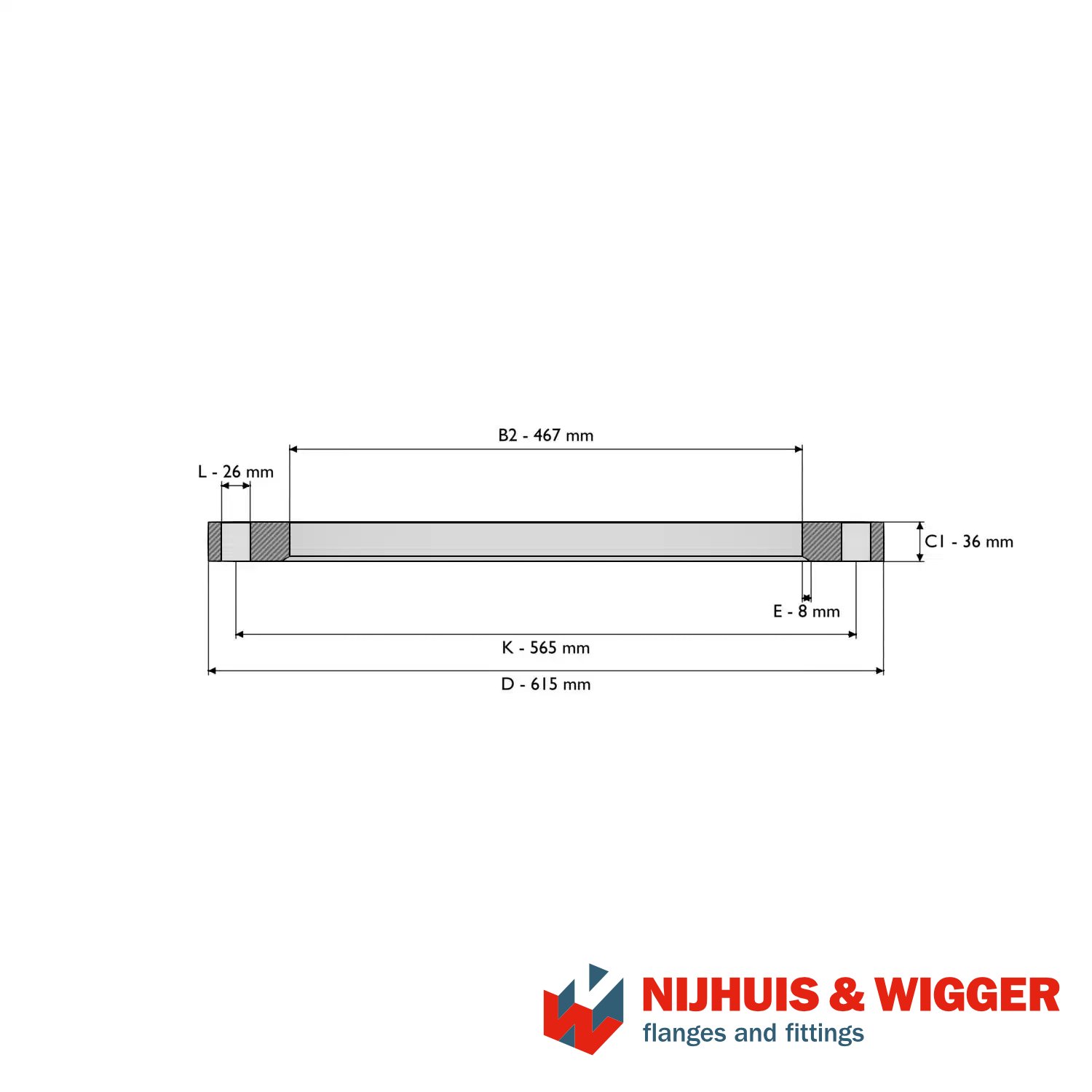

- DN 450
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
615
|
|
Pijpafmeting flens (d1)
|
457
|
|
Aantal boutgaten (n)
|
20
|
|
Boutcirkeldiameter (K)
|
565
|
|
Binnendiameter (B2)
|
467
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
36
|
|
Schuinkant (E)
|
8
|
- weight 32.2
|
| Overschuifflens |
500 |
508 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |
- DN 500
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
615
|
|
Pijpafmeting flens (d1)
|
457
|
|
Aantal boutgaten (n)
|
20
|
|
Boutcirkeldiameter (K)
|
565
|
|
Binnendiameter (B2)
|
467
|
|
Boutgatdiameter (L)
|
26
|
|
Dikte 1 (C1)
|
36
|
|
Schuinkant (E)
|
8
|
- weight 32.2
|
| Overschuifflens |
600 |
610 |
EN 1092-1 |
T:02 |
PN10 |
P250GH |
- DN 600
- Norm EN 1092-1
- Type T:02
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
780
|
|
Pijpafmeting flens (d1)
|
610
|
|
Aantal boutgaten (n)
|
20
|
|
Boutcirkeldiameter (K)
|
725
|
|
Binnendiameter (B2)
|
622
|
|
Boutgatdiameter (L)
|
30
|
|
Dikte 1 (C1)
|
42
|
|
Schuinkant (E)
|
8
|
- weight 52.5
|
