| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |

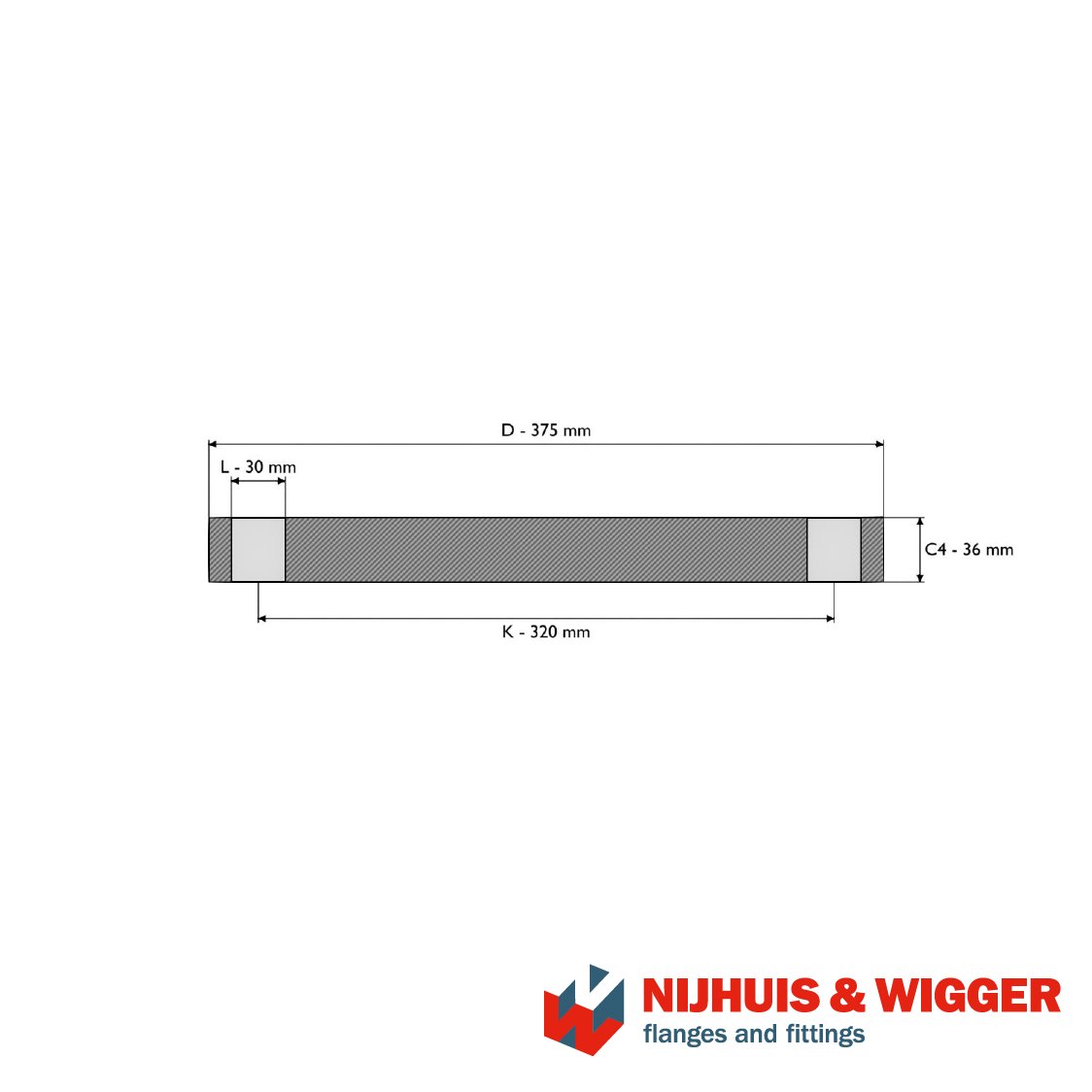

- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
375
|
|
Boutcirkeldiameter (K)
|
320
|
|
Dikte 4 (C4)
|
36
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 28.8
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
450
|
|
Boutcirkeldiameter (K)
|
385
|
|
Dikte 4 (C4)
|
38
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 44.4
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
515
|
|
Boutcirkeldiameter (K)
|
450
|
|
Dikte 4 (C4)
|
42
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 64.2
|
| Blindflens |
350 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |

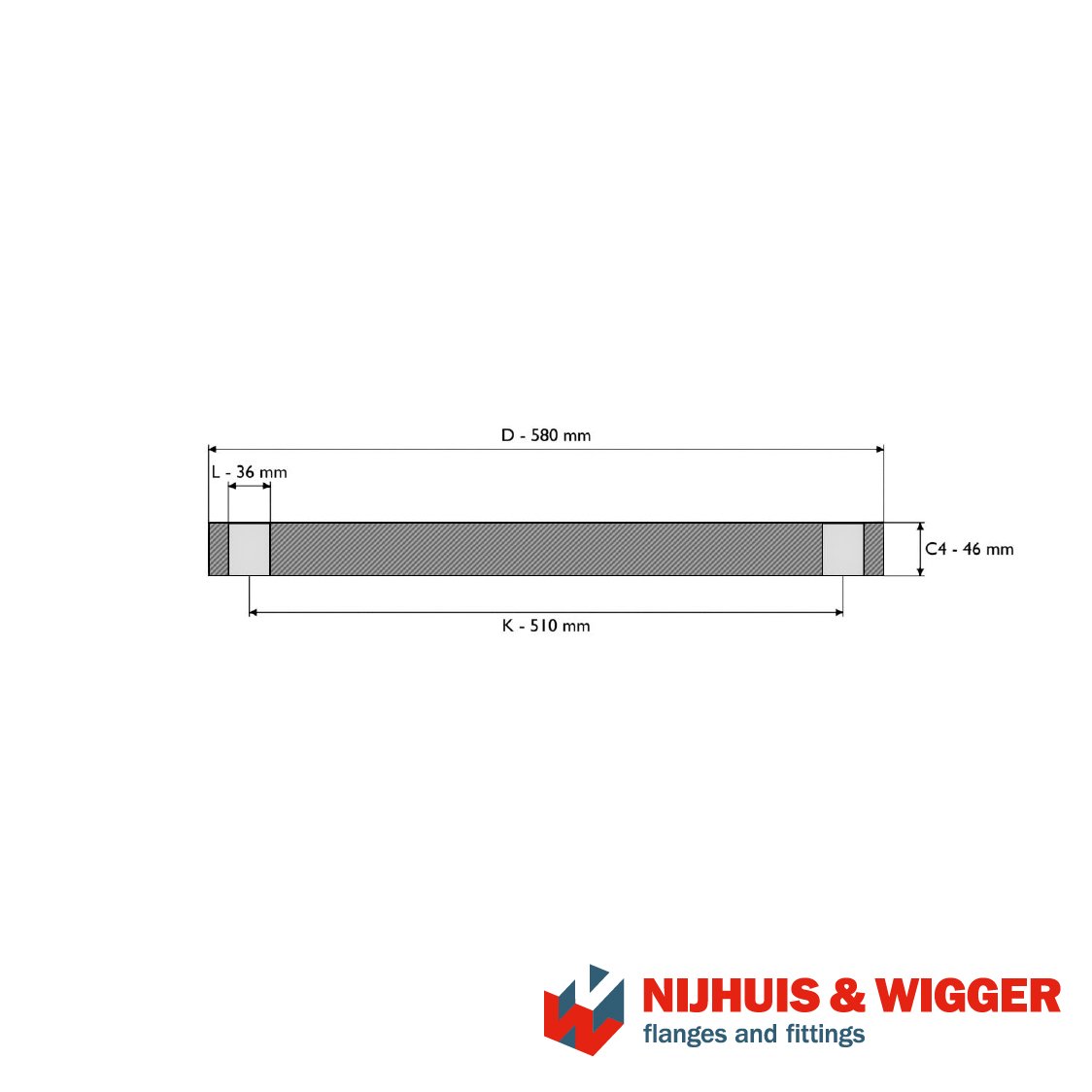

- DN 350
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
580
|
|
Boutcirkeldiameter (K)
|
510
|
|
Dikte 4 (C4)
|
46
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
36
|
|
|
|
- weight 89.5
|
| Blindflens |
400 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
660
|
|
Boutcirkeldiameter (K)
|
585
|
|
Dikte 4 (C4)
|
50
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
39
|
|
|
|
- weight 127
|
| Blindflens |
500 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |
- DN 500
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
755
|
|
Boutcirkeldiameter (K)
|
670
|
|
Dikte 4 (C4)
|
57
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
42
|
|
|
|
- weight 188
|
| Blindflens |
600 |
|
EN 1092-1 |
T:05 |
PN40 |
P250GH |
- DN 600
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
890
|
|
Boutcirkeldiameter (K)
|
795
|
|
Dikte 4 (C4)
|
72
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
48
|
|
|
|
- weight 331
|
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN40 |
P355QH1 |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
375
|
|
Boutcirkeldiameter (K)
|
320
|
|
Dikte 4 (C4)
|
36
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 28.8
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN40 |
P355QH1 |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
450
|
|
Boutcirkeldiameter (K)
|
385
|
|
Dikte 4 (C4)
|
38
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 44.4
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN40 |
P355QH1 |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
515
|
|
Boutcirkeldiameter (K)
|
450
|
|
Dikte 4 (C4)
|
42
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 64.2
|
