| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
360
|
|
Boutcirkeldiameter (K)
|
310
|
|
Dikte 4 (C4)
|
30
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 22.5
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
425
|
|
Boutcirkeldiameter (K)
|
370
|
|
Dikte 4 (C4)
|
32
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 33.5
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
485
|
|
Boutcirkeldiameter (K)
|
430
|
|
Dikte 4 (C4)
|
34
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 46.3
|
| Blindflens |
350 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |

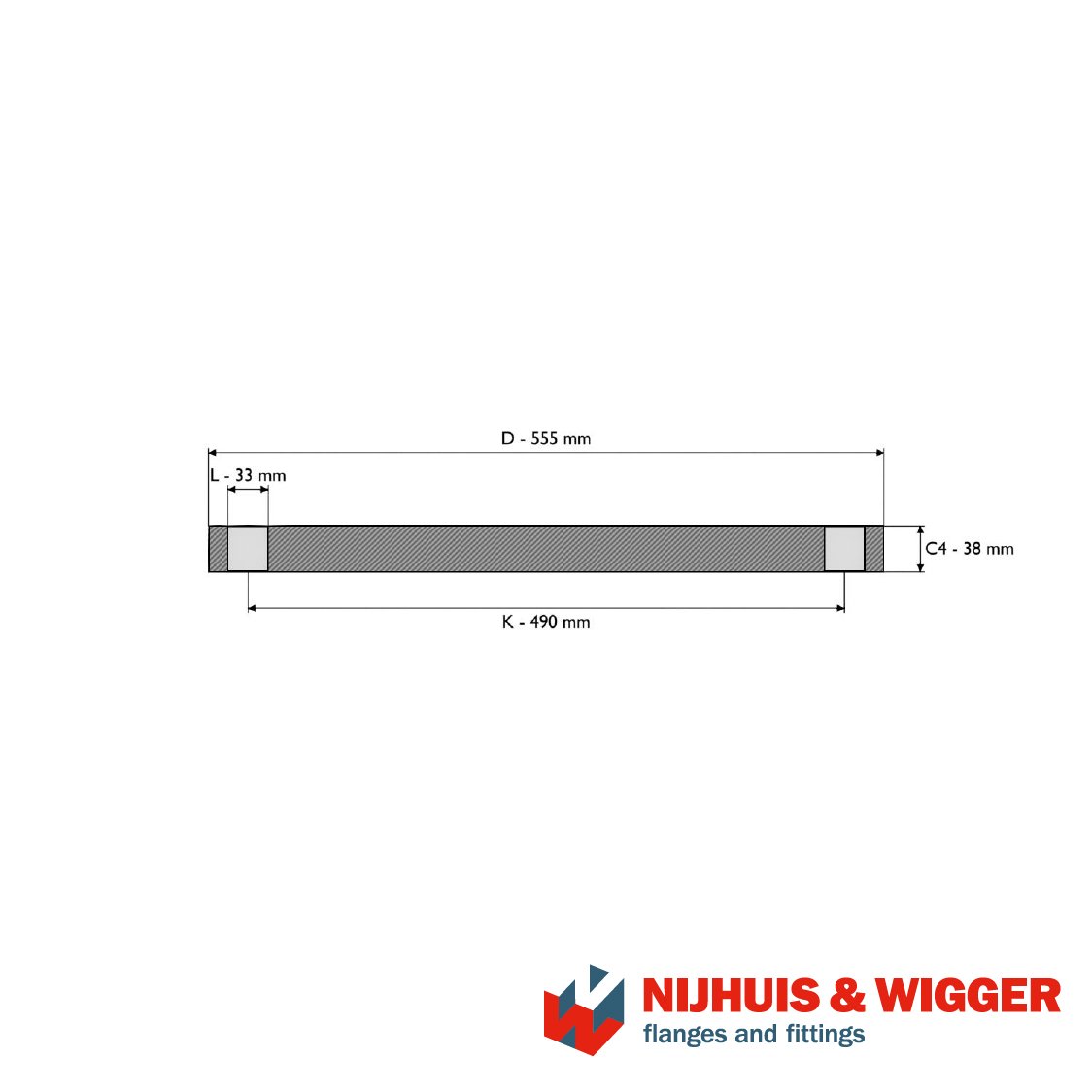

- DN 350
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
555
|
|
Boutcirkeldiameter (K)
|
490
|
|
Dikte 4 (C4)
|
38
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 68.1
|
| Blindflens |
400 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
620
|
|
Boutcirkeldiameter (K)
|
550
|
|
Dikte 4 (C4)
|
40
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
36
|
|
|
|
- weight 89.7
|
| Blindflens |
450 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |

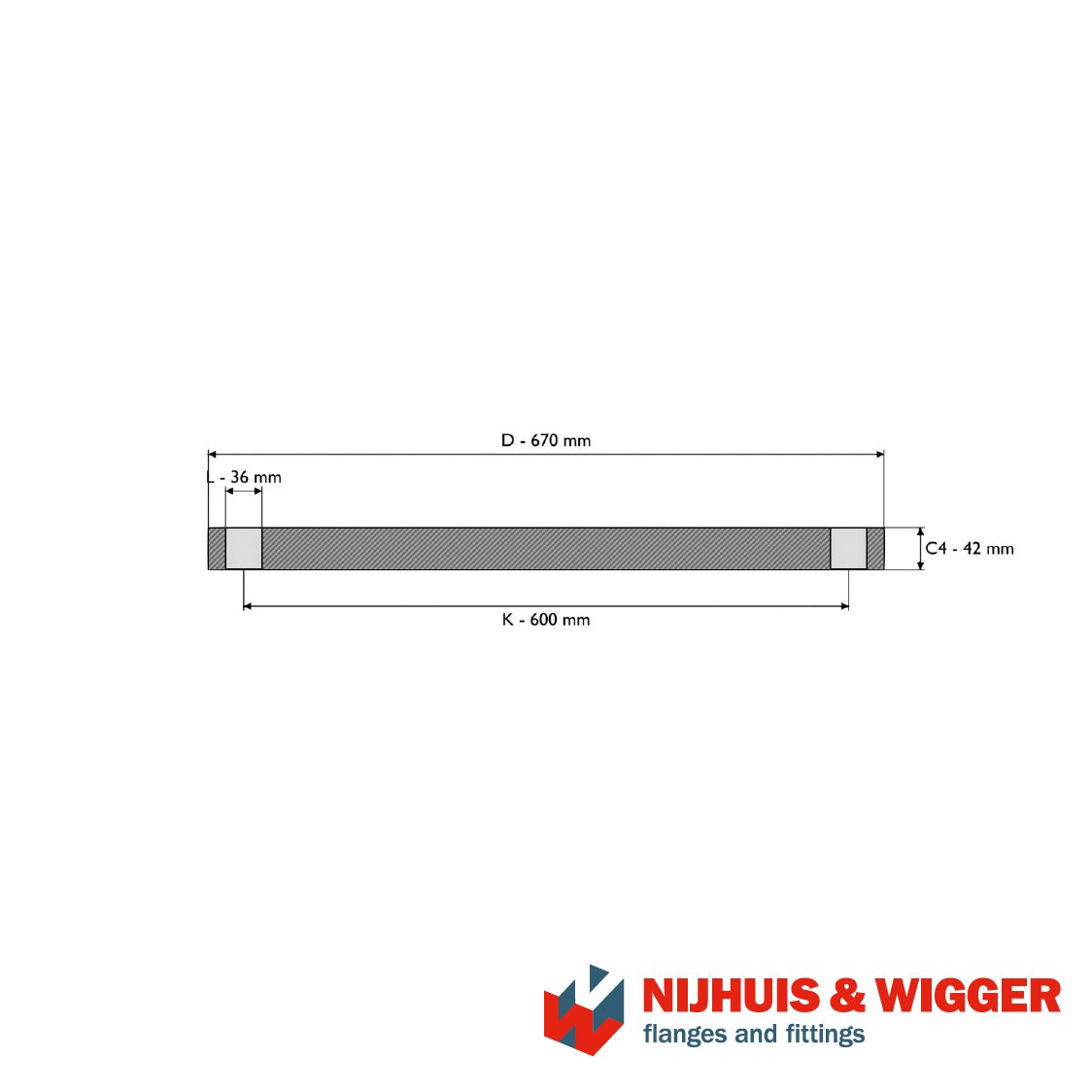

- DN 450
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
670
|
|
Boutcirkeldiameter (K)
|
600
|
|
Dikte 4 (C4)
|
42
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
36
|
|
|
|
- weight 110
|
| Blindflens |
500 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 500
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
730
|
|
Boutcirkeldiameter (K)
|
660
|
|
Dikte 4 (C4)
|
51
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
36
|
|
|
|
- weight 159
|
| Blindflens |
600 |
|
EN 1092-1 |
T:05 |
PN25 |
P250GH |
- DN 600
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
845
|
|
Boutcirkeldiameter (K)
|
770
|
|
Dikte 4 (C4)
|
66
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
39
|
|
|
|
- weight 278
|
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN25 |
P355QH1 |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
360
|
|
Boutcirkeldiameter (K)
|
310
|
|
Dikte 4 (C4)
|
30
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 22.5
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN25 |
P355QH1 |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
425
|
|
Boutcirkeldiameter (K)
|
370
|
|
Dikte 4 (C4)
|
32
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 33.5
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN25 |
P355QH1 |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
485
|
|
Boutcirkeldiameter (K)
|
430
|
|
Dikte 4 (C4)
|
34
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 46.3
|
