| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Blindflens |
50 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |

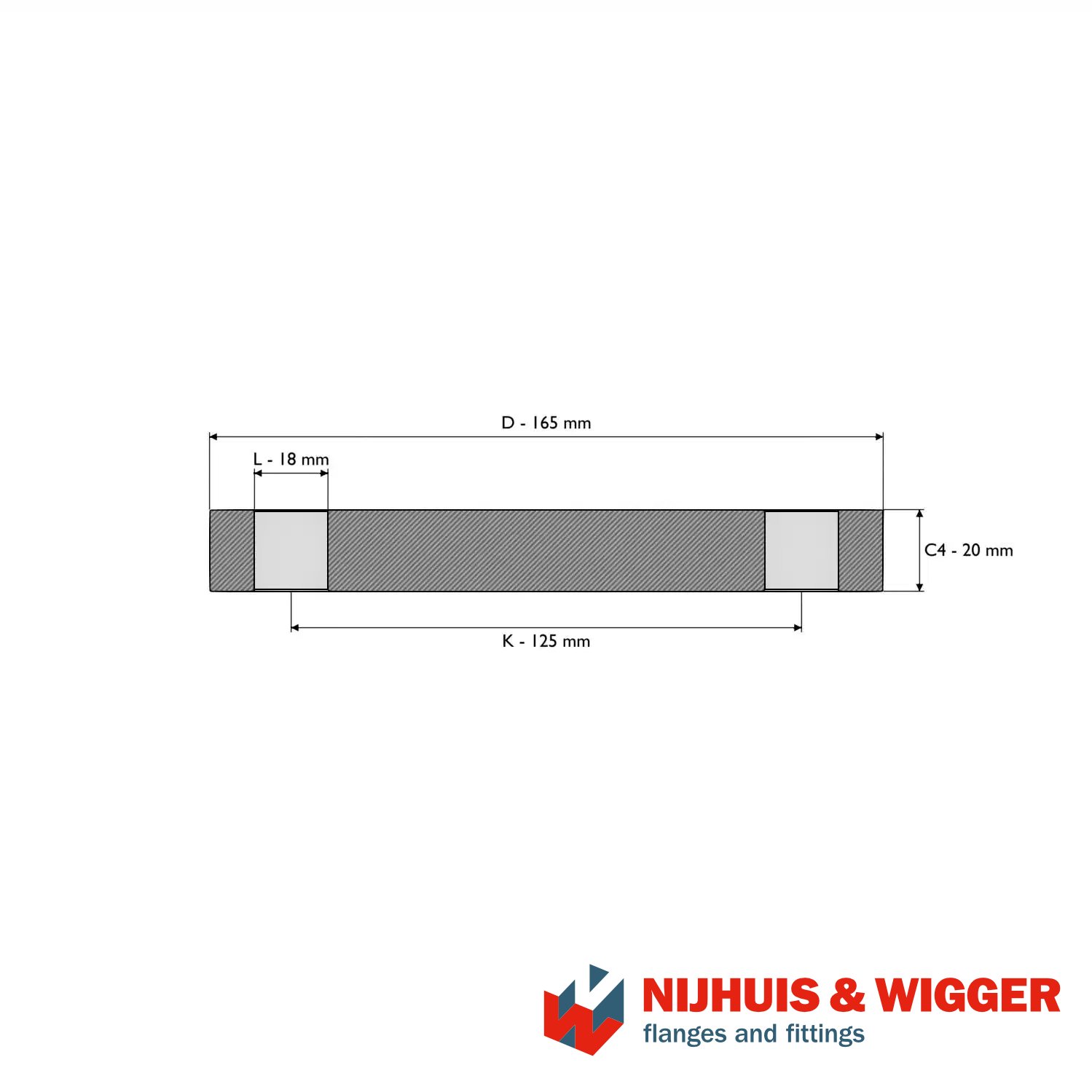

- DN 50
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
165
|
|
Boutcirkeldiameter (K)
|
125
|
|
Dikte 4 (C4)
|
20
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 3.2
|
| Blindflens |
65 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |
- DN 65
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
185
|
|
Boutcirkeldiameter (K)
|
145
|
|
Dikte 4 (C4)
|
22
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 4.29
|
| Blindflens |
80 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |

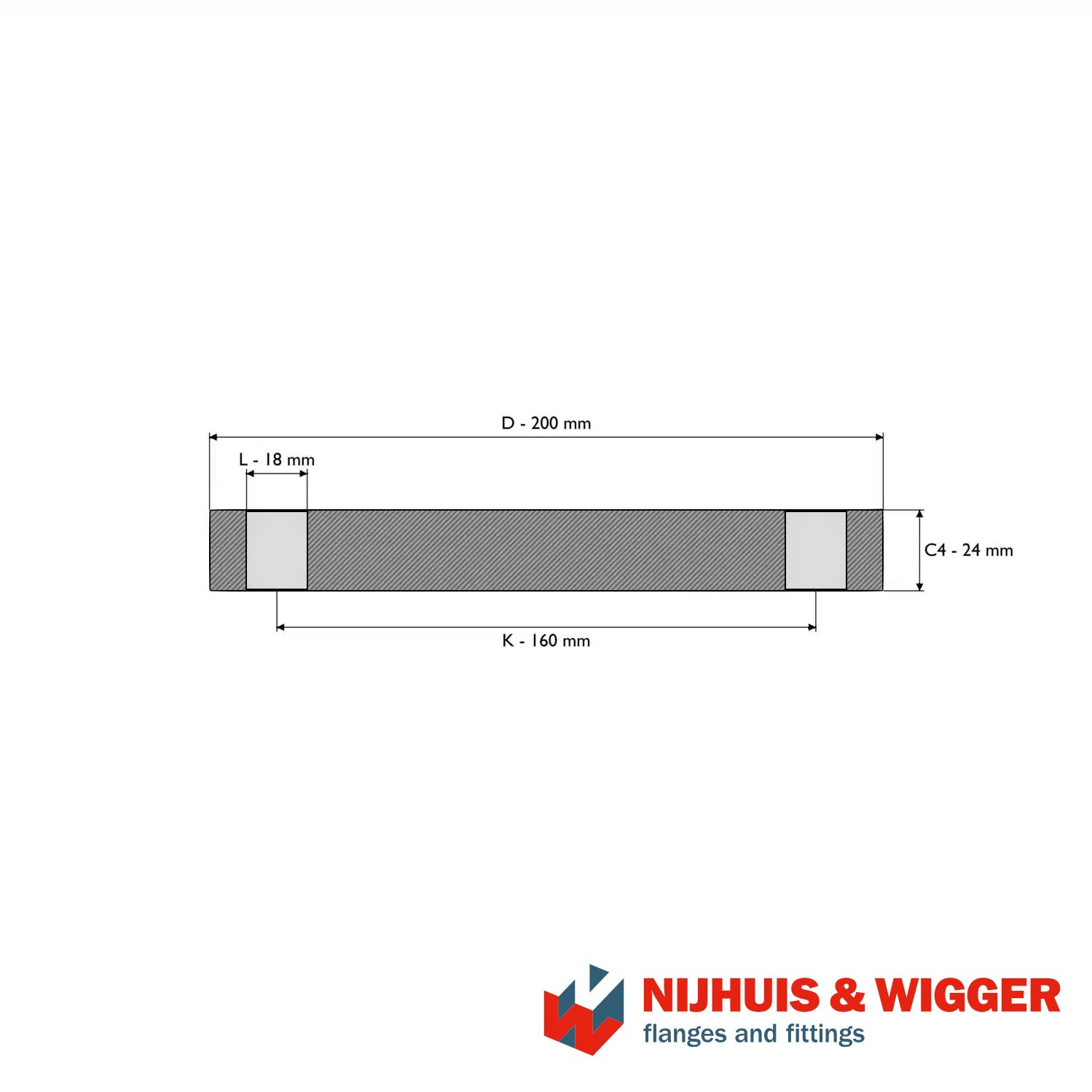

- DN 80
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
200
|
|
Boutcirkeldiameter (K)
|
160
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 5.54
|
| Blindflens |
100 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |

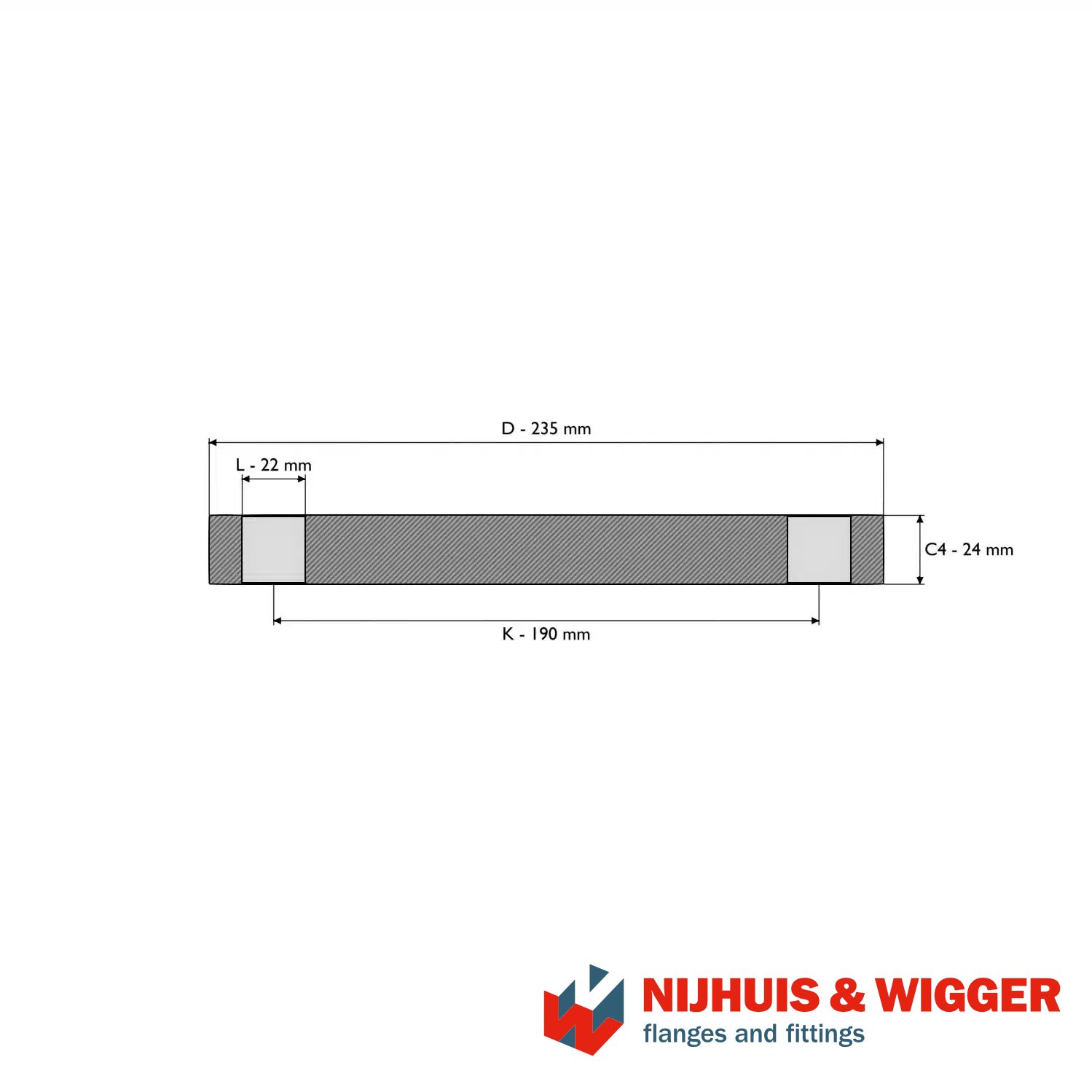

- DN 100
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
235
|
|
Boutcirkeldiameter (K)
|
190
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 7.6
|
| Blindflens |
125 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |
- DN 125
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
270
|
|
Boutcirkeldiameter (K)
|
220
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 10.8
|
| Blindflens |
150 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P250GH |
- DN 150
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
300
|
|
Boutcirkeldiameter (K)
|
250
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 14.6
|
| Blindflens |
50 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 50
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
165
|
|
Boutcirkeldiameter (K)
|
125
|
|
Dikte 4 (C4)
|
20
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 3.2
|
| Blindflens |
65 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 65
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
185
|
|
Boutcirkeldiameter (K)
|
145
|
|
Dikte 4 (C4)
|
22
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 4.29
|
| Blindflens |
80 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 80
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
200
|
|
Boutcirkeldiameter (K)
|
160
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 5.54
|
| Blindflens |
100 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 100
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
235
|
|
Boutcirkeldiameter (K)
|
190
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 7.6
|
| Blindflens |
125 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 125
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
270
|
|
Boutcirkeldiameter (K)
|
220
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 10.8
|
| Blindflens |
150 |
|
EN 1092-1 |
T:05 |
PN25-40 |
P355QH1 |
- DN 150
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
300
|
|
Boutcirkeldiameter (K)
|
250
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 14.6
|
| Blindflens |
50 |
|
EN 1092-1 |
T:05 |
PN25-40 |
16Mo3 |
- DN 50
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
165
|
|
Boutcirkeldiameter (K)
|
125
|
|
Dikte 4 (C4)
|
20
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 3.2
|
| Blindflens |
65 |
|
EN 1092-1 |
T:05 |
PN25-40 |
16Mo3 |
- DN 65
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
185
|
|
Boutcirkeldiameter (K)
|
145
|
|
Dikte 4 (C4)
|
22
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 4.29
|
| Blindflens |
80 |
|
EN 1092-1 |
T:05 |
PN25-40 |
16Mo3 |
- DN 80
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
200
|
|
Boutcirkeldiameter (K)
|
160
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 5.54
|
| Blindflens |
100 |
|
EN 1092-1 |
T:05 |
PN25-40 |
16Mo3 |
- DN 100
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
235
|
|
Boutcirkeldiameter (K)
|
190
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 7.6
|
| Blindflens |
125 |
|
EN 1092-1 |
T:05 |
PN25-40 |
16Mo3 |
- DN 125
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN25-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
270
|
|
Boutcirkeldiameter (K)
|
220
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 10.8
|
