| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Boutcirkeldiameter (K)
|
295
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 16.2
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
405
|
|
Boutcirkeldiameter (K)
|
355
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 25
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |

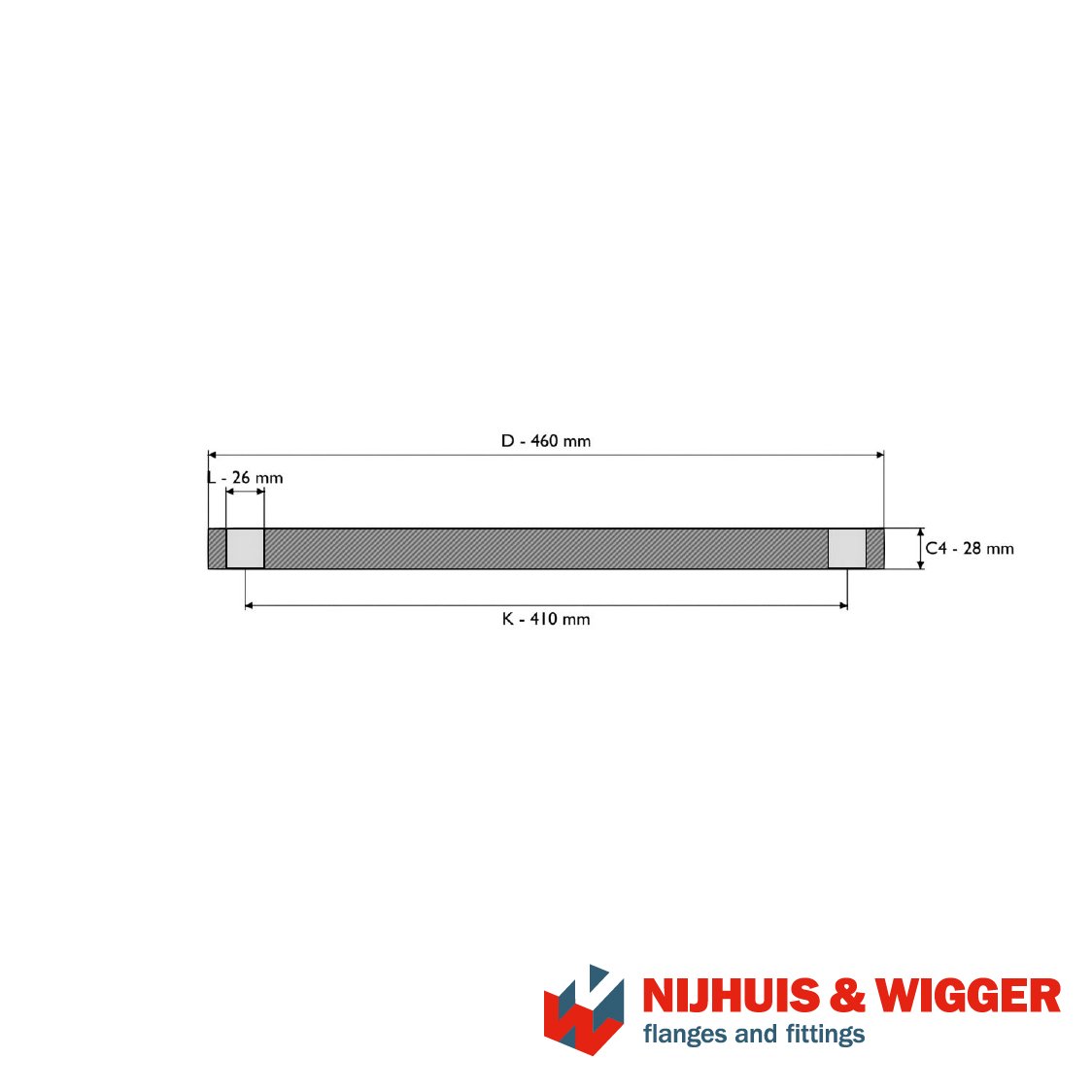

- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
460
|
|
Boutcirkeldiameter (K)
|
410
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 35.1
|
| Blindflens |
350 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |
- DN 350
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
520
|
|
Boutcirkeldiameter (K)
|
470
|
|
Dikte 4 (C4)
|
30
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 48
|
| Blindflens |
400 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
580
|
|
Boutcirkeldiameter (K)
|
525
|
|
Dikte 4 (C4)
|
32
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 63.5
|
| Blindflens |
450 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |

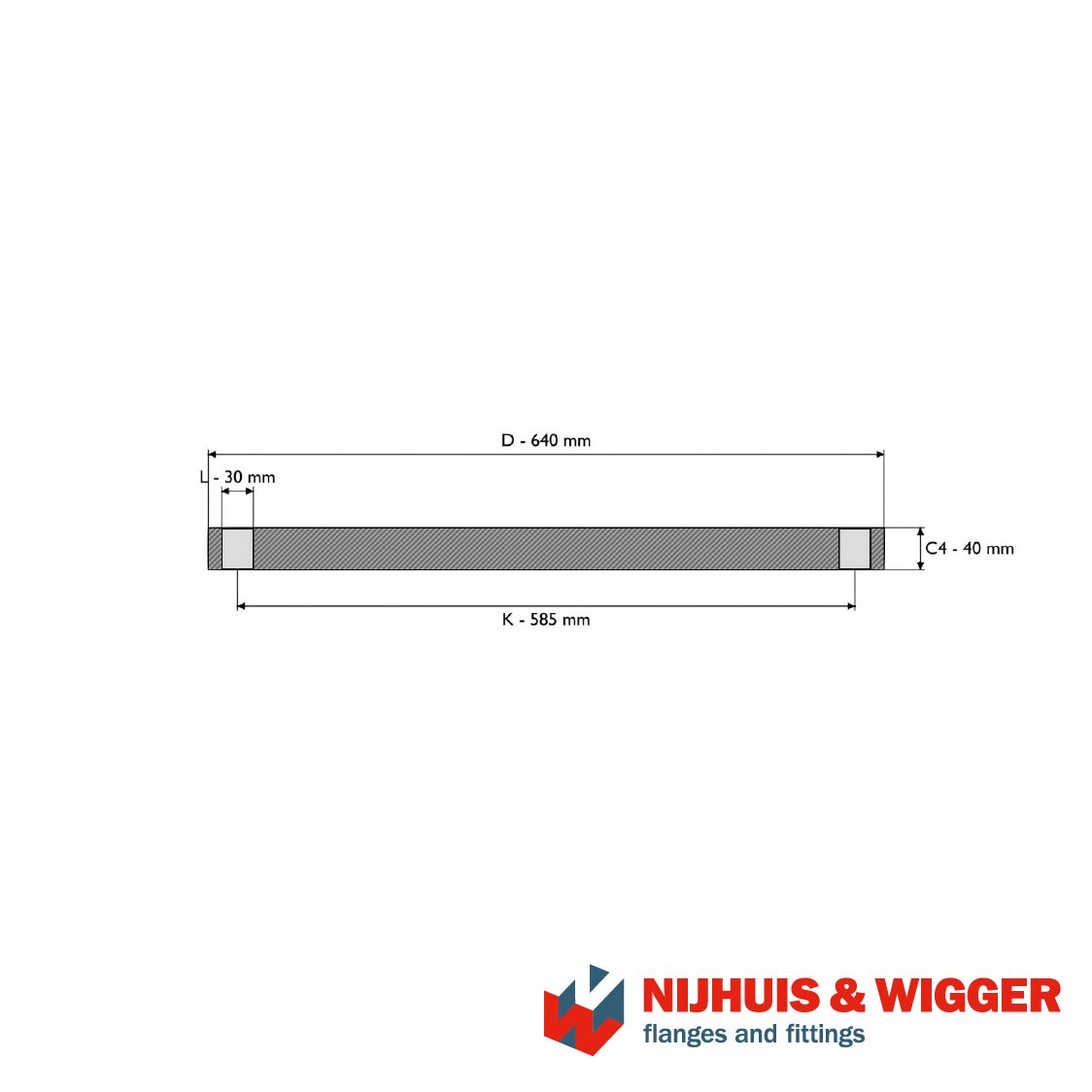

- DN 450
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
640
|
|
Boutcirkeldiameter (K)
|
585
|
|
Dikte 4 (C4)
|
40
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 96.9
|
| Blindflens |
500 |
|
EN 1092-1 |
T:05 |
PN16 |
P250GH |
- DN 500
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
715
|
|
Boutcirkeldiameter (K)
|
650
|
|
Dikte 4 (C4)
|
44
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
33
|
|
|
|
- weight 133
|
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN16 |
P355QH1 |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Boutcirkeldiameter (K)
|
295
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 16.2
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN16 |
P355QH1 |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
405
|
|
Boutcirkeldiameter (K)
|
355
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 25
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN16 |
P355QH1 |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN16
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
460
|
|
Boutcirkeldiameter (K)
|
410
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 35.1
|
