| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

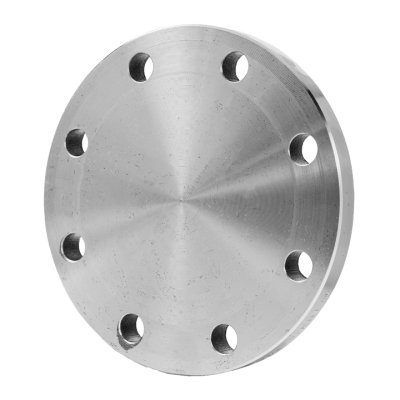

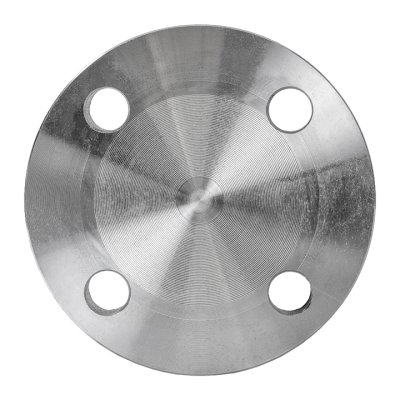

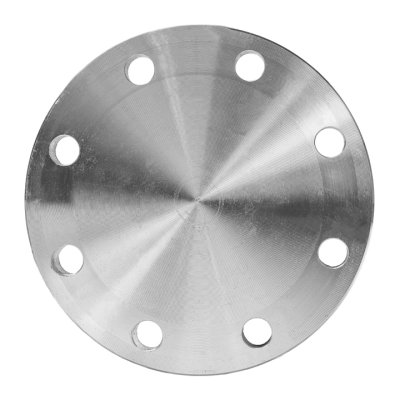

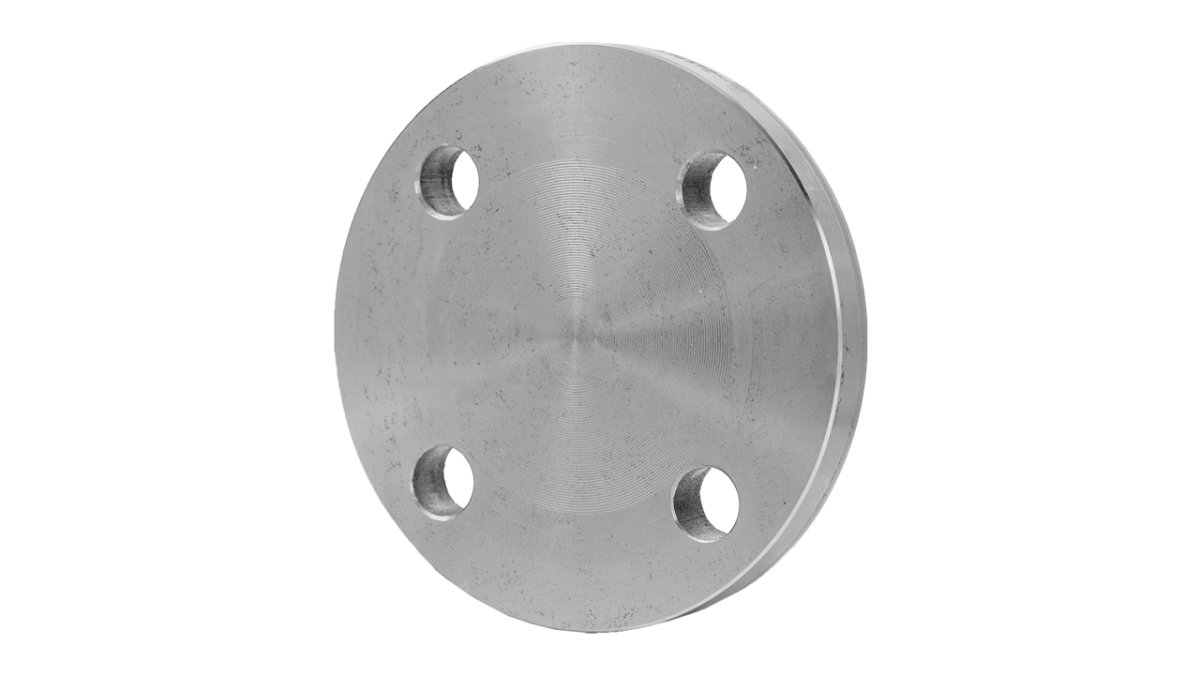

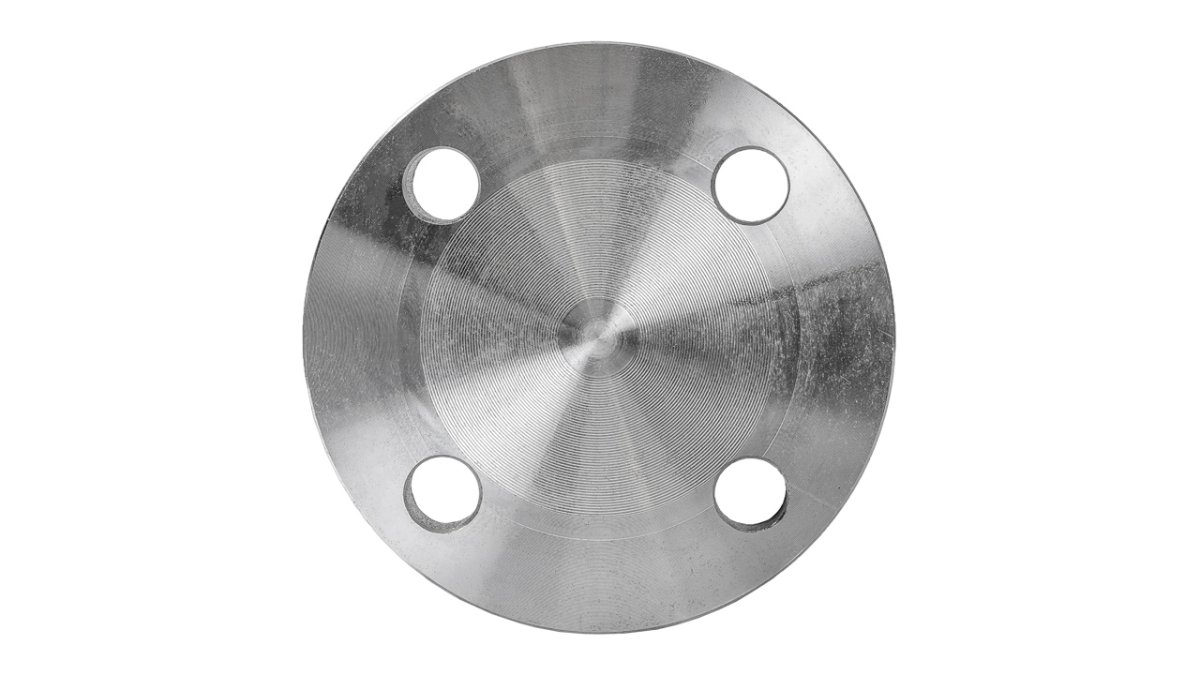

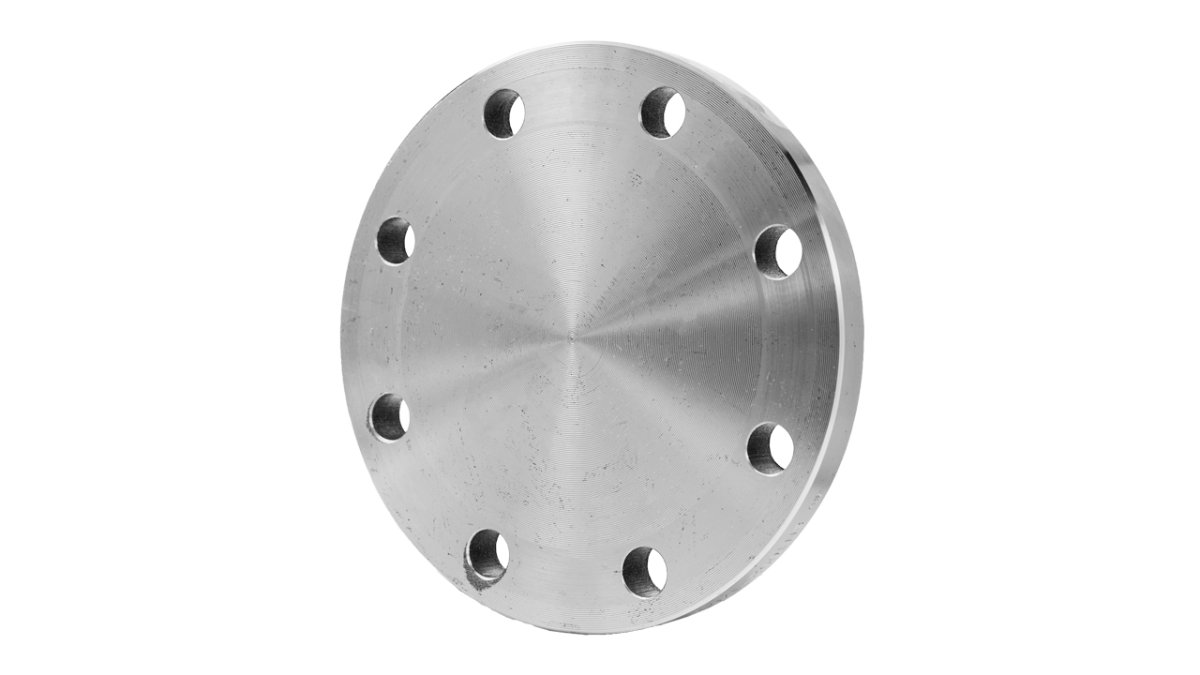

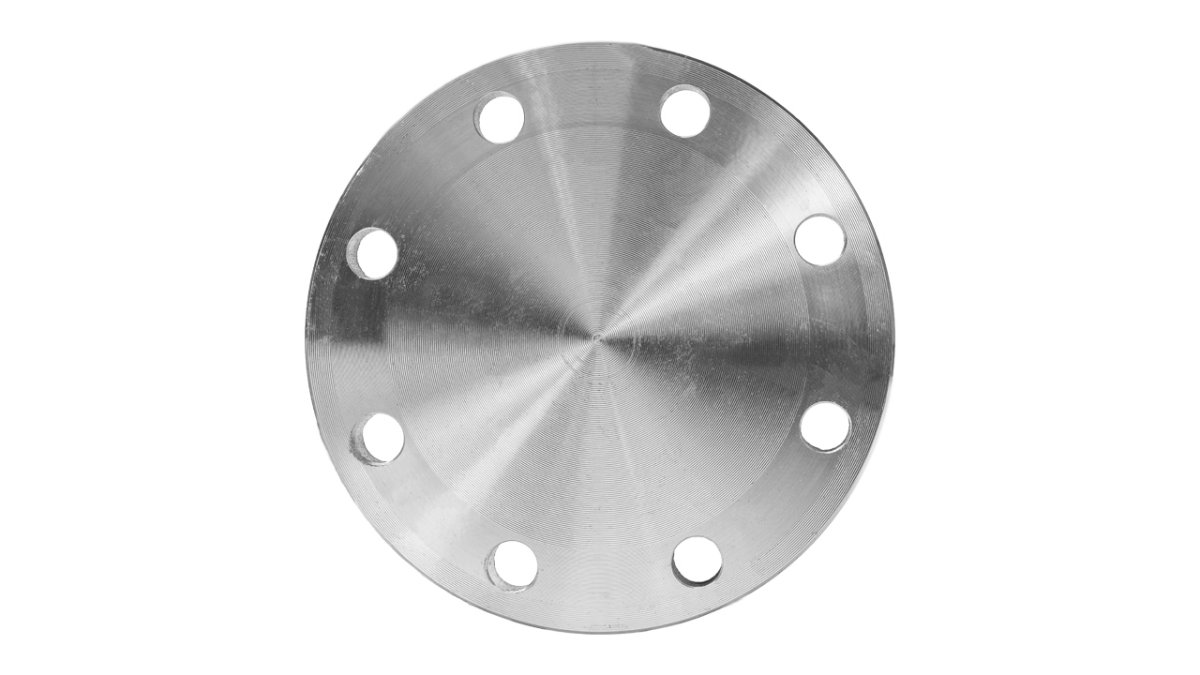

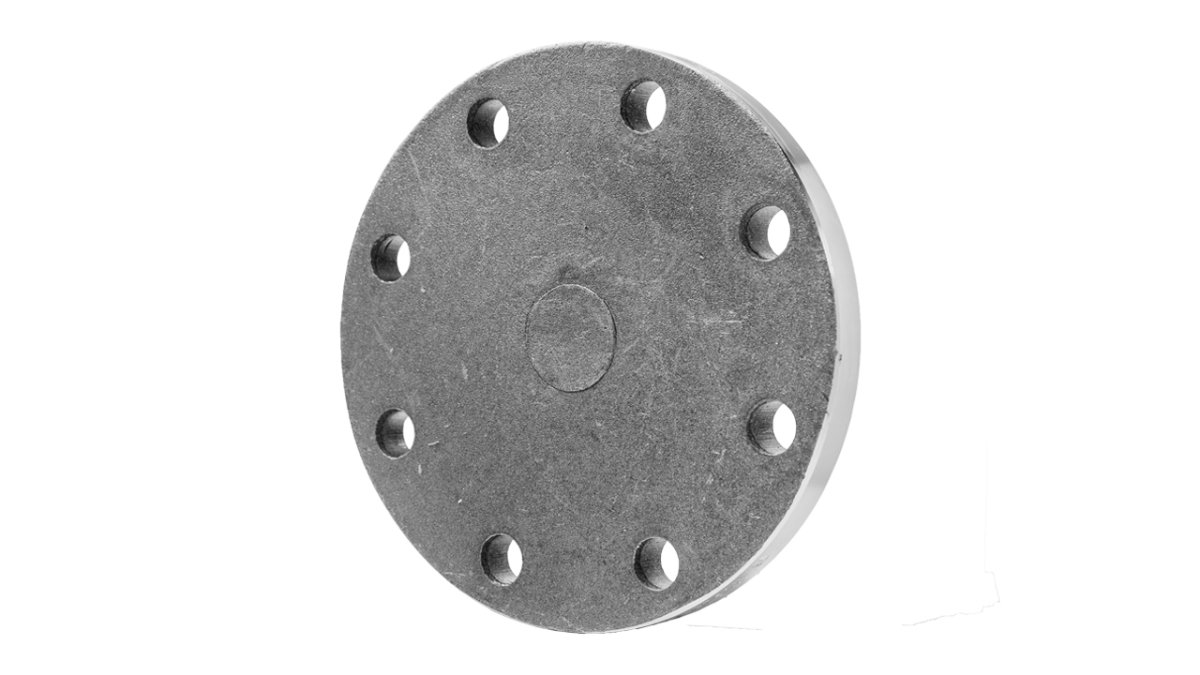

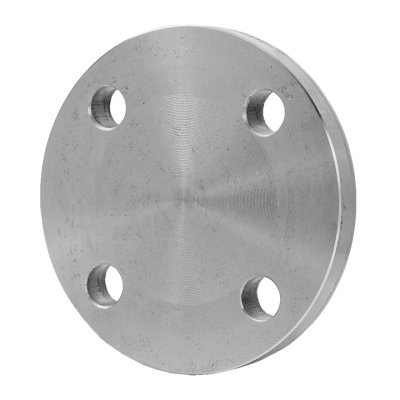

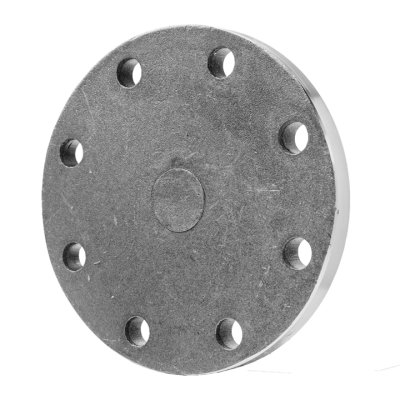

| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Boutcirkeldiameter (K)
|
295
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 16.5
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |

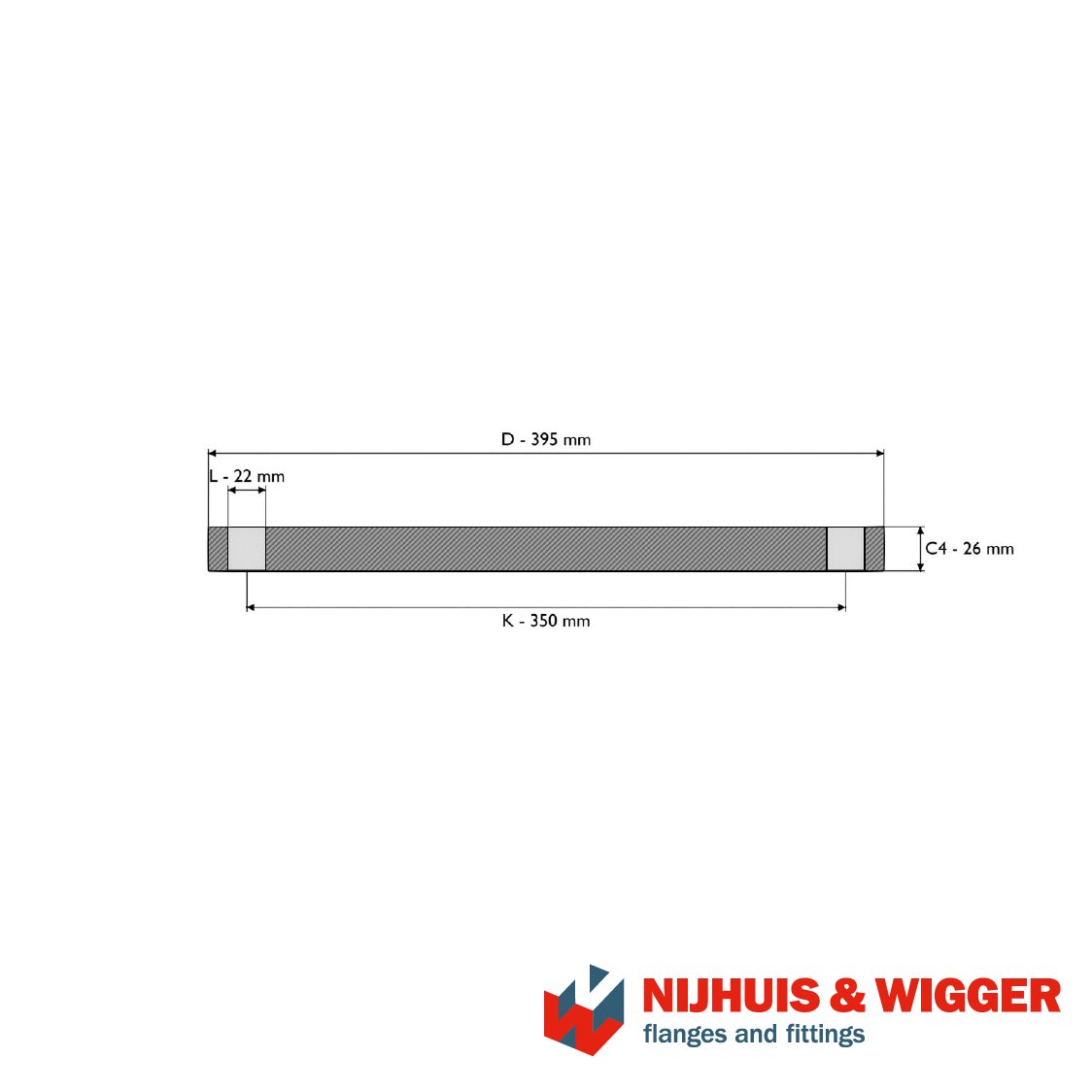

- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
395
|
|
Boutcirkeldiameter (K)
|
350
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 24.1
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
445
|
|
Boutcirkeldiameter (K)
|
400
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 30.8
|
| Blindflens |
350 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 350
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
505
|
|
Boutcirkeldiameter (K)
|
460
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 39.6
|
| Blindflens |
400 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 400
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
565
|
|
Boutcirkeldiameter (K)
|
515
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
16
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 49.4
|
| Blindflens |
450 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 450
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
615
|
|
Boutcirkeldiameter (K)
|
565
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 63
|
| Blindflens |
500 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 500
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
670
|
|
Boutcirkeldiameter (K)
|
620
|
|
Dikte 4 (C4)
|
28
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
26
|
|
|
|
- weight 75.2
|
| Blindflens |
600 |
|
EN 1092-1 |
T:05 |
PN10 |
P250GH |
- DN 600
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
780
|
|
Boutcirkeldiameter (K)
|
725
|
|
Dikte 4 (C4)
|
34
|
|
Aantal boutgaten (n)
|
20
|
|
Boutgatdiameter (L)
|
30
|
|
|
|
- weight 124
|
| Blindflens |
200 |
|
EN 1092-1 |
T:05 |
PN10 |
P355QH1 |
- DN 200
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
340
|
|
Boutcirkeldiameter (K)
|
295
|
|
Dikte 4 (C4)
|
24
|
|
Aantal boutgaten (n)
|
8
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 16.5
|
| Blindflens |
250 |
|
EN 1092-1 |
T:05 |
PN10 |
P355QH1 |
- DN 250
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
395
|
|
Boutcirkeldiameter (K)
|
350
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 24.1
|
| Blindflens |
300 |
|
EN 1092-1 |
T:05 |
PN10 |
P355QH1 |
- DN 300
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
445
|
|
Boutcirkeldiameter (K)
|
400
|
|
Dikte 4 (C4)
|
26
|
|
Aantal boutgaten (n)
|
12
|
|
Boutgatdiameter (L)
|
22
|
|
|
|
- weight 30.8
|
