| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |
| Blindflens |
10 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |

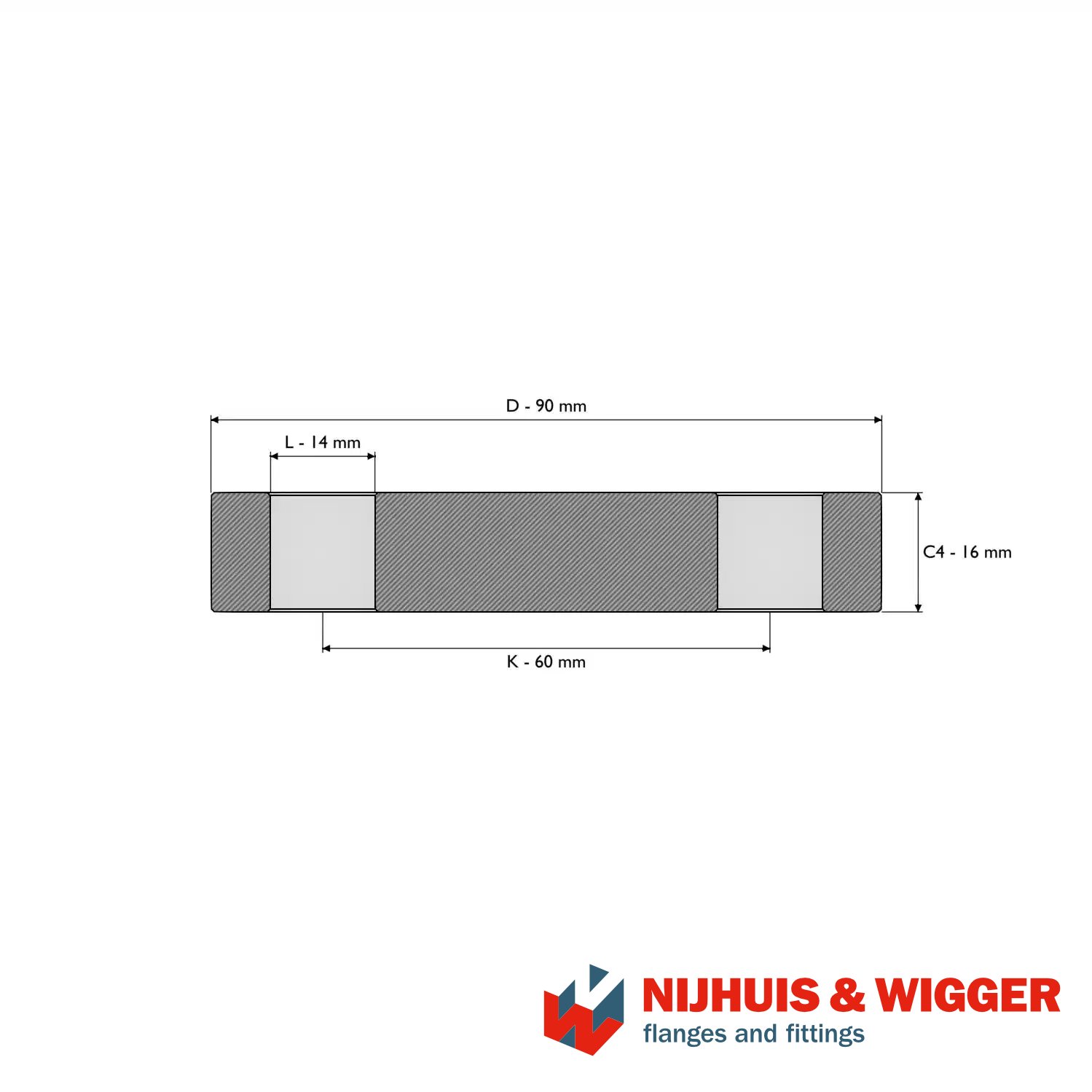

- DN 10
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
90
|
|
Boutcirkeldiameter (K)
|
60
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.722
|
| Blindflens |
15 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |

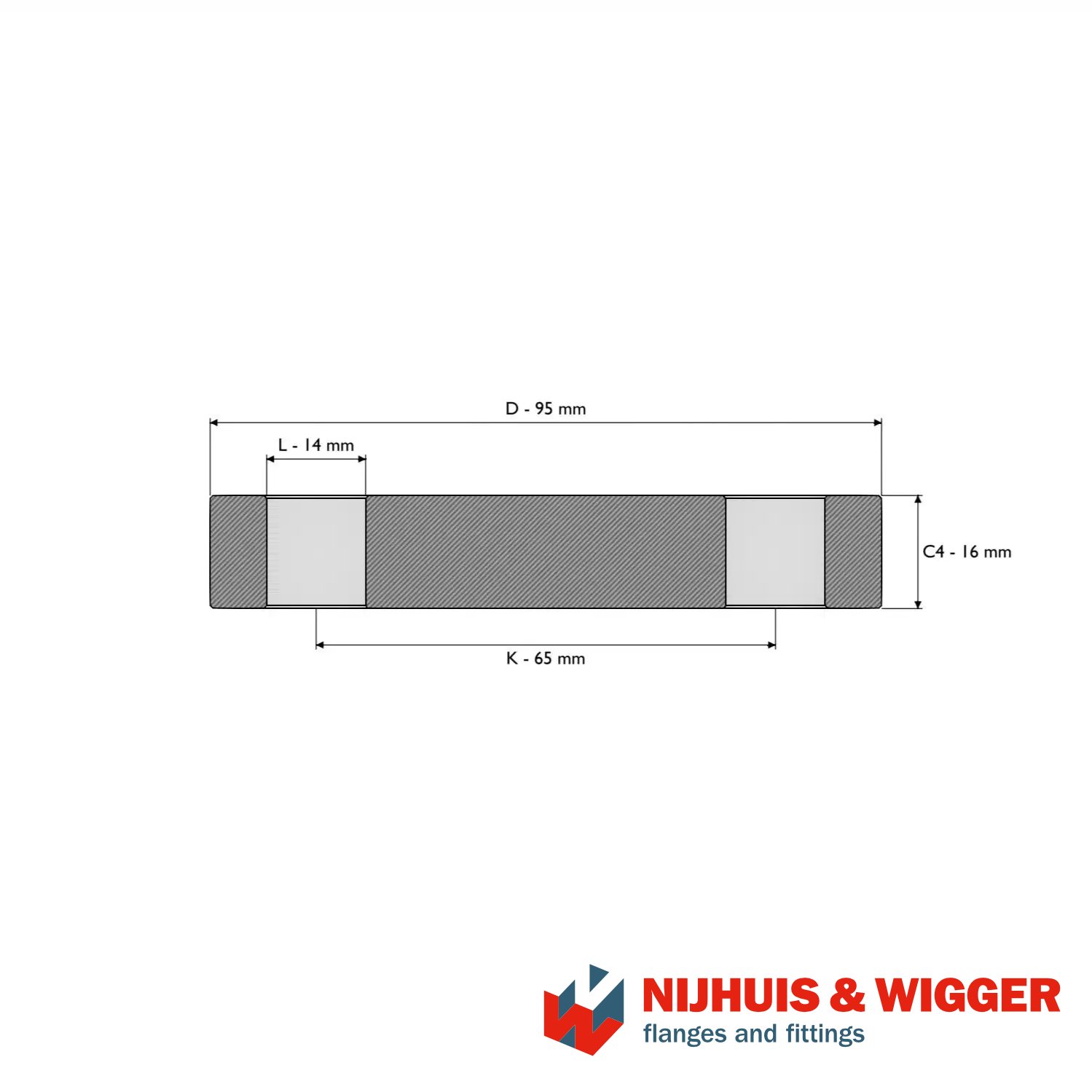

- DN 15
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
95
|
|
Boutcirkeldiameter (K)
|
65
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.813
|
| Blindflens |
20 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |

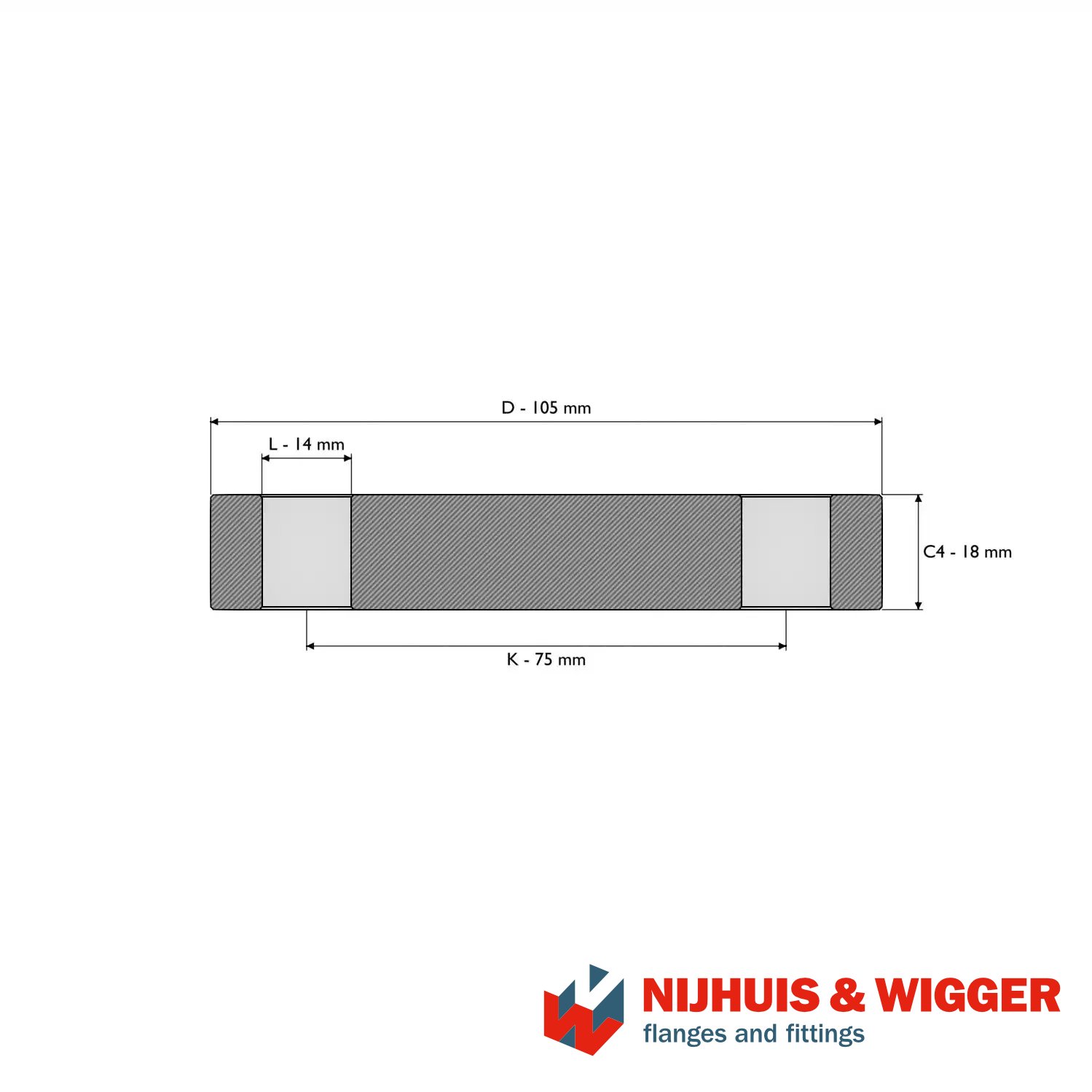

- DN 20
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
105
|
|
Boutcirkeldiameter (K)
|
75
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.14
|
| Blindflens |
25 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |
- DN 25
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
115
|
|
Boutcirkeldiameter (K)
|
85
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.38
|
| Blindflens |
32 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |
- DN 32
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
140
|
|
Boutcirkeldiameter (K)
|
100
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.03
|
| Blindflens |
40 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P250GH |
- DN 40
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P250GH
- Material Number 1.0460
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
150
|
|
Boutcirkeldiameter (K)
|
110
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.35
|
| Blindflens |
10 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 10
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
90
|
|
Boutcirkeldiameter (K)
|
60
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.722
|
| Blindflens |
15 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 15
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
95
|
|
Boutcirkeldiameter (K)
|
65
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.813
|
| Blindflens |
20 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 20
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
105
|
|
Boutcirkeldiameter (K)
|
75
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.14
|
| Blindflens |
25 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 25
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
115
|
|
Boutcirkeldiameter (K)
|
85
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.38
|
| Blindflens |
32 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 32
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
140
|
|
Boutcirkeldiameter (K)
|
100
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.03
|
| Blindflens |
40 |
|
EN 1092-1 |
T:05 |
PN10-40 |
P355QH1 |
- DN 40
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name P355QH1
- Material Number 1.0571
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
150
|
|
Boutcirkeldiameter (K)
|
110
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.35
|
| Blindflens |
10 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 10
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
90
|
|
Boutcirkeldiameter (K)
|
60
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.722
|
| Blindflens |
15 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 15
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
95
|
|
Boutcirkeldiameter (K)
|
65
|
|
Dikte 4 (C4)
|
16
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 0.813
|
| Blindflens |
20 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 20
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
105
|
|
Boutcirkeldiameter (K)
|
75
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.14
|
| Blindflens |
25 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 25
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
115
|
|
Boutcirkeldiameter (K)
|
85
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
14
|
|
|
|
- weight 1.38
|
| Blindflens |
32 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 32
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
140
|
|
Boutcirkeldiameter (K)
|
100
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.03
|
| Blindflens |
40 |
|
EN 1092-1 |
T:05 |
PN10-40 |
16Mo3 |
- DN 40
- Norm EN 1092-1
- Type T:05
- Facing type A
- Nominal pressure PN10-40
- Material name 16Mo3
- Material Number 1.5415
- Stock ✓
- dimensions
|
Buitendiameter (D)
|
150
|
|
Boutcirkeldiameter (K)
|
110
|
|
Dikte 4 (C4)
|
18
|
|
Aantal boutgaten (n)
|
4
|
|
Boutgatdiameter (L)
|
18
|
|
|
|
- weight 2.35
|
