| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

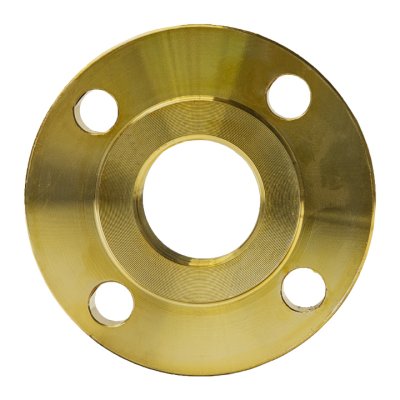

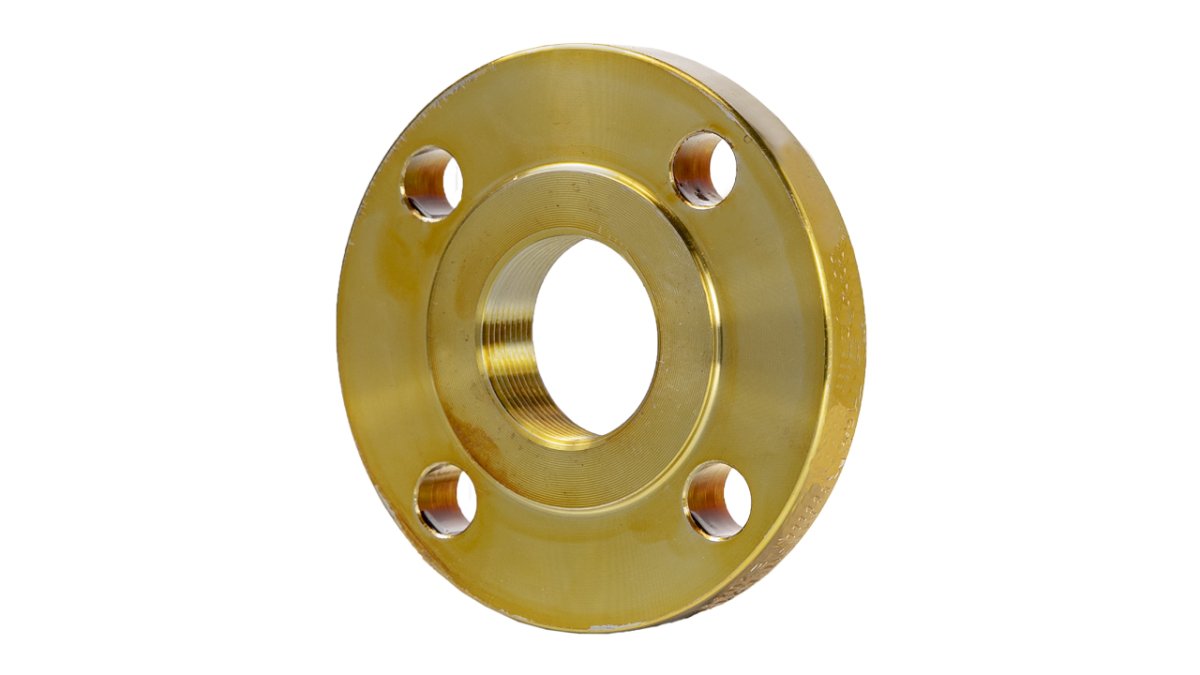

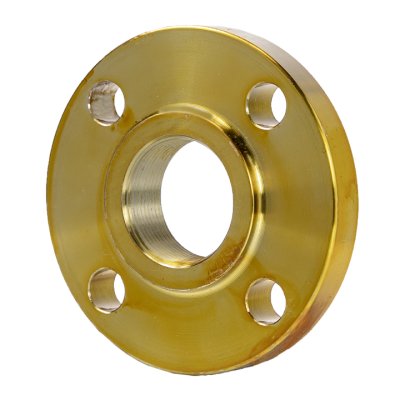

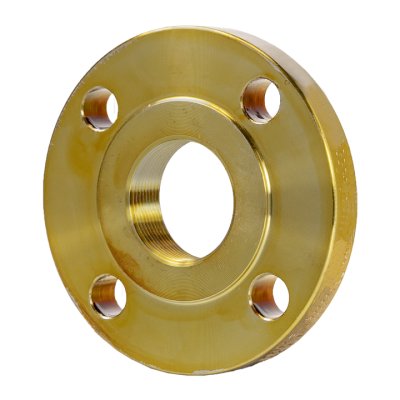

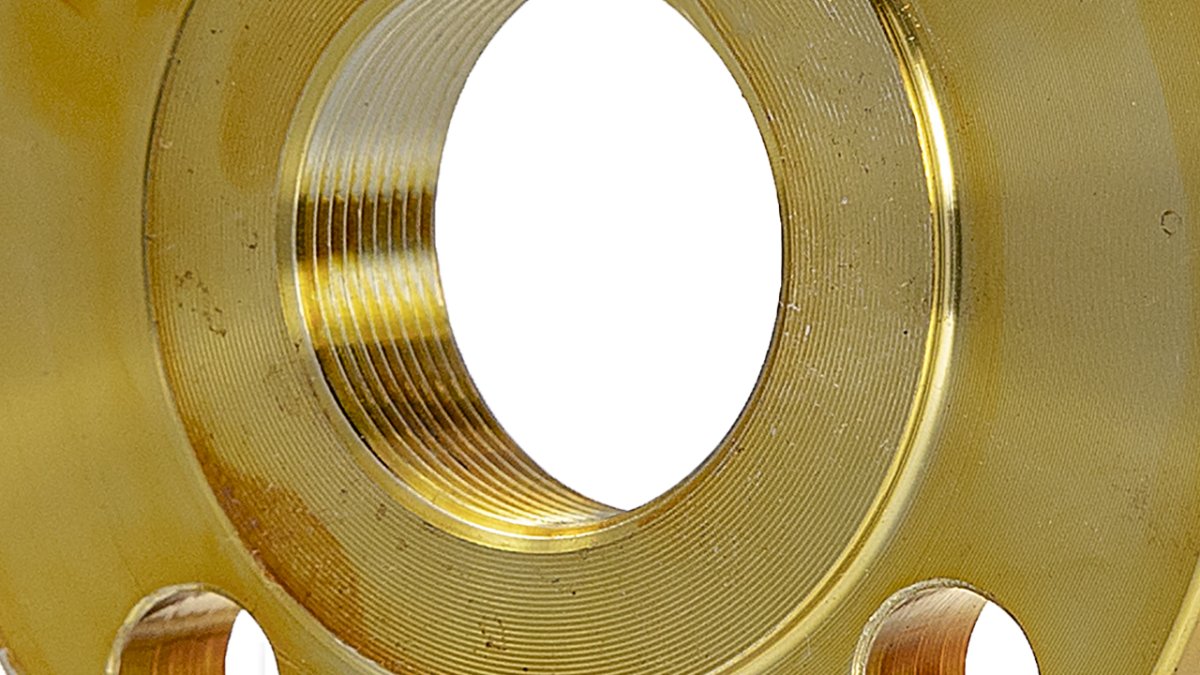

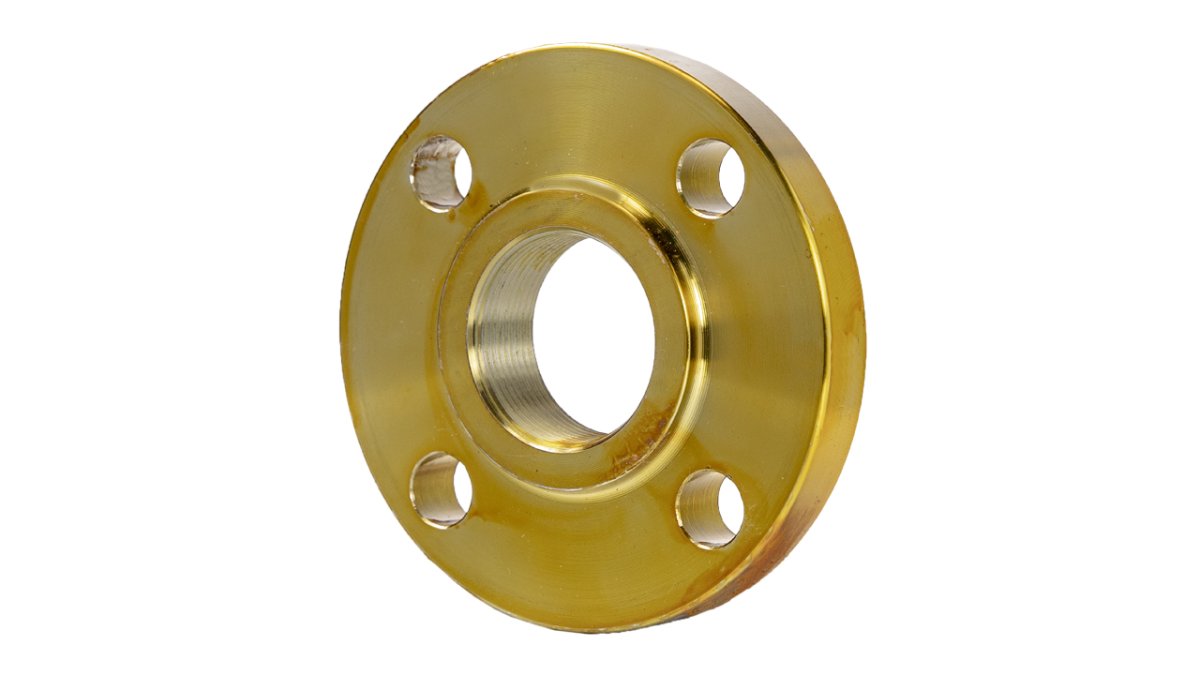

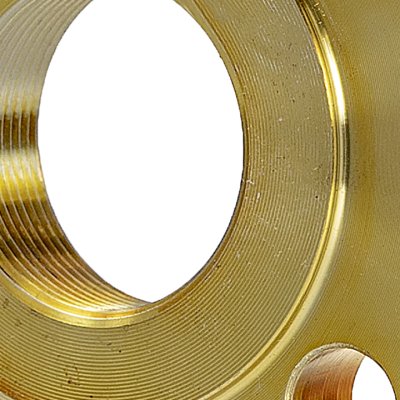

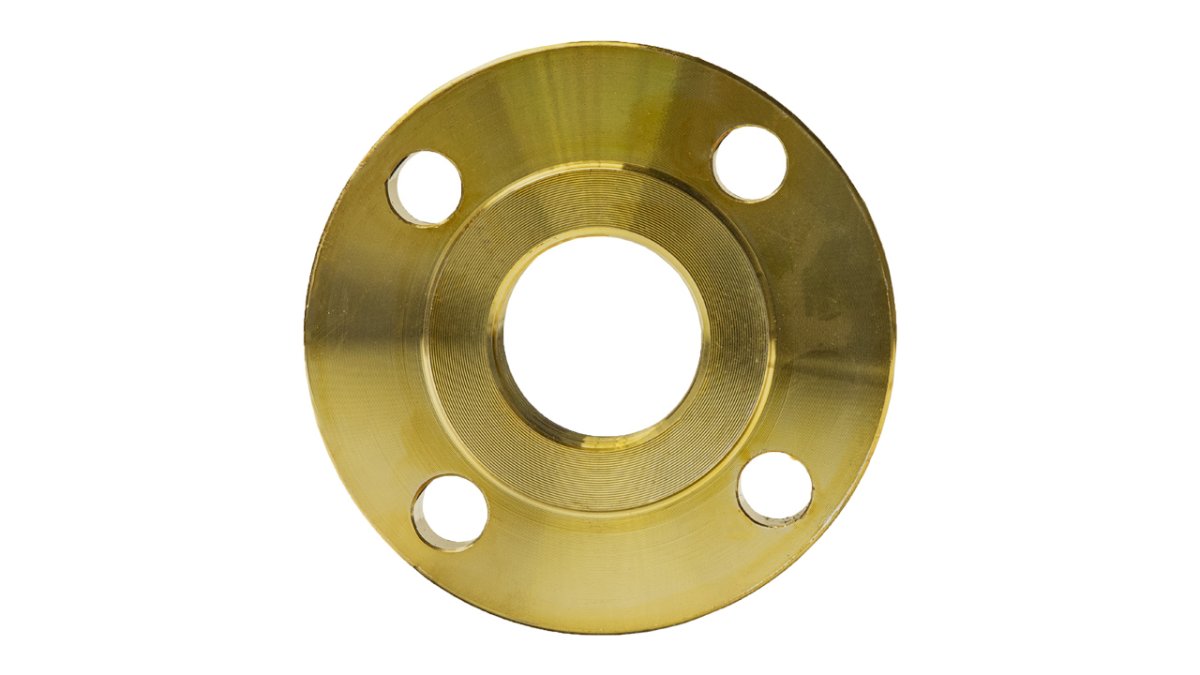

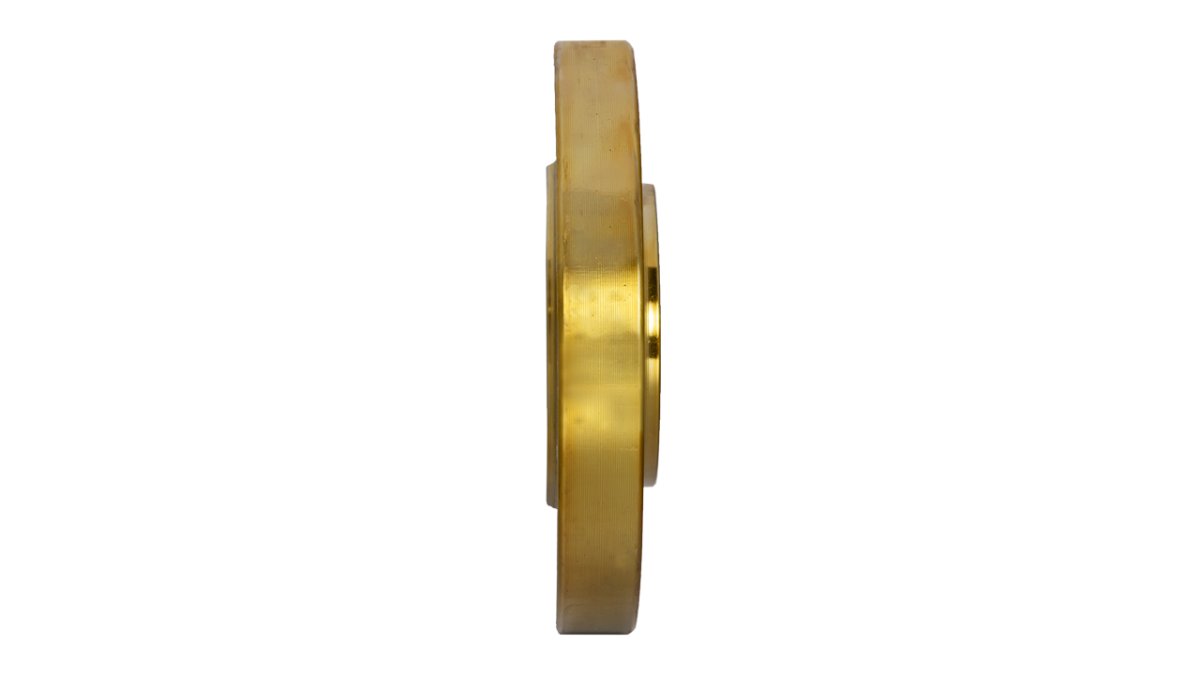

| Threaded Flens |
15 |
1/2” |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 15
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock

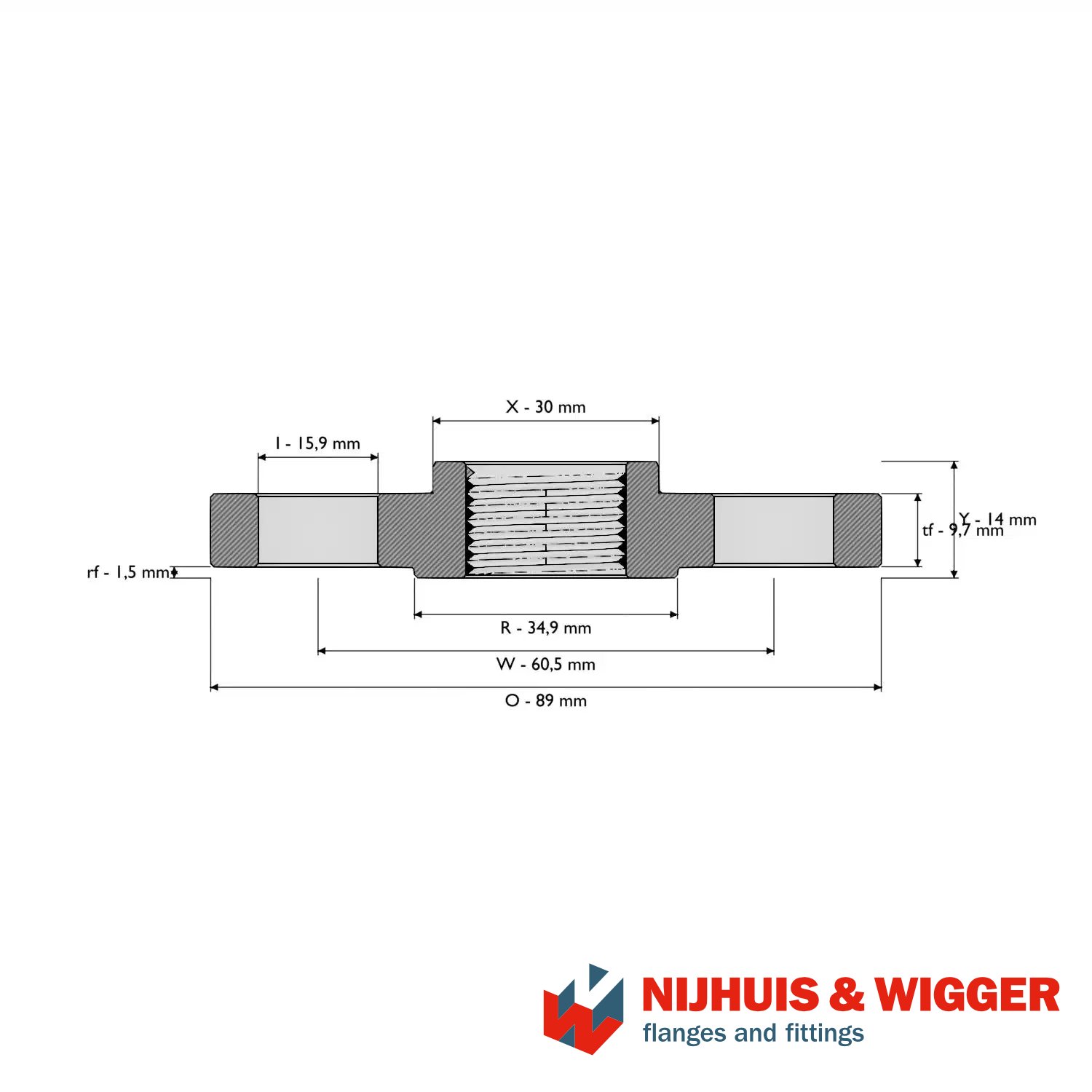

- dimensions
| Buitendiameter (O) |
89 |
Boutcirkeldiameter (W) |
60.5 |
| Flensdikte (tf) |
9.7 |
Aantal boutgaten (Z) |
4 |
| Onderste buitendiameter hals (X) |
30 |
Boutgatdiameter (I) |
15.9 |
| Totale hoogte (Y) |
14 |
Dichtvlakdiameter (R) |
34.9 |
| Draadlengte (T) |
16 |
Dichtvlakhoogte (rf) |
1.5 |
- weight 0.42
|

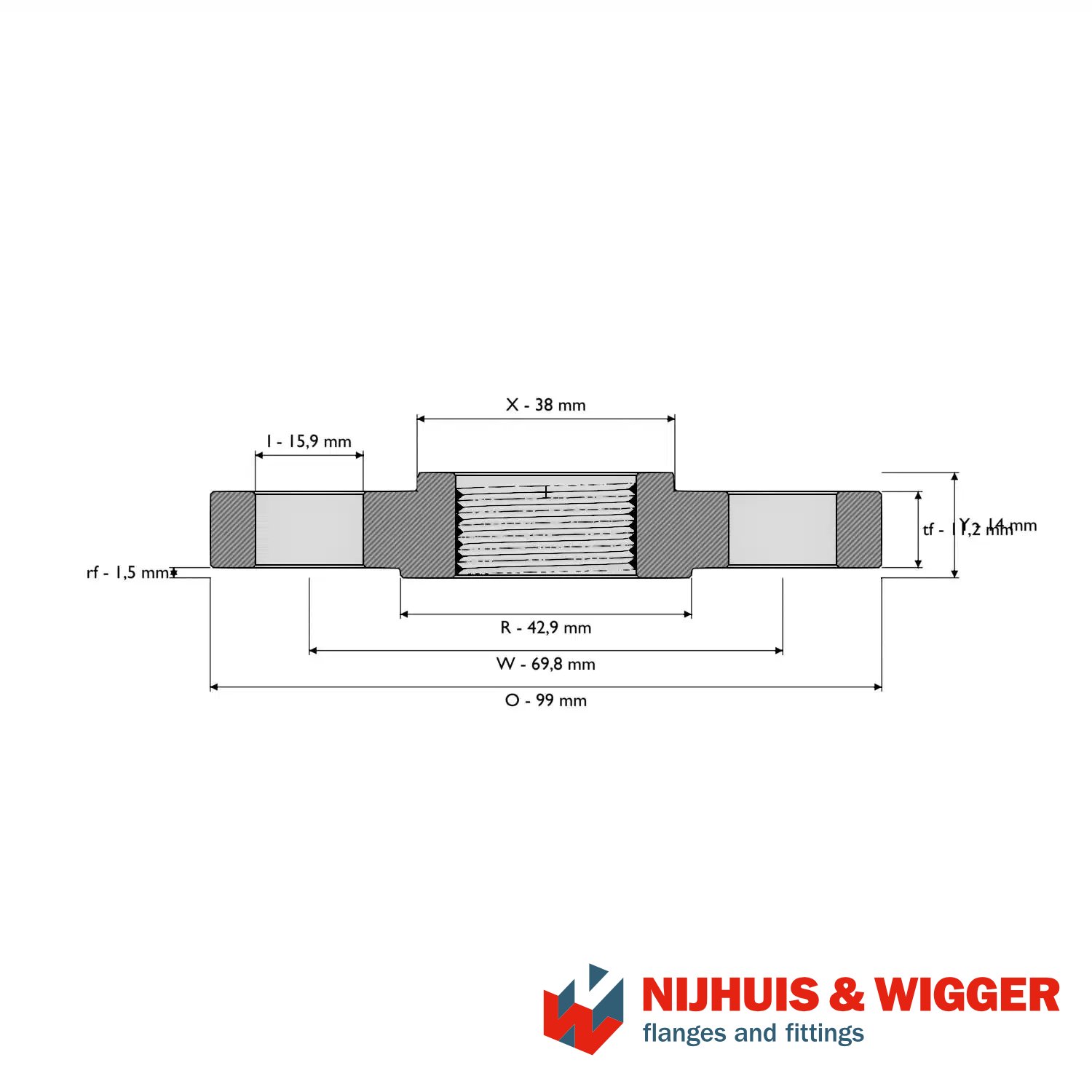

| Threaded Flens |
20 |
3/4 |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 20
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
99
|
|
Boutcirkeldiameter (W)
|
69.8
|
|
Flensdikte (tf)
|
11.2
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
38
|
|
Boutgatdiameter (I)
|
15.9
|
|
Totale hoogte (Y)
|
14
|
|
Dichtvlakdiameter (R)
|
42.9
|
|
Draadlengte (T)
|
16
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 0.57
|

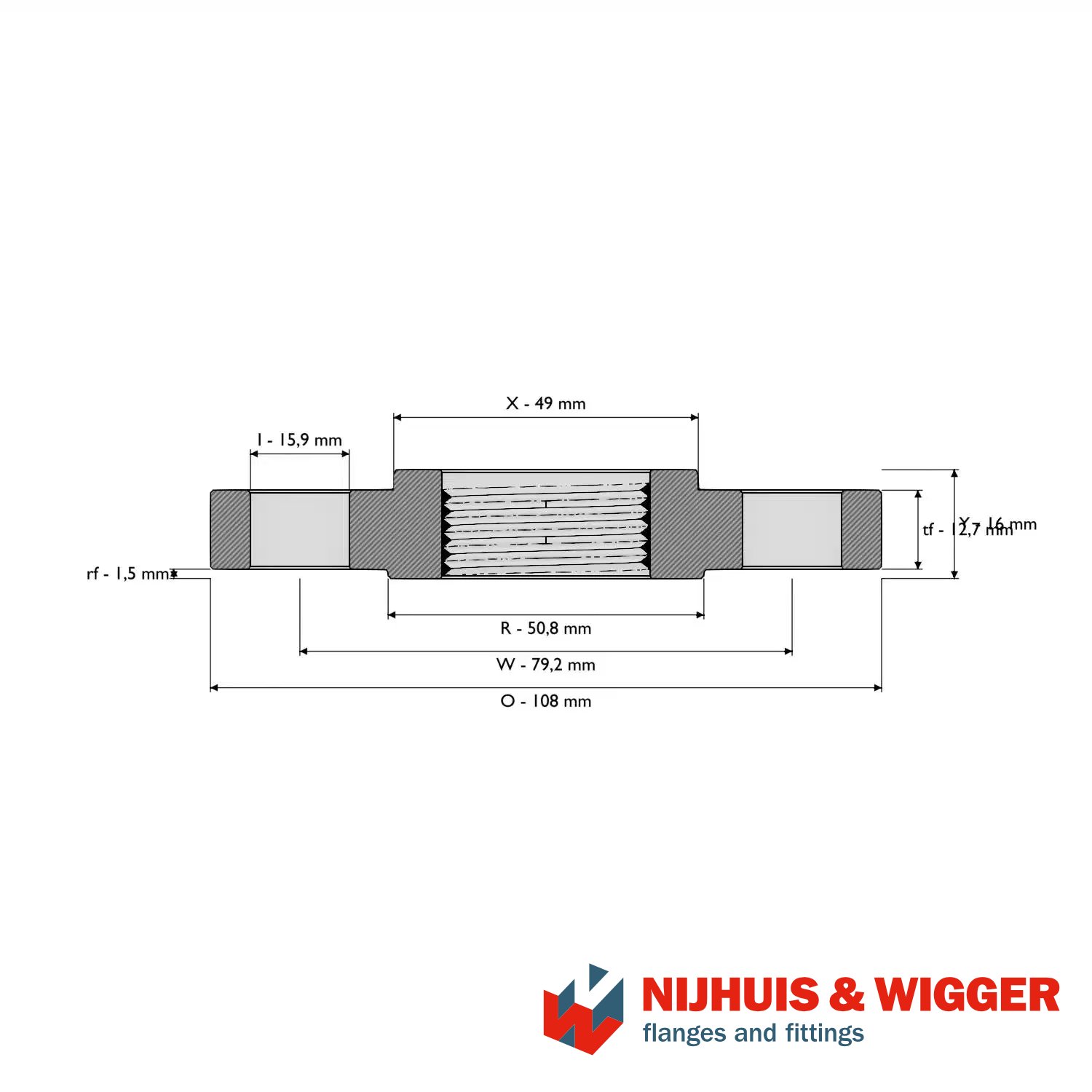

| Threaded Flens |
1" |
25 |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 1"
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
108
|
|
Boutcirkeldiameter (W)
|
79.4
|
|
Flensdikte (tf)
|
12.7
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
49
|
|
Boutgatdiameter (I)
|
15.9
|
|
Totale hoogte (Y)
|
16
|
|
Dichtvlakdiameter (R)
|
50.8
|
|
Draadlengte (T)
|
17
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 0.91
|

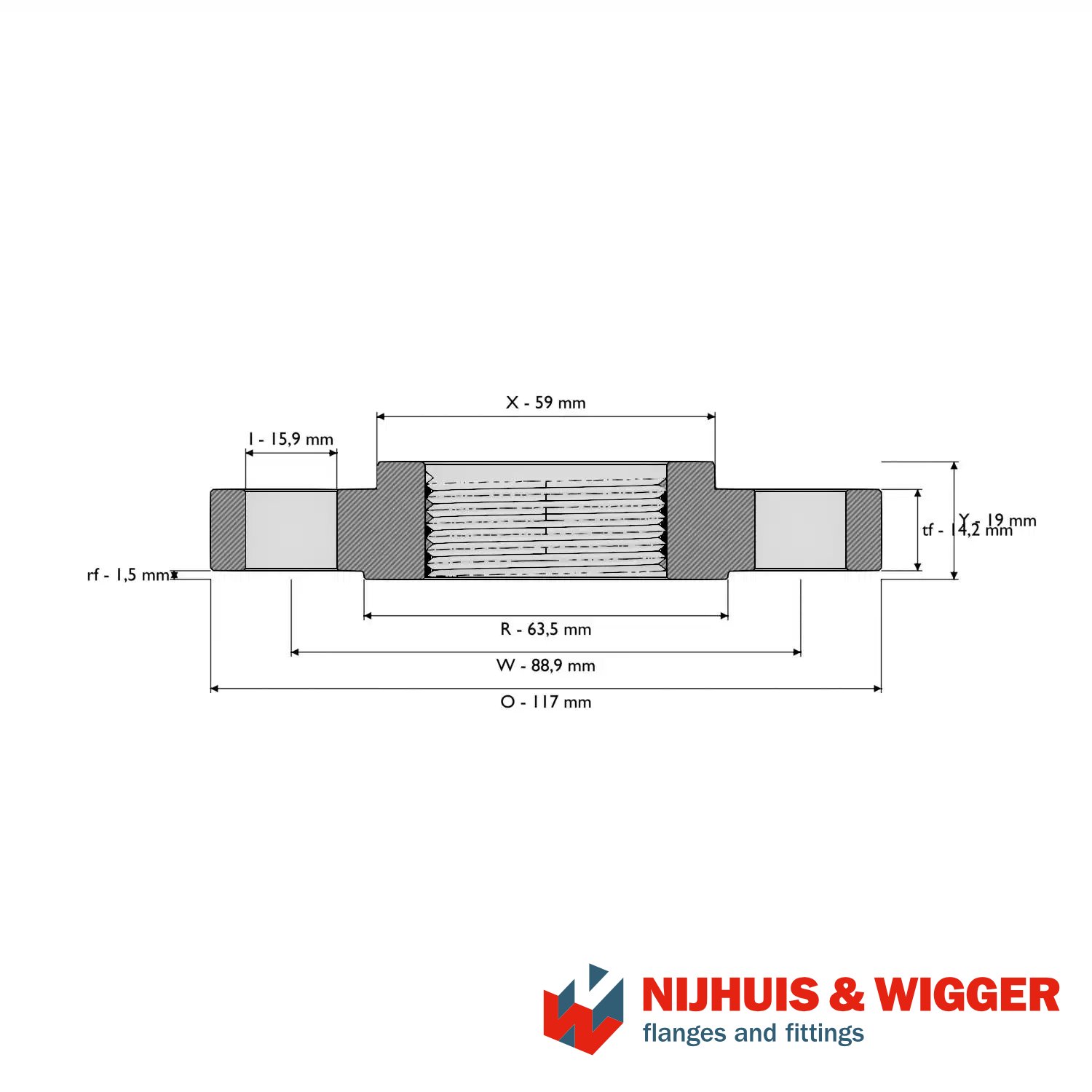

| Threaded Flens |
1 1/4” |
32 |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 1 1/4”
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
117
|
|
Boutcirkeldiameter (W)
|
88.9
|
|
Flensdikte (tf)
|
14.2
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
59
|
|
Boutgatdiameter (I)
|
15.9
|
|
Totale hoogte (Y)
|
19
|
|
Dichtvlakdiameter (R)
|
63.5
|
|
Draadlengte (T)
|
21
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.02
|
| Threaded Flens |
40 |
1 1/2” |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 40
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
127
|
|
Boutcirkeldiameter (W)
|
98.6
|
|
Flensdikte (tf)
|
15.9
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
65
|
|
Boutgatdiameter (I)
|
15.9
|
|
Totale hoogte (Y)
|
21
|
|
Dichtvlakdiameter (R)
|
73.0
|
|
Draadlengte (T)
|
22
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.35
|
| Threaded Flens |
50 |
2" |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 50
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg

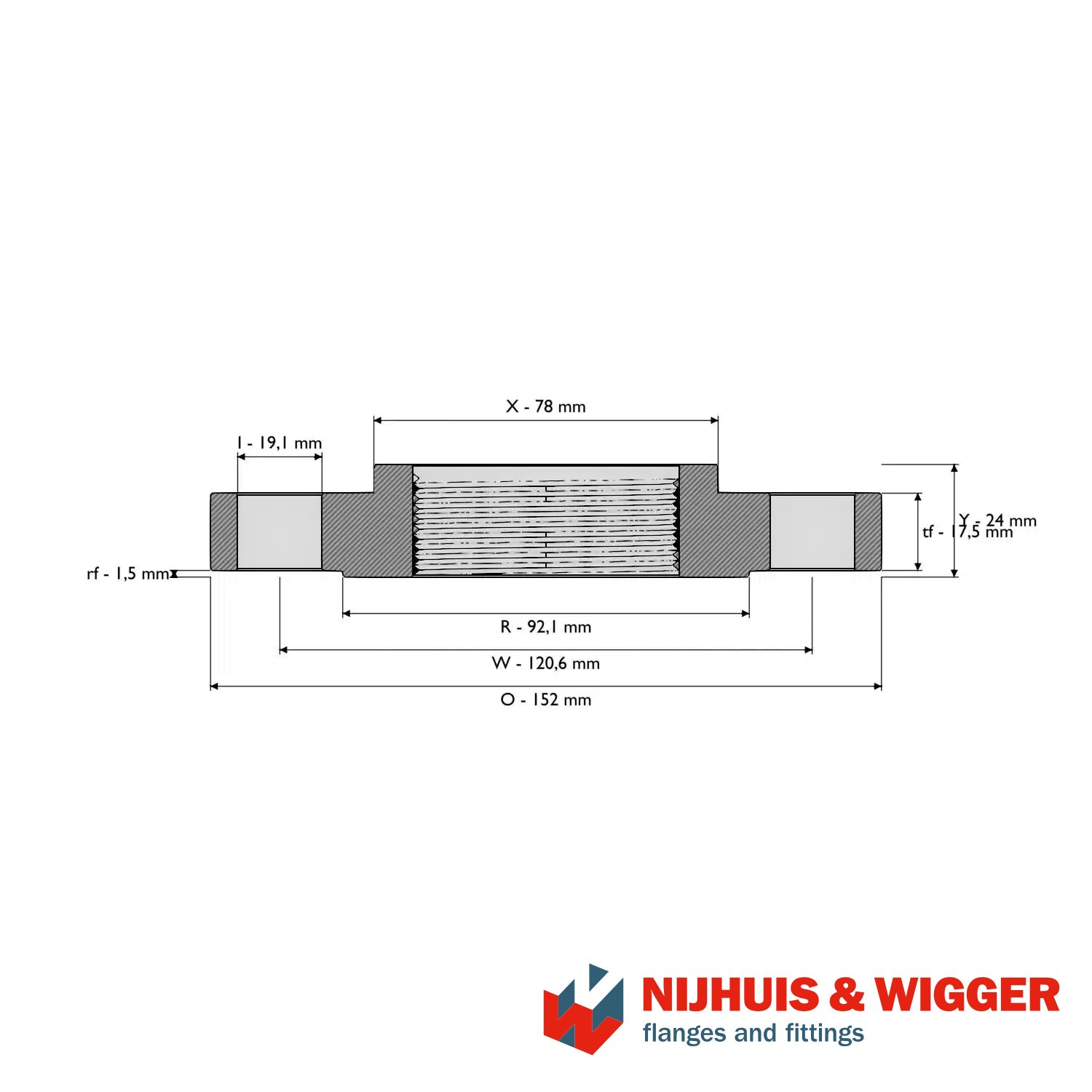

- dimensions
|
Buitendiameter (O)
|
152
|
|
Boutcirkeldiameter (W)
|
120.6
|
|
Flensdikte (tf)
|
17.5
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
78
|
|
Boutgatdiameter (I)
|
19.1
|
|
Totale hoogte (Y)
|
24
|
|
Dichtvlakdiameter (R)
|
92.1
|
|
Draadlengte (T)
|
25
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 2.11
|
| Threaded Flens |
65 |
2 1/2” |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 65
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
178
|
|
Boutcirkeldiameter (W)
|
139.7
|
|
Flensdikte (tf)
|
20.6
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
90
|
|
Boutgatdiameter (I)
|
19.1
|
|
Totale hoogte (Y)
|
27
|
|
Dichtvlakdiameter (R)
|
104.8
|
|
Draadlengte (T)
|
28
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 3.54
|
| Threaded Flens |
80 |
3" |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 80
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
190
|
|
Boutcirkeldiameter (W)
|
152.4
|
|
Flensdikte (tf)
|
22.4
|
|
Aantal boutgaten (Z)
|
4
|
|
Onderste buitendiameter hals (X)
|
108
|
|
Boutgatdiameter (I)
|
19.1
|
|
Totale hoogte (Y)
|
29
|
|
Dichtvlakdiameter (R)
|
127.0
|
|
Draadlengte (T)
|
30
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 4.88
|

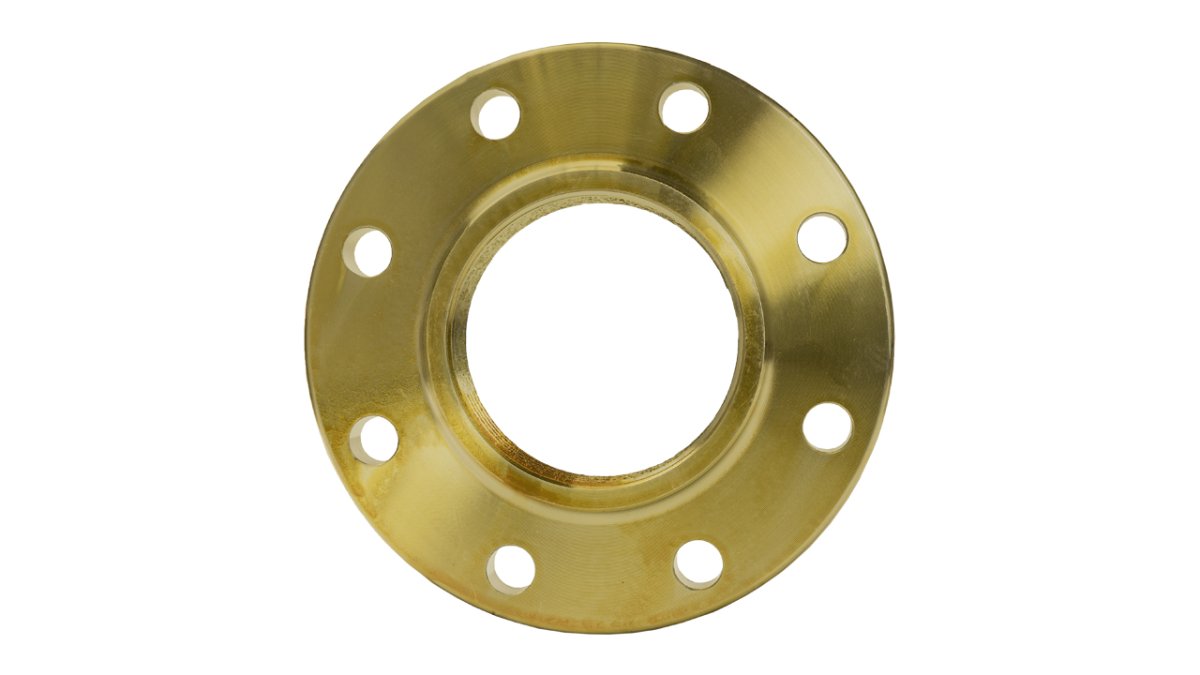

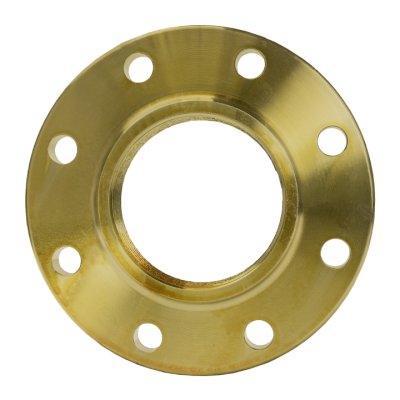

| Threaded Flens |
100 |
4" |
ASME B16.5/ B16.47 Series A |
|
150# |
A105N/ P280GH |
- DN 100
- Norm ASME B16.5/ B16.47 Series A
- Type
- Facing type komt
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number komt
- Stock weg
- dimensions
|
Buitendiameter (O)
|
229
|
|
Boutcirkeldiameter (W)
|
190.5
|
|
Flensdikte (tf)
|
22.4
|
|
Aantal boutgaten (Z)
|
8
|
|
Onderste buitendiameter hals (X)
|
135
|
|
Boutgatdiameter (I)
|
19.1
|
|
Totale hoogte (Y)
|
32
|
|
Dichtvlakdiameter (R)
|
157.2
|
|
Draadlengte (T)
|
33
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 5.79
|
