| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

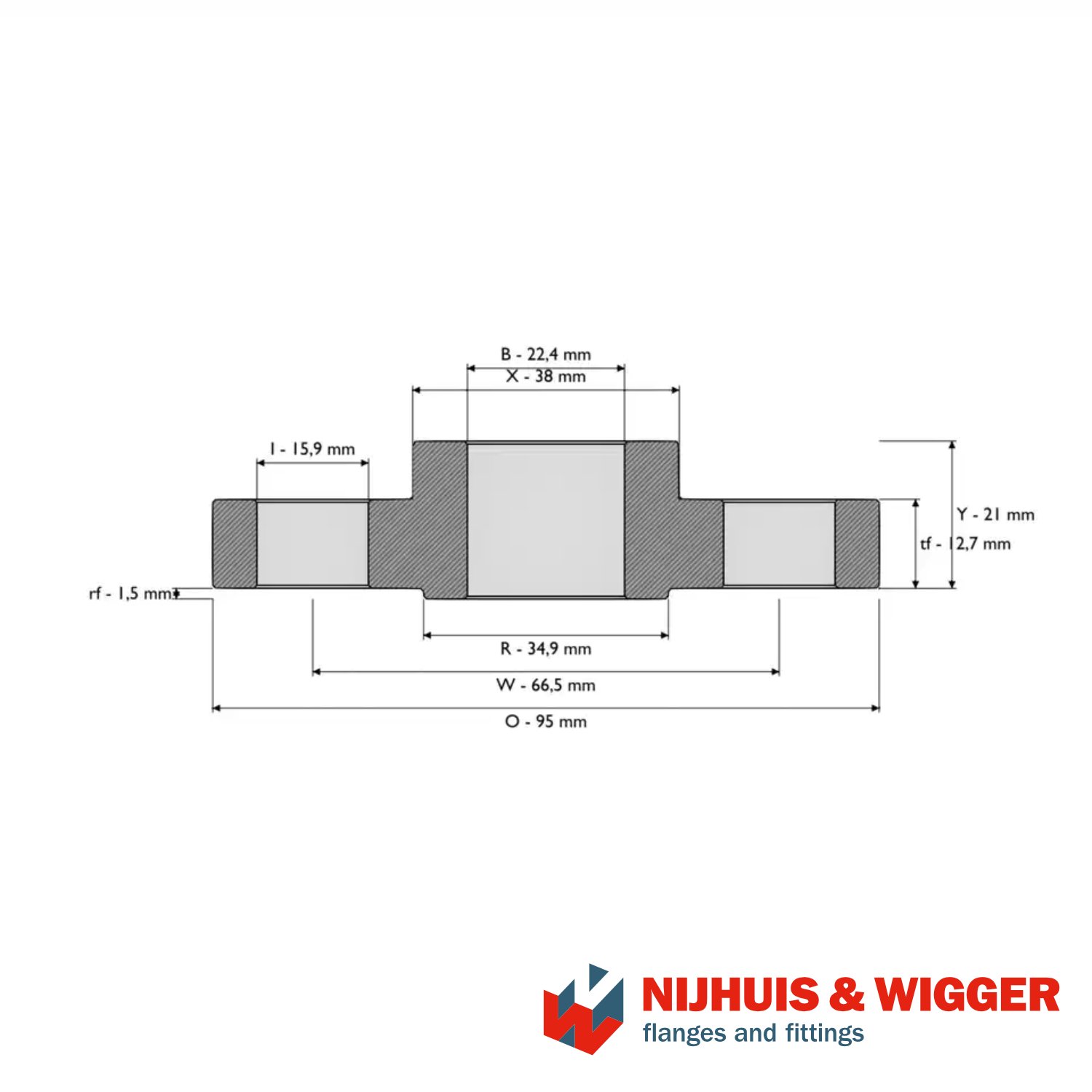

| Slip on flens |
15 |
1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 15
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
95
|
|
Binnendiameter (B)
|
22.4
|
|
Flensdikte (tf)
|
12.7
|
|
Boutcirkeldiameter (W)
|
66.7
|
|
Onderste buitendiameter hals (X)
|
38
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
21
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
34.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 0.64
|

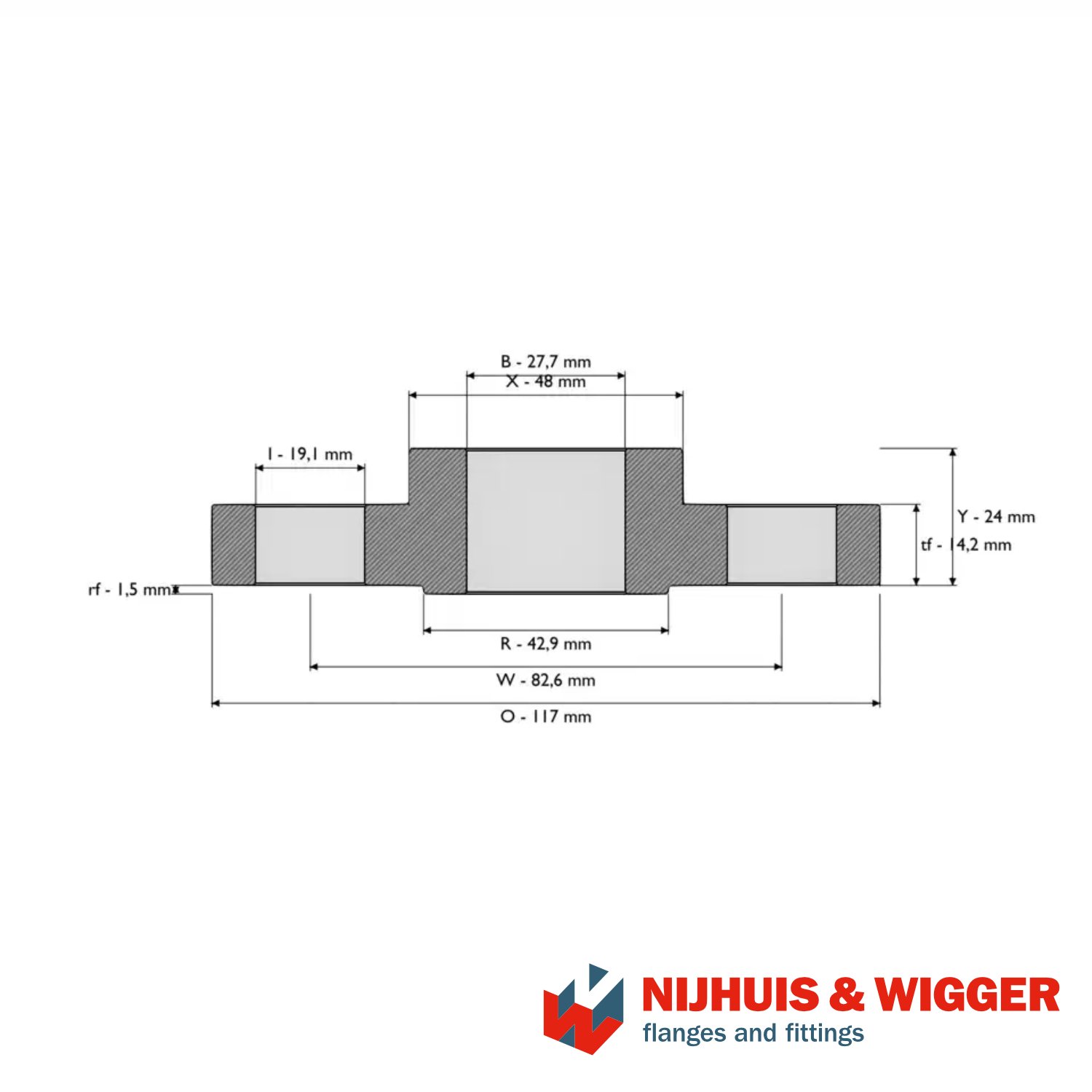

| Slip on flens |
20 |
3/4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 20
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
117
|
|
Binnendiameter (B)
|
27.7
|
|
Flensdikte (tf)
|
14.3
|
|
Boutcirkeldiameter (W)
|
82.6
|
|
Onderste buitendiameter hals (X)
|
48
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
24
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
42.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.05
|
| Slip on flens |
25 |
1" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 25
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
124
|
|
Binnendiameter (B)
|
34.5
|
|
Flensdikte (tf)
|
15.7
|
|
Boutcirkeldiameter (W)
|
88.9
|
|
Onderste buitendiameter hals (X)
|
54
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
25
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
50.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.36
|
| Slip on flens |
32 |
1 1/4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 32
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
133
|
|
Binnendiameter (B)
|
43.2
|
|
Flensdikte (tf)
|
17.5
|
|
Boutcirkeldiameter (W)
|
98.6
|
|
Onderste buitendiameter hals (X)
|
64
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
25
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
63.5
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.68
|

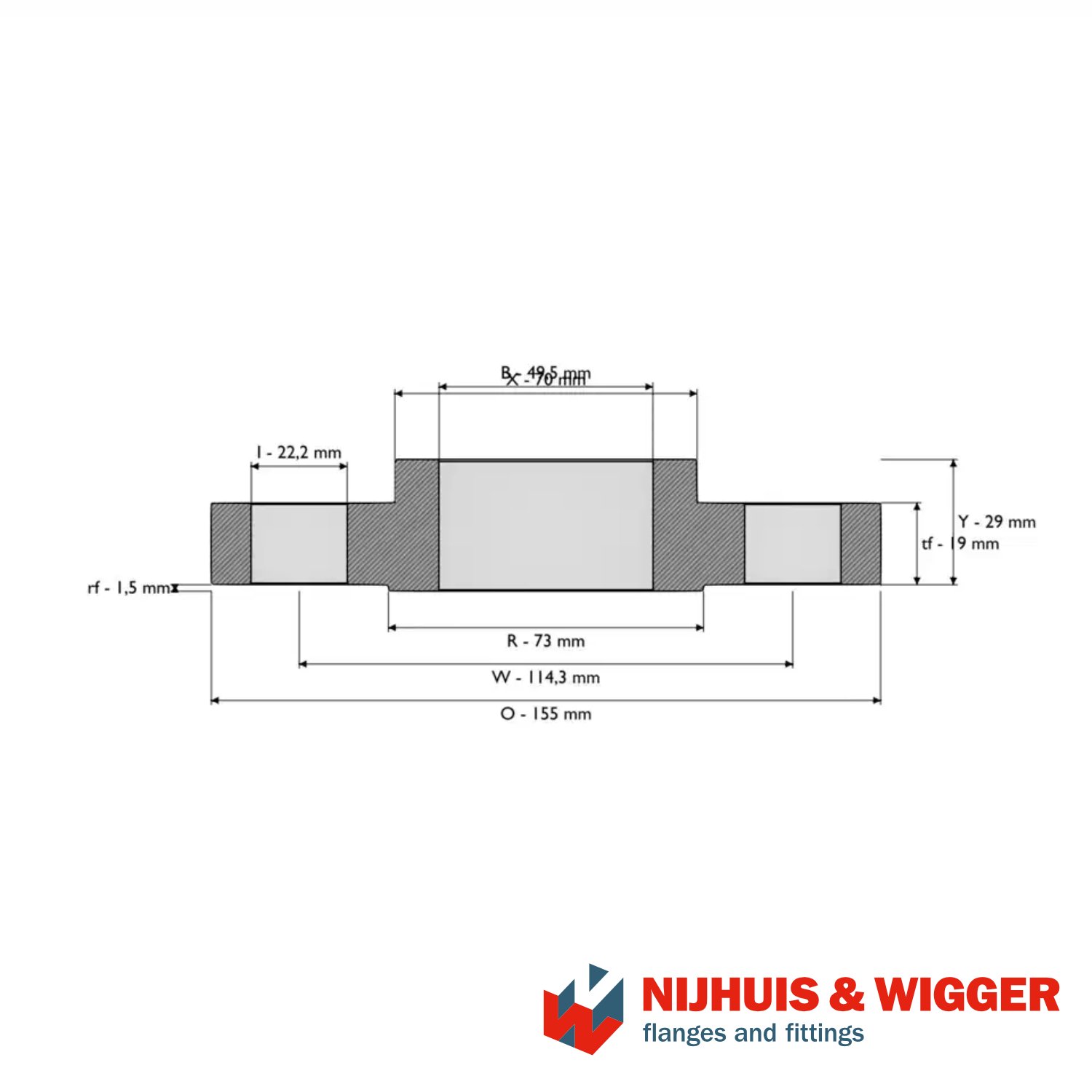

| Slip on flens |
40 |
1 1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 40
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
155
|
|
Binnendiameter (B)
|
49.5
|
|
Flensdikte (tf)
|
19.0
|
|
Boutcirkeldiameter (W)
|
114.3
|
|
Onderste buitendiameter hals (X)
|
70
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
29
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
73.0
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 2.49
|
| Slip on flens |
50 |
2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 50
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
165
|
|
Binnendiameter (B)
|
61.9
|
|
Flensdikte (tf)
|
20.7
|
|
Boutcirkeldiameter (W)
|
127.0
|
|
Onderste buitendiameter hals (X)
|
84
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
32
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
92.1
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 3.18
|
| Slip on flens |
65 |
2 1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 65
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
190
|
|
Binnendiameter (B)
|
74.2
|
|
Flensdikte (tf)
|
22.4
|
|
Boutcirkeldiameter (W)
|
149.2
|
|
Onderste buitendiameter hals (X)
|
100
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
35
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
104.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 4.5
|

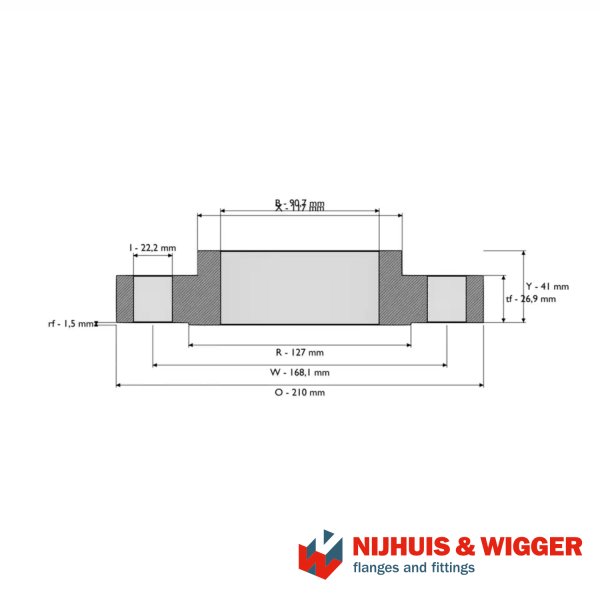

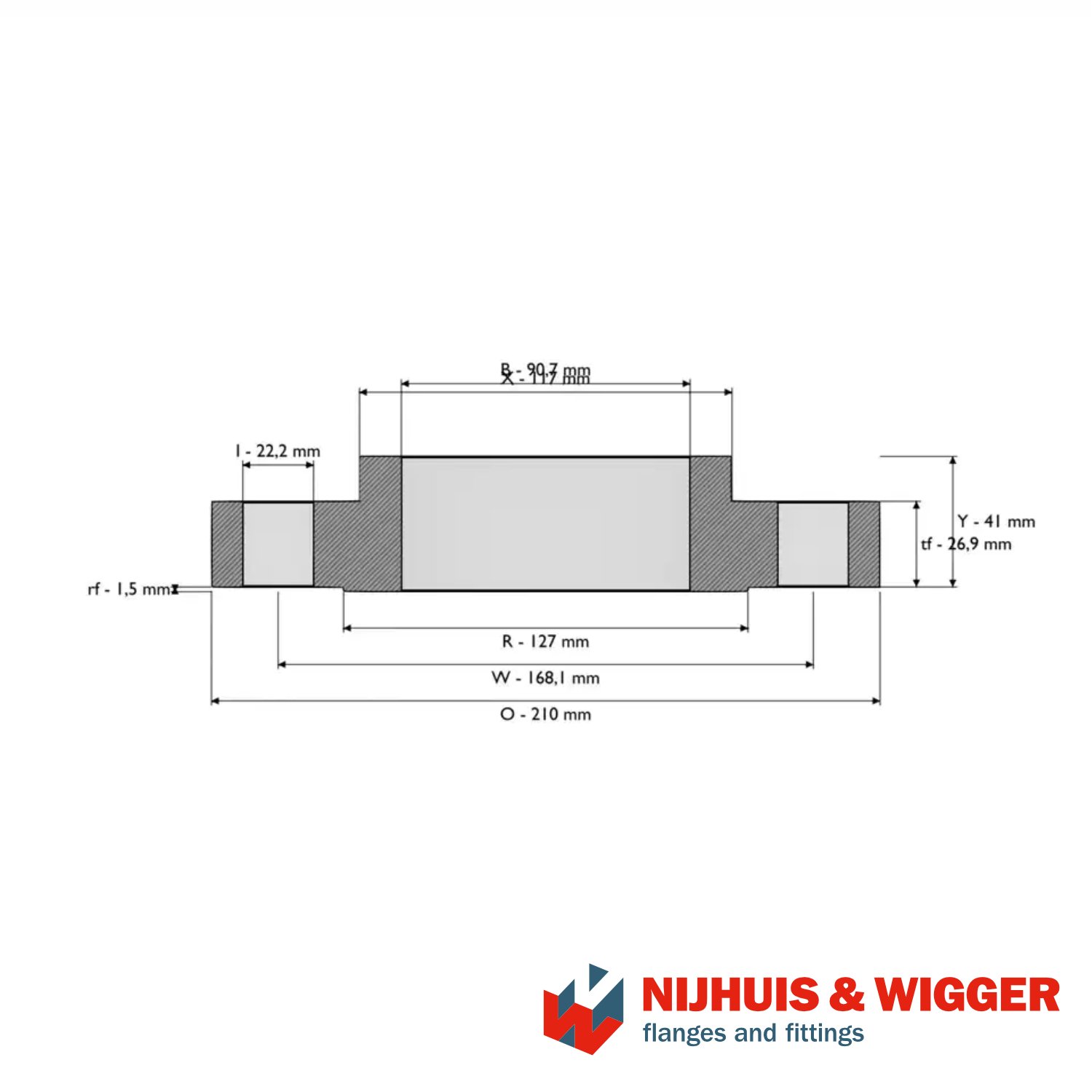

| Slip on flens |
80 |
3" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 80
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
210
|
|
Binnendiameter (B)
|
90.7
|
|
Flensdikte (tf)
|
27.0
|
|
Boutcirkeldiameter (W)
|
168.3
|
|
Onderste buitendiameter hals (X)
|
117
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
41
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
127.0
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 6.1
|
| Slip on flens |
100 |
4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 100
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
254
|
|
Binnendiameter (B)
|
116.1
|
|
Flensdikte (tf)
|
30.1
|
|
Boutcirkeldiameter (W)
|
200
|
|
Onderste buitendiameter hals (X)
|
143
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
49
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
157.2
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 10.5
|

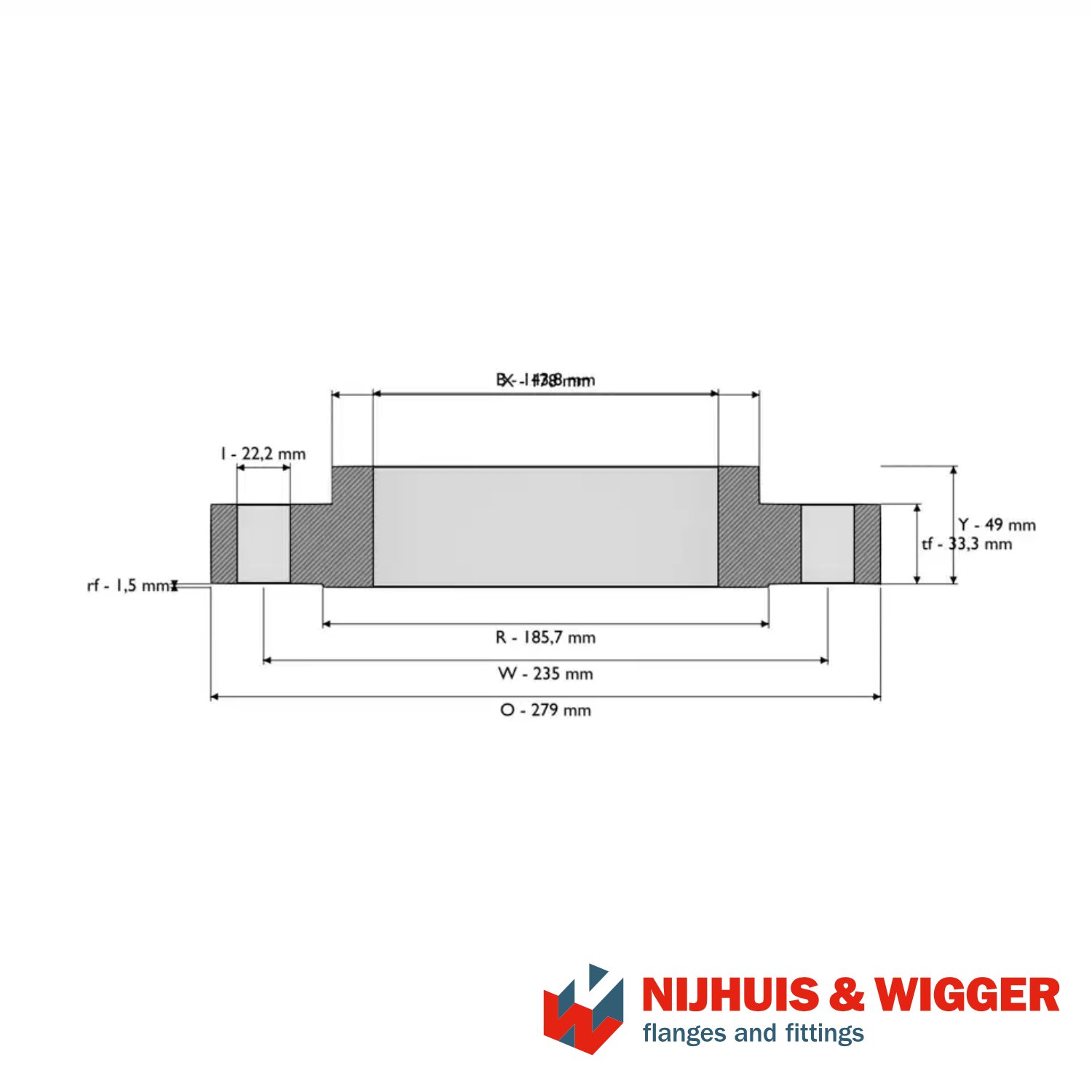

| Slip on flens |
125 |
5" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 125
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
279
|
|
Binnendiameter (B)
|
143.8
|
|
Flensdikte (tf)
|
33.3
|
|
Boutcirkeldiameter (W)
|
235
|
|
Onderste buitendiameter hals (X)
|
178
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
49
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
185.7
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 12.3
|
| Slip on flens |
150 |
6" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 150
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
318
|
|
Binnendiameter (B)
|
170.7
|
|
Flensdikte (tf)
|
36.6
|
|
Boutcirkeldiameter (W)
|
269.9
|
|
Onderste buitendiameter hals (X)
|
213
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
57
|
|
Boutgatdiameter (I)
|
25.4
|
|
Dichtvlakdiameter (R)
|
215.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 15.6
|

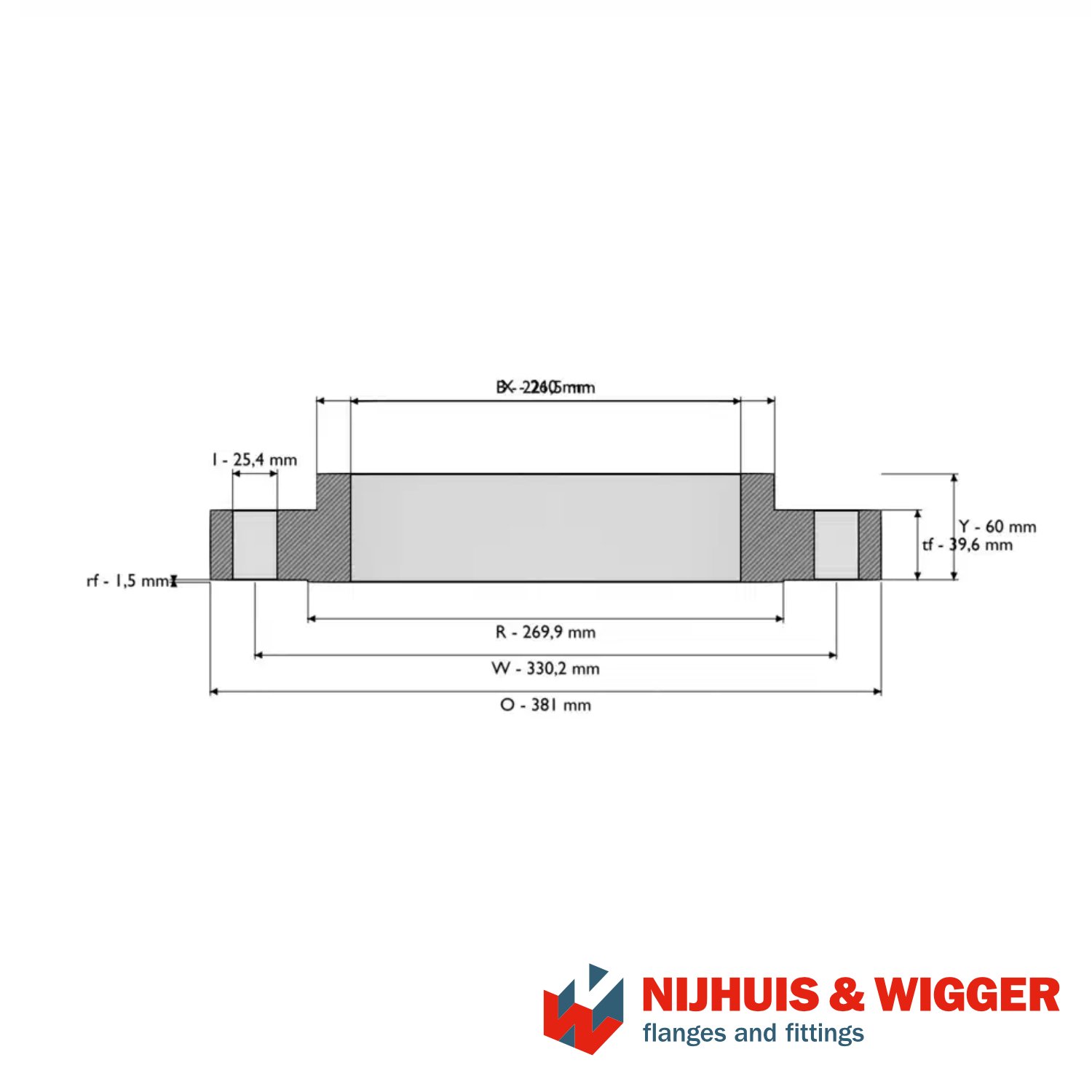

| Slip on flens |
200 |
8" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 200
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
381
|
|
Binnendiameter (B)
|
221.5
|
|
Flensdikte (tf)
|
39.6
|
|
Boutcirkeldiameter (W)
|
330.2
|
|
Onderste buitendiameter hals (X)
|
260
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
60
|
|
Boutgatdiameter (I)
|
25.4
|
|
Dichtvlakdiameter (R)
|
269.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 24.2
|
| Slip on flens |
250 |
10" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 250
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
444
|
|
Binnendiameter (B)
|
276.4
|
|
Flensdikte (tf)
|
46
|
|
Boutcirkeldiameter (W)
|
387.4
|
|
Onderste buitendiameter hals (X)
|
321
|
|
Aantal boutgaten (Z)
|
16
|
|
Totale hoogte (Y)
|
65
|
|
Boutgatdiameter (I)
|
28.6
|
|
Dichtvlakdiameter (R)
|
323.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 34.1
|

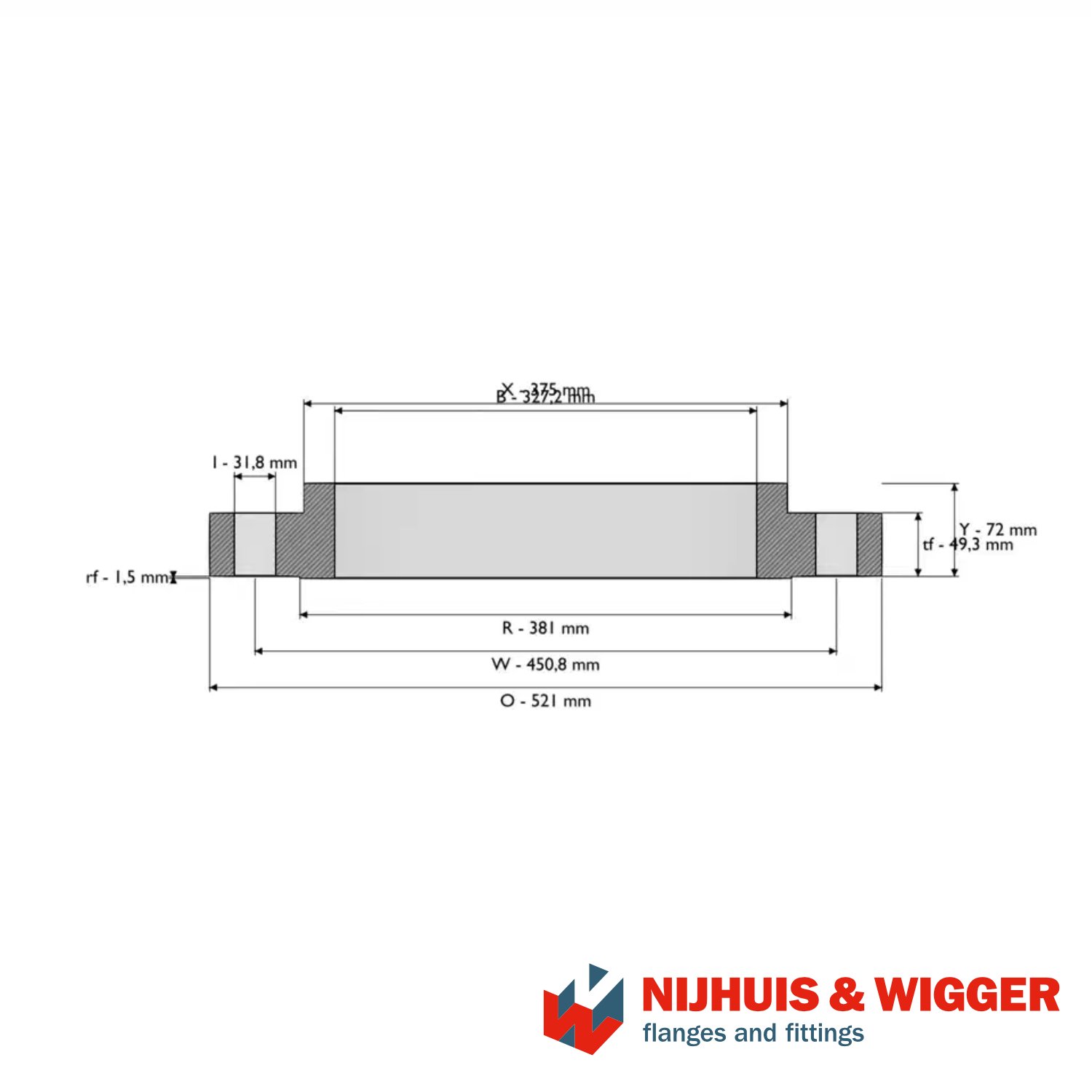

| Slip on flens |
300 |
12" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 300
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
521
|
|
Binnendiameter (B)
|
328.2
|
|
Flensdikte (tf)
|
49.3
|
|
Boutcirkeldiameter (W)
|
450.8
|
|
Onderste buitendiameter hals (X)
|
375
|
|
Aantal boutgaten (Z)
|
16
|
|
Totale hoogte (Y)
|
72
|
|
Boutgatdiameter (I)
|
31.8
|
|
Dichtvlakdiameter (R)
|
381
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 49.8
|
