| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

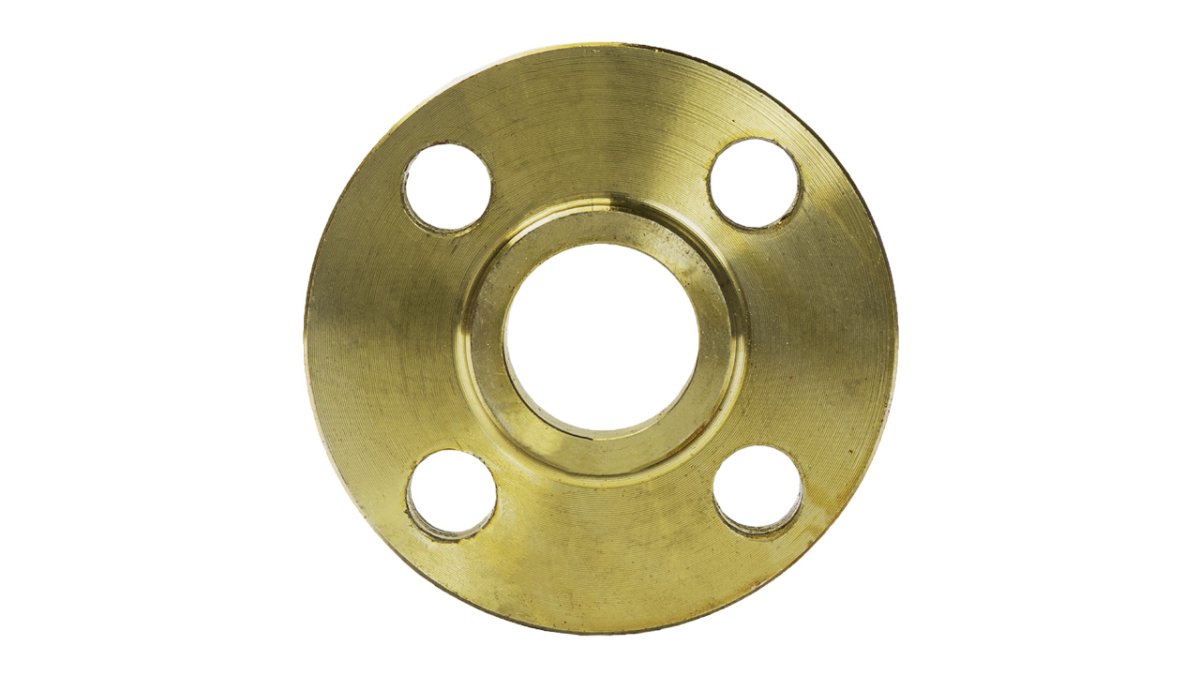

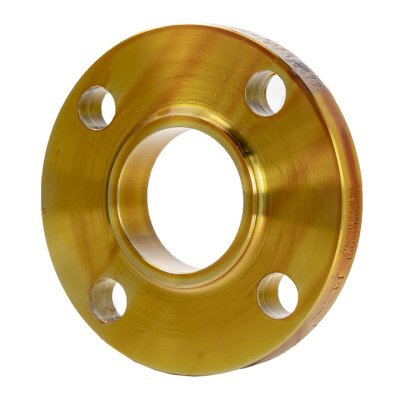

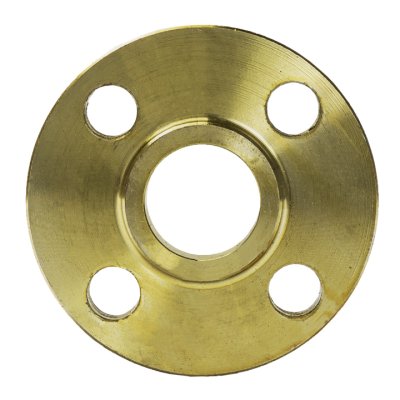

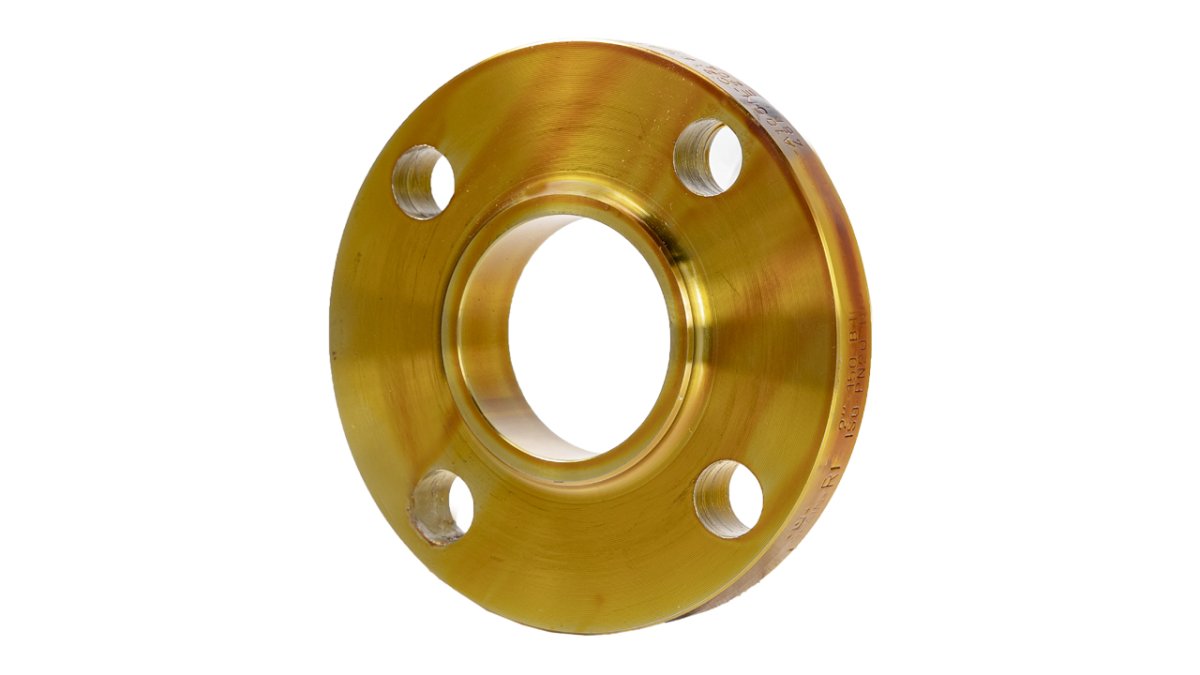

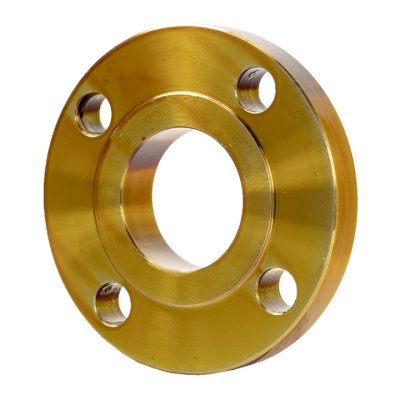

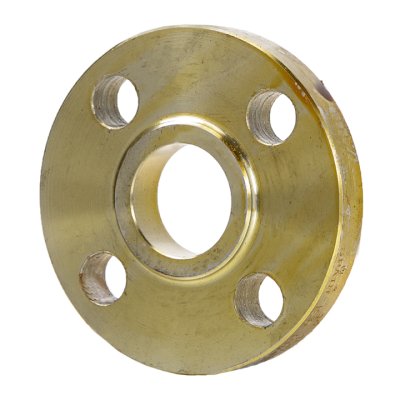

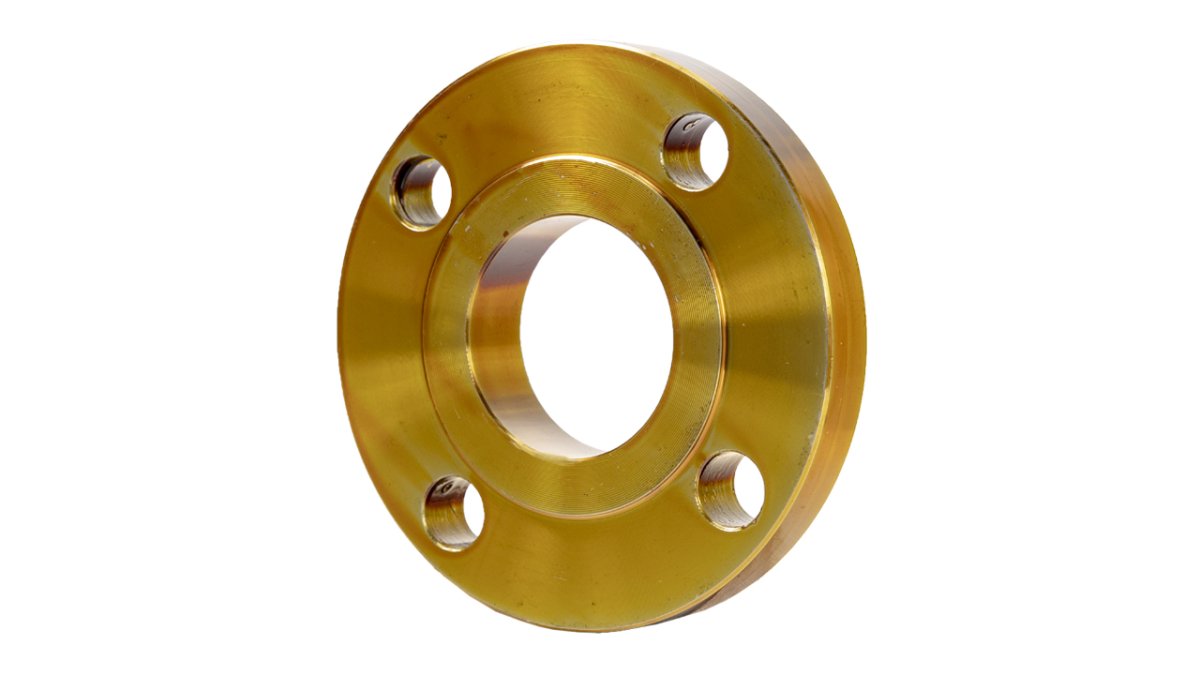

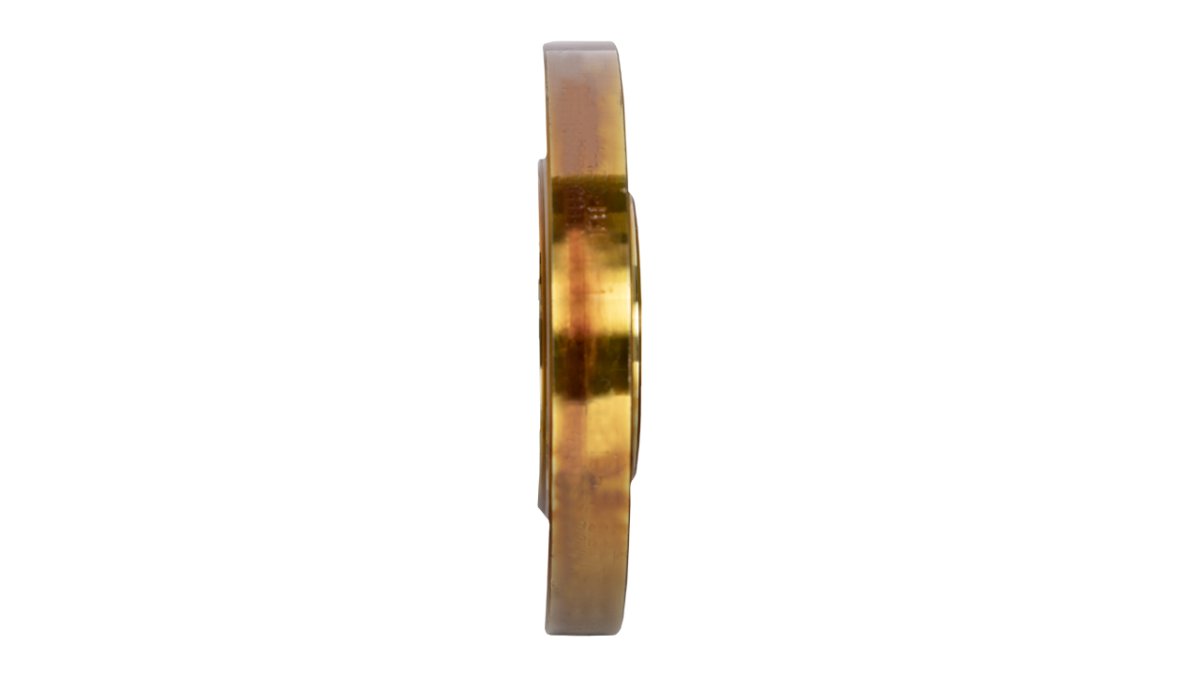

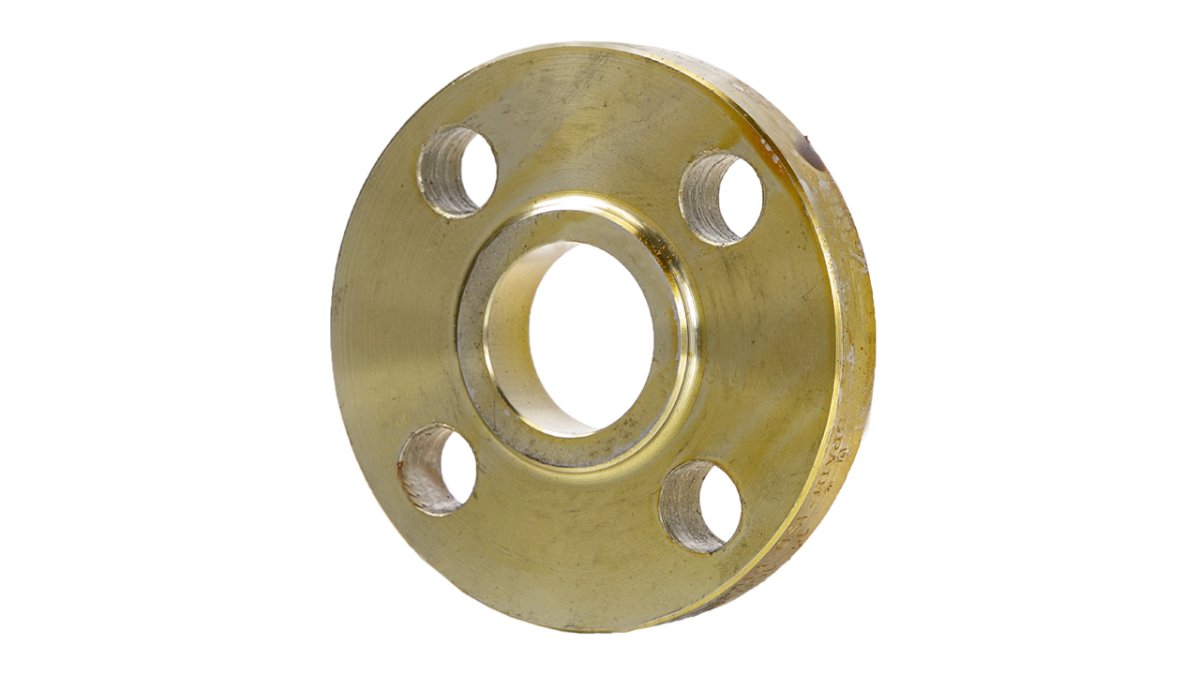

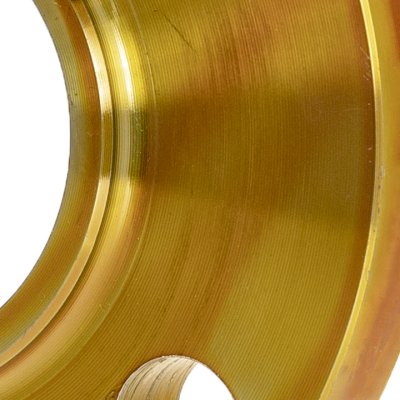

| Slip on flens |
15 |
1/2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 15
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|

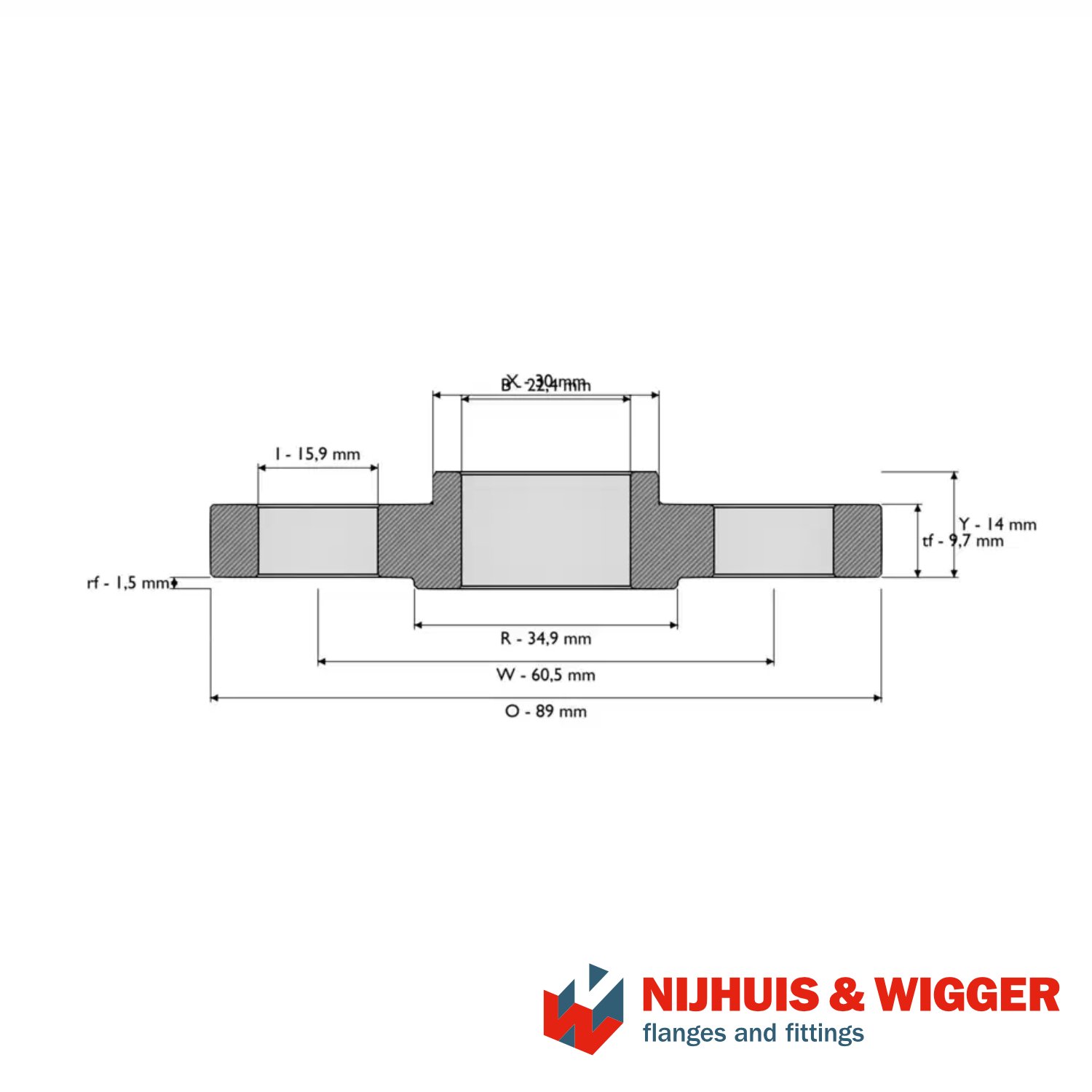

Buitendiameter (O)
|
89
|
|
Binnendiameter (B)
|
22.4
|
|
Flensdikte (tf)
|
9.7
|
|
Boutcirkeldiameter (W)
|
60.5
|
|
Onderste buitendiameter hals (X)
|
30
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
14
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
34.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 0.41
|
| Slip on flens |
20 |
3/4" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 20
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|

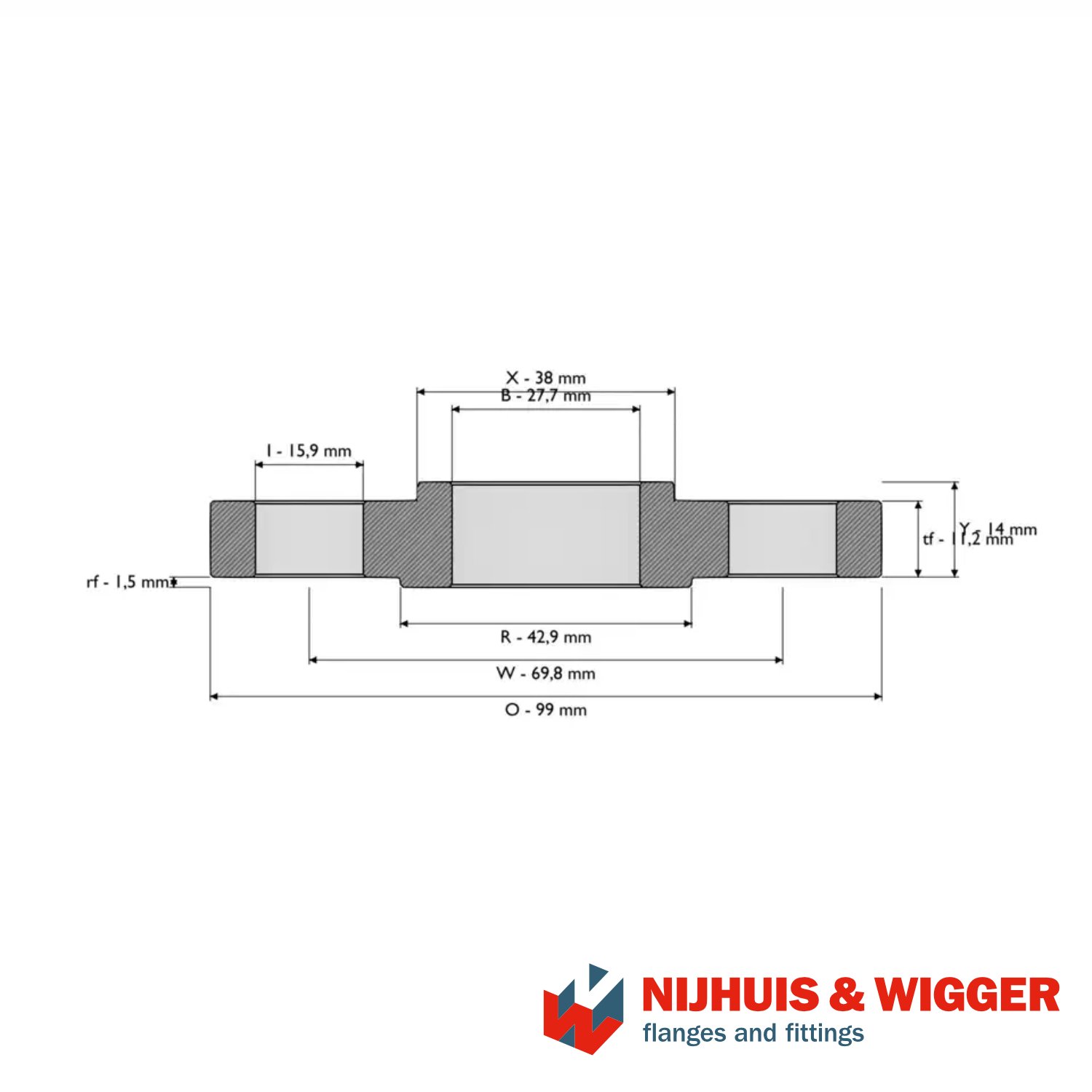

Buitendiameter (O)
|
99
|
|
Binnendiameter (B)
|
27.7
|
|
Flensdikte (tf)
|
11.2
|
|
Boutcirkeldiameter (W)
|
69.8
|
|
Onderste buitendiameter hals (X)
|
38
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
14
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
42.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 0.55
|
| Slip on flens |
25 |
1" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 25
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock

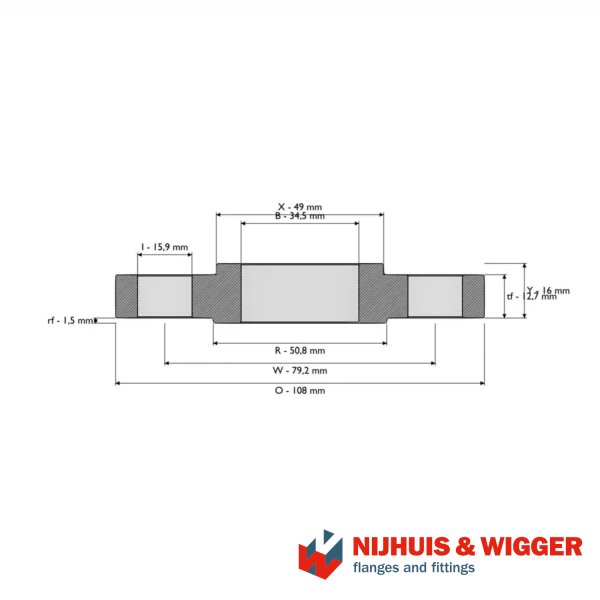

- dimensions
|
Buitendiameter (O)
|
108
|
|
Binnendiameter (B)
|
34.5
|
|
Flensdikte (tf)
|
12.7
|
|
Boutcirkeldiameter (W)
|
79.4
|
|
Onderste buitendiameter hals (X)
|
49
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
16
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
50.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.09
|
| Slip on flens |
32 |
1 1/4 |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 32
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
117
|
|
Binnendiameter (B)
|
43.2
|
|
Flensdikte (tf)
|
14.2
|
|
Boutcirkeldiameter (W)
|
88.9
|
|
Onderste buitendiameter hals (X)
|
59
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
19
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
63.5
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.4
|
| Slip on flens |
40 |
1 1/2 |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 40
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
127
|
|
Binnendiameter (B)
|
49.5
|
|
Flensdikte (tf)
|
15.9
|
|
Boutcirkeldiameter (W)
|
98.4
|
|
Onderste buitendiameter hals (X)
|
65
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
21
|
|
Boutgatdiameter (I)
|
15.9
|
|
Dichtvlakdiameter (R)
|
73.0
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 1.4
|
| Slip on flens |
50 |
2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 50
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock

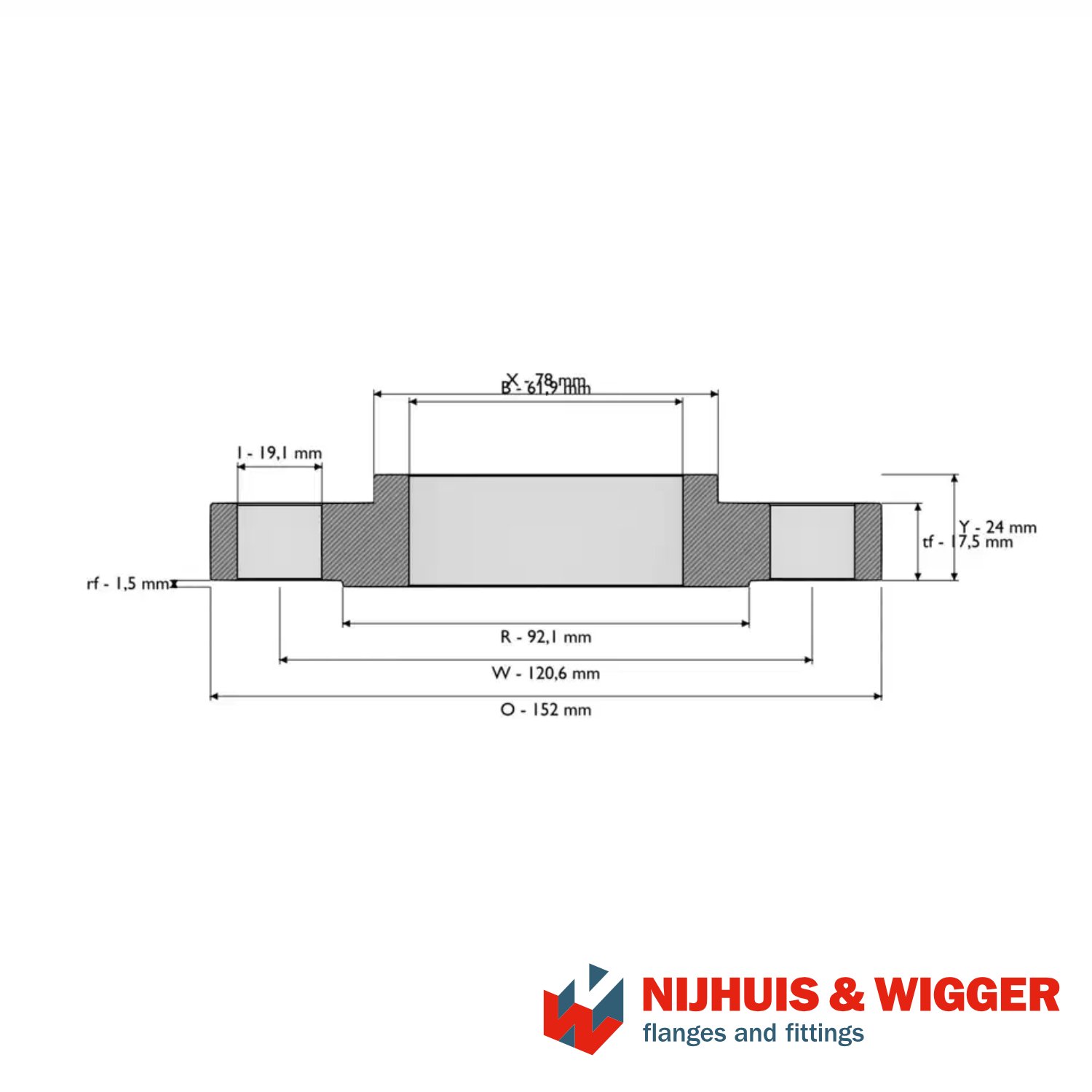

- dimensions
|
Buitendiameter (O)
|
152
|
|
Binnendiameter (B)
|
61.9
|
|
Flensdikte (tf)
|
17.5
|
|
Boutcirkeldiameter (W)
|
120.6
|
|
Onderste buitendiameter hals (X)
|
78
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
24
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
92.1
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 2.3
|
| Slip on flens |
65 |
2 1/2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 65
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
178
|
|
Binnendiameter (B)
|
74.2
|
|
Flensdikte (tf)
|
20.6
|
|
Boutcirkeldiameter (W)
|
139.7
|
|
Onderste buitendiameter hals (X)
|
90
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
27
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
104.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 3.65
|
| Slip on flens |
80 |
3" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 80
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
190
|
|
Binnendiameter (B)
|
90.7
|
|
Flensdikte (tf)
|
22.4
|
|
Boutcirkeldiameter (W)
|
152.4
|
|
Onderste buitendiameter hals (X)
|
108
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
29
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
127.0
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 4.15
|
| Slip on flens |
100 |
4" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 100
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|

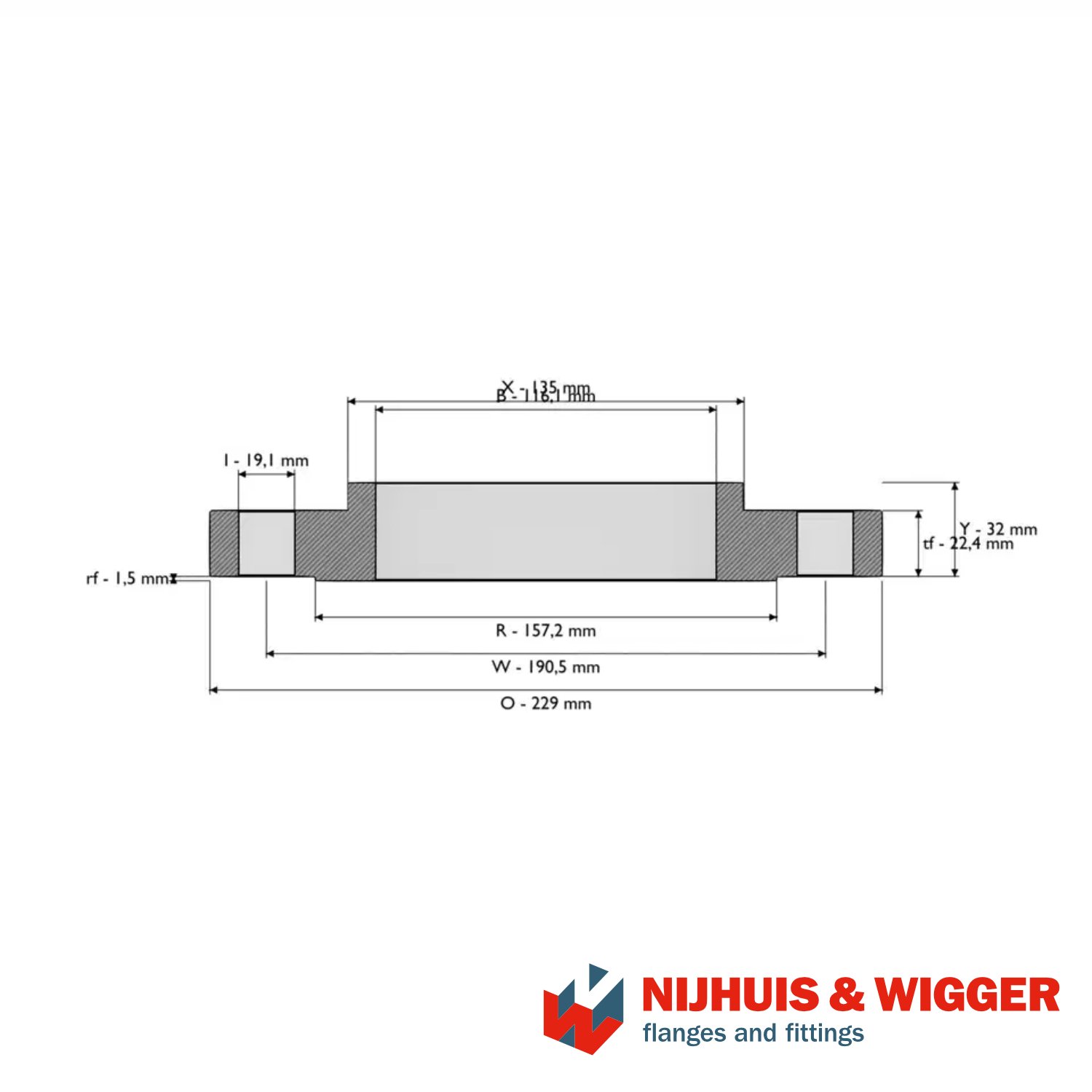

Buitendiameter (O)
|
229
|
|
Binnendiameter (B)
|
116.1
|
|
Flensdikte (tf)
|
22.4
|
|
Boutcirkeldiameter (W)
|
190.5
|
|
Onderste buitendiameter hals (X)
|
135
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
32
|
|
Boutgatdiameter (I)
|
19.1
|
|
Dichtvlakdiameter (R)
|
157.2
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 5.9
|
| Slip on flens |
125 |
5" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 125
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock

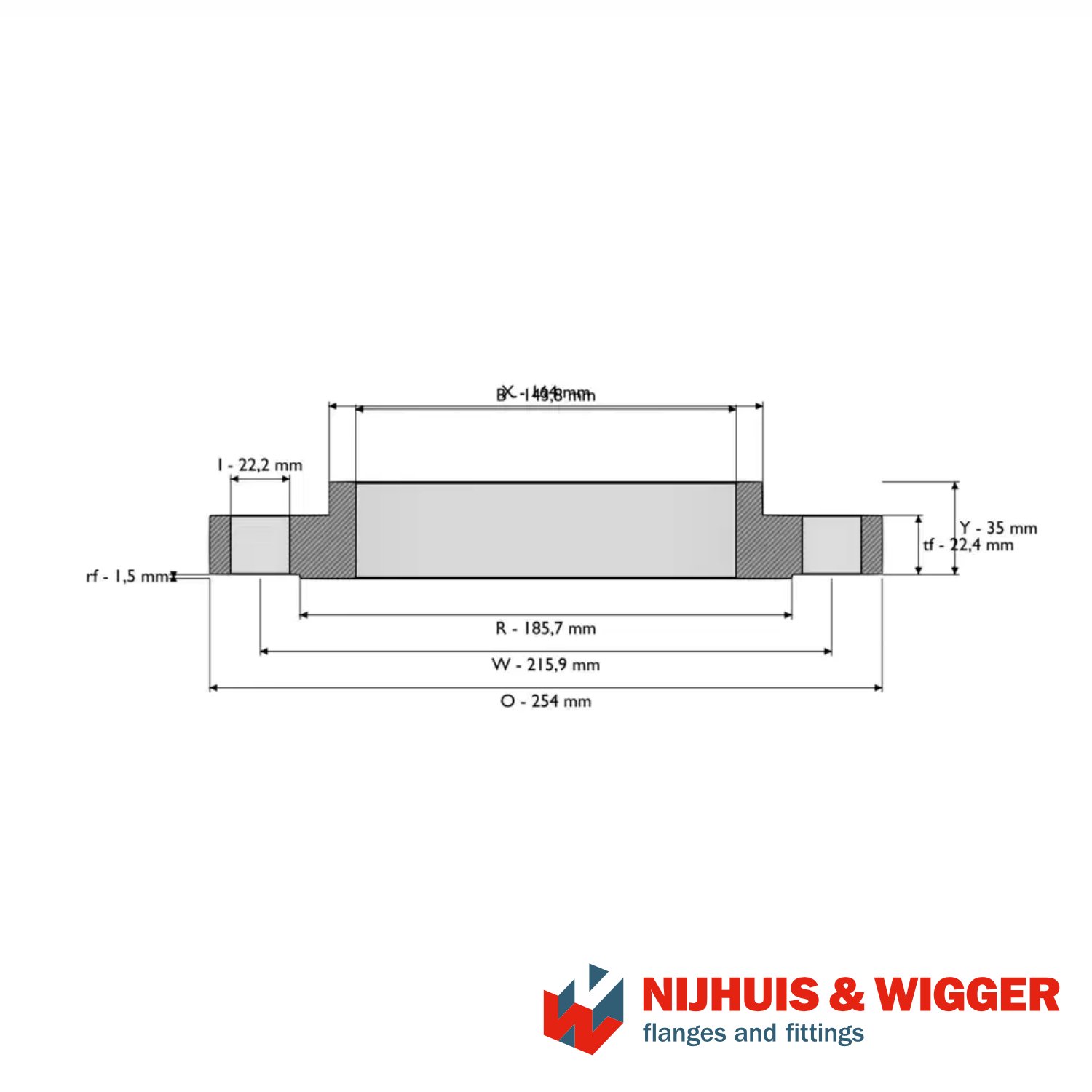

- dimensions
|
Buitendiameter (O)
|
254
|
|
Binnendiameter (B)
|
143.8
|
|
Flensdikte (tf)
|
22.4
|
|
Boutcirkeldiameter (W)
|
215.9
|
|
Onderste buitendiameter hals (X)
|
164
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
35
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
185.7
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 6.8
|
| Slip on flens |
150 |
6" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 150
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
279
|
|
Binnendiameter (B)
|
170.7
|
|
Flensdikte (tf)
|
23.9
|
|
Boutcirkeldiameter (W)
|
241.3
|
|
Onderste buitendiameter hals (X)
|
192
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
38
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
215.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 7.75
|
| Slip on flens |
200 |
8" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 200
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|

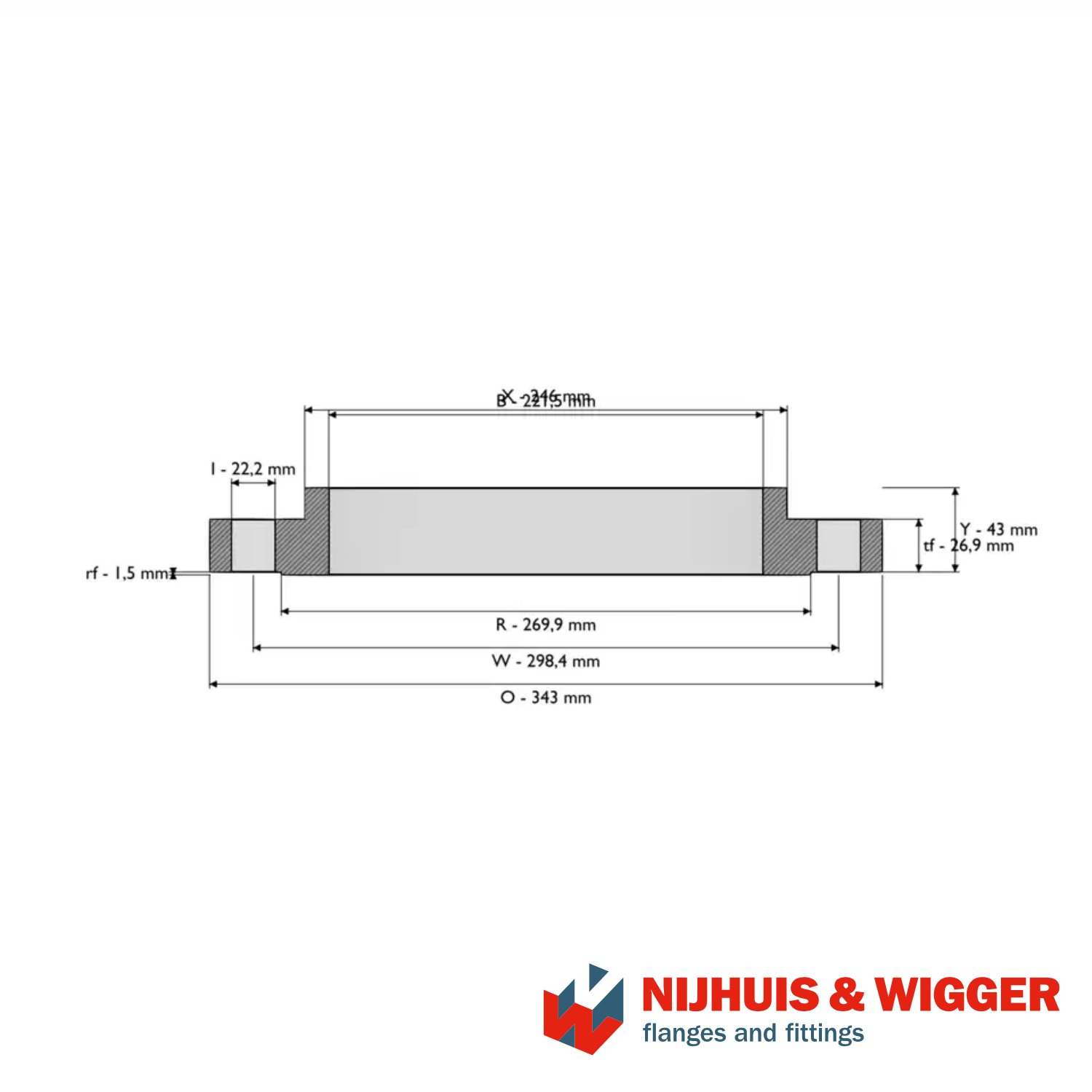

Buitendiameter (O)
|
343
|
|
Binnendiameter (B)
|
221.5
|
|
Flensdikte (tf)
|
26.9
|
|
Boutcirkeldiameter (W)
|
298.4
|
|
Onderste buitendiameter hals (X)
|
246
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
43
|
|
Boutgatdiameter (I)
|
22.2
|
|
Dichtvlakdiameter (R)
|
269.9
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 13.6
|
| Slip on flens |
250 |
10" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 250
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
406
|
|
Binnendiameter (B)
|
276.4
|
|
Flensdikte (tf)
|
28.4
|
|
Boutcirkeldiameter (W)
|
362
|
|
Onderste buitendiameter hals (X)
|
305
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
48
|
|
Boutgatdiameter (I)
|
25.4
|
|
Dichtvlakdiameter (R)
|
323.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 22
|
| Slip on flens |
300 |
12" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 300
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
483
|
|
Binnendiameter (B)
|
328.2
|
|
Flensdikte (tf)
|
30.2
|
|
Boutcirkeldiameter (W)
|
431.8
|
|
Onderste buitendiameter hals (X)
|
365
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
54
|
|
Boutgatdiameter (I)
|
25.4
|
|
Dichtvlakdiameter (R)
|
381
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 31.6
|
| Slip on flens |
350 |
14" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 350
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|

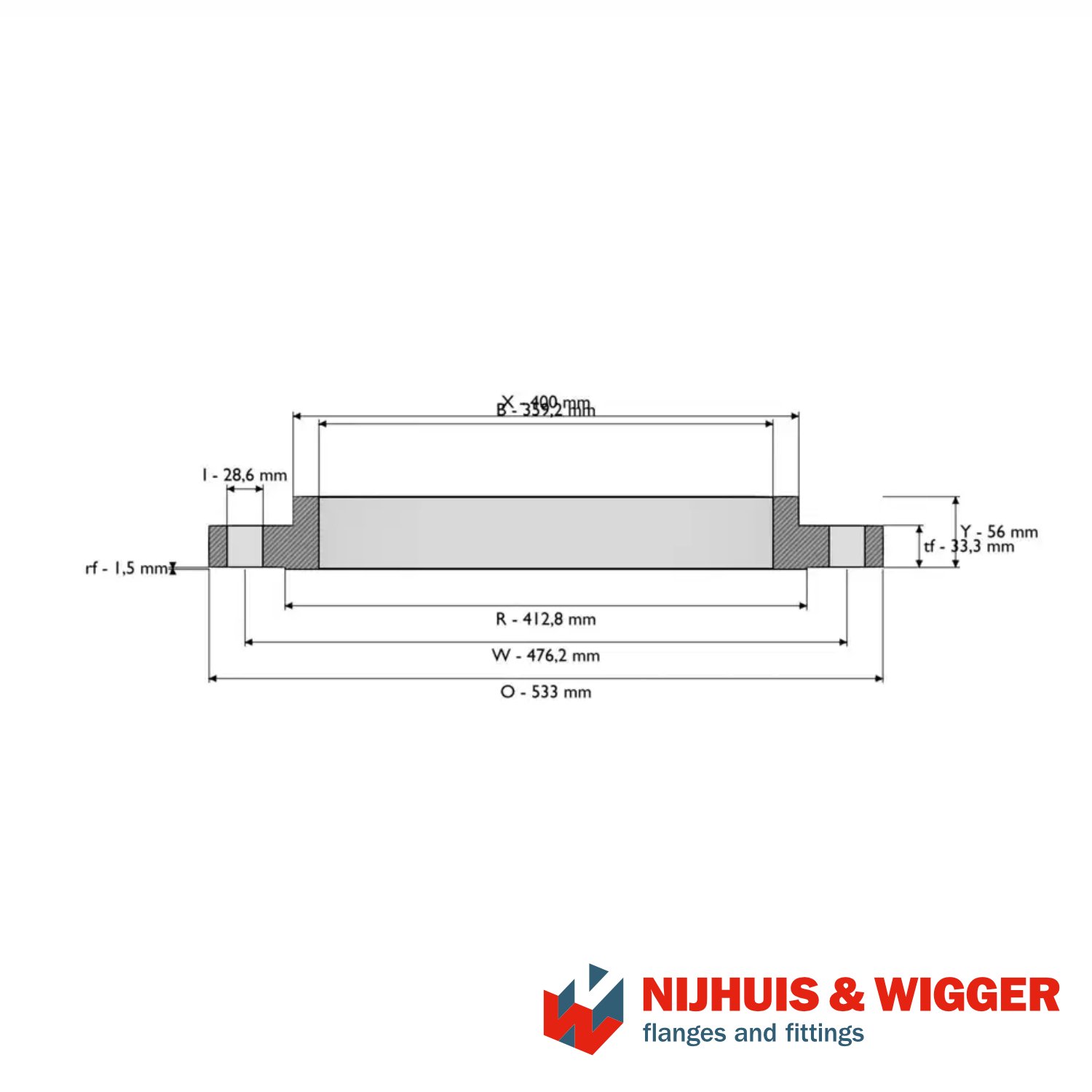

Buitendiameter (O)
|
533
|
|
Binnendiameter (B)
|
359.2
|
|
Flensdikte (tf)
|
33.3
|
|
Boutcirkeldiameter (W)
|
476.2
|
|
Onderste buitendiameter hals (X)
|
400
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
56
|
|
Boutgatdiameter (I)
|
28.6
|
|
Dichtvlakdiameter (R)
|
412.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 41
|
| Slip on flens |
400 |
16" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 400
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
533
|
|
Binnendiameter (B)
|
359.2
|
|
Flensdikte (tf)
|
33.3
|
|
Boutcirkeldiameter (W)
|
476.2
|
|
Onderste buitendiameter hals (X)
|
400
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
56
|
|
Boutgatdiameter (I)
|
28.6
|
|
Dichtvlakdiameter (R)
|
412.8
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 56
|
| Slip on flens |
450 |
18" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 450
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
635
|
|
Binnendiameter (B)
|
461
|
|
Flensdikte (tf)
|
38.1
|
|
Boutcirkeldiameter (W)
|
577.9
|
|
Onderste buitendiameter hals (X)
|
505
|
|
Aantal boutgaten (Z)
|
16
|
|
Totale hoogte (Y)
|
67
|
|
Boutgatdiameter (I)
|
31.8
|
|
Dichtvlakdiameter (R)
|
533.4
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 66
|
| Slip on flens |
500 |
20" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 500
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
698
|
|
Binnendiameter (B)
|
513.1
|
|
Flensdikte (tf)
|
42.9
|
|
Boutcirkeldiameter (W)
|
635
|
|
Onderste buitendiameter hals (X)
|
559
|
|
Aantal boutgaten (Z)
|
20
|
|
Totale hoogte (Y)
|
73
|
|
Boutgatdiameter (I)
|
31.8
|
|
Dichtvlakdiameter (R)
|
584.2
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 89.4
|
| Slip on flens |
600 |
24" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 600
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock

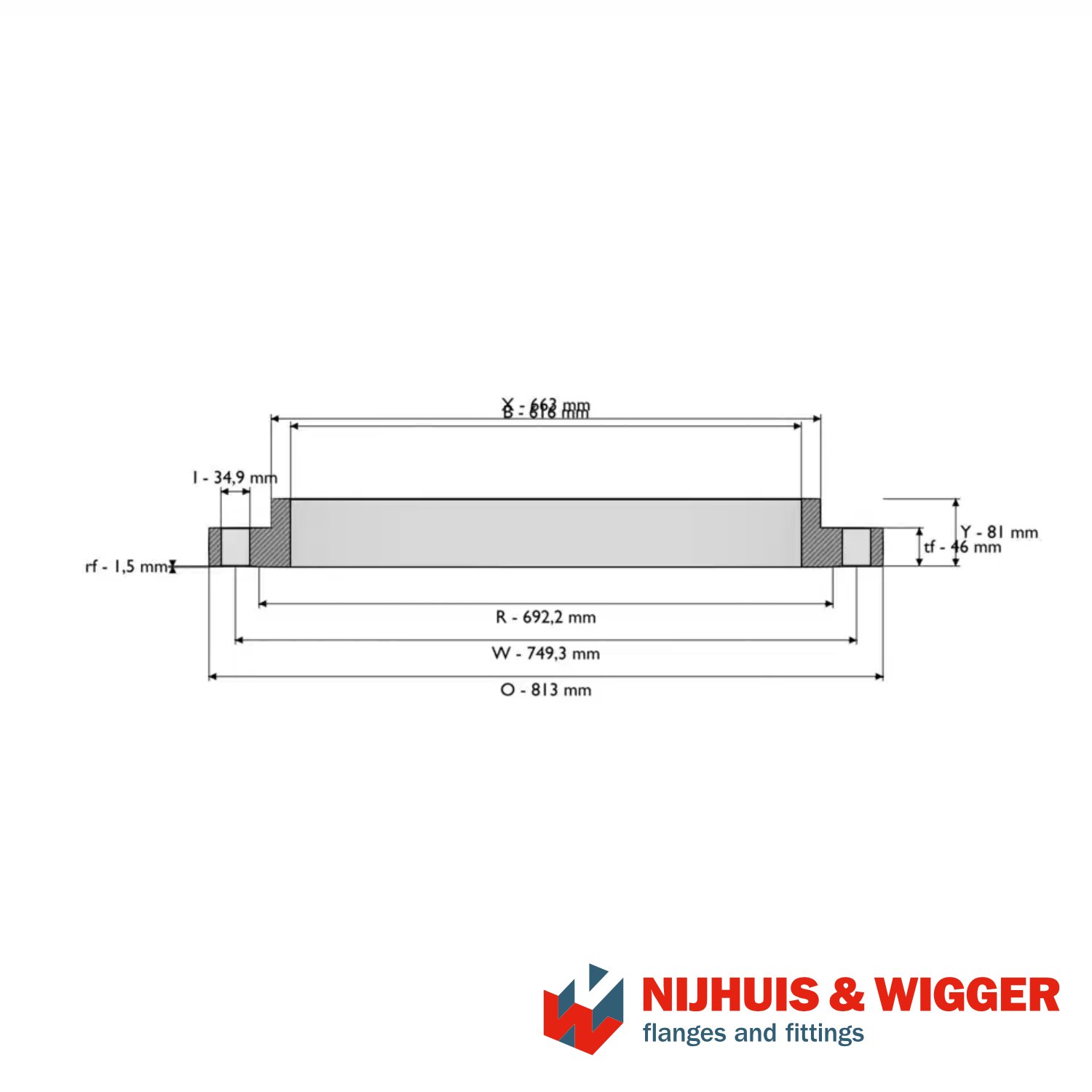

- dimensions
|
Buitendiameter (O)
|
813
|
|
Binnendiameter (B)
|
616
|
|
Flensdikte (tf)
|
46
|
|
Boutcirkeldiameter (W)
|
749.3
|
|
Onderste buitendiameter hals (X)
|
663
|
|
Aantal boutgaten (Z)
|
20
|
|
Totale hoogte (Y)
|
81
|
|
Boutgatdiameter (I)
|
34.9
|
|
Dichtvlakdiameter (R)
|
692.2
|
|
Dichtvlakhoogte (rf)
|
1.5
|
- weight 99.8
|
