| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

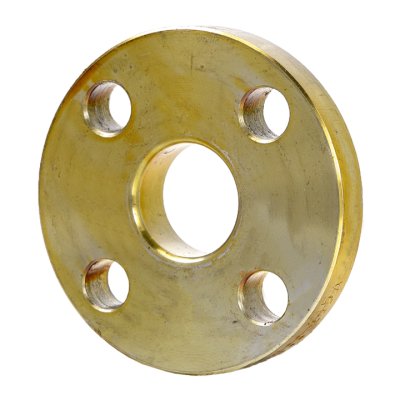

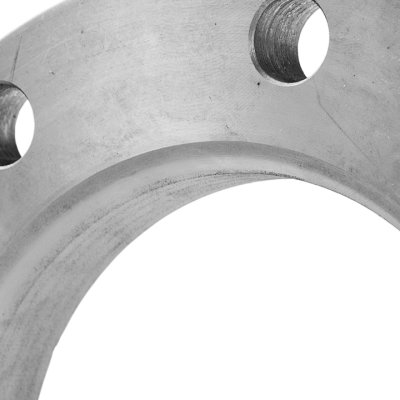

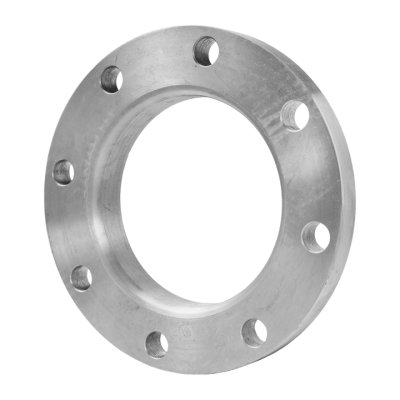

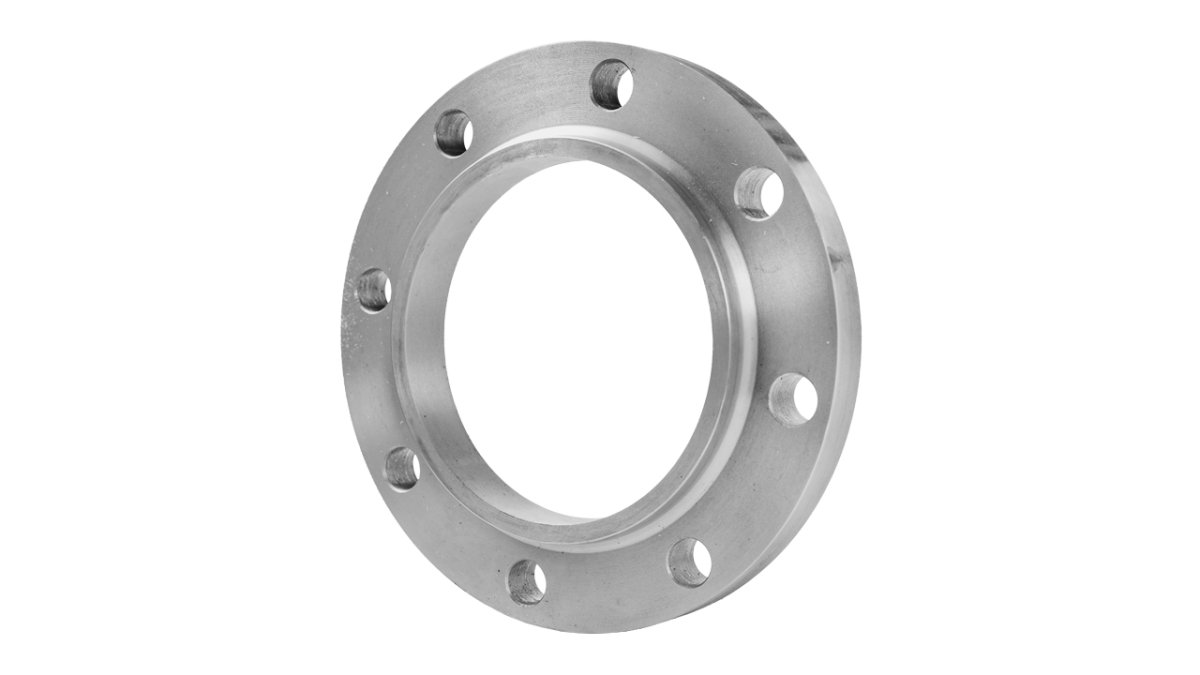

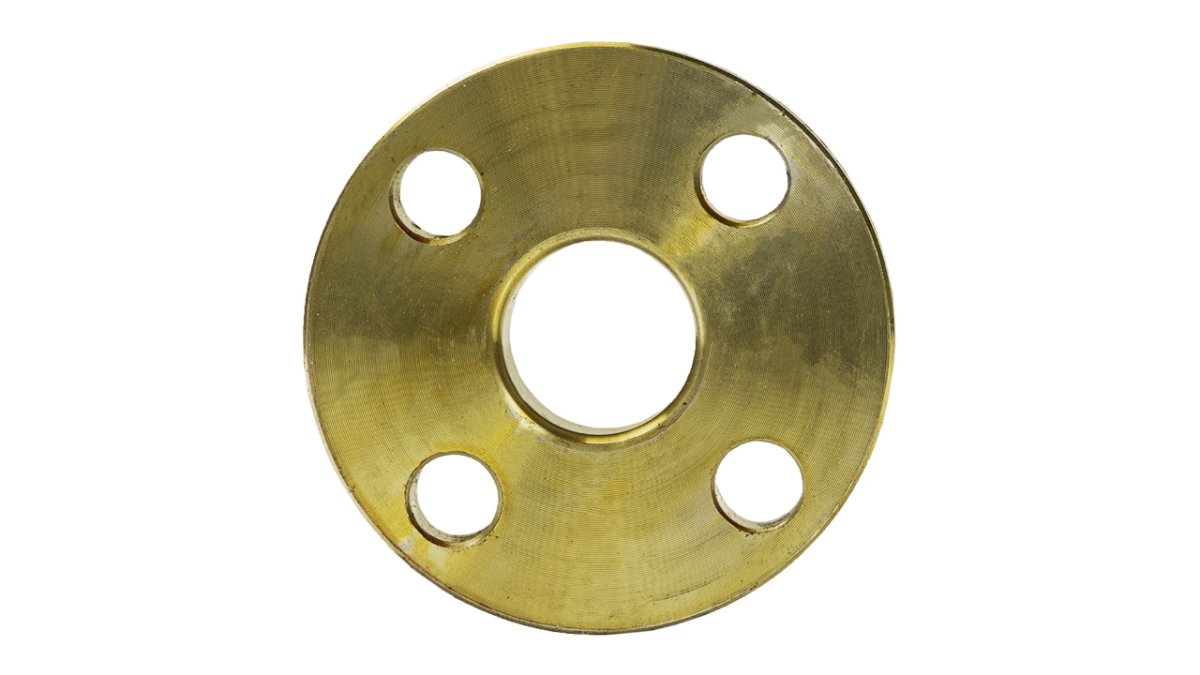

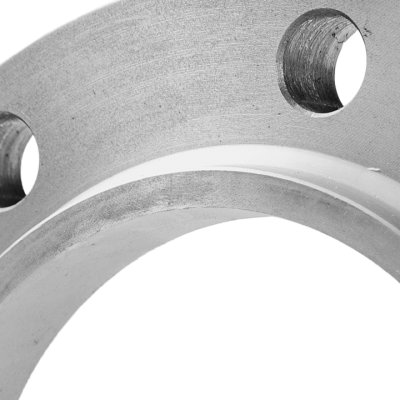

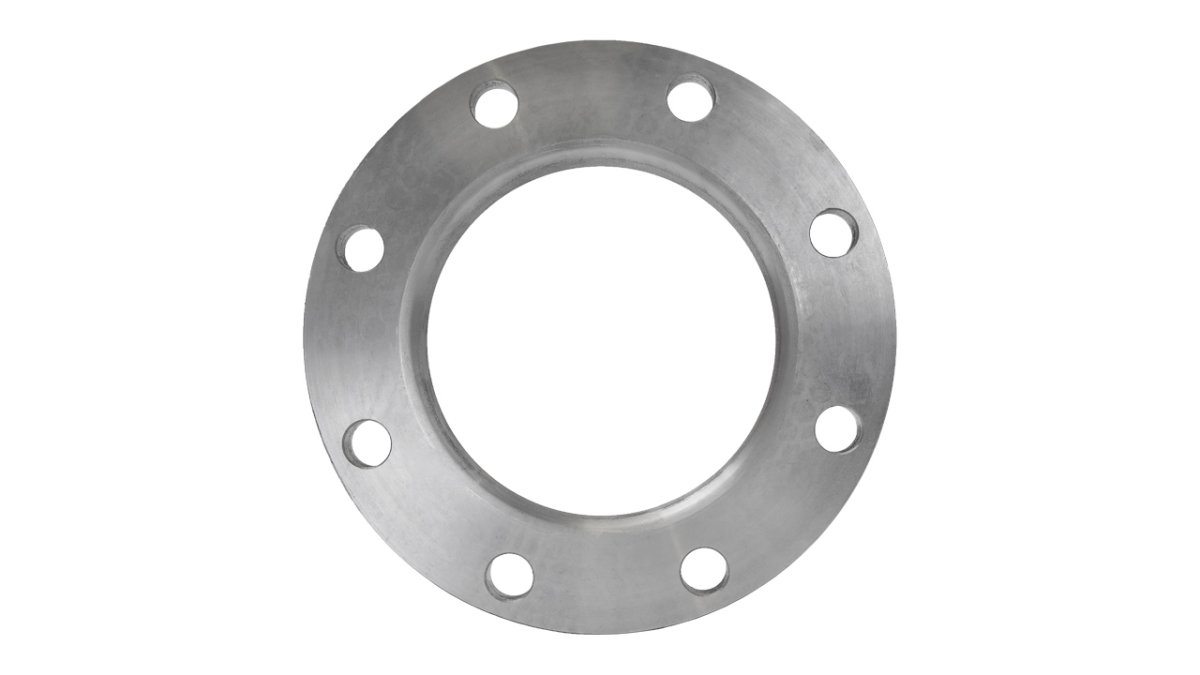

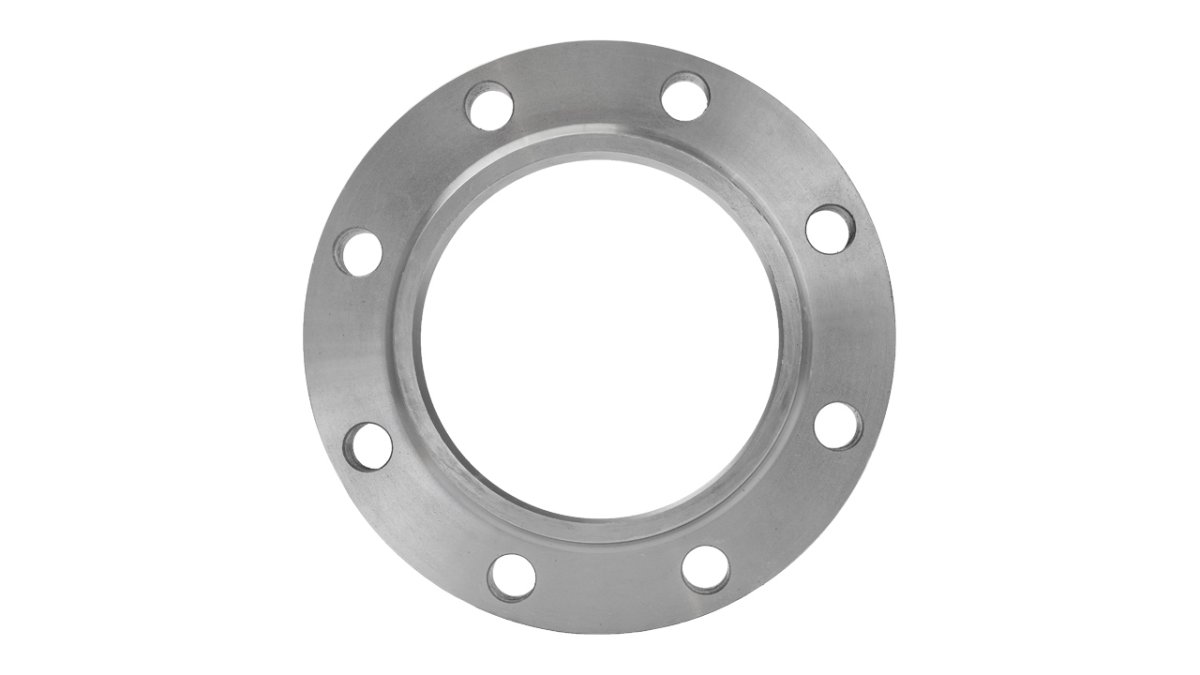

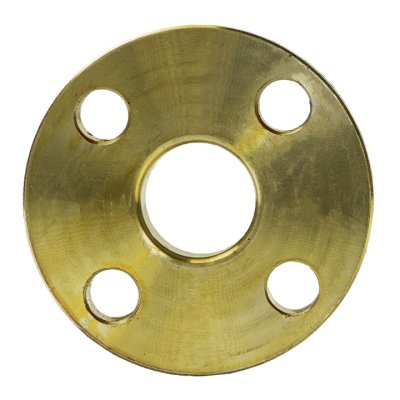

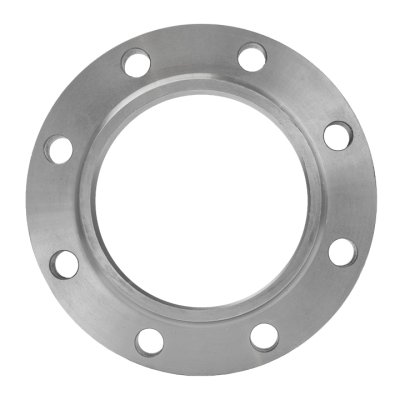

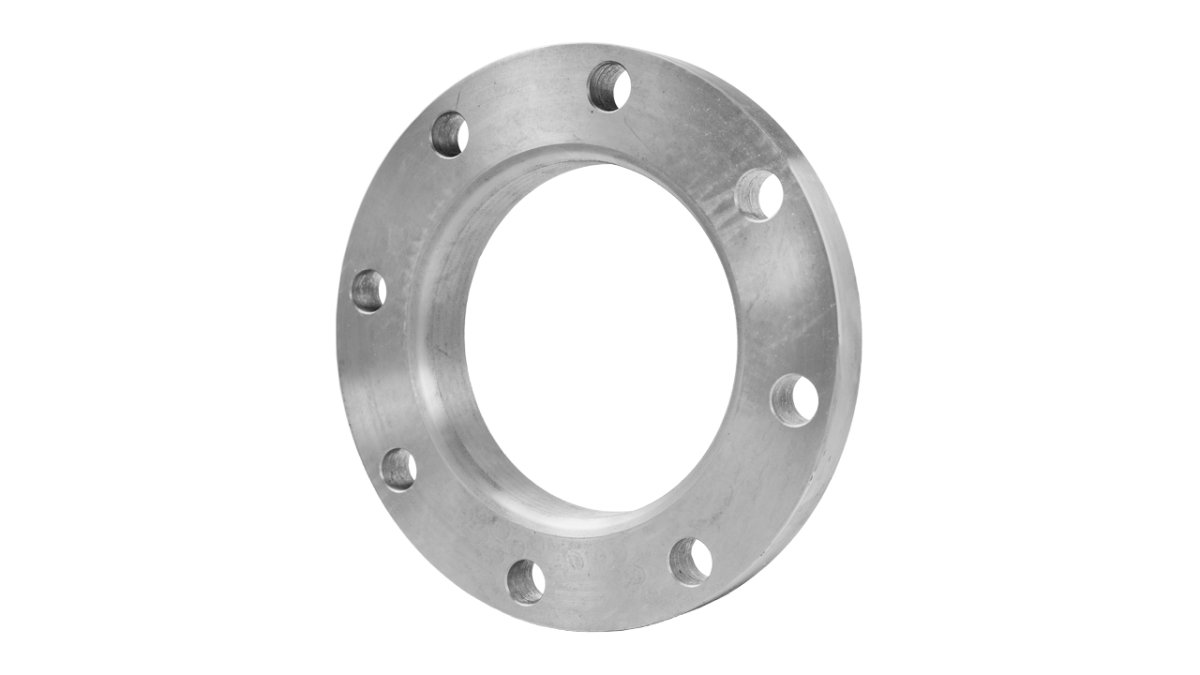

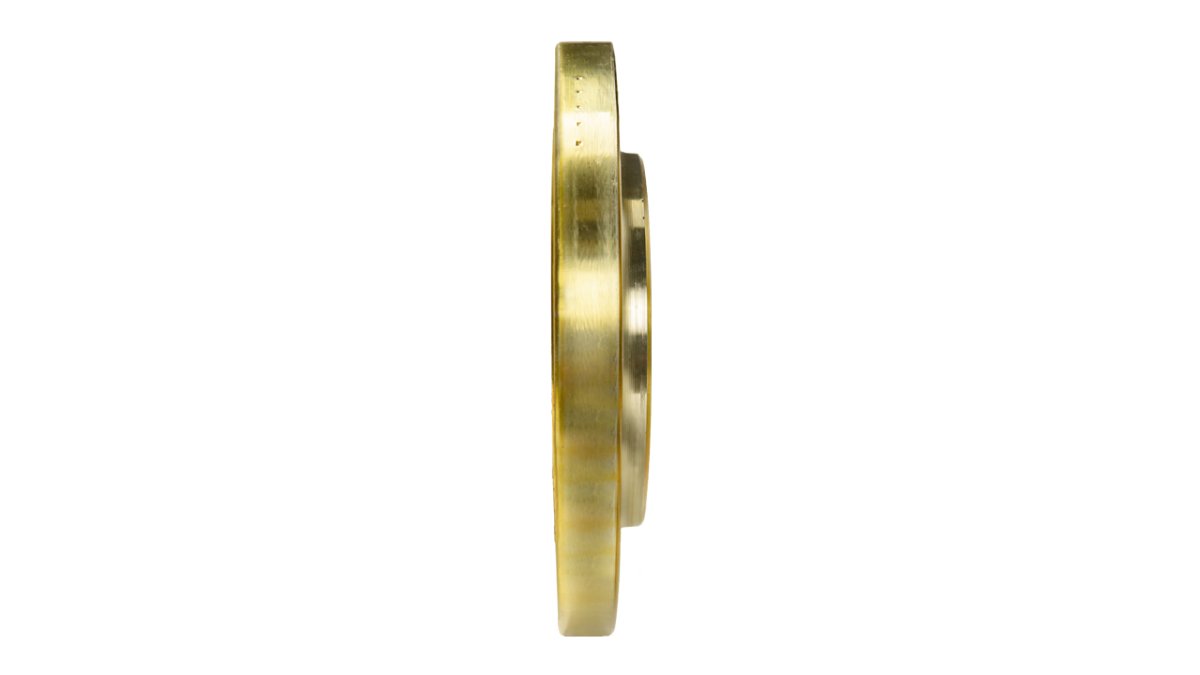

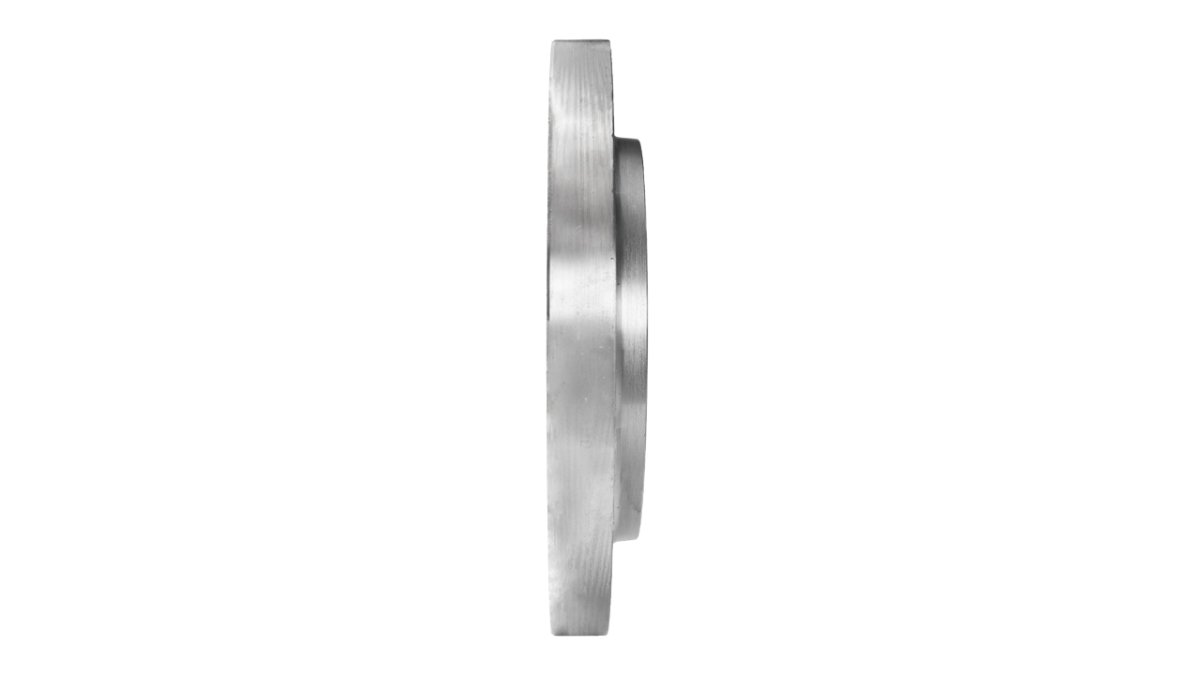

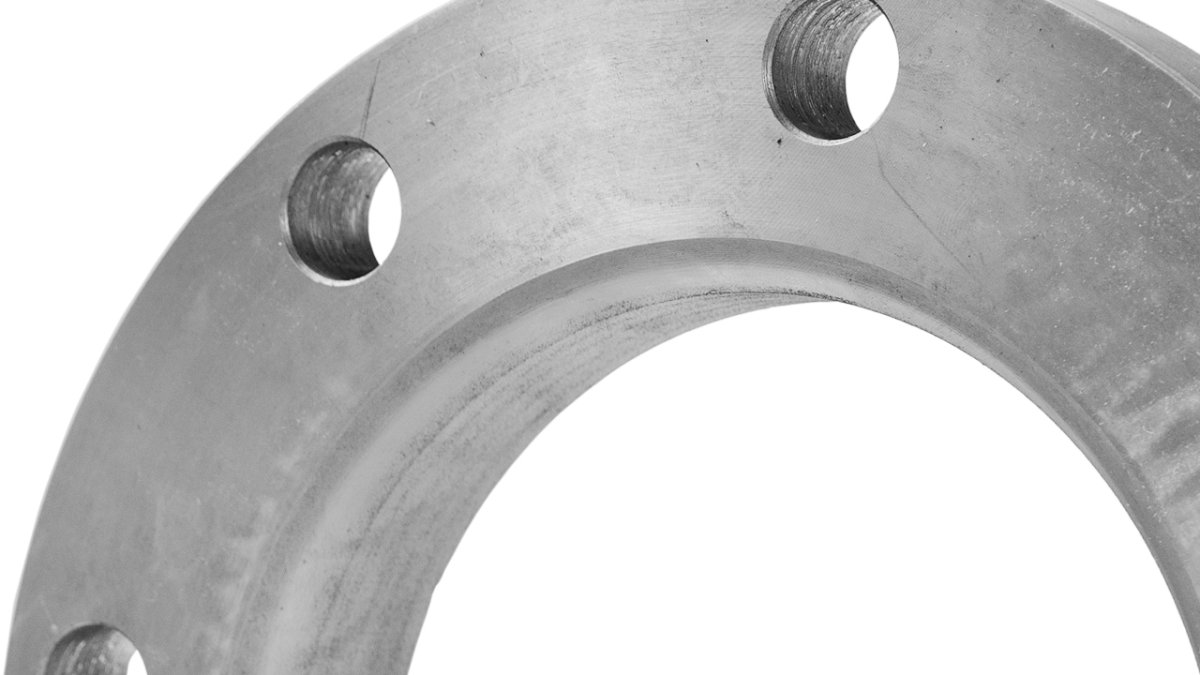

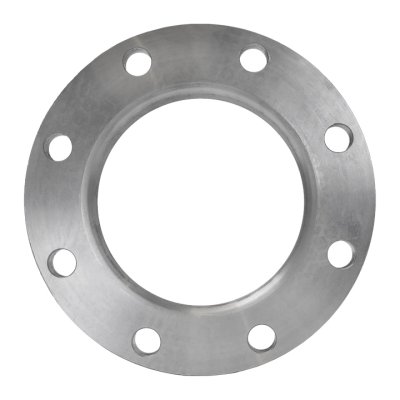

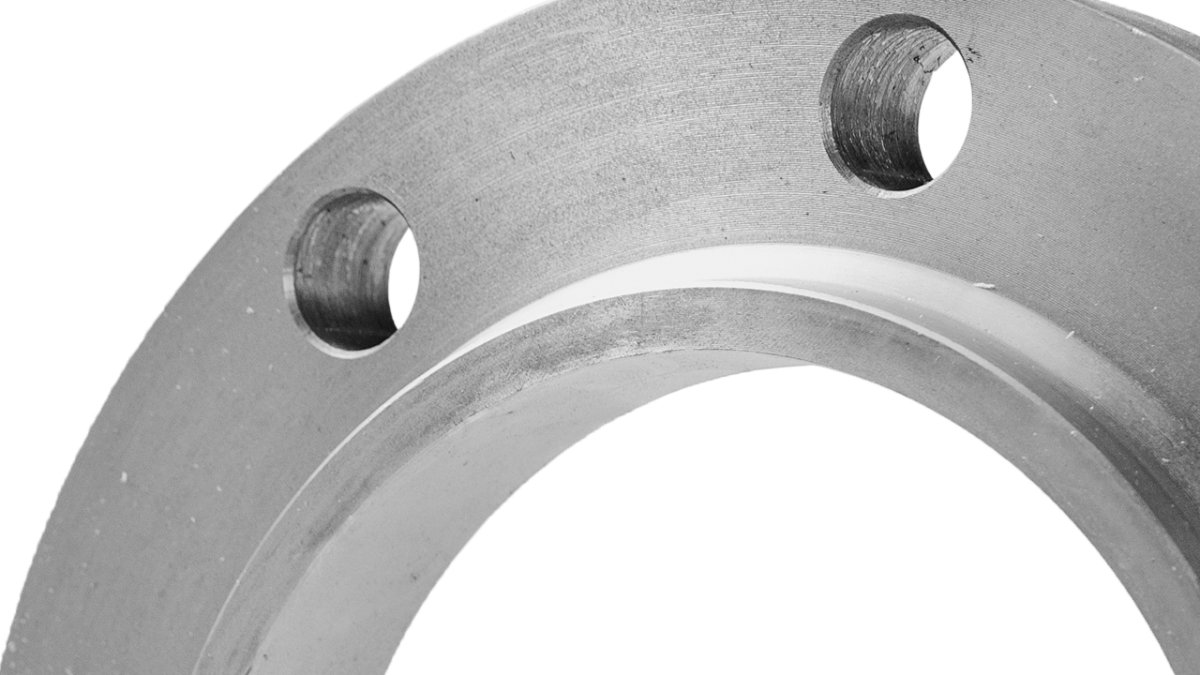

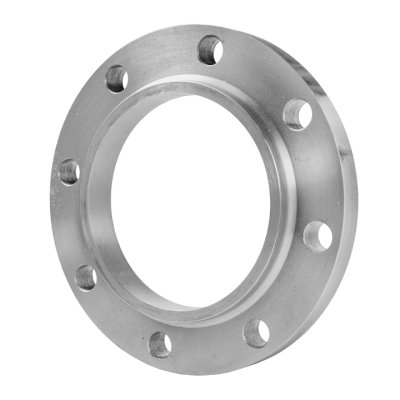

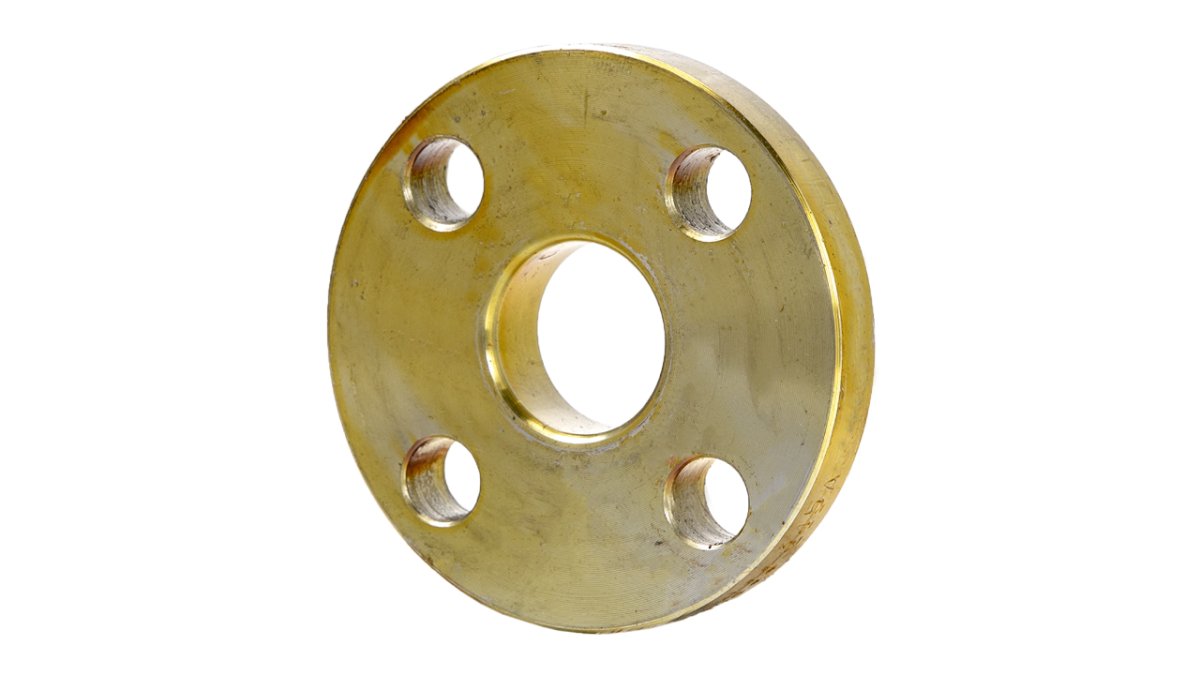

| Lap joint flens |
15 |
1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |

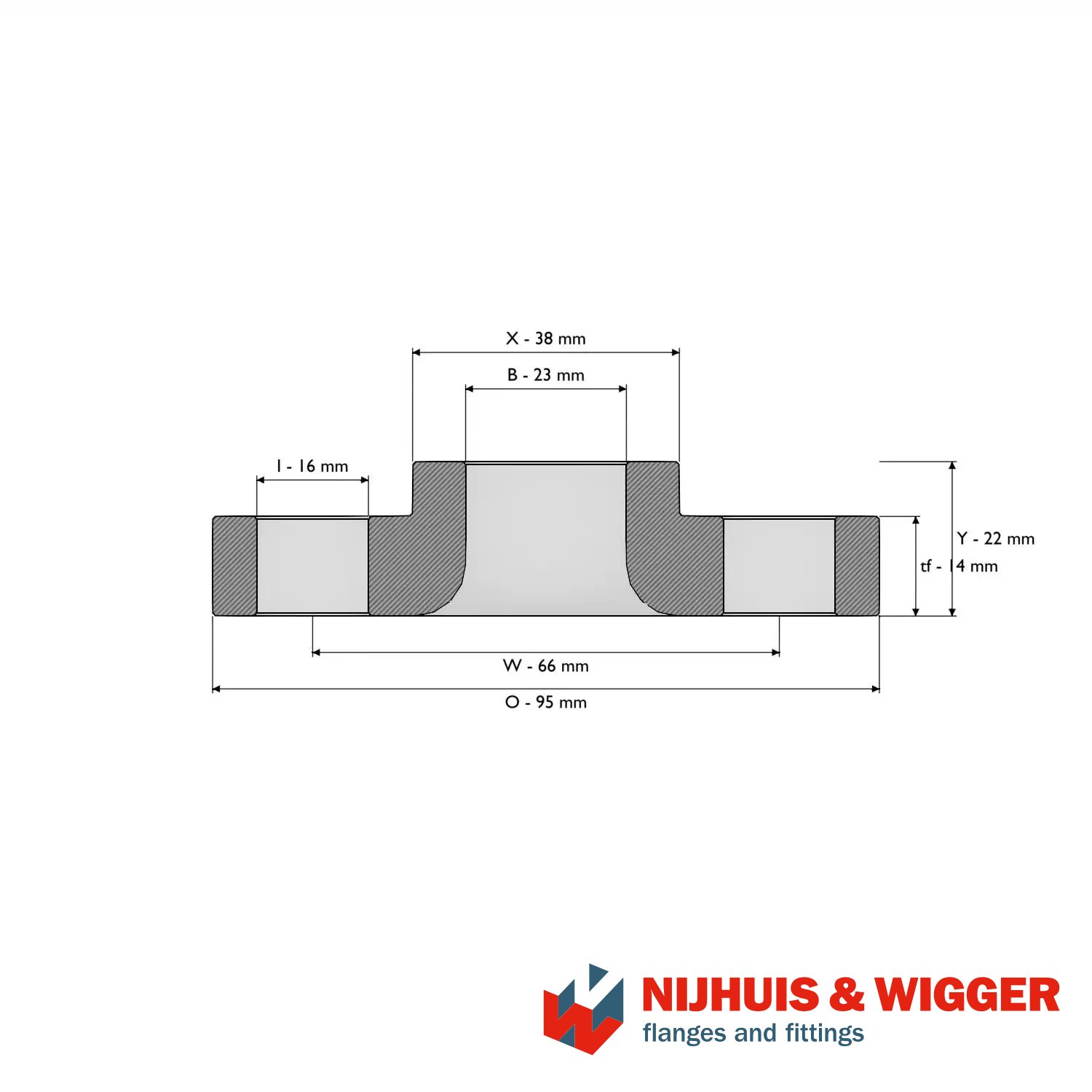

- DN 15
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
95
|
|
Binnendiameter (B)
|
22.9
|
|
Flensdikte (tf)
|
14.2
|
|
Boutcirkeldiameter (W)
|
66.5
|
|
Onderste buitendiameter hals (X)
|
38
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
22
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 0.7
|
| Lap joint flens |
20 |
3/4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |

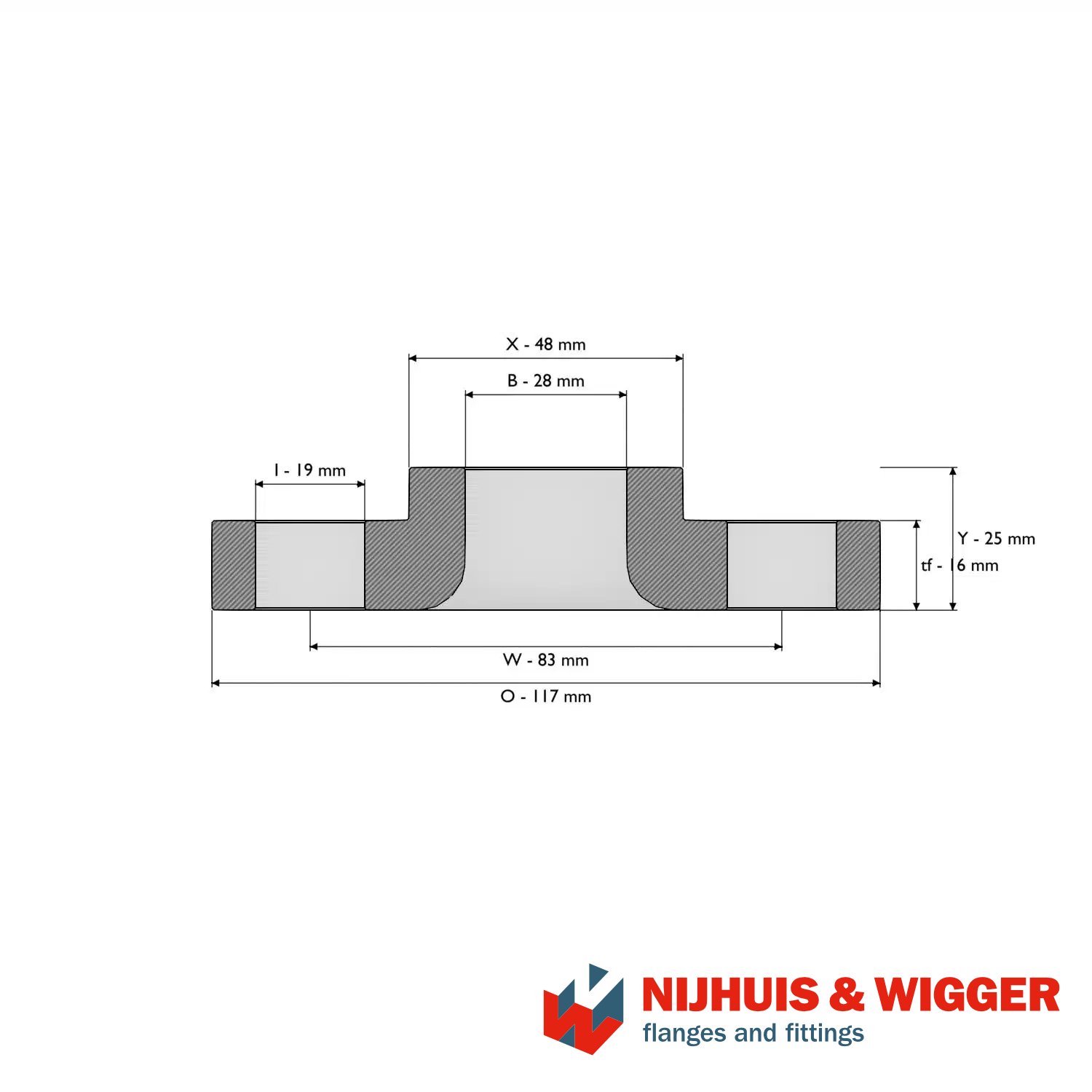

- DN 20
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
117
|
|
Binnendiameter (B)
|
28.2
|
|
Flensdikte (tf)
|
15.9
|
|
Boutcirkeldiameter (W)
|
82.6
|
|
Onderste buitendiameter hals (X)
|
48
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
25
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 1.15
|
| Lap joint flens |
25 |
1" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |

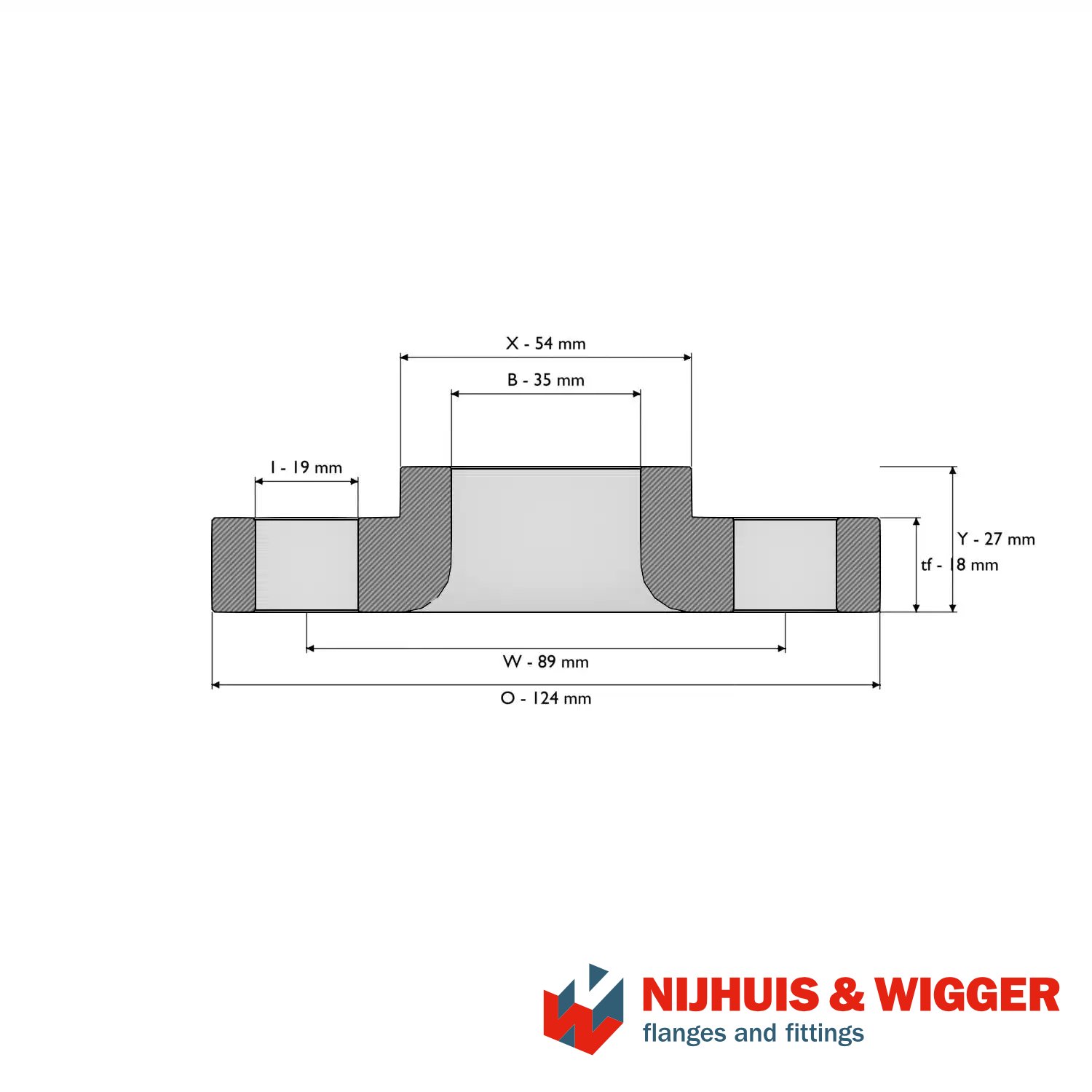

- DN 25
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
124
|
|
Binnendiameter (B)
|
35.1
|
|
Flensdikte (tf)
|
17.5
|
|
Boutcirkeldiameter (W)
|
88.9
|
|
Onderste buitendiameter hals (X)
|
54
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
27
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 1.4
|
| Lap joint flens |
32 |
1 1/4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 32
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
133
|
|
Binnendiameter (B)
|
43.7
|
|
Flensdikte (tf)
|
19.1
|
|
Boutcirkeldiameter (W)
|
98.6
|
|
Onderste buitendiameter hals (X)
|
64
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
27
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 1.85
|
| Lap joint flens |
40 |
1 1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |

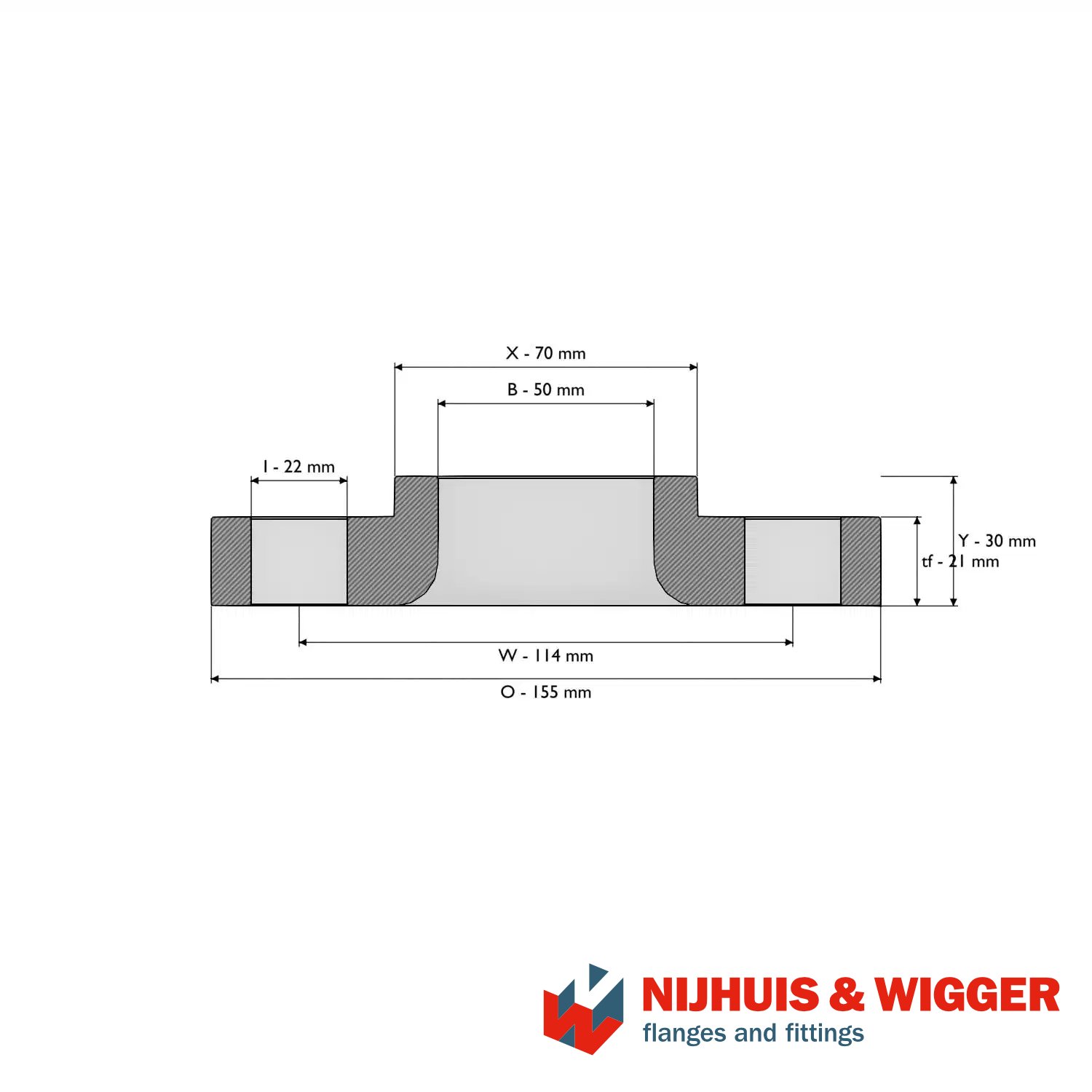

- DN 40
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
155
|
|
Binnendiameter (B)
|
50.0
|
|
Flensdikte (tf)
|
20.6
|
|
Boutcirkeldiameter (W)
|
114.3
|
|
Onderste buitendiameter hals (X)
|
70
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
30
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 2.61
|
| Lap joint flens |
50 |
2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 50
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
165
|
|
Binnendiameter (B)
|
62.5
|
|
Flensdikte (tf)
|
22.4
|
|
Boutcirkeldiameter (W)
|
127.0
|
|
Onderste buitendiameter hals (X)
|
84
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
33
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 3.2
|
| Lap joint flens |
65 |
2 1/2" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 65
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
190
|
|
Binnendiameter (B)
|
75.4
|
|
Flensdikte (tf)
|
25.4
|
|
Boutcirkeldiameter (W)
|
149.4
|
|
Onderste buitendiameter hals (X)
|
100
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
38
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 4.47
|
| Lap joint flens |
80 |
3" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 80
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
210
|
|
Binnendiameter (B)
|
91.4
|
|
Flensdikte (tf)
|
28.4
|
|
Boutcirkeldiameter (W)
|
168.1
|
|
Onderste buitendiameter hals (X)
|
117
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
43
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 6.15
|
| Lap joint flens |
100 |
4" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 100
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
254
|
|
Binnendiameter (B)
|
116.8
|
|
Flensdikte (tf)
|
31.8
|
|
Boutcirkeldiameter (W)
|
200.2
|
|
Onderste buitendiameter hals (X)
|
146
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
48
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 11.2
|
| Lap joint flens |
125 |
5" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 125
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
279
|
|
Binnendiameter (B)
|
144.5
|
|
Flensdikte (tf)
|
35.1
|
|
Boutcirkeldiameter (W)
|
235
|
|
Onderste buitendiameter hals (X)
|
178
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
51
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 12.6
|
| Lap joint flens |
150 |
6" |
ASME B16.5/B16.47 |
|
300# |
A105N/ P280GH |
- DN 150
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 300#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
318
|
|
Binnendiameter (B)
|
171.4
|
|
Flensdikte (tf)
|
36.6
|
|
Boutcirkeldiameter (W)
|
269.7
|
|
Onderste buitendiameter hals (X)
|
206
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
52
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 19.3
|
