| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

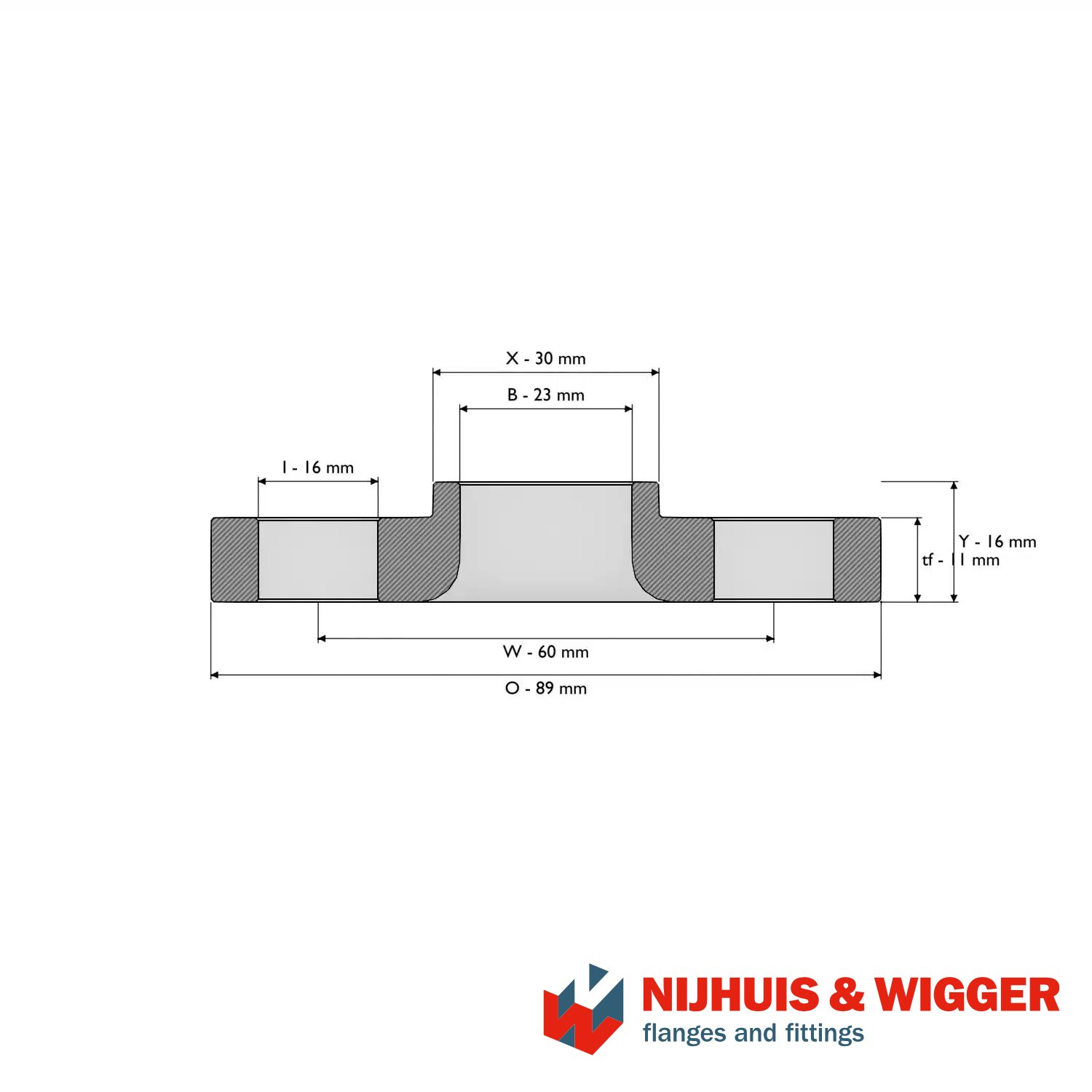

| Lap joint flens |
15 |
1/2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 15
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
89
|
|
Binnendiameter (B)
|
22.9
|
|
Flensdikte (tf)
|
11.2
|
|
Boutcirkeldiameter (W)
|
60.5
|
|
Onderste buitendiameter hals (X)
|
30
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
16
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 0.43
|

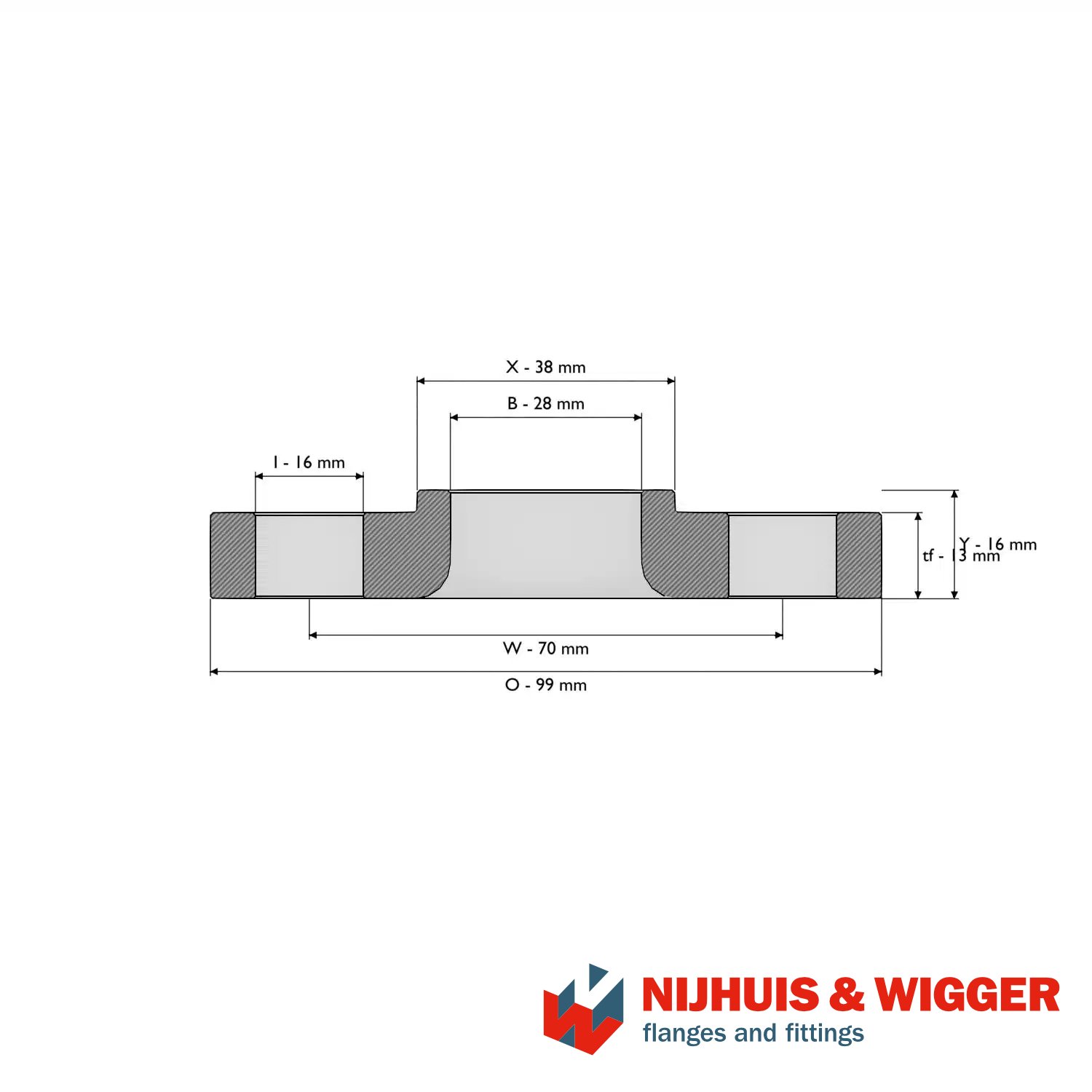

| Lap joint flens |
20 |
3/4" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 20
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
99
|
|
Binnendiameter (B)
|
28.2
|
|
Flensdikte (tf)
|
12.7
|
|
Boutcirkeldiameter (W)
|
69.8
|
|
Onderste buitendiameter hals (X)
|
38
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
16
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 0.65
|
| Lap joint flens |
25 |
1" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 25
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
108
|
|
Binnendiameter (B)
|
35.1
|
|
Flensdikte (tf)
|
14.3
|
|
Boutcirkeldiameter (W)
|
79.4
|
|
Onderste buitendiameter hals (X)
|
49
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
17
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 0.9
|
| Lap joint flens |
32 |
1 1/4" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 32
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
117
|
|
Binnendiameter (B)
|
43.7
|
|
Flensdikte (tf)
|
15.7
|
|
Boutcirkeldiameter (W)
|
88.9
|
|
Onderste buitendiameter hals (X)
|
59
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
21
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 1.06
|
| Lap joint flens |
40 |
1 1/2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 40
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
127
|
|
Binnendiameter (B)
|
50.0
|
|
Flensdikte (tf)
|
17.5
|
|
Boutcirkeldiameter (W)
|
98.4
|
|
Onderste buitendiameter hals (X)
|
65
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
22
|
|
Boutgatdiameter (I)
|
15.9
|
- weight 1.4
|

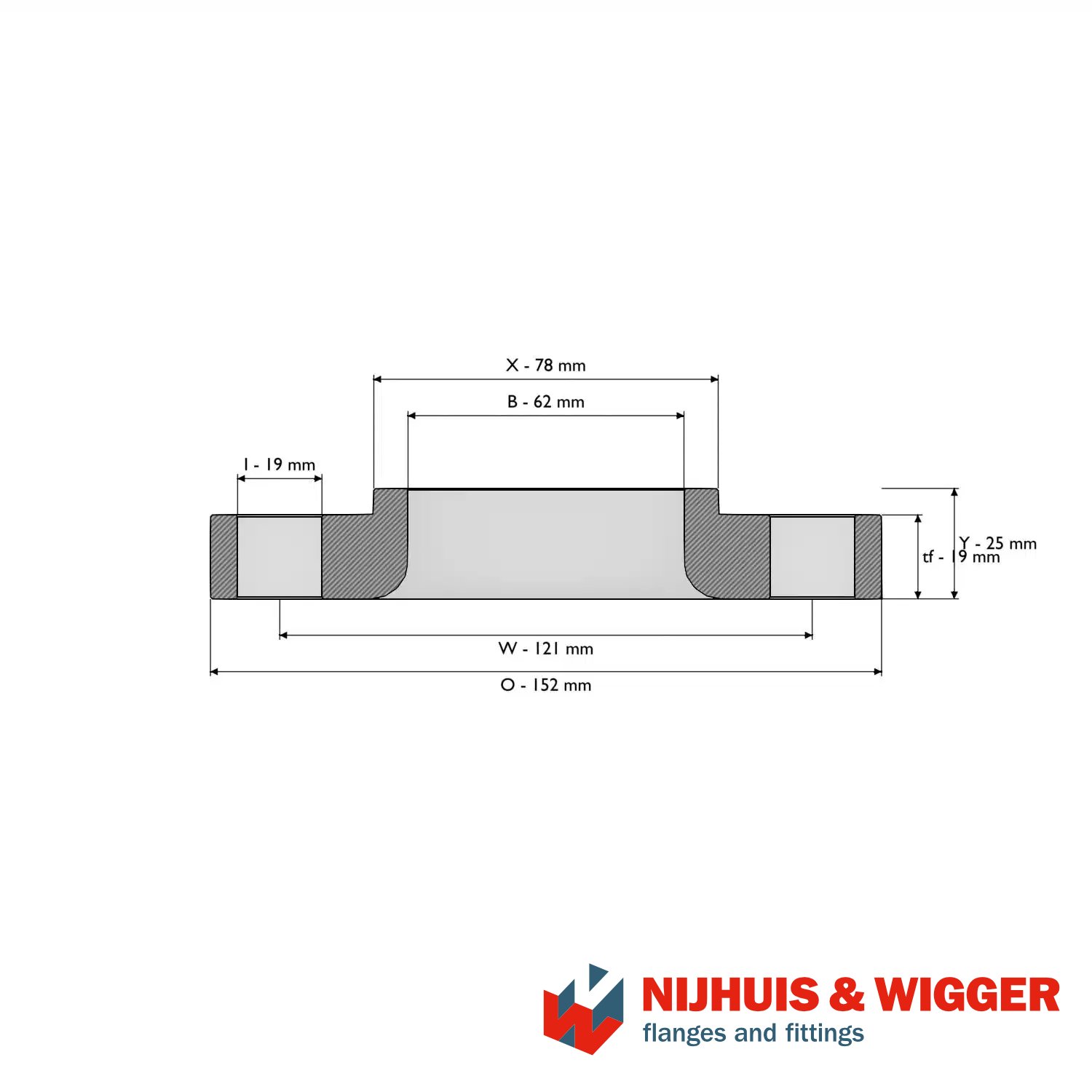

| Lap joint flens |
50 |
2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 50
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
152
|
|
Binnendiameter (B)
|
62.5
|
|
Flensdikte (tf)
|
19.1
|
|
Boutcirkeldiameter (W)
|
120.7
|
|
Onderste buitendiameter hals (X)
|
78
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
25
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 2.2
|
| Lap joint flens |
65 |
2 1/2" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 65
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
178
|
|
Binnendiameter (B)
|
74.2
|
|
Flensdikte (tf)
|
22.3
|
|
Boutcirkeldiameter (W)
|
139.7
|
|
Onderste buitendiameter hals (X)
|
90
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
29
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 3.65
|
| Lap joint flens |
80 |
3" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 80
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
190
|
|
Binnendiameter (B)
|
91.4
|
|
Flensdikte (tf)
|
23.9
|
|
Boutcirkeldiameter (W)
|
152.4
|
|
Onderste buitendiameter hals (X)
|
108
|
|
Aantal boutgaten (Z)
|
4
|
|
Totale hoogte (Y)
|
30
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 4.4
|
| Lap joint flens |
100 |
4" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 100
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
229
|
|
Binnendiameter (B)
|
116.8
|
|
Flensdikte (tf)
|
23.9
|
|
Boutcirkeldiameter (W)
|
190.5
|
|
Onderste buitendiameter hals (X)
|
135
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
33
|
|
Boutgatdiameter (I)
|
19.1
|
- weight 6.1
|
| Lap joint flens |
125 |
5" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 125
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
254
|
|
Binnendiameter (B)
|
144.5
|
|
Flensdikte (tf)
|
23.9
|
|
Boutcirkeldiameter (W)
|
215.9
|
|
Onderste buitendiameter hals (X)
|
164
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
37
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 6.36
|

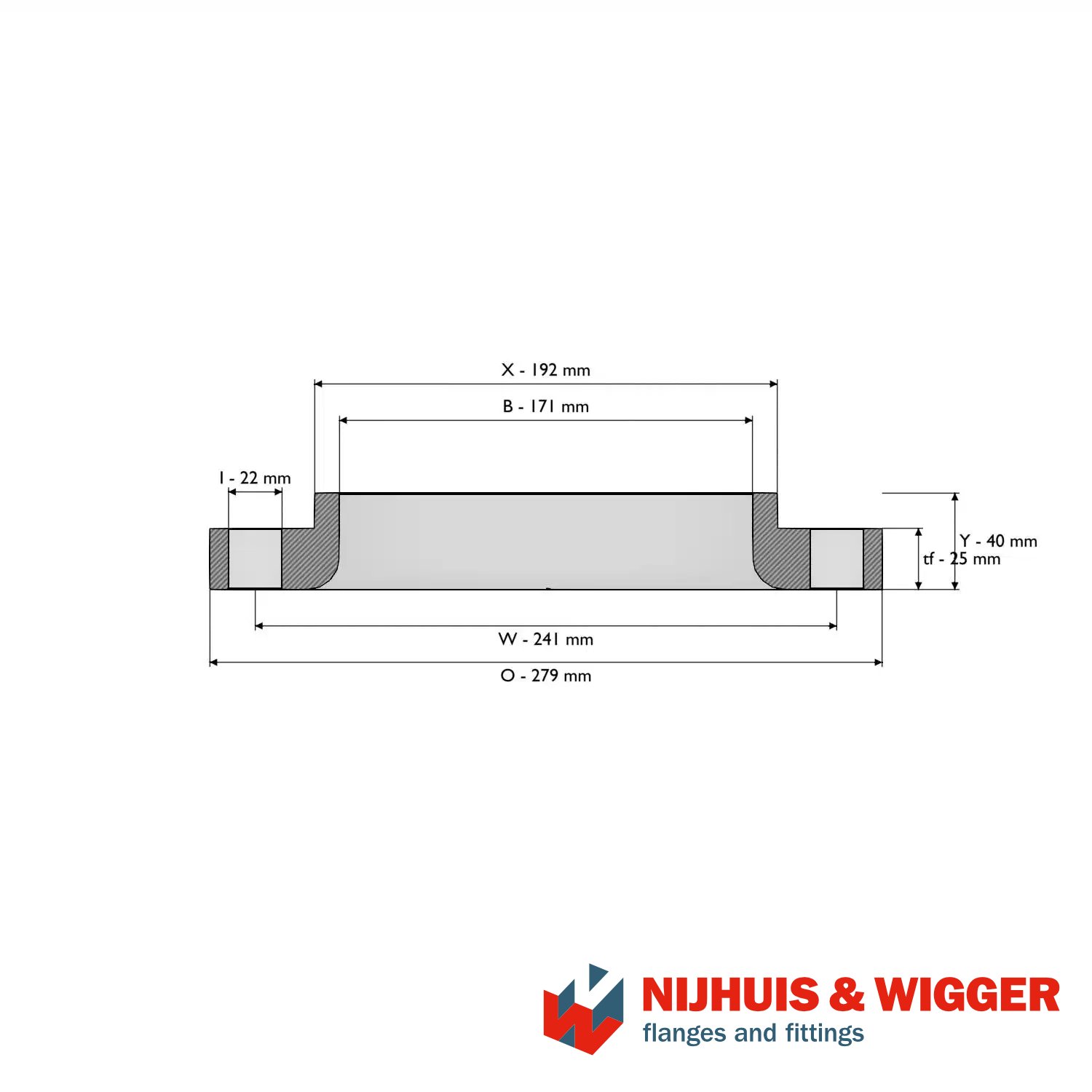

| Lap joint flens |
150 |
6" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 150
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
279
|
|
Binnendiameter (B)
|
171.4
|
|
Flensdikte (tf)
|
25.4
|
|
Boutcirkeldiameter (W)
|
241.3
|
|
Onderste buitendiameter hals (X)
|
192
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
40
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 7.7
|
| Lap joint flens |
200 |
8" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 200
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
343
|
|
Binnendiameter (B)
|
222.2
|
|
Flensdikte (tf)
|
28.4
|
|
Boutcirkeldiameter (W)
|
298.4
|
|
Onderste buitendiameter hals (X)
|
246
|
|
Aantal boutgaten (Z)
|
8
|
|
Totale hoogte (Y)
|
44
|
|
Boutgatdiameter (I)
|
22.2
|
- weight 12.6
|

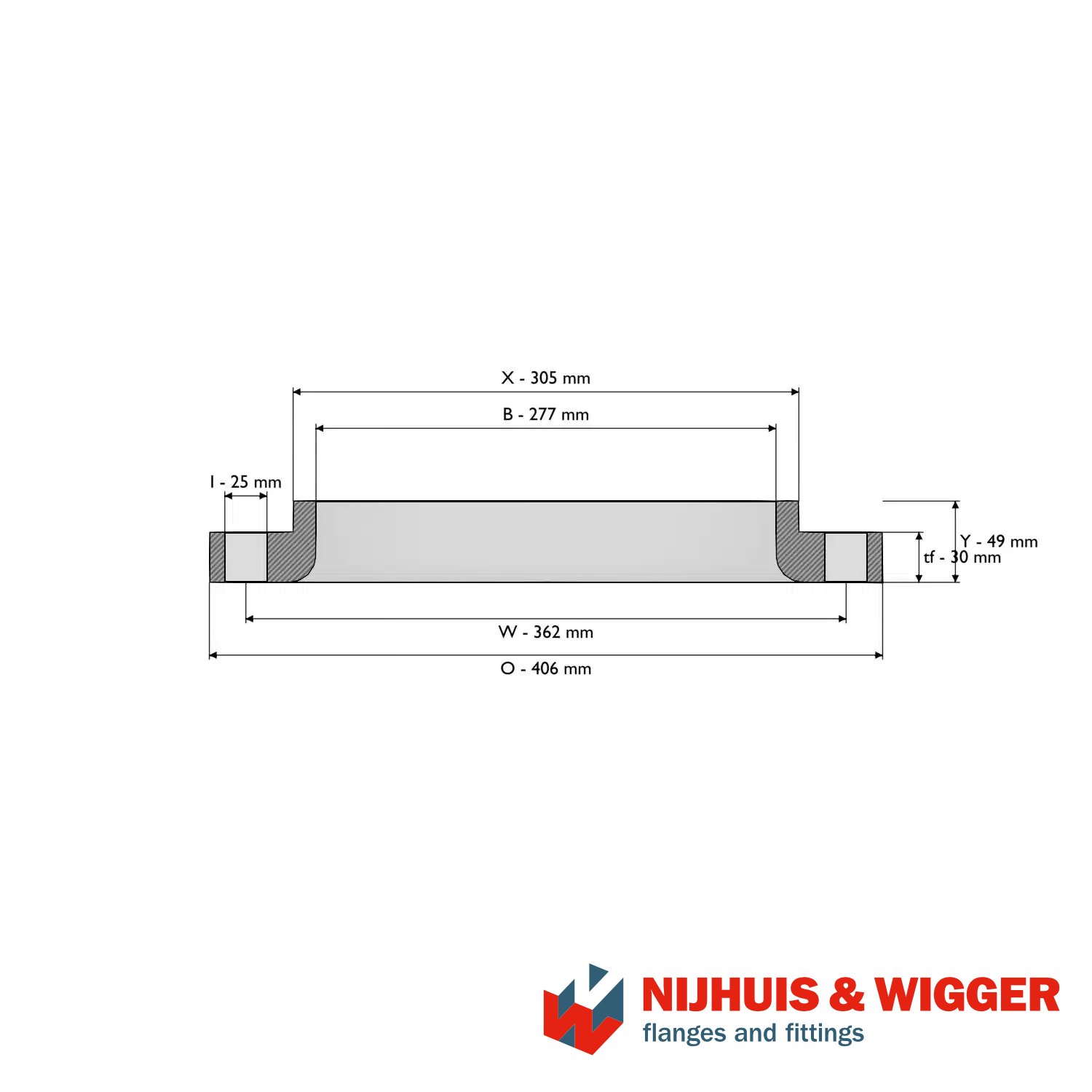

| Lap joint flens |
250 |
10" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 250
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
406
|
|
Binnendiameter (B)
|
277.4
|
|
Flensdikte (tf)
|
30.2
|
|
Boutcirkeldiameter (W)
|
362.0
|
|
Onderste buitendiameter hals (X)
|
305
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
49
|
|
Boutgatdiameter (I)
|
25.4
|
- weight 16.5
|
| Lap joint flens |
300 |
12" |
ASME B16.5/B16.47 |
|
150# |
A105N/ P280GH |
- DN 300
- Norm ASME B16.5/B16.47
- Type
- Facing type
- Nominal pressure 150#
- Material name A105N/ P280GH
- Material Number
- Stock
- dimensions
|
Buitendiameter (O)
|
483
|
|
Binnendiameter (B)
|
328.2
|
|
Flensdikte (tf)
|
31.8
|
|
Boutcirkeldiameter (W)
|
431.8
|
|
Onderste buitendiameter hals (X)
|
365
|
|
Aantal boutgaten (Z)
|
12
|
|
Totale hoogte (Y)
|
56
|
|
Boutgatdiameter (I)
|
25.4
|
- weight 23.5
|
