| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

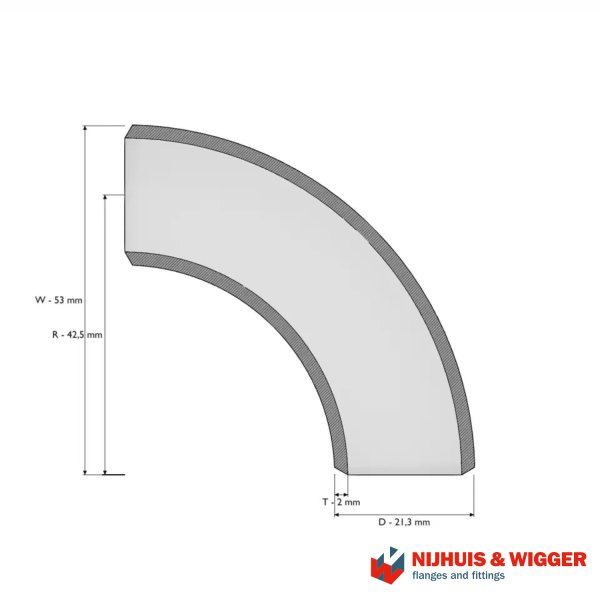

| Lasbocht 5D |
|
21.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock

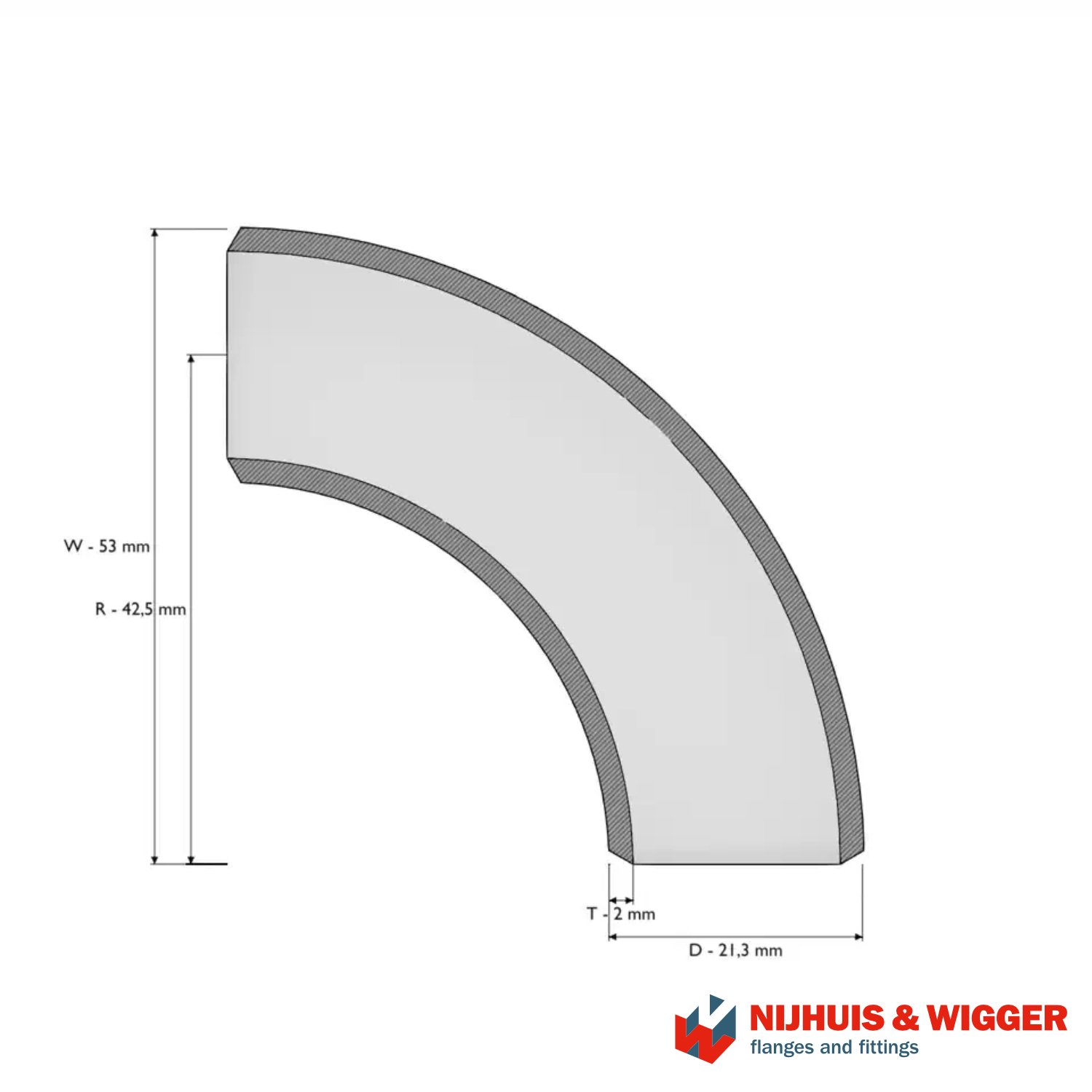

- dimensions
|
Outside Diameter 1 (D)
|
21.3
|
|
Radius 90 (R)
|
42.5
|
|
Thickness (T)
|
2.0
|
|
Height Radius 90 (W)
|
53
|
- weight 0.15
|
| Lasbocht 5D |
|
26.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
26.9
|
|
Radius 90 (R)
|
57.5
|
|
Thickness (T)
|
2.3
|
|
Height Radius 90 (W)
|
71
|
- weight 0.18
|

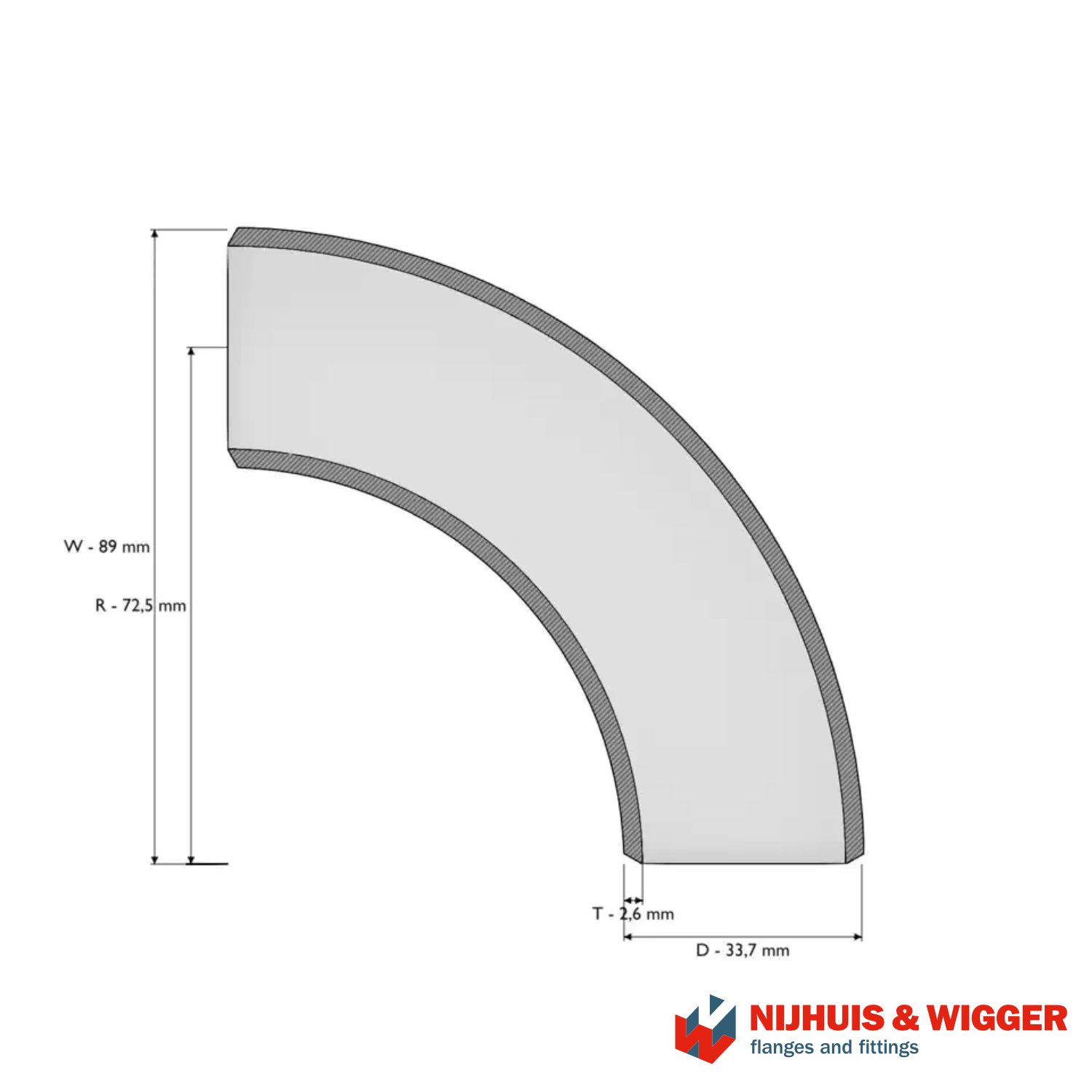

| Lasbocht 5D |
|
33.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
33.7
|
|
Radius 90 (R)
|
72.5
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
89
|
- weight 0.23
|

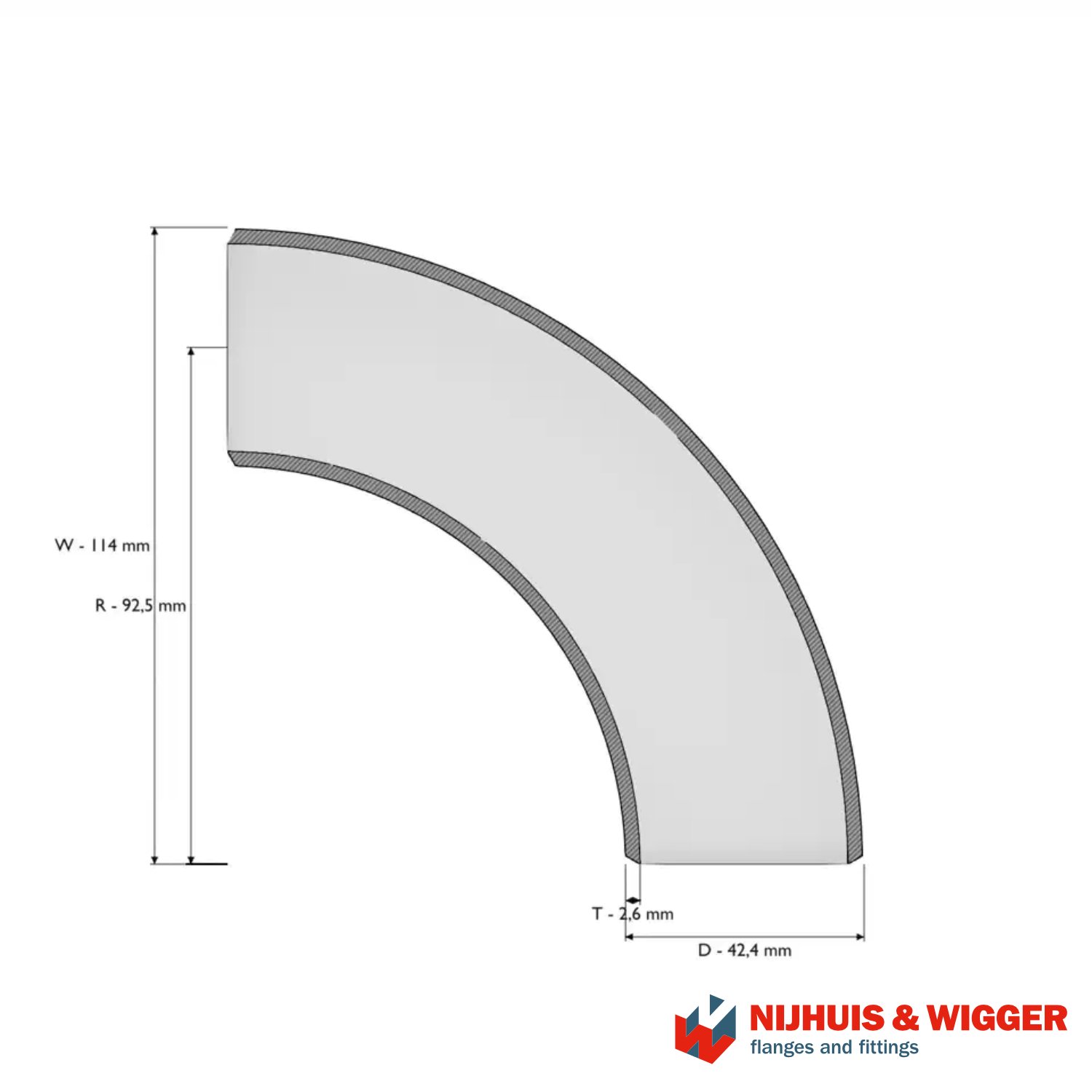

| Lasbocht 5D |
|
42.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
42.4
|
|
Radius 90 (R)
|
92.5
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
114
|
- weight 0.37
|
| Lasbocht 5D |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
48.3
|
|
Radius 90 (R)
|
109.5
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
134
|
- weight 0.5
|

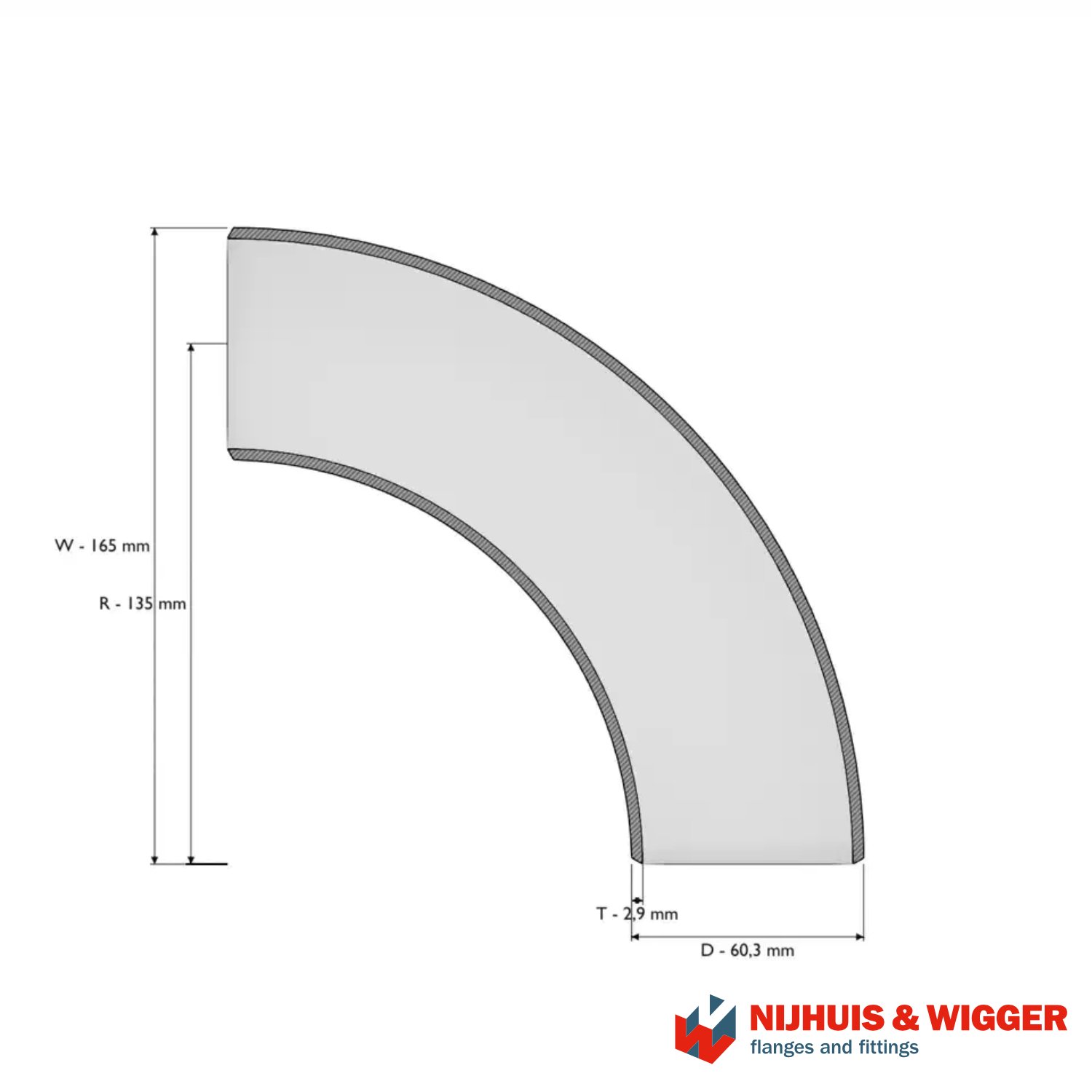

| Lasbocht 5D |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
60.3
|
|
Radius 90 (R)
|
135
|
|
Thickness (T)
|
2.9
|
|
Height Radius 90 (W)
|
165
|
- weight 0.87
|
| Lasbocht 5D |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
76.1
|
|
Radius 90 (R)
|
175
|
|
Thickness (T)
|
2.9
|
|
Height Radius 90 (W)
|
213
|
- weight 1.44
|

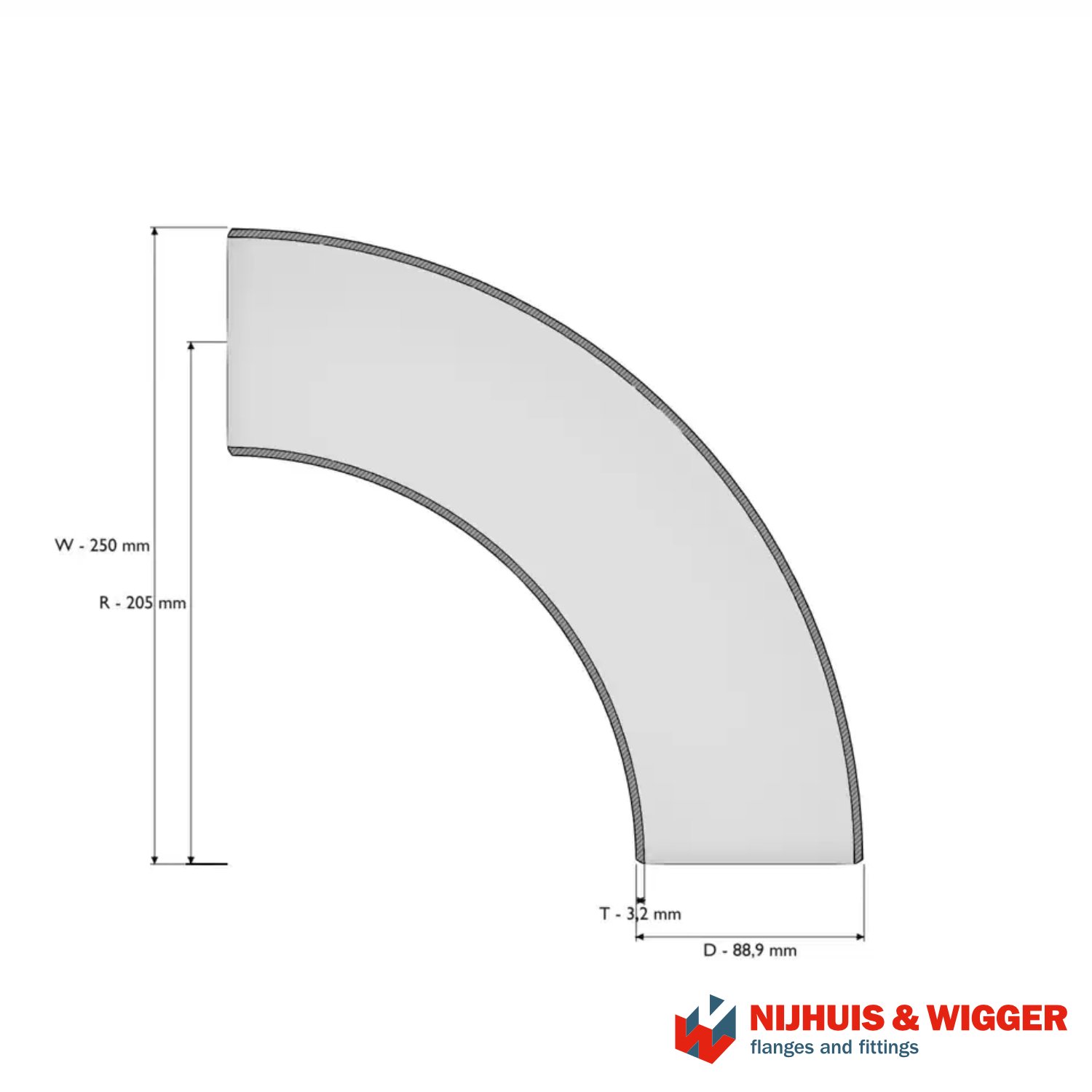

| Lasbocht 5D |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
88.9
|
|
Radius 90 (R)
|
207.5
|
|
Thickness (T)
|
3.2
|
|
Height Radius 90 (W)
|
252
|
- weight 2.2
|

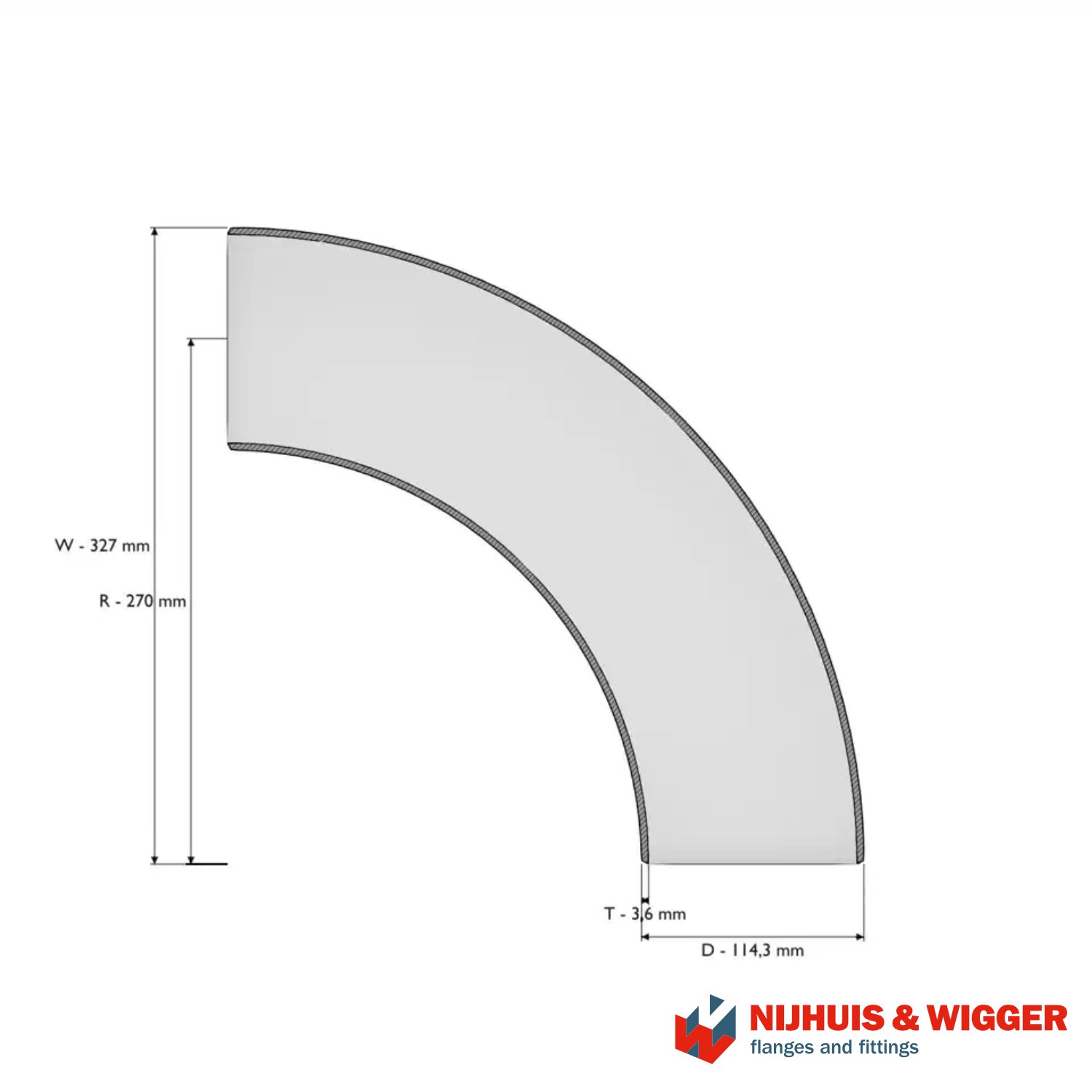

| Lasbocht 5D |
|
114.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
114.3
|
|
Radius 90 (R)
|
270
|
|
Thickness (T)
|
3.6
|
|
Height Radius 90 (W)
|
327
|
- weight 4.17
|
| Lasbocht 5D |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
139.7
|
|
Radius 90 (R)
|
330
|
|
Thickness (T)
|
4.0
|
|
Height Radius 90 (W)
|
400
|
- weight 6.94
|
| Lasbocht 5D |
|
168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
168.3
|
|
Radius 90 (R)
|
390
|
|
Thickness (T)
|
4.5
|
|
Height Radius 90 (W)
|
474
|
- weight 11.14
|
| Lasbocht 5D |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
219.1
|
|
Radius 90 (R)
|
515
|
|
Thickness (T)
|
5.9
|
|
Height Radius 90 (W)
|
625
|
- weight 25.09
|
| Lasbocht 5D |
|
273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
273.0
|
|
Radius 90 (R)
|
650
|
|
Thickness (T)
|
6.3
|
|
Height Radius 90 (W)
|
787
|
- weight 42.31
|
| Lasbocht 5D |
|
323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
323.9
|
|
Radius 90 (R)
|
770
|
|
Thickness (T)
|
7.1
|
|
Height Radius 90 (W)
|
932
|
- weight 67.09
|
| Lasbocht 5D |
|
355.6 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
355.6
|
|
Radius 90 (R)
|
850
|
|
Thickness (T)
|
8.0
|
|
Height Radius 90 (W)
|
1028
|
- weight 91.56
|
| Lasbocht 5D |
|
406.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
| |
|
|
|
|
|
Outside Diameter 1 (D)
|
406.4
|
|
Radius 90 (R)
|
970
|
|
Thickness (T)
|
8.8
|
|
Height Radius 90 (W)
|
1173
|
- weight 131.47
|
