| product name |
DN |
Size |
Norm |
Type |
Nominal pressure |
Material name |

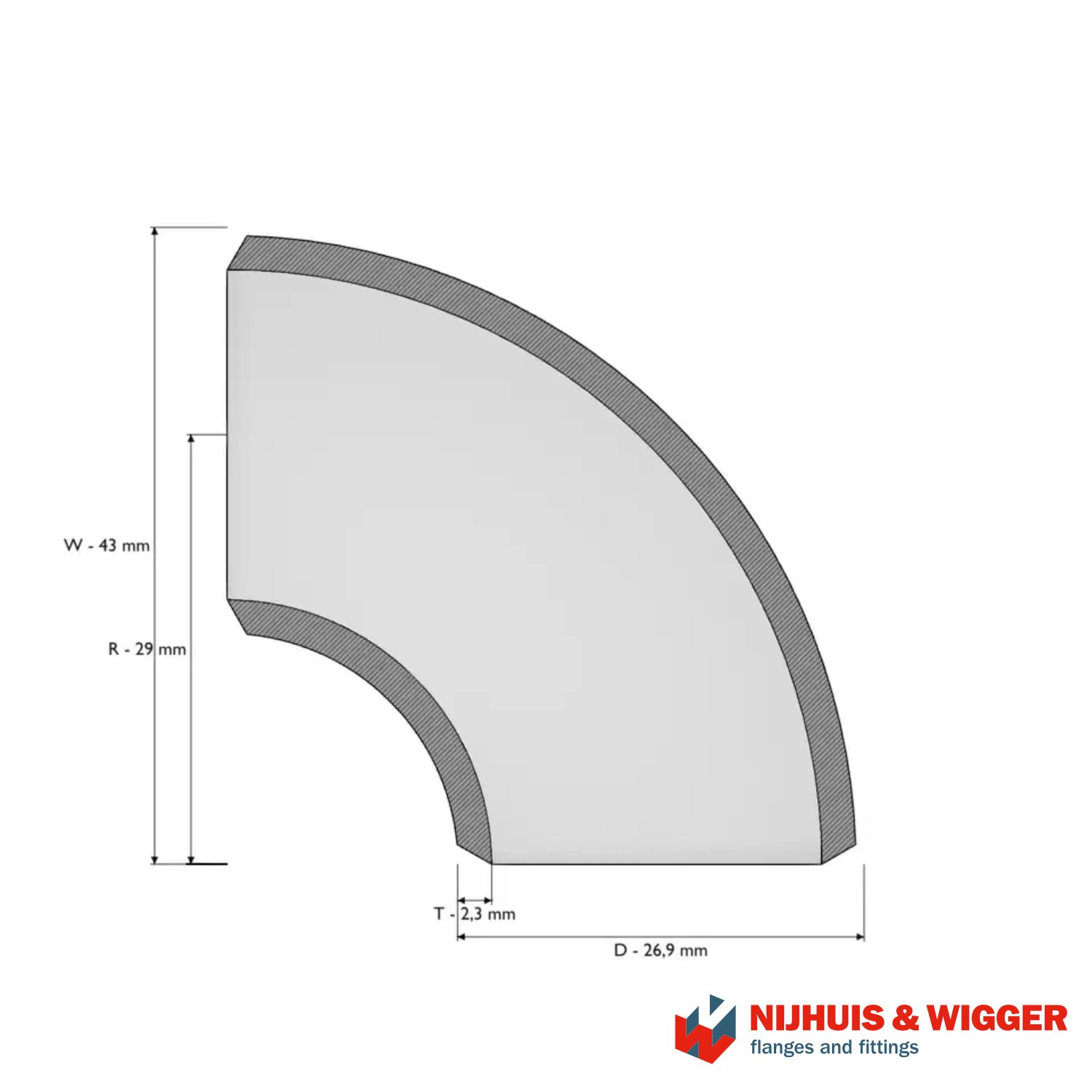

| Lasbocht 3D |
|
26.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
26.9
|
|
Radius 90 (R)
|
29
|
|
Thickness (T)
|
2.3
|
|
Height Radius 90 (W)
|
43
|
- weight 0.06
|

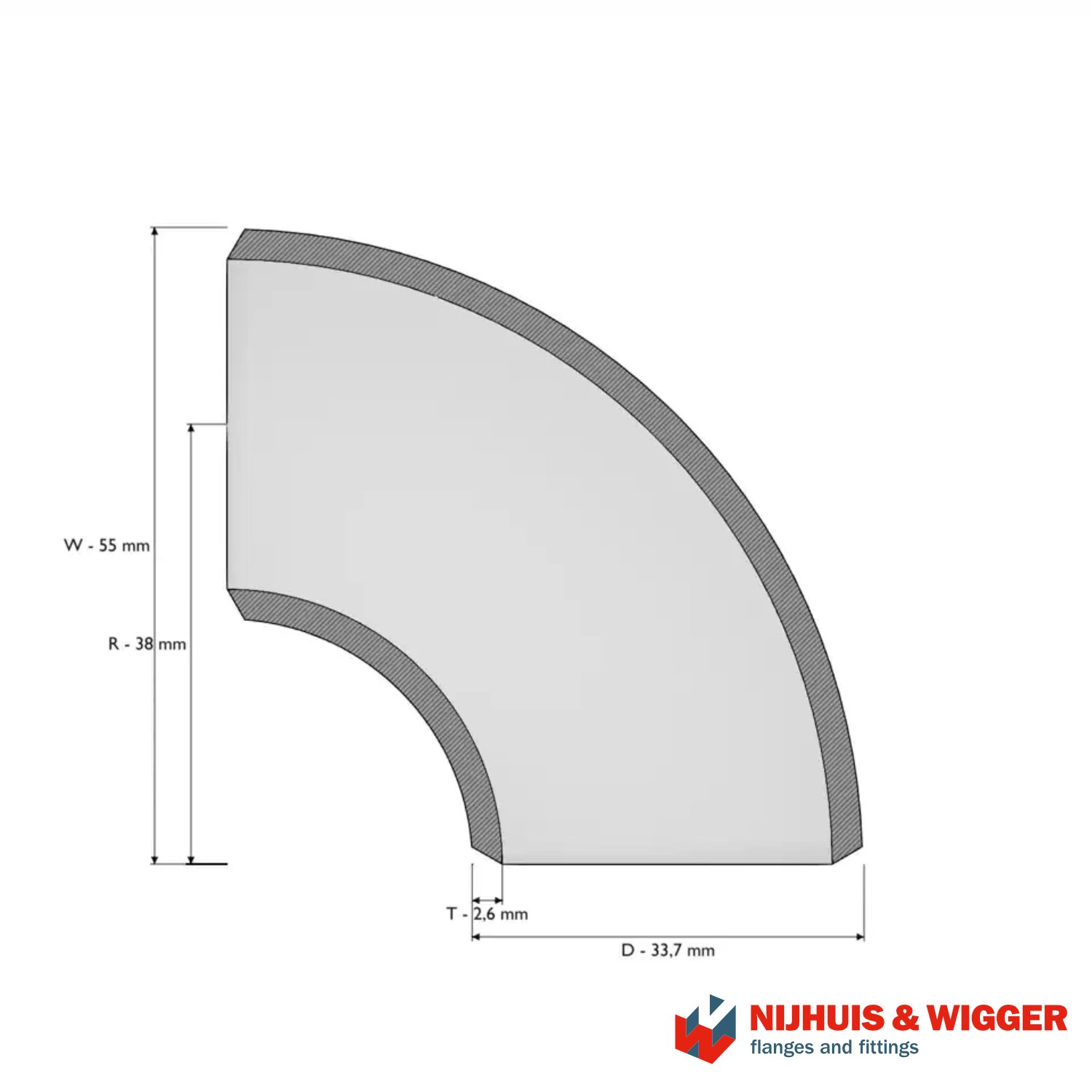

| Lasbocht 3D |
|
33.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
33.7
|
|
Radius 90 (R)
|
38
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
55
|
- weight 0.12
|

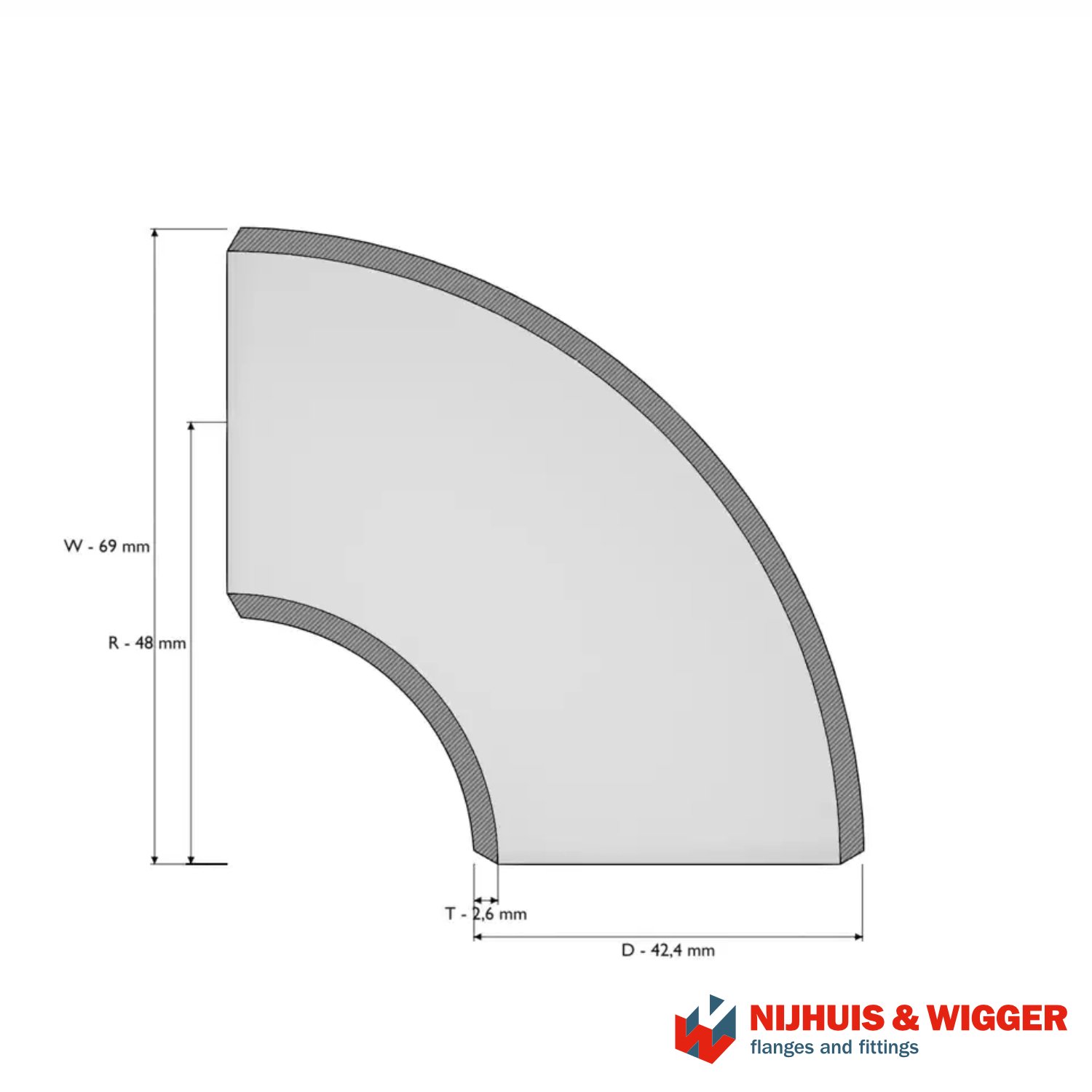

| Lasbocht 3D |
|
42.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
42.4
|
|
Radius 90 (R)
|
48
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
69
|
- weight 0.19
|

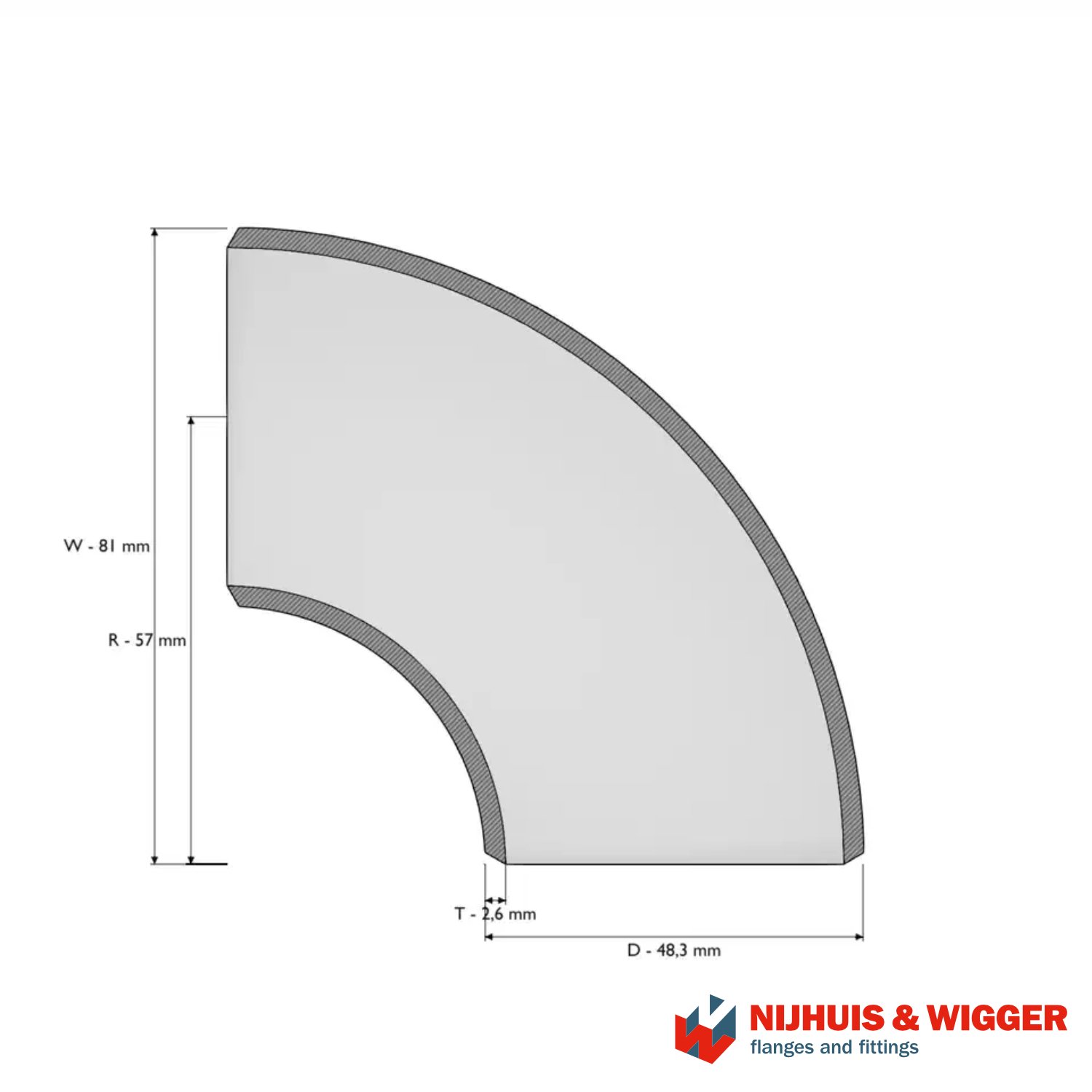

| Lasbocht 3D |
|
48.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
48.3
|
|
Radius 90 (R)
|
57
|
|
Thickness (T)
|
2.6
|
|
Height Radius 90 (W)
|
81
|
- weight 0.26
|

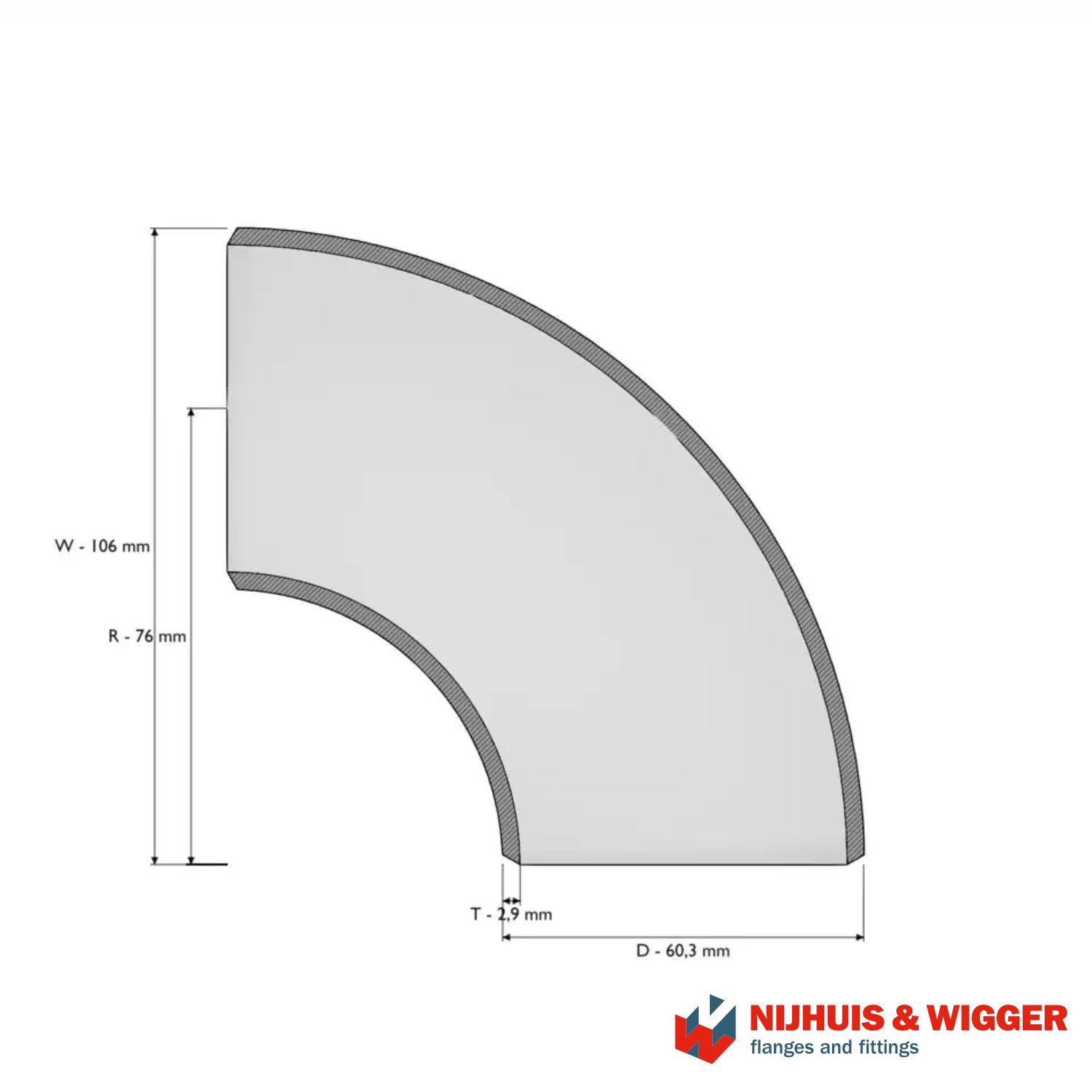

| Lasbocht 3D |
|
60.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
60.3
|
|
Radius 90 (R)
|
76
|
|
Thickness (T)
|
2.9
|
|
Height Radius 90 (W)
|
106
|
- weight 0.49
|

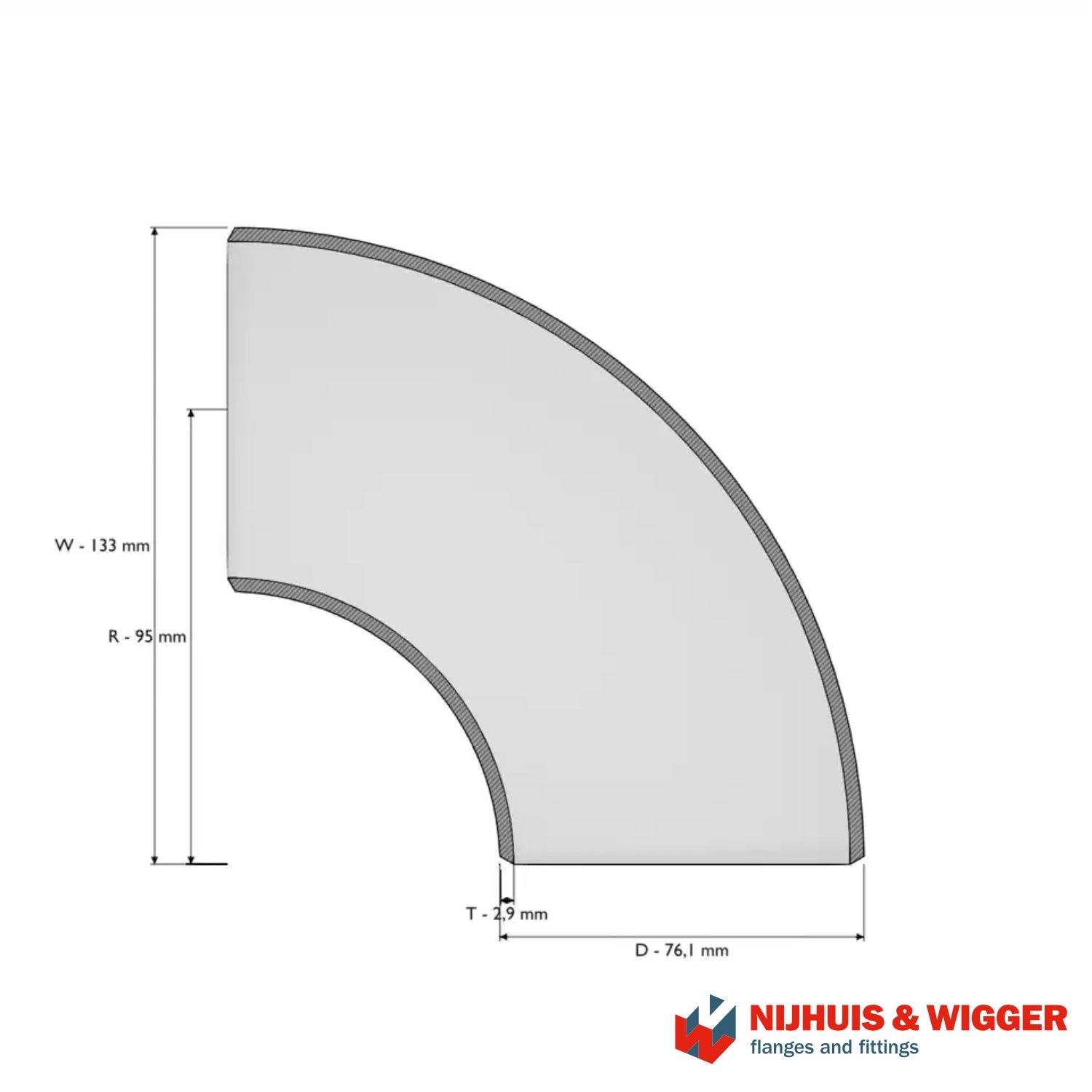

| Lasbocht 3D |
|
76.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
76.1
|
|
Radius 90 (R)
|
95
|
|
Thickness (T)
|
2.9
|
|
Height Radius 90 (W)
|
133
|
- weight 0.78
|
| Lasbocht 3D |
|
88.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
88.9
|
|
Radius 90 (R)
|
114
|
|
Thickness (T)
|
3.2
|
|
Height Radius 90 (W)
|
158
|
- weight 1.21
|
| Lasbocht 3D |
|
114.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
114.3
|
|
Radius 90 (R)
|
152
|
|
Thickness (T)
|
3.6
|
|
Height Radius 90 (W)
|
209
|
- weight 2.35
|

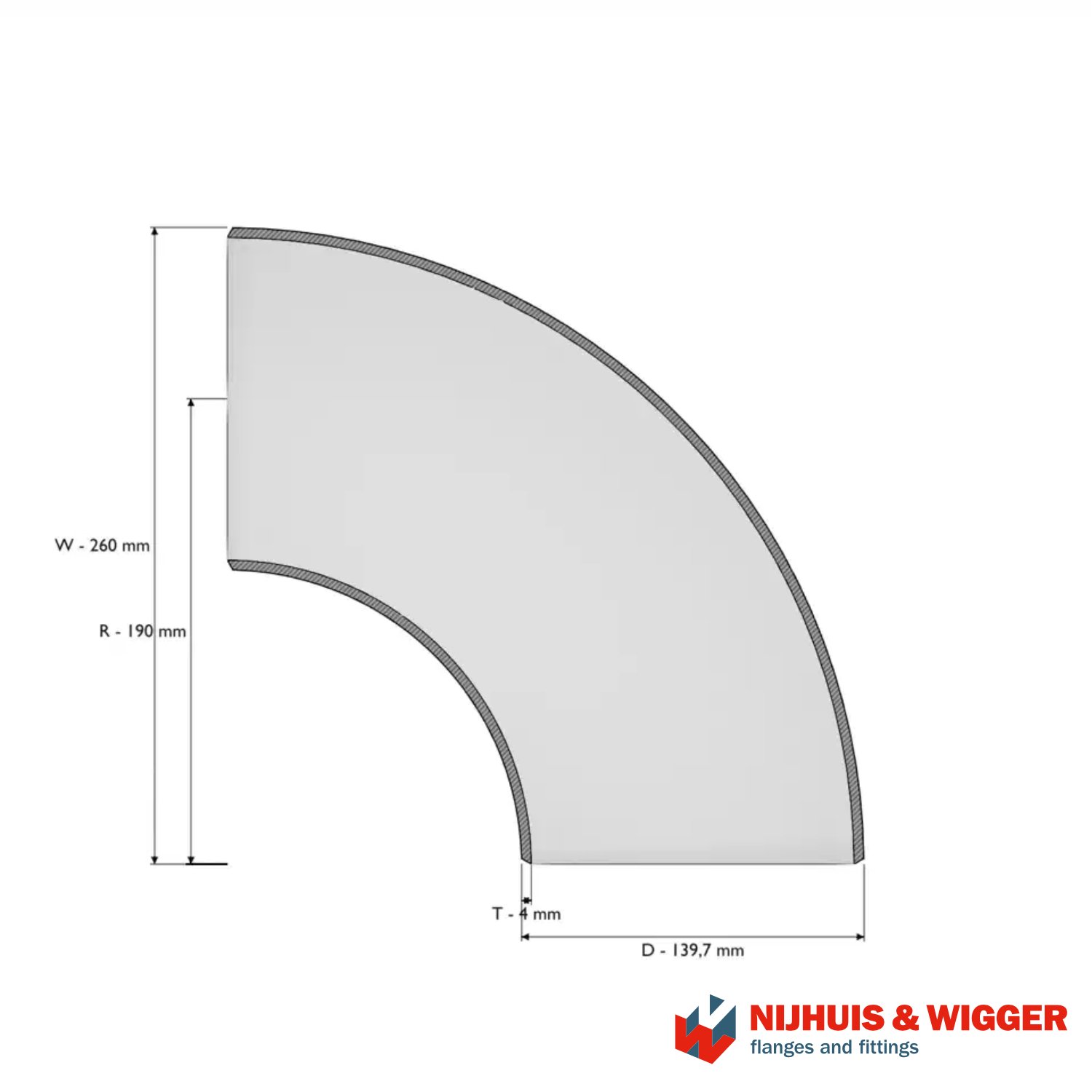

| Lasbocht 3D |
|
139.7 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
139.7
|
|
Radius 90 (R)
|
190
|
|
Thickness (T)
|
4.0
|
|
Height Radius 90 (W)
|
260
|
- weight 4
|

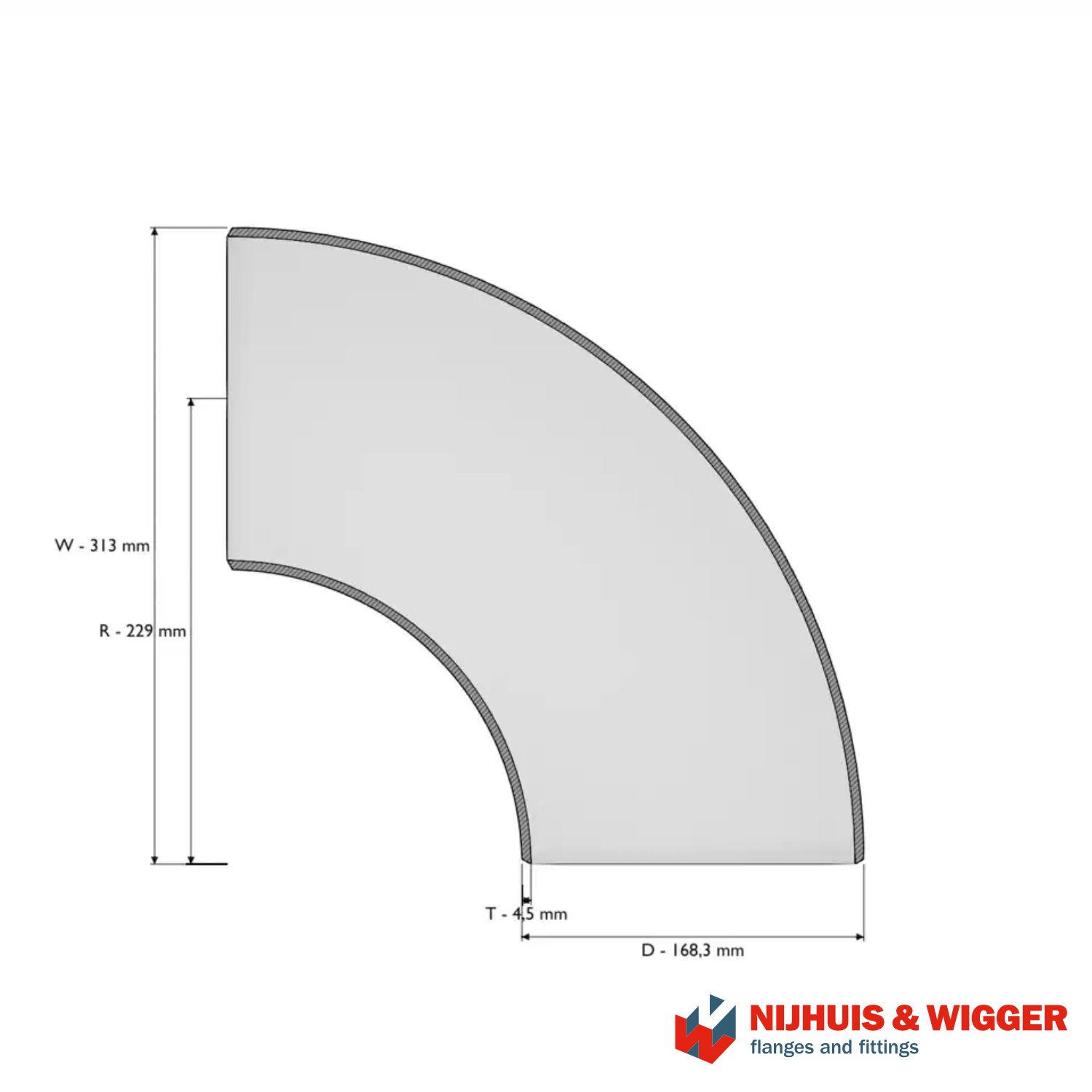

| Lasbocht 3D |
|
168.3 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
168.3
|
|
Radius 90 (R)
|
229
|
|
Thickness (T)
|
4.5
|
|
Height Radius 90 (W)
|
313
|
- weight 6.54
|
| Lasbocht 3D |
|
219.1 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
219.1
|
|
Radius 90 (R)
|
305
|
|
Thickness (T)
|
5.9
|
|
Height Radius 90 (W)
|
415
|
- weight 14.9
|

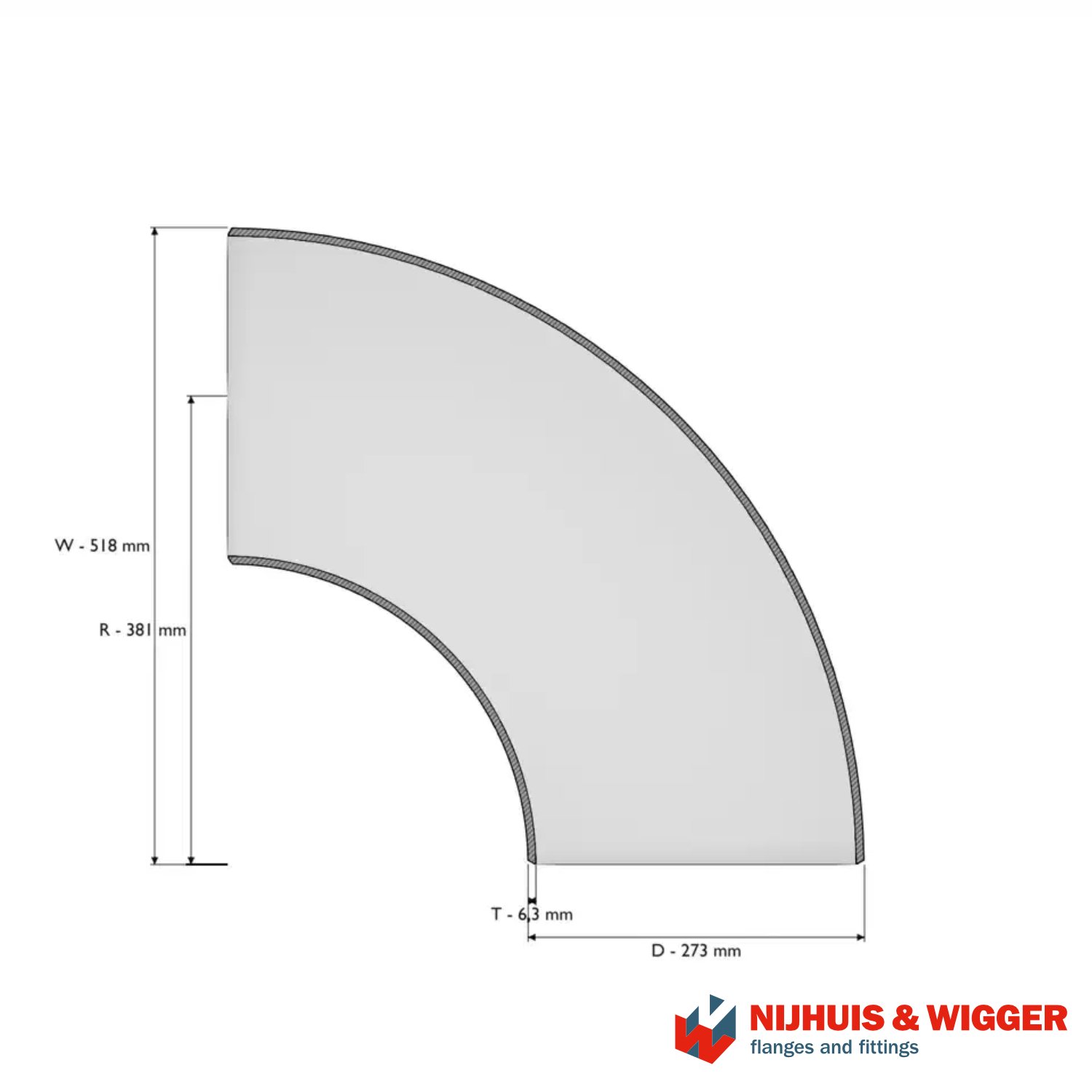

| Lasbocht 3D |
|
273 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
273.0
|
|
Radius 90 (R)
|
381
|
|
Thickness (T)
|
6.3
|
|
Height Radius 90 (W)
|
518
|
- weight 24.8
|
| Lasbocht 3D |
|
323.9 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
323.9
|
|
Radius 90 (R)
|
457
|
|
Thickness (T)
|
7.1
|
|
Height Radius 90 (W)
|
619
|
- weight 39.8
|
| Lasbocht 3D |
|
355.6 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
355.6
|
|
Radius 90 (R)
|
533
|
|
Thickness (T)
|
8.0
|
|
Height Radius 90 (W)
|
711
|
- weight 57.5
|

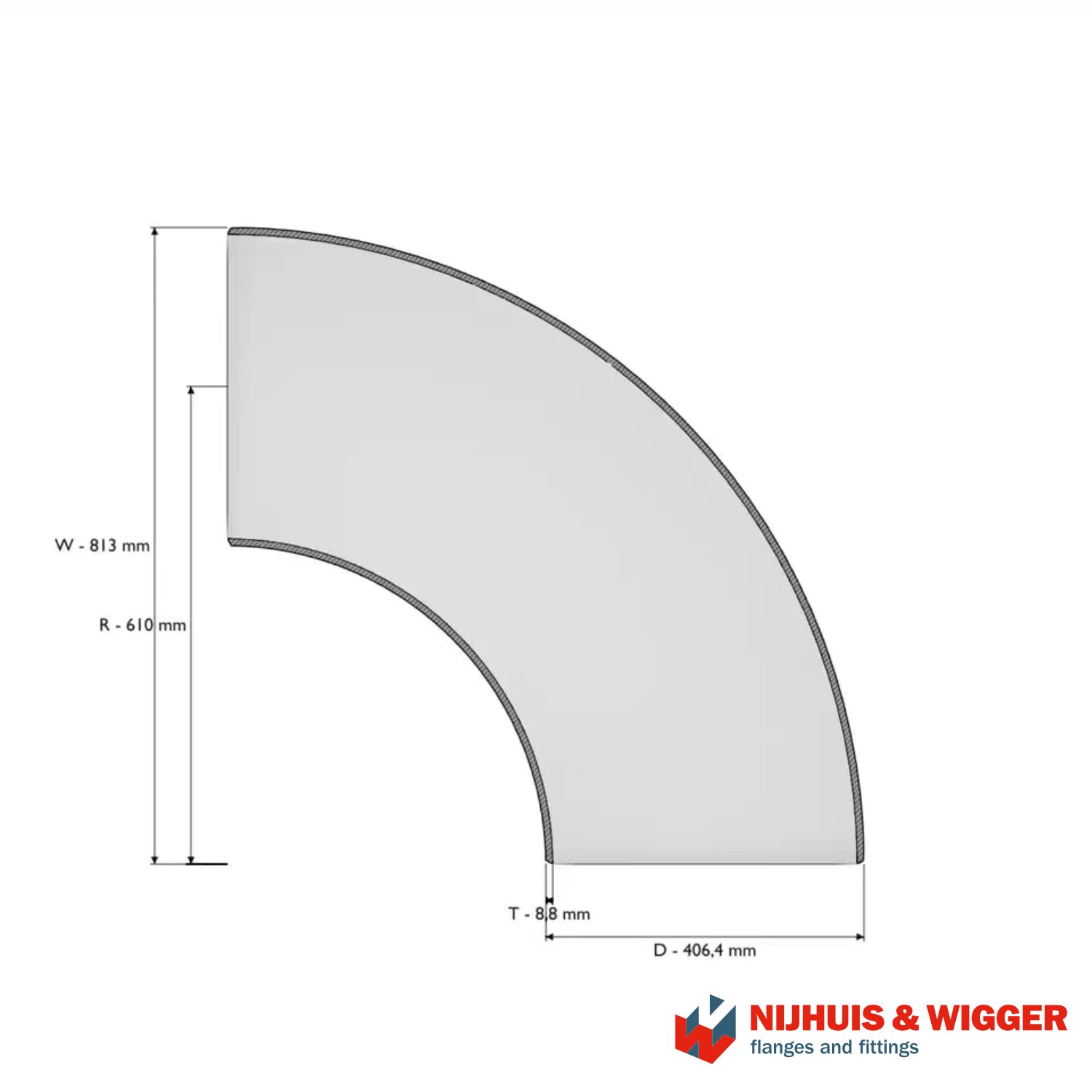

| Lasbocht 3D |
|
406.4 |
EN10253-2 |
T:A |
|
P235GH TC1 |
- DN
- Norm EN10253-2
- Type T:A
- Facing type
- Nominal pressure
- Material name P235GH TC1
- Material Number
- Stock
- dimensions
|
Outside Diameter 1 (D)
|
406.4
|
|
Radius 90 (R)
|
610
|
|
Thickness (T)
|
8.8
|
|
Height Radius 90 (W)
|
813
|
- weight 82.6
|
